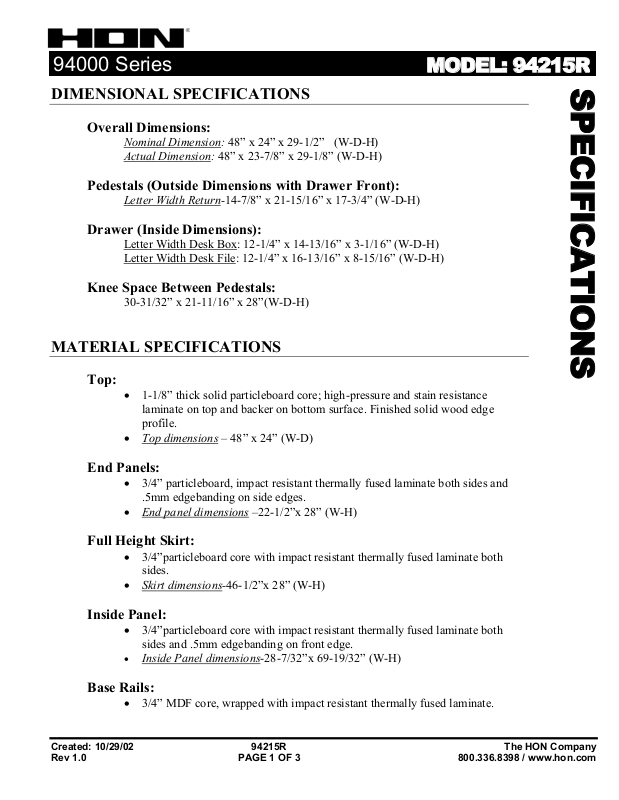

Page 1
R
94000 Series
DIMENSIONAL SPECIFICATIONS
Overall Dimensions:
Nominal Dimension: 48” x 24” x 29-1/2” (W-D-H)
Actual Dimension: 48” x 23-7/8” x 29-1/8” (W-D-H)
Pedestals (Outside Dimensions with Drawer Front):
Letter Width Return-14-7/8” x 21-15/16” x 17-3/4” (W-D-H)
Drawer (Inside Dimensions):
Letter Width Desk Box: 12-1/4” x 14-13/16” x 3-1/16” (W-D-H)
Letter Width Desk File
Knee Space Between Pedestals:
30-31/32” x 21-11/16” x 28”(W-D-H)
MATERIAL SPECIFICATIONS
Top:
• 1-1/8” thick solid particleboard core; high-pressure and stain resistance
laminate on top and backer on bottom surface. Finished solid wood edge
profile.
• Top dimensions – 48” x 24” (W-D)
End Panels:
• 3/4” particleboard, impact resistant thermally fused laminate both sides and
.5mm edgebanding on side edges.
• End panel dimensions –22-1/2”x 28” (W-H)
Full Height Skirt:
• 3/4”particleboard core with impact resistant thermally fused laminate both
sides.
• Skirt dimensions-46-1/2”x 28” (W-H)
Inside Panel:
• 3/4”particleboard core with impact resistant thermally fused laminate both
sides and .5mm edgebanding on front edge.
• Inside Panel dimensions-28-7/32”x 69-19/32” (W-H)
Base Rails:
• 3/4” MDF core, wrapped with impact resistant thermally fused laminate.
: 12-1/4” x 16-13/16” x 8-15/16” (W-D-H)
MODEL: 94215
SPECIFICATIONS
Created: 10/29/02 94215R The HON Company
Rev 1.0 PAGE 1 OF 3 800.336.8398 / www.hon.com
Page 2
R
94000 Series
Box Drawer Material:
• FRONTS-3/4” thick particleboard with melamine both front and back .5mm
PVC edgebanding on both sides and top.
• SIDES-7/16” thick fiberboard, 3-5/8” high.
• BACK-7/16” thick fiberboard, 3-5/8” high.
• BOTTOM-3/16” thick printed hardboard.
• SUBFRONT-7/16” thick fiberboard, 3-5/8” high.
• CONSTRUCTION-Sides mortise/tenon into drawer front, stapled to back and
subfront at corners. Bottom fits into slots on sides.
File Drawer Material:
• FRONTS-3/4”thick particleboard with melamine both front and back .5mm
edgebanding on both sides and top.
• SIDES-7/16”thick fiberboard, 9-1/2” high.
• BACK-7/16”thick fiberboard, 9-1/2” high.
• BOTTOM-3/16”thick printed hardboard.
• SUBFRONT-7/16”thick fiberboard, 9-1/2” high.
• CONSTRUCTION-Sides mortise/tenon into drawer front, stapled to back and
subfront at corners. Bottom fits into slots on sides.
Grommet:
• Grommet Location-3-1/2” from the right edge of top and 4-13/32” from the
back edge of top.
• Size: DIA 2-3/4 THRU
Hardware:
Hardware Pack-251-4656
Hangrial Pack-262-4100
Divider Pack-262-4002
Hangrail Instruction Sheet-242-7404
Product Pack-242-7851
MODEL: 94215
SPECIFICATIONS
Created: 10/29/02 94215R The HON Company
Rev 1.0 PAGE 2 OF 3 800.336.8398 / www.hon.com
Page 3
R
94000 Series
MODEL: 94215
MODEL FEATURES
• 3/4” Approach Side Top Overhang
• 3/4” Adjustable Glides
• ¾” Extension Ball Bearing Box Drawer Slide
• Full Extension ball Bearing File Drawer Slide
• File Drawer: Letter and legal width side-to-side filing, letter width front
to back filing. Hangrails are provided for all file drawers. Use Hanging
folders with a maximum height of 9-3/4”.Not to be used free standing
• 94000 Series wood produce meets or exceeds ISTA shipping and
ANIS/BIFMA X5.5 (latest Rev.) testing requirements for office furniture.
PARTICLEBOARD: All particleboard is ANSI grade IM3 or better.
CARTONING INFORMATION
Carton-Outside Dimensions: 51-3/4” x 26-3/4” x 31-1/8” (W-H-D)
Cubes: 24.9
Carton #: 242-3050
Weight: 154lbs
SPECIFICATIONS
Created: 10/29/02 94215R The HON Company
Rev 1.0 PAGE 3 OF 3 800.336.8398 / www.hon.com
