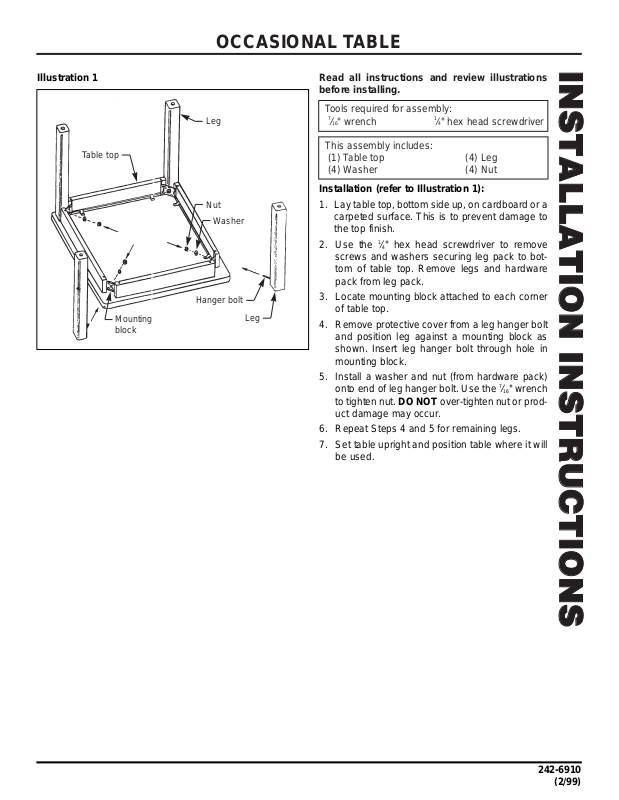

OCCASIONAL TABLE
Read all instructions and review illustrations
before installing.
Tools required for assembly:
7
⁄16" wrench
1
⁄4" hex head screwdriver
This assembly includes:
(1) Table top (4) Leg
(4) Washer (4) Nut

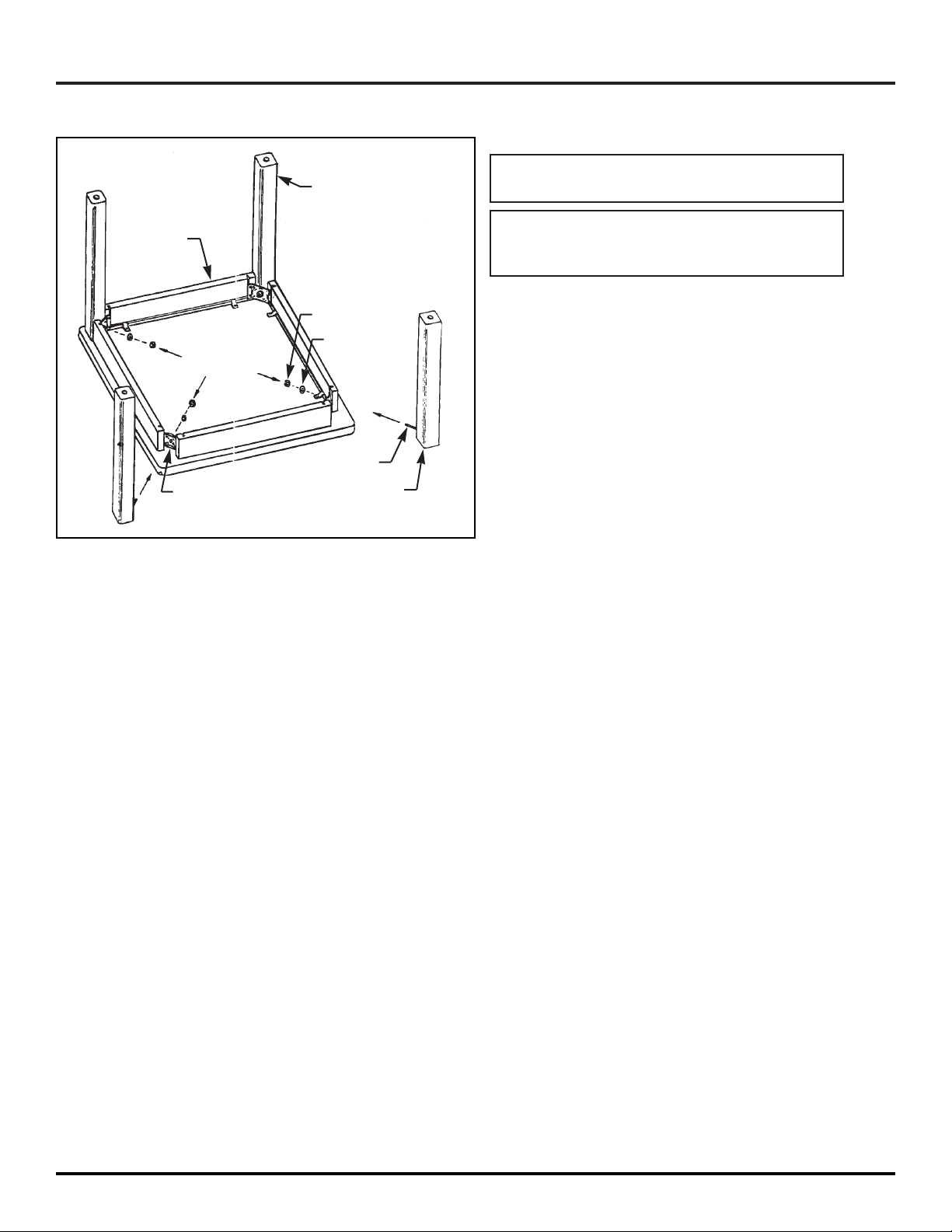

Illustration 1
Installation (refer to Illustration 1):
1. Lay table top, bottom side up, on cardboard or a
carpeted surface. This is to prevent damage to
the top finish.
2. Use the 1⁄4" hex head screwdriver to remove
screws and washers securing leg pack to bottom of table top. Remove legs and hardware
pack from leg pack.
3. Locate mounting block attached to each corner
of table top.
4. Remove protective cover from a leg hanger bolt
and position leg against a mounting block as
shown. Insert leg hanger bolt through hole in
mounting block.
5. Install a washer and nut (from hardware pack)
onto end of leg hanger bolt. Use the 7⁄16" wrench
to tighten nut. DO NOT over-tighten nut or product damage may occur.
6. Repeat Steps 4 and 5 for remaining legs.
7. Set table upright and position table where it will
be used.
242-6910
(2/99)
INSTALLATION INSTRUCTIONS
Leg
Hanger bolt
Nut
Washer
Leg
Table top
Mounting
block
