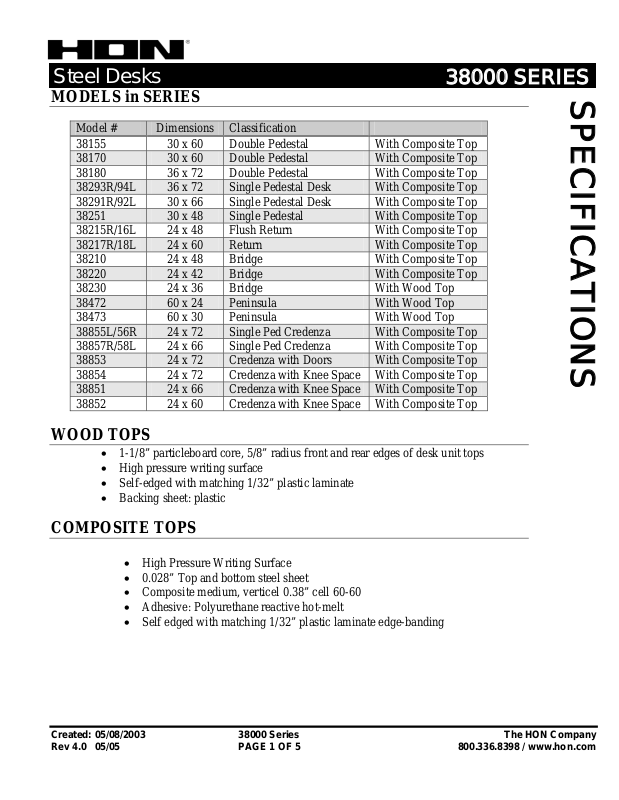

Steel Desks
MODELS in SERIES
Model # Dimensions Classification
38155 30 x 60 Double Pedestal With Composite Top
38170 30 x 60 Double Pedestal With Composite Top
38180 36 x 72 Double Pedestal With Composite Top
38293R/94L 36 x 72 Single Pedestal Desk With Composite Top
38291R/92L 30 x 66 Single Pedestal Desk With Composite Top
38251 30 x 48 Single Pedestal With Composite Top
38215R/16L 24 x 48 Flush Return With Composite Top
38217R/18L 24 x 60 Return With Composite Top
38210 24 x 48 Bridge With Composite Top
38220 24 x 42 Bridge With Composite Top
38230 24 x 36 Bridge With Wood Top
38472 60 x 24 Peninsula With Wood Top
38473 60 x 30 Peninsula With Wood Top
38855L/56R 24 x 72 Single Ped Credenza With Composite Top
38857R/58L 24 x 66 Single Ped Credenza With Composite Top
38853 24 x 72 Credenza with Doors With Composite Top
38854 24 x 72 Credenza with Knee Space With Composite Top
38851 24 x 66 Credenza with Knee Space With Composite Top
38852 24 x 60 Credenza with Knee Space With Composite Top
38000 SERIE
SPECIFICATIONS
WOOD TOPS
• 1-1/8” particleboard core, 5/8” radius front and rear edges of desk unit tops
• High pressure writing surface
• Self-edged with matching 1/32” plastic laminate
• Backing sheet: plastic
COMPOSITE TOPS
• High Pressure Writing Surface
• 0.028” Top and bottom steel sheet
• Composite medium, verticel 0.38” cell 60-60
• Adhesive: Polyurethane reactive hot-melt
• Self edged with matching 1/32” plastic laminate edge-banding
Created: 05/08/2003 38000 Series The HON Company
Rev 4.0 05/05 PAGE 1 OF 5 800.336.8398 / www.hon.com
Page 2
S
Steel Desks
38000 SERIE
DIMENSIONS (Over All Height of Desk is 29-1/2”, with level Screws Fully Retracted)
Pedestals:
Desks
14-57/64” x 28-57/64”x 19” (W-D-H)
Credenza, Return
14-57/64” x 22-57/64” x 19” (W-D-H)
Inside Drawer Dimensions:
Desks
Letter: 12-1/6” x 27-1/4” x 9-5/8” (W-D-H)
Box: 11-5/16” x 19-3/16” x 4-7/8” x (W-D-H)
Credenza, Return
Letter: 12-1/6” x 20-15/16” x 9-5/8” (W-D-H)
Box: 11-5/16” x 15-3/16” x 4-7/8” x (W-D-H)
Center Drawer
• Either 19-1/4” or 25” x 13-1/2”x 2-1/2” (W-D-H)
Knee Space
Model 38155, 38852
• 27-3/4”
Model 38170, 38851
• 33-3/4”
Model 38180, 38854
• 39-3/4”
Model 38251
• 30-3/4”
Model 38291R/92L, 38857L/58R
• 48-3/4”
Model 38293R/94L, 38855L/56R
• 54-3/4”
SPECIFICATIONS
CONSTRUCTION
Pedestal Construction:
• Vertical channels (4)
• Case Slides: ½” Ball Bearing Slide Suspension
• Lockrod: .188” diameter steel wire, galvanized finish
Created: 05/08/2003 38000 Series The HON Company
Rev 4.0 05/05 PAGE 2 OF 5 800.336.8398 / www.hon.com
Page 3
S
Steel Desks
End Panel Construction:
• Composite Medium: Honeycomb Panel 69-33-69 (69 lb. Backers, 33 lb. Inner
Medium, 69 lb. Backer)
• Adhesive: Polyurethane Reactive Hot-melt
• Level Screw: 7/8” Hex Base with 3/8” x 16” Thread Stem with 5/8” extension
DRAWER CONSTRUCTION
BOX DRAWER Single Wall
• Operation: Ball Bearing Slides
LETTER DRAWER
• Operation: Ball Bearing Slides
FEATURES
Hardware:
• Injection Molded Plastic Drawer Pull in matching paint color
• Plastic Wire Management
• Grommets in matching paint color
• Hang-rails- two per letter drawer for front to back filing
Follower:
• Automatic Positive Locking Side Action Follower, Adjustable on 5/8” Centers.
Dividers:
•
Adjustable dividers standard in all box drawers.
Lock:
• Pedestal Locking, located in knee-space of unit. Cores are removable for key
alike option.
Suspension:
• Zinc plated Ball Bearing slides (full extension on both Box and File drawers)
Finish:
• Baked enamel over phosphatizing prime rust-proofing treatment.
• Sound Deadening Material on inside of pedestal and on modesty panel
38000 SERIE
SPECIFICATIONS
Created: 05/08/2003 38000 Series The HON Company
Rev 4.0 05/05 PAGE 3 OF 5 800.336.8398 / www.hon.com
Page 4
S
Steel Desks
ACCESSORIES
Double Pedestal Desks
• D8- Center Drawer with pencil tray and core removable lock
Single Ped Desks (allows room for installation of a return)
•
D2- Center Drawer with pencil tray and core removable lock
Stack on Hutches
• 38141 , 38142, 38143, 38144- Full height stack on w/ Doors
• 38131 , 38132, 38133, 38134- ½ height stack on w/ Doors
• 38121 , 38122, 38123, 38124- Full height open shelf w/ back
• 38126 , 38127, 38128, 38129- ½ height open shelf w/back
CARTONING
38000 SERIE
SPECIFICATIONS
Model Weight Cubes Carton # Cartons Outside dimensions
38155 191 lbs. 36.6 42-7324 62-1/2” x 32-1/2” x 21-1/8” (W-D-H)
38170 196 lbs. 40.1 42-7320 68-1/2” x 32-1/2” x 31-1/8” (W-D-H)
38180 219 lbs. 51.7 42-7323 74-1/2” x 38-1/2” x 31-1/8” (W-D-H)
38251 166 lbs. 29.6 42-7325 50-1/2” x 32-1/2” x 31-1/8” (W-D-H)
38291R 154 lbs. 40.1 42-7320 68-1/2” x 32-1/2” x 31-1/8” (W-D-H)
38292L 154 lbs. 40.1 42-7320 68-1/2” x 32-1/2” x 31-1/8” (W-D-H)
38293R 175 lbs. 51.7 42-7323 74-1/2” x 38-1/2” x 31-1/8” (W-D-H)
38294L 175 lbs. 51.7 42-7323 74-1/2” x 38-1/2” x 31-1/8” (W-D-H)
38215R 108 lbs. 24.1 42-7328 50-1/2” x 26-1/2” x 31-1/8” (W-D-H)
38216L 108 lbs. 24.1 42-7328 50-1/2” x 26-1/2” x 31-1/8” (W-D-H)
38217R 119 lbs. 29.8 42-7331 62-1/2” x 26-1/2” x 31-1/8” (W-D-H)
38218L 119 lbs. 29.8 42-7331 62-1/2” x 26-1/2” x 31-1/8” (W-D-H)
38210 43 lbs. 4.2 42-9173
42-8709
38220 41 lbs. 4.2 42-9173
42-8709
53-1/2” x 34” x 4” (W-D-H)
53-1/2” x 34” x 4” (W-D-H)
Created: 05/08/2003 38000 Series The HON Company
Rev 4.0 05/05 PAGE 4 OF 5 800.336.8398 / www.hon.com
Page 5
S
Steel Desks
Model Weight Cubes Carton # Cartons Outside dimensions
38230 39 lbs. 3.2 42-4655
42-4635
38472 48 lbs. 10.9 42-9176
42-8712
38473 58 lbs. 10.9 42-9176
42-8712
38855L 135 lbs. 35.6 42-7321 74-1/2” x 26-1/2” x 31-1/8” (W-D-H)
38856R 135 lbs. 35.6 42-7321 74-1/2” x 26-1/2” x 31-1/8” (W-D-H)
38857L 130 lbs. 32.7 42-7322 68-1/2” x 26-1/2” x 31-1/8” (W-D-H)
38858R 130 lbs. 32.7 42-7322 68-1/2” x 26-1/2” x 31-1/8” (W-D-H)
38853 200 lbs. 35.6 42-7321 74-1/2” x 26-1/2” x 31-1/8” (W-D-H)
38854 168 lbs. 35.6 42-7321 74-1/2” x 26-1/2” x 31-1/8” (W-D-H)
38851 166 lbs. 32.7 42-7322 68-1/2” x 26-1/2” x 31-1/8” (W-D-H)
38852 160 lbs. 29.8 42-7331 62-1/2” x 26-1/2” x 31-1/8” (W-D-H)
47” x 35” x 3-3/8” (W-D-H)
69-3/4” x 33-3/4” x 8” (W-D-H)
69-3/4” x 33-3/4” x 8” (W-D-H)
REVISIONS
Number Date What was Changed
2.0 4/12/04 Updated weights (corrections)
3.0 9/13/04 Updated Suspension and weights
4.0 5/18/05 Updates Specifications
38000 SERIE
SPECIFICATIONS
Created: 05/08/2003 38000 Series The HON Company
Rev 4.0 05/05 PAGE 5 OF 5 800.336.8398 / www.hon.com
