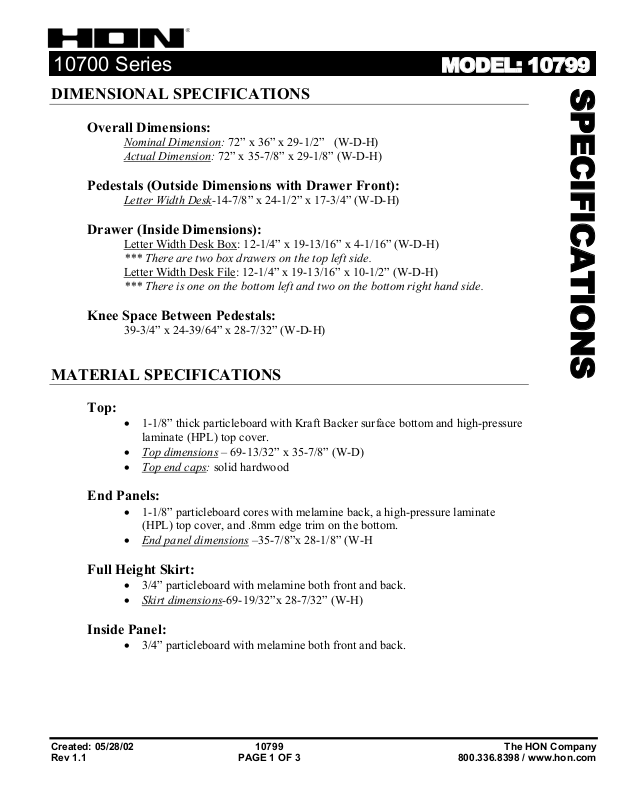

Page 1
9
10700 Series
MODEL: 1079
DIMENSIONAL SPECIFICATIONS
Overall Dimensions:
Nominal Dimension: 72” x 36” x 29-1/2” (W-D-H)
Actual Dimension: 72” x 35-7/8” x 29-1/8” (W-D-H)
Pedestals (Outside Dimensions with Drawer Front):
Letter Width Desk-14-7/8” x 24-1/2” x 17-3/4” (W-D-H)
Drawer (Inside Dimensions):
Letter Width Desk Box: 12-1/4” x 19-13/16” x 4-1/16” (W-D-H)
*** There are two box drawers on the top left side.
Letter Width Desk File: 12-1/4” x 19-13/16” x 10-1/2” (W-D-H)
*** There is one on the bottom left and two on the bottom right hand side.
Knee Space Between Pedestals:
39-3/4” x 24-39/64” x 28-7/32” (W-D-H)
SPECIFICATIONS
MATERIAL SPECIFICATIONS
Top:
• 1-1/8” thick particleboard with Kraft Backer surface bottom and high-pressure
laminate (HPL) top cover.
• Top dimensions – 69-13/32” x 35-7/8” (W-D)
• Top end caps: solid hardwood
End Panels:
• 1-1/8” particleboard cores with melamine back, a high-pressure laminate
(HPL) top cover, and .8mm edge trim on the bottom.
• End panel dimensions
Full Height Skirt:
• 3/4” particleboard with melamine both front and back.
• Skirt dimensions
Inside Panel:
• 3/4” particleboard with melamine both front and back.
–35-7/8”x 28-1/8” (W-H
-69-19/32”x 28-7/32” (W-H)
Created: 05/28/02 10799 The HON Company
Rev 1.1 PAGE 1 OF 3 800.336.8398 / www.hon.com
Page 2
9
10700 Series
Box Drawer Material:
• FRONTS-3/4” thick particleboard with melamine both front and back .5mm
edgebanding on both sides and top.
• SIDES-7/16” thick fiberboard, 3-5/8” high.
• BACK-7/16” thick fiberboard, 3-5/8” high.
• BOTTOM-3/16” thick printed hardboard.
• SUBFRONT-7/16” thick fiberboard, 3-5/8” high.
• CONSTRUCTION-Sides mortise/tenon into drawer front, stapled to back and
subfront at corners. Bottom fits into slots on sides.
File Drawer Material:
• FRONTS-3/4”thick particleboard with melamine both front and back .5mm
edgebanding on both sides and top.
• SIDES-7/16”thick fiberboard, 9-1/2” high.
• BACK-7/16”thick fiberboard, 9-1/2” high.
• BOTTOM-3/16”thick printed hardboard.
• SUBFRONT-7/16”thick fiberboard, 9-1/2” high.
• CONSTRUCTION-Sides mortise/tenon into drawer front, stapled to back and
subfront at corners. Bottom fits into slots on sides.
Grommet:
The first is 6-61/64” from the left edge of top, and 23-1/8” from the front edge of
top. The second is 58-61/64” from left edge of desk and the same distance from
front edge.
• Size: 3-1/4” x 1-7/8” (W-H)
Hardware:
Frame Pack-242-67659
Divider Pack-262-4002
Hangrail Pack-262-4107
Product Pack
-262-3190
MODEL: 1079
SPECIFICATIONS
Created: 05/28/02 10799 The HON Company
Rev 1.1 PAGE 2 OF 3 800.336.8398 / www.hon.com
Page 3
9
10700 Series
MODEL FEATURES
• 10-1/2” Approach Side Top Overhang
• 3/4” Adjustable Glides
• ¾” Extension Ball Bearing Box Drawer Slide
• Full Extension ball Bearing File Drawer Slide
• File Drawer: Letter and legal width side-to-side filing, letter width front to
back filing. Hangrails are provided for all file drawers. Use Hanging folders
with a maximum height of 9-3/4”.
• Lock #: 50-5575
• 10700 Series wood produce meets or exceeds ISTA shipping and
ANIS/BIFMA X5.5 (latest Rev.) testing requirements for office furniture.
• *** Classical contemporary styling and hardwood accents
PARTICLEBOARD: All particleboard is ANSI grade IM3 or better.
CARTONING INFORMATION
Carton-Outside Dimensions: 74-3/8” x 38-3/8” x 32”
Cubes: 52.9
Carton #: 242-5710
Weight: 371 lbs.
MODEL: 1079
SPECIFICATIONS
REVISIONS
1.1-Corrected carton size and cube. (1-19-04)
Created: 05/28/02 10799 The HON Company
Rev 1.1 PAGE 3 OF 3 800.336.8398 / www.hon.com
