10700 Series
MODEL: 10715

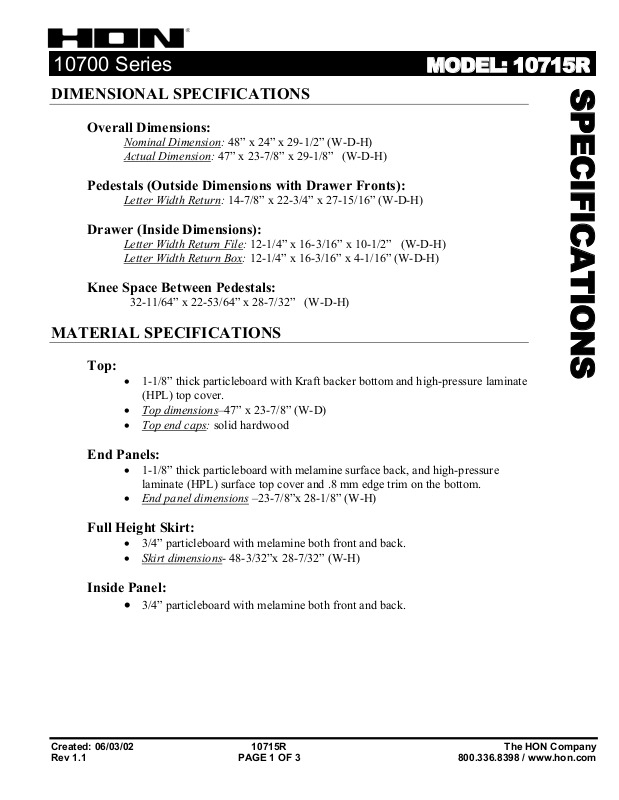

DIMENSIONAL SPECIFICATIONS
Overall Dimensions:
Nominal Dimension: 48” x 24” x 29-1/2” (W-D-H)
Actual Dimension: 47” x 23-7/8” x 29-1/8” (W-D-H)
Pedestals (Outside Dimensions with Drawer Fronts):
Letter Width Return: 14-7/8” x 22-3/4” x 27-15/16” (W-D-H)
Drawer (Inside Dimensions):
Letter Width Return File: 12-1/4” x 16-3/16” x 10-1/2” (W-D-H)
Letter Width Return Box
32-11/64” x 22-53/64” x 28-7/32” (W-D-H)
Knee Space Between Pedestals:
: 12-1/4” x 16-3/16” x 4-1/16” (W-D-H)
MATERIAL SPECIFICATIONS
Top:
• 1-1/8” thick particleboard with Kraft backer bottom and high-pressure laminate
(HPL) top cover.
• Top dimensions–47” x 23-7/8” (W-D)
• Top end caps: solid hardwood
End Panels:
• 1-1/8” thick particleboard with melamine surface back, and high-pressure
laminate (HPL) surface top cover and .8 mm edge trim on the bottom.
• End panel dimensions –23-7/8”x 28-1/8” (W-H)
Full Height Skirt:
• 3/4” particleboard with melamine both front and back.
• Skirt dimensions- 48-3/32”x 28-7/32” (W-H)
Inside Panel:
• 3/4” particleboard with melamine both front and back.
SPECIFICATIONS
Created: 06/03/02 10715R The HON Company
Rev 1.1 PAGE 1 OF 3 800.336.8398 / www.hon.com
Page 2
R
10700 Series
Box Drawer Material:
• FRONTS-3/4” thick particleboard with melamine both front and back .5mm
PVC edgebanding on both sides and top.
• SIDES-7/16” thick fiberboard, 3-5/8” high.
• BACK 7/16” thick fiberboard, 2-1/16” high.
• BOTTOM-3/16” thick printed hardboard.
• SUBFRONT-7/16” thick fiberboard, 3-5/8” high.
• CONSTRUCTION-Sides mortise/tenon into drawer front, stapled to back and
subfront at corners. Bottom fits into slots on sides.
File Drawer Material:
• FRONTS-3/4”thick particleboard with melamine both front and back .5mm
edgebanding on both sides and top.
• SIDES-7/16”thick fiberboard, 9-1/2” high.
• BACK-7/16”thick fiberboard, 9-1/2” high.
• BOTTOM-3/16”thick printed hardboard.
• SUBFRONT-7/16”thick fiberboard, 9-1/2” high.
• CONSTRUCTION-Sides mortise/tenon into drawer front, stapled to back and
subfront at corners. Bottom fits into slots on sides.
Grommet:
• There is one grommet that is located in the back right-hand corner of the desk.
It is rectangle in shape. And is 1-7/8” from the right side of the desk and 167/8” from the front edge of the desk.
• Size: 3-1/4” x 1-7/8” (W-H)
Hardware:
Frame Pack
Divider Pack-262-4002
Hangrail Pack-262-4100
Product Pack
Hardware Pack
-242-6772
- 262-3147
- 251-4400
MODEL: 10715
SPECIFICATIONS
Created: 06/03/02 10715R The HON Company
Rev 1.1 PAGE 2 OF 3 800.336.8398 / www.hon.com
Page 3
R
10700 Series
MODEL FEATURES
• .625 Radius edge on 107 tops
• 3/4” Adjustable Glides
• Full Extension Ball Bearing File Drawer Slides.
• File drawers: Letter and legal width side-to-side and front to back filing.
Hangrails are provided for all of the drawers. Use hanging folders with a
maximum height of 9-3/8”
• *** Return is for use with single pedestal desks or corner unit only. Not to be
used freestanding
• 10700 Series wood produce meets or exceeds ISTA shipping and
ANIS/BIFMA X5.5 (latest Rev.) testing requirements for office furniture.
***Classical contemporary styling with hardwood accents.
PARTICLEBOARD: All particleboard is ANSI grade IM3 or better.
CARTONING INFORMATION
Carton-Outside Dimensions: 51-7/8” x 26-3/8” x 32” (W-D-H)
Cubes: 25.3
Carton #: 242-3050
Weight: 147lb
MODEL: 10715
SPECIFICATIONS
REVISIONS
1.1-Corrected cartons size and cube. (1-19-04)
Created: 06/03/02 10715R The HON Company
Rev 1.1 PAGE 3 OF 3 800.336.8398 / www.hon.com
