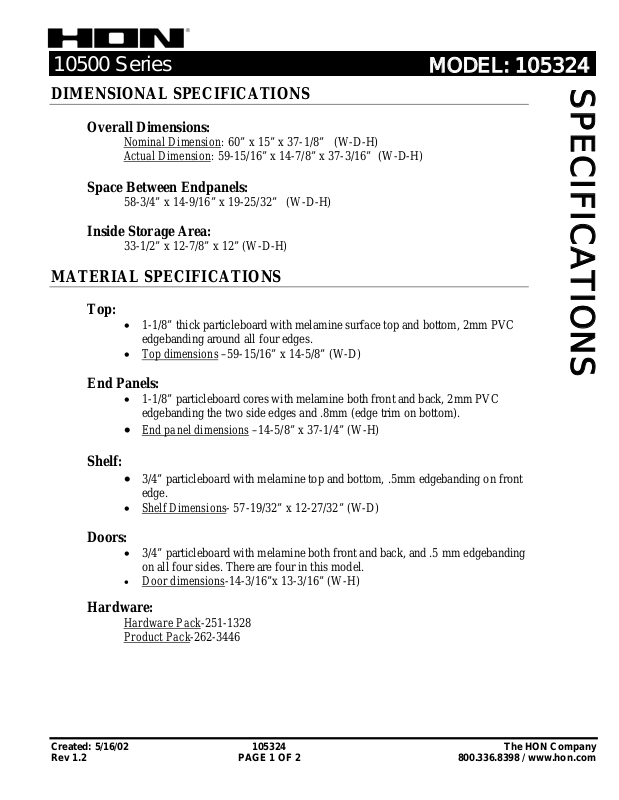

10500 Series
DIMENSIONAL SPECIFICATIONS
Overall Dimensions:
Nominal Dimension: 60” x 15” x 37-1/8” (W-D-H)
Space Between Endpanels:
58-3/4” x 14-9/16” x 19-25/32” (W-D-H)
Inside Storage Area:
33-1/2” x 12-7/8” x 12” (W-D-H)
MATERIAL SPECIFICATIONS
Top:
End Panels:
Shelf:
Doors:
Hardware:
Product Pack
Actual Dimension: 59-15/16” x 14-7/8” x 37-3/16” (W-D-H)
• 1-1/8” thick particleboard with melamine surface top and bottom, 2mm PVC
edgebanding around all four edges.
• Top dimensions –59-15/16” x 14-5/8” (W-D)
• 1-1/8” particleboard cores with melamine both front and back, 2mm PVC
edgebanding the two side edges and .8mm (edge trim on bottom).
• End panel dimensions –14-5/8” x 37-1/4” (W-H)
3/4” particleboard with melamine top and bottom, .5mm edgebanding on front
•
edge.
• Shelf Dimensions- 57-19/32” x 12-27/32” (W-D)
• 3/4” particleboard with melamine both front and back, and .5 mm edgebanding
on all four sides. There are four in this model.
• Door dimensions-14-3/16”x 13-3/16” (W-H)
Hardware Pack-251-1328
-262-3446
MODEL: 10532
SPECIFICATIONS
Created: 5/16/02 105324 The HON Company
Rev 1.2 PAGE 1 OF 2 800.336.8398 / www.hon.com
Page 2
4
10500 Series
MODEL FEATURES
• 10500
Door Hinge Adjustment:
PARTICLEBOARD: All particleboard is ANSI grade IM3 or better.
Series wood produce meets or exceeds ISTA shipping and
ANIS/BIFMA X5.5 (latest Rev.) testing requirements for office furniture.
• The concealed “European” hinges on HON doors allow easy three-way
adjustment of door alignment.
• To raise or lower the door, locate the recessed Phillips screw farthest to
the rear of the hinge. Rotate this screw to adjust the height of the door.
You do not need to loosen the center locking screw to make this
adjustment.
• To adjust the side-to-side gap between the doors, adjust the Phillips
screw closest to the door on the surface of the hinge body. You do not
need to loosen the center locking screw to make this adjustment.
• To adjust the in-out pitch of the doors faces, carefully loosen the center
locking screw and slide to the correct position. CAUTION:
move this screw outside the adjustment seat range or the door may
dislodge and fall. Tighten the center locking screw when the correct
adjustment has been made.
MODEL: 10532
SPECIFICATIONS
Do not
CARTONING INFORMATION
Carton-Outside Dimensions 1) 18-15/32” x 7-3/32” x 50-39/64” (W-H-D)
2) 62-3/32” x 19-11/32” x 19-23/32” (W-H-D)
2) 242-7132
Cubes: 14.0
Carton #: 1) 242-7113
Weight: 164lbs
REVISIONS
1.1-Added instructions for proper door hinge adjustment. (9-3-02)
1.1-Added shelf description. (9-3-02)
Created: 5/16/02 105324 The HON Company
Rev 1.2 PAGE 2 OF 2 800.336.8398 / www.hon.com
