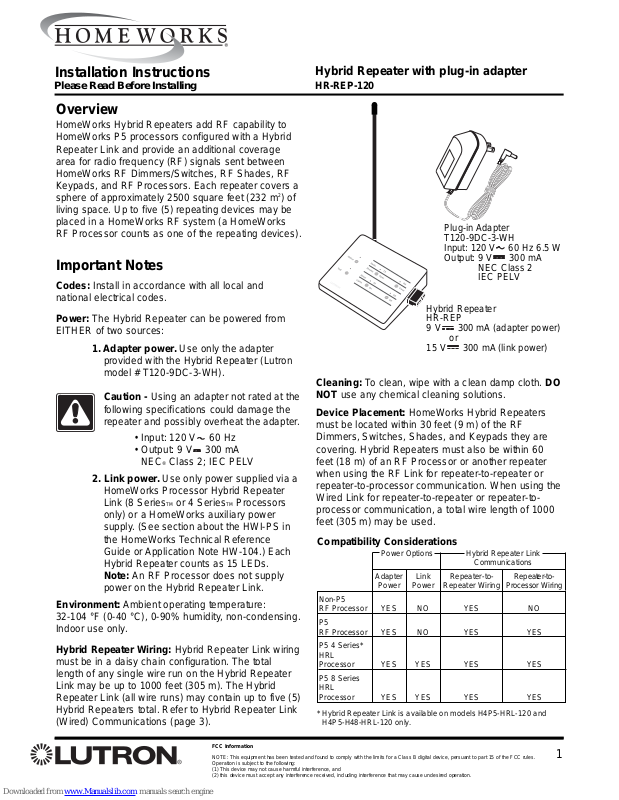

Page 1
1
Important Notes
Codes: Install in accordance with all local and
national electrical codes.
Power: The Hybrid Repeater can be powered from
EITHER of two sources:
1. Adapter power. Use only the adapter
provided with the Hybrid Repeater (Lutron
model # T120-9DC-3-WH).
Caution - Using an adapter not rated at the
following specifications could damage the
repeater and possibly overheat the adapter.
• Input: 120 V 60 Hz
• Output: 9 V 300 mA
NEC
® Class 2; IEC PELV
2. Link power. Use only power supplied via a
HomeWorks Processor Hybrid Repeater
Link (8 Series
TM or 4 SeriesTM Processors
only) or a HomeWorks auxiliary power
supply. (See section about the HWI-PS in
the HomeWorks Technical Reference
Guide or Application Note HW-104.) Each
Hybrid Repeater counts as 15 LEDs.
Note: An RF Processor does not supply
power on the Hybrid Repeater Link.
Environment: Ambient operating temperature:
32-104 °F (0-40 °C), 0-90% humidity, non-condensing.
Indoor use only.
Hybrid Repeater Wiring: Hybrid Repeater Link wiring
must be in a daisy chain configuration. The total
length of any single wire run on the Hybrid Repeater
Link may be up to 1000 feet (305 m). The Hybrid
Repeater Link (all wire runs) may contain up to five (5)
Hybrid Repeaters total. Refer to Hybrid Repeater Link
(Wired) Communications (page 3).
Please Read Before Installing
Installation Instructions
Overview
HomeWorks Hybrid Repeaters add RF capability to
HomeWorks P5 processors configured with a Hybrid
Repeater Link and provide an additional coverage
area for radio frequency (RF) signals sent between
HomeWorks RF Dimmers/Switches, RF Shades, RF
Keypads, and RF Processors. Each repeater covers a
sphere of approximately 2500 square feet (232 m
2
) of
living space. Up to five (5) repeating devices may be
placed in a HomeWorks RF system (a HomeWorks
RF Processor counts as one of the repeating devices).

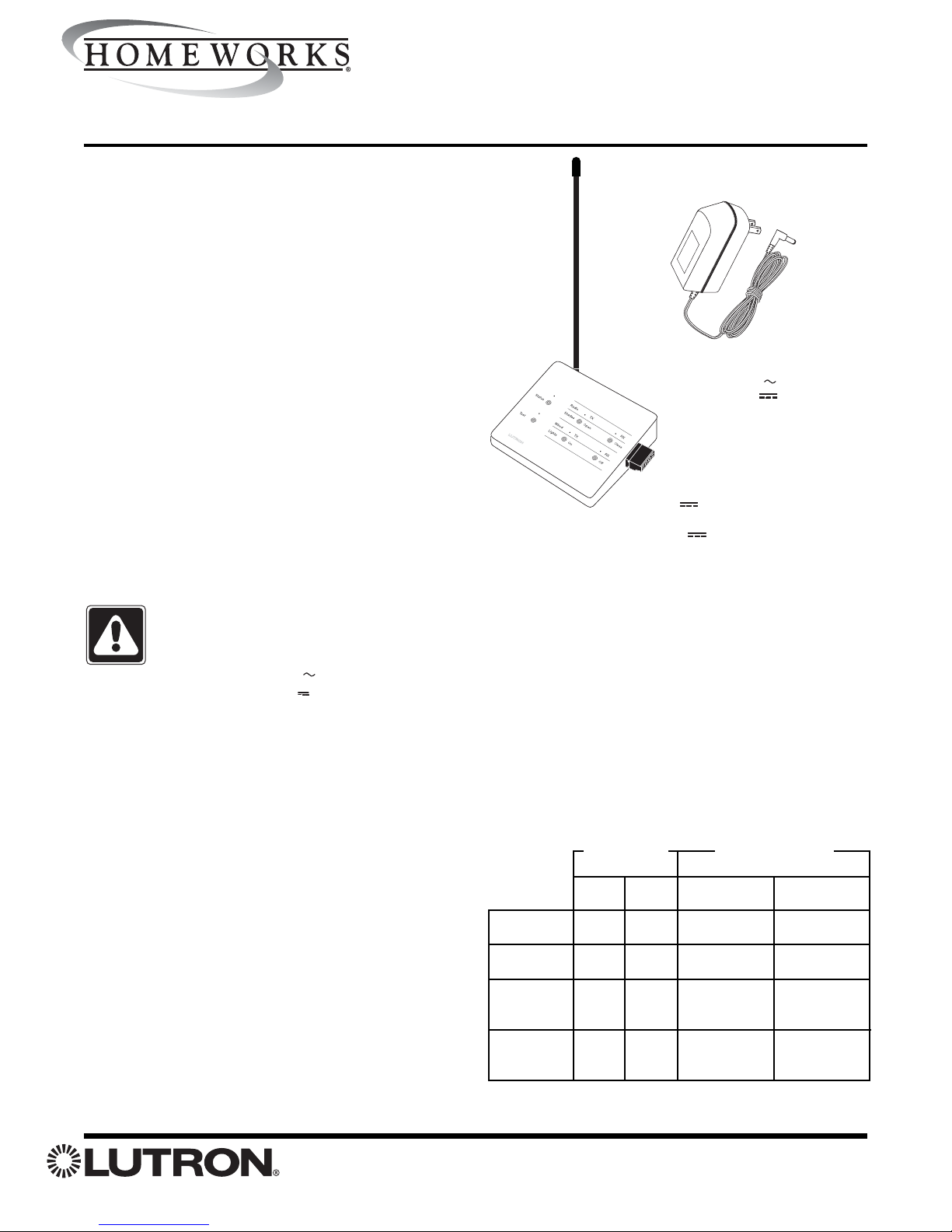

Hybrid Repeater with plug-in adapter
HR-REP-120
FCC Information
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, persuant to part 15 of the FCC rules.
Operation is subject to the following:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Non-P5
RF Processor
P5
RF Processor
P5 4 Series*
HRL
Processor
P5 8 Series
HRL
Processor
Adapter
Power
YES
YES
YES
YES
Link
Power
NO
NO
YES
YES
Repeater-to-
Repeater Wiring
YES
YES
YES
YES
Repeater-to-
Processor Wiring
NO
YES
YES
YES
Power Options
Hybrid Repeater Link
Communications
Compatibility Considerations
* Hybrid Repeater Link is available on models H4P5-HRL-120 and
H4P5-H48-HRL-120 only.
Cleaning: To clean, wipe with a clean damp cloth. DO
NOT use any chemical cleaning solutions.
Device Placement: HomeWorks Hybrid Repeaters
must be located within 30 feet (9 m) of the RF
Dimmers, Switches, Shades, and Keypads they are
covering. Hybrid Repeaters must also be within 60
feet (18 m) of an RF Processor or another repeater
when using the RF Link for repeater-to-repeater or
repeater-to-processor communication. When using the
Wired Link for repeater-to-repeater or repeater-toprocessor communication, a total wire length of 1000
feet (305 m) may be used.
Hybrid Repeater
HR-REP
9 V 300 mA (adapter power)
or
15 V 300 mA (link power)
Plug-in Adapter
T120-9DC-3-WH
Input: 120 V 60 Hz 6.5 W
Output: 9 V 300 mA
NEC Class 2
IEC PELV
Page 2
2
HR-REP
(Side View)

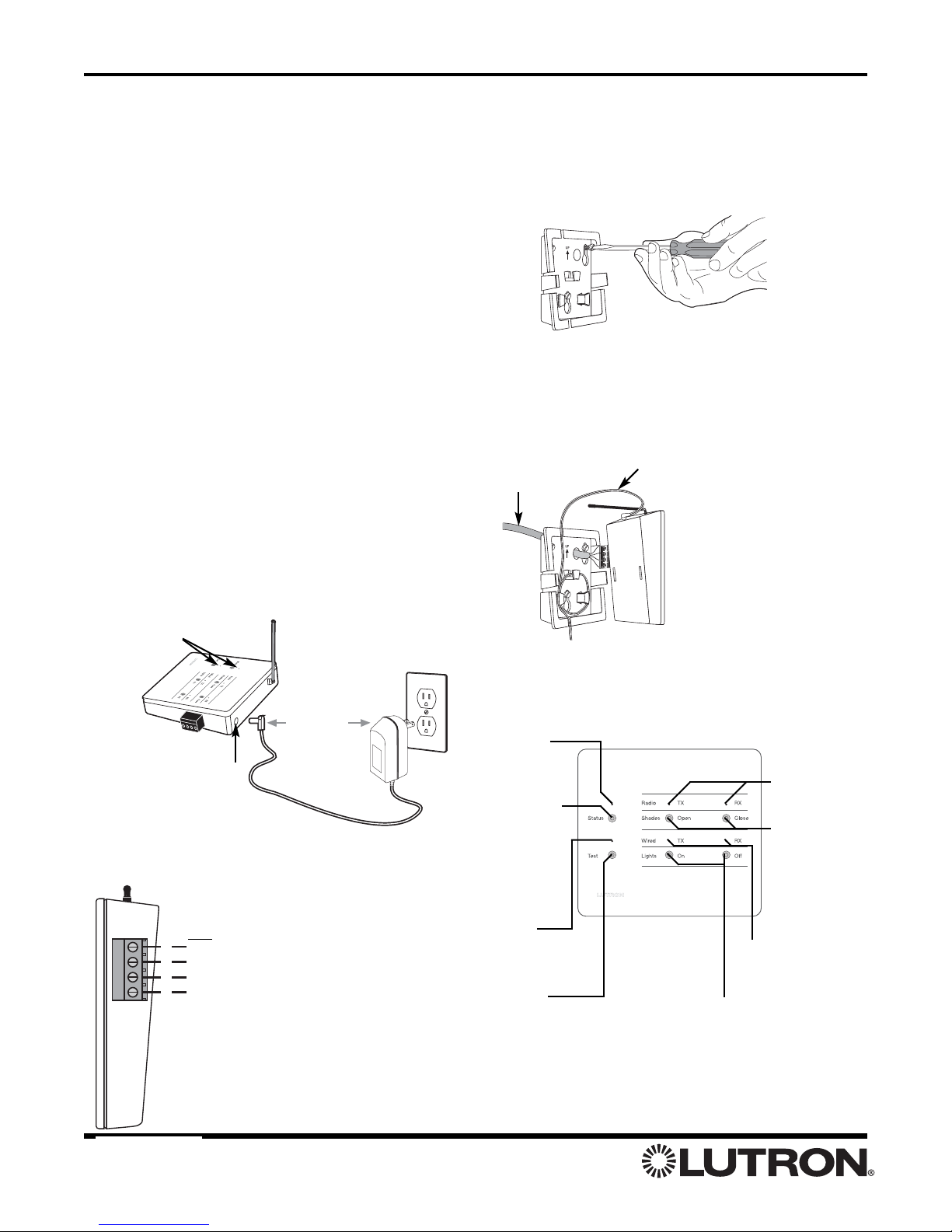

Installation
Wall Mounting
Hybrid Repeaters may be wall mounted using the
supplied wall bracket.
1. Attach wall bracket to wall using the supplied
screws and wall anchors.
2. Place power cord into notches at top and bottom of
wall bracket. Wrap excess power cord around the
cord holder. Route Hybrid Repeater Link wiring
through hole in wall bracket and out through side
cutout. Align repeater and snap onto wall bracket.
MUX
MUX
+15 V
COM
4
3
2
1
Power Cord
Hybrid
Repeater Link
Wiring
1. Find a suitable location for the Hybrid Repeater.
Place the repeater in a convenient and accessible
location. Note: Hybrid Repeaters must be within 60
feet (18 m) of an RF Processor or another repeater
when using the RF Link for repeater-to-repeater or
repeater-to-processor communication.
2. Connect Hybrid Repeater Link (if applicable).
Connect the Hybrid Repeater Link communication
wires from the HomeWorks®
Processor (or previous
Hybrid Repeater in the daisy chain) to the terminal
block on the Hybrid Repeater (see Wiring
Diagram). Each terminal will accept up to three
22-18 AWG (0.5-1.0 mm
2
) wires.
Note: If using the plug-in adapter to power the
repeater, DO NOT connect the +15 V terminal
(terminal 2).
3. Apply power to the Hybrid Repeater. If the
Hybrid Repeater is to be powered by the Hybrid
Repeater Link, apply power by turning on the
HomeWorks Processor. If the Hybrid Repeater is to
be powered by the plug-in adapter, insert the
adapter cord plug into the jack on the Hybrid
Repeater, then plug the adpater into a standard
wall receptacle.
Radio TX/RX LEDs
Indicate RF Link
activity.
STATUS LED
Indicates the status
of the HomeWorks
system.
Note: When the Hybrid Repeater is powered, but has not yet been assigned an address
from the HomeWorks Illumination Software, the STATUS and TEST LEDs will be dimly
illuminated.
Operation
TEST LED
A slow flash indicates RF
communications tests are
in progress.
STATUS Button
Used when
addressing the
Hybrid Repeater
from the
HomeWorks
Illumination
TM
Software.
TEST Button
Activates RF communication tests. To activate
the tests, press and hold the TEST Button
until the TEST LED begins to flash.
Note: For communication tests, the Hybrid
Repeater, HomeWorks Processor, and other
RF devices must first be configured and
addressed using the HomeWorks Illumination
Software.
Shades Open/Close
Buttons
Opens or Closes all
RF Shades in the
HomeWorks system.
See Shades
Open/Close Button
Operation (page 4).
Lights On/Off Buttons
Turns On or Off all supported RF
Dimmers and Switches. See Lights
On/Off Button Operation (page 4).
Wired TX/RX LEDs
Indicate Wired Link
activity.
STATUS and
TEST LEDs will
be dimly lit when
first powered
Plug in
power cord
and adapter
(optional)
Plug in
adapter jack
UP
UP
Page 3
3

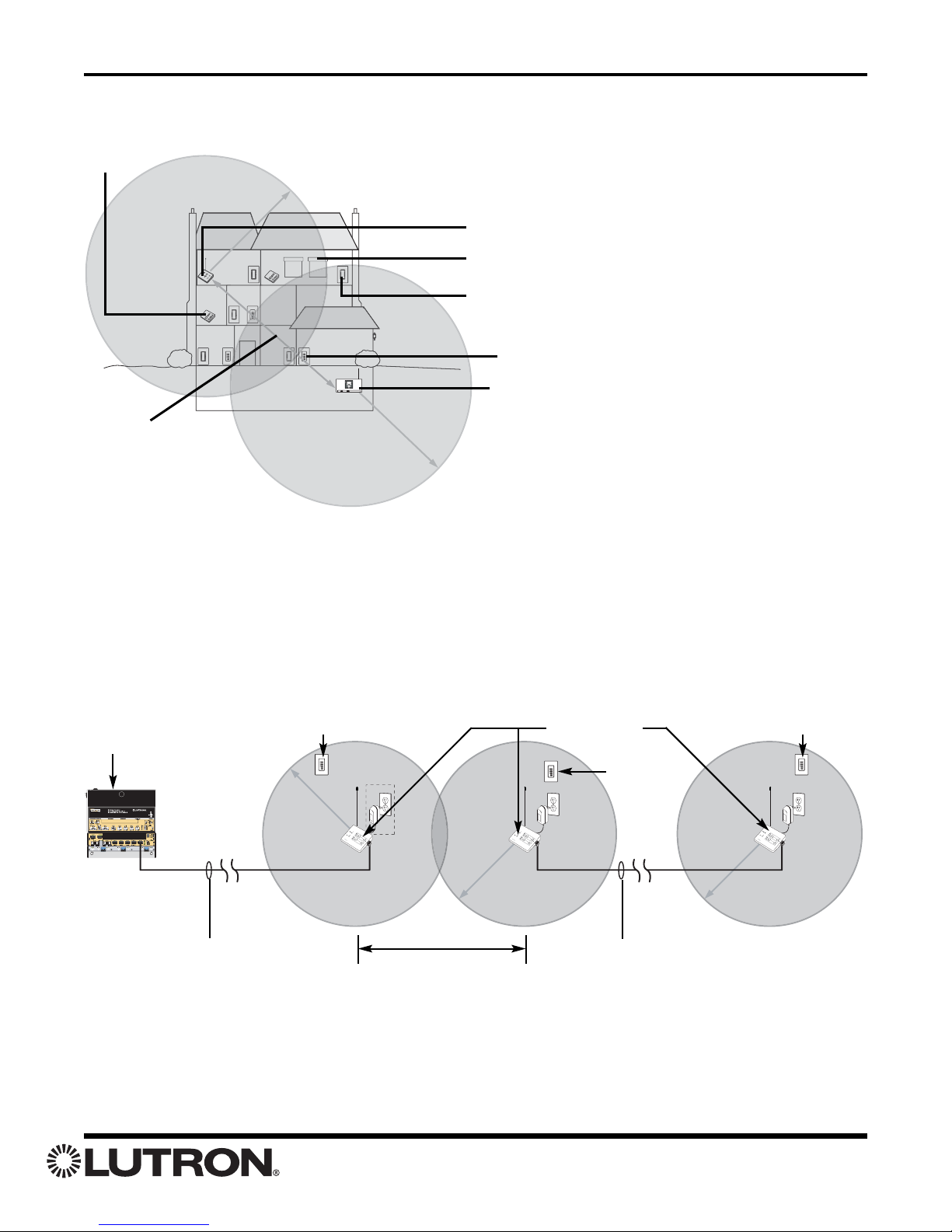

System Communications
RF Communications Notes
• Hybrid Repeaters must be located within 30 feet (9 m) of the RF Dimmers, Switches, Shades and Keypads they are
covering.
• Hybrid Repeaters must also be within 60 feet (18 m) of an RF Processor or another repeater.
• Multiple repeaters may be necessary to provide adequate coverage. Up to four (4) repeaters may be used with each
RF Processor, and up to five (5) Hybrid Repeaters may be used with each 8 Series
TM Processor or 4 SeriesTM
Processor (equipped with Hybrid Repeater Link).
Hybrid Repeater Link (Wired) Communications
RF Tabletop
Keypad
RF Dimmer
30 ft. (9 m) maximum
RF Processor
RF Shade
RF Keypad
Hybrid Repeater
30 ft. (9 m) maximum
60 ft. (18 m) maximum
between RF
Processors and
Repeaters, or between
Repeaters
Hybrid Repeater Link
1000 ft. (305 m) maximum wire length per run
HomeWorks
® P5 Processor
(8 Series shown)
RF Keypad
30 ft. (9 m)
maximum
(optional)
30 ft. (9 m)
maximum
30 ft. (9 m)
maximum
60 ft. (18 m)
maximum
RF Keypad
RF Keypad
Hybrid Repeater
Hybrid Repeater Link
1000 ft. (305 m) maximum
wire length per run
RF Communications
Hybrid Repeater Link (Wired) Communications Notes
• Hybrid Repeater Link wiring must be in a daisy chain configuration.
• The total length of any single wire run on the Hybrid Repeater Link may be up to 1000 feet (305 m).
• The Hybrid Repeater Link (all wire runs) may contain up to five (5) Hybrid Repeaters total.
Page 4
Lutron Electronics Co., Inc.
7200 Suter Road
Coopersburg, PA18036-1299
Made and printed in the U.S.A. 9/06 P/N 043-204 Rev. B
LIMITED WARRANTY
Subject to the exclusions described below, for a period of eight years after the date of shipment by Lutron, Lutron warrants each new
HomeWorks system (the “System”) to be free from manufacturing defects. Lutron will, at its option, repair the defective part or issue a credit,
based on the prorating schedule below, against the cost of comparable replacement parts purchased from Lutron so long as Customer promptly notifies Lutron of the defect within the eight year warranty period and, if requested, returns the defective component to Lutron:
Replacement parts provided by Lutron may be new, used, repaired, reconditioned, and/or made by a different manufacturer.
EXCLUSIONS TO LIMITED WARRANTY
This Warranty does not cover, and Lutron and its suppliers are not responsible for:
1. Damage, malfunction or inoperability diagnosed by Lutron or a Lutron approved third party as caused by normal wear and tear, abuse,
misuse, incorrect installation, neglect, accident, or interference from radio frequency or infrared sources or obstacles, such as, but not
limited to (a) use of incorrect line voltages, fuses or circuit breakers; (b) failure to install, maintain and operate the System pursuant to the
operating instructions provided by Lutron and the applicable provisions of the National Electrical Code and of the Safety Standards of
Underwriter’s Laboratories; (c) use of incompatible devices or accessories; (d) failure to maintain equipment under specified ambient temperature; (e) unauthorized repairs or adjustments; (f) vandalism; and (g) an act of God, such as fire, lightning, flooding, tornado, earthquake, hurricane or other problems beyond Lutron’s control.
2. On-site labor costs to diagnose issues with, and remove, repair, replace, adjust, reinstall and/or reprogram the System, at Lutron’s option,
all of which will be paid by Customer at the then current service price.
3. Where applicable, components and equipment external to the System, such as, lamps; non-Lutron ballasts, sockets, and fixtures; fixture
wiring between ballasts and lamps; building wiring between dimmers or dimmer panels and lamps and between controls and controls,
dimmers or dimmer panels; and other manufacturers’ equipment not provided by Lutron, such as time clocks; audio-visual equipment;
motion detectors; photosensors; driveway sensors; pressure pads; shades; and spas.
4. The cost of repairing or replacing other property that is damaged when the System does not work properly, even if the damage was
caused by the System.
THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE
OF SHIPMENT.
NO LUTRON AGENT, EMPLOYEE OR REPRESENTATIVE HAS ANY AUTHORITY TO BIND LUTRON TO ANY AFFIRMATION, REPRESENTATION OR WARRANTY CONCERNING THE SYSTEM. UNLESS AN AFFIRMATION, REPRESENTATION OR WARRANTY MADE
BY AN AGENT, EMPLOYEE OR REPRESENTATIVE IS SPECIFICALLY INCLUDED HEREIN, OR IN STANDARD PRINTED MATERIALS
PROVIDED BY LUTRON, IT DOES NOT FORM A PART OF THE BASIS OF ANY BARGAIN BETWEEN LUTRON AND CUSTOMER AND
WILL NOT IN ANY WAY BE ENFORCEABLE BY CUSTOMER.
IN NO EVENT WILL LUTRON OR ANY OTHER PARTY BE LIABLE FOR EXEMPLARY, CONSEQUENTIAL, INCIDENTAL OR SPECIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO DAMAGES FOR PERSONAL INJURY, FAILURE TO MEET ANY DUTY, INCLUDING OF
GOOD FAITH OR REASONABLE CARE, NEGLIGENCE, OR ANY OTHER LOSS WHATSOEVER), NOR FOR ANY REPAIR WORK
UNDERTAKEN WITHOUT LUTRON’S PRIOR WRITTEN CONSENT ARISING OUT OF OR IN ANY WAY RELATED TO THE INSTALLATION, DEINSTALLATION, USE OF OR INABILITY TO USE THE SYSTEM OR OTHERWISE UNDER OR IN CONNECTION WITH ANY
PROVISION OF THIS WARRANTY, EVEN IN THE EVENT OF THE FAULT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY,
BREACH OF CONTRACT OR BREACH OF WARRANTY OF LUTRON OR ANY SUPPLIER, AND EVEN IF LUTRON OR ANY OTHER
PARTY WAS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOTWITHSTANDING ANY DAMAGES THAT CUSTOMER MIGHT INCUR FOR ANY REASON WHATSOEVER (INCLUDING, WITHOUT
LIMITATION, ALL DIRECT DAMAGES AND ALL DAMAGES LISTED ABOVE), THE ENTIRE LIABILITY OF LUTRON AND OF ALL OTHER
PARTIES UNDER THIS WARRANTY ON ANY CLAIM FOR DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE MANUFACTURE, SALE, INSTALLATION, DELIVERY, USE, REPAIR, OR REPLACEMENT OF THE SYSTEM, AND CUSTOMER’S SOLE REMEDY
FOR THE FOREGOING, WILL BE LIMITED TO THE AMOUNT PAID BY CUSTOMER FOR THE SYSTEM. THE FOREGOING LIMITATIONS, EXCLUSIONS AND DISCLAIMERS WILL APPLY TO THE MAXIMUM EXTENT ALLOWED BY APPLICABLE LAW, EVEN IF ANY
REMEDY FAILS ITS ESSENTIAL PURPOSE.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO
STATE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY
TO YOU.
WARRANTY CLAIMS, TECHNICAL ASSISTANCE AND WARRANTY INFORMATION
Contact the Lutron Technical Support Center at the numbers provided below or your local Lutron sales representative with questions concerning the installation or operation of the System or this Warranty, or to make a warranty claim. Please provide the exact model number when calling.
USA and Canada (24 hrs/7days)
+1.800.523.9466
Other countries (8 a.m. - 8 p.m. ET)
+1.610.282.3800
Fax +1.610.282.3090
http://www.lutron.com
This product may be covered by one or more of the following U.S. patents: 5,838,226; 5,848,054; 5,905,442; 6,687,487; 6,803,728 and corresponding foreign patents. U.S. and foreign patents pending. Lutron, HomeWorks, and the sunburst logo are registered trademarks and 8
Series, 4 Series and Illumination are trademarks of Lutron Electronics Co., Inc. NEC is a registered trademark of the National Fire Protection
Association.
© 2006 Lutron Electronics Co., Inc.
NNuummbbeerr ooff YYeeaarrss ffrroomm DDaattee ooff SShhiippmmeenntt
PPeerrcceennttaaggee ooff CCoosstt ooff RReeppllaacceemmeenntt PPaarrttss
CCrreeddiitteedd bbyy LLuuttrroonn
Up to 2 100%
More than 2 but not more than 5 50%
More than 5 but not more than 8 25%
More than 8 0%
Shades Open/Close Buttons Operation
When Hybrid Repeater is:
Function
All unaddressed and unconfigured RF Shades within the RF range of only the Hybrid Repeater on
which the Open/Close Button was activated will open or close. All RF Shades outside the range of
the Hybrid Repeater will not respond.
All addressed and configured RF Shades within the entire HomeWorks® system will open or close.
Unaddressed
Addressed
FCC Information
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the seperation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by Lutron Electronics Co. could void the user ’s authority to operate this equipment.
Lights On/Off Buttons Operation
When Hybrid Repeater is:
Function
All unaddressed and unconfigured RF Dimmers and Switches within the RF range of only the Hybrid
Repeater on which the On/Off Button was activated will turn on or off. All RF Dimmers and Switches
outside the range of the Hybrid Repeater will not respond.
All addressed and configured RF Dimmers and Switches within the entire HomeWorks system will
turn on or off.
Unaddressed
Addressed
Troubleshooting Guide
Symptom
Cause and Action
No power available to unit.
• If powered by the 9 V plug-in adapter, verify there is power
to the adapter.
• If powered by the Hybrid Repeater Link, verify link wiring.
Repeater has not been addressed.
• Address the repeater using the HomeWorks Illumination
TM
Software.
No LEDs are illuminated on the Hybrid Repeater.
Button presses on the Hybrid Repeater cause the
STATUS LED on the repeater to flash rapidly.
Loading...
