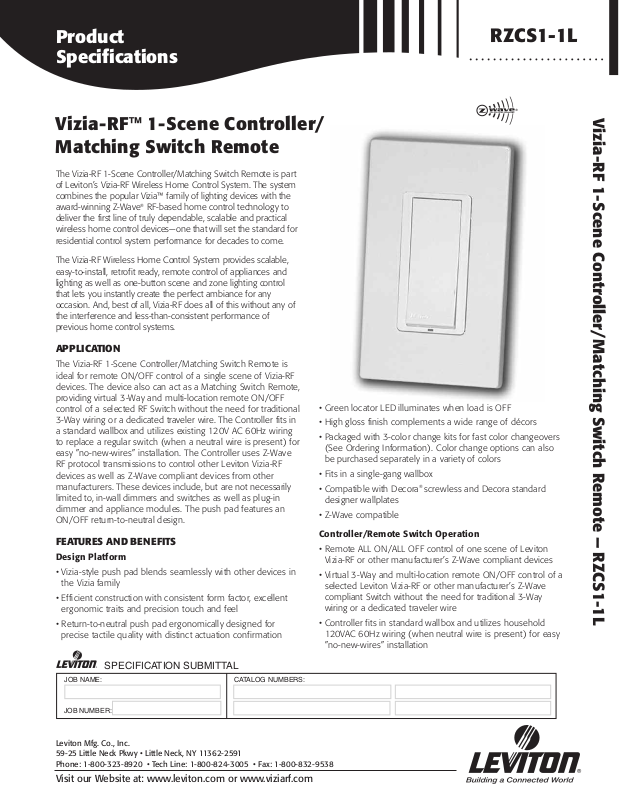

Product
Specifications
Vizia-RF™ 1-Scene Controller/
Matching Switch Remote
The Vizia-RF 1-Scene Controller/Matching Switch Remote is part
of Leviton’s Vizia-RF Wireless Home Control System. The system
ombines the popular Vizia™ family of lighting devices with the
c
ward-winning Z-Wave
a
deliver the first line of truly dependable, scalable and practical
wireless home control devices—one that will set the standard for
residential control system performance for decades to come.
The Vizia-RF Wireless Home Control System provides scalable,
easy-to-install, retrofit ready, remote control of appliances and
lighting as well as one-button scene and zone lighting control
that lets you instantly create the perfect ambiance for any
occasion. And, best of all, Vizia-RF does all of this without any of
the interference and less-than-consistent performance of
previous home control systems.
®
F-based home control technology to
R
RZCS1-1L
Vizia-RF 1-Scene Controller/Matching Switch Remote — RZCS1-1L
APPLICATION
The Vizia-RF 1-Scene Controller/Matching Switch Remote is
ideal for remote ON/OFF control of a single scene of Vizia-RF
devices. The device also can act as a Matching Switch Remote,
providing virtual 3-Way and multi-location remote ON/OFF
control of a selected RF Switch without the need for traditional
3-Way wiring or a dedicated traveler wire. The Controller fits in
a standard wallbox and utilizes existing 120V AC 60Hz wiring
to replace a regular switch (when a neutral wire is present) for
easy ”no-new-wires” installation. The Controller uses Z-Wave
RF protocol transmissions to control other Leviton Vizia-RF
devices as well as Z-Wave compliant devices from other
manufacturers. These devices include, but are not necessarily
limited to, in-wall dimmers
dimmer and appliance modules. The push pad features an
ON/OFF return-to-neutral design.
EATUR
F
Design Platform
Vizia-style push pad blends seamlessly with other devices in
•
the V
• Efficient construction with consistent form factor, excellent
ergonomic traits and precision touch and feel
• Return-to-neutral push pad ergonomically designed for
precise tactile quality with distinct actuation confirmation
ES AND BENEFITS
izia family
and switches as well as plug-in
• Green locator LED illuminates when load is OFF
• High gloss finish complements a wide range of décors
• Packaged with 3-color change kits for fast color changeovers
(See Ordering Information). Color change options can also
be purchased separately in a variety of colors
• Fits in a single-gang wallbox
®
• Compatible with Decora
designer wallplates
• Z-Wave compatible
Controller/Remote Switch Operation
Remote ALL ON/ALL OFF control of one scene of Leviton
•
Vizia-RF or other manufacturer’s Z-Wave compliant devices
• Virtual 3-Way and multi-location remote ON/OFF control of a
selected Leviton Vizia-RF or other manufacturer’s Z-Wave
compliant Switch without the need for traditional 3-Way
wiring or a dedicated traveler wire
• Controller fits in standard wallbox and utilizes household
0VAC 60Hz wiring (when neutral wire is present) for easy
2
1
”no-new-wires” installation
screwless and Decora standard
SPECIFICA
JOB NAME:
JOB NUMBER:
Leviton Mfg. Co., Inc.
59-25 Little Neck Pkwy • Little Neck, NY 11362-2591
Phone: 1-800-323-8920 • Tech Line: 1-800-824-3005 • Fax: 1-800-832-9538
isit our Website at: www.leviton.com or www.viziarf.com
V
TION SUBMITT
AL
CATALOG NUMBERS:
Product
0.25 (6.4)
1.40 (35.6)
2.71 (68.8)
1.75 (44.5)
1.30 (33.0)
2.62 (66.6)
4.13 (104.9)
Specifications
Vizia-RF 1-Scene
Controller/Matching
Switch Remote
........................................
• Green LED illuminates to indicate controlled scene. When
cting as a Matching Remote, LED will illuminate when
a
the load is off.
• Two-way communication
Rating: 120VAC 60Hz
•
SPECIFICATIONS
Operating Temperature:
Operating temperature ranges from 32° F (0°C) to 131° F
(55° C). Relative humidity less than 90% non-condensing.
Terminations:
Three screw terminals (line, neutral and ground)
TYPICAL SPECIFICATION
Leviton’s Vizia-RF 1-Scene Controller/Matching Switch
Remote shall utilize a green LED that illuminates to indicate
final status and shall able to perform an ALL-LIGHTS-ON
and ALL-LIGHTS OFF scene switching function. It shall be
fully compatible with Decora screwless and standard
designer wallplates.
DIMENSIONAL DRAWINGS
AGENCY STANDARDS & COMPLIANCE
L Listed (File #E-66800)
U
CSA Certified (File #LR-54628)
L 244A tested.
U
NOM Certified (#057)
Complies with FCC Part 15, Class B
Z-Wave Certified
INSTALLATION CONSIDERATIONS
A Z-Wave enabled device must be within 75 feet of another ZWave enabled device to participate in a Z-Wave wireless mesh
network. The Controller only can be associated with a maximum
of 32 Z-Wave nodes (devices) in an area. Controller can control
no more than one RF Switch in a 3-Way application.
WARRANTY INFORMATION
Five-Year Limited Warranty
PROGRAMMING
See included instruction sheet for programming of this Controller.
Also see RF Handheld Remote Controller Programmer/Timer (Cat.
No. RZCPG) instruction manual for additional system instructions.
Cat. No. RZCS1-1L
Leviton Manufacturing Co., Inc.
59-25 Little Neck Parkway, Little Neck NY 11362-2591
-800-3
Phone: 1
Tech Line: 1-800-824-3005
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9
Customer Service: 1-800-469-7890 • FAX: 1-800-563-1853
Leviton S. de R.L. de C.V.
Lago Tana 43 Mexico DF, Mexico CP 11290
el. (+5
T
izia and Vizia-RF are trademarks of Leviton Manufacturing Co., Inc.
V
Z-W
Note: Features and specifications subject to change
Patents Pending
5-5
2) 5
ave is a reg
3-892
2
040 www
082-1
istered trademark of the Zensys
0 • F
A
-800-83
X: 1
.leviton.com.mx
2-9538
®
Corporation
Visit our Website at www.leviton.com or www.viziarf.com
©2006 Leviton Manufacturing Co., Inc. All rights reserved.
ORDERING INFORMATION
Vizia-RF 1-Scene Controller/Matching Switch Remote
Cat. No. Description Rating
RZCS1-1L* Vizia-RF 1-Scene Controller/ 120VAC-60Hz
Matching Switch Remote
All -1LX units are shipped with Ivory
*
-1LZ units are shipped with Ivory, White and Light Almond color options.
Color change kits also can be purchased separately for all available colors
, White and Almond color options. All
Color Change kits
Cat. No. Color
-MSI
ZKIT
V
SW
-M
ZKIT
V
VZKIT-MSA Almond
VZKIT-MSG Gray
-MSE
ZKIT
V
VZKIT-MSB Brown
VZKIT-MSR Red
T Light Almond
S
-M
ZKIT
V
Ivory
hite
W
Black
