Home Styles 5800-99 User Manual
88 5800 99
Riviera Bar
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 Pc.
B.
Front Panel
1 Pc.
Hardware List
C.
Front Panel
1 Pc.
F.
Shelf
3 Pcs.
D.
Side Panel
1 Pc.
E.
Side Panel
1 Pc.
Small Hex Wrench
1 Pc.
Hex Wrench
1 Pc.
Head Cap Bolt (short)
6 Pcs.(+1 extra)
Head Cap Bolt (long)
17 Pcs. (+1 extra)
Spring Washer
23 Pcs. (+1 extra)
Flat Washer
23 Pcs. (+1 extra)
Wood Screw
6 Pcs. (+1 extra)
Connecter
6 Pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
Assembly Instructions
IMPORTANT
* Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future.
* Do not tighten up all the bolts until each part is properly assembled.
* Use a soft cloth between these parts and the fl oor.
STEP 1
2
/3
Attach Front Panel (C) to Front Panel (B)
with Head Cap Bolts (long),
Spring Washers and Flat Washers.
(See fi gure 1)
Figure 1
B
B
B
D
Head Cap Bolt (long)
Spring Washer
Flat Washer
B
C
Flat Washer
Spring Washer
Head Cap Bolt (long)

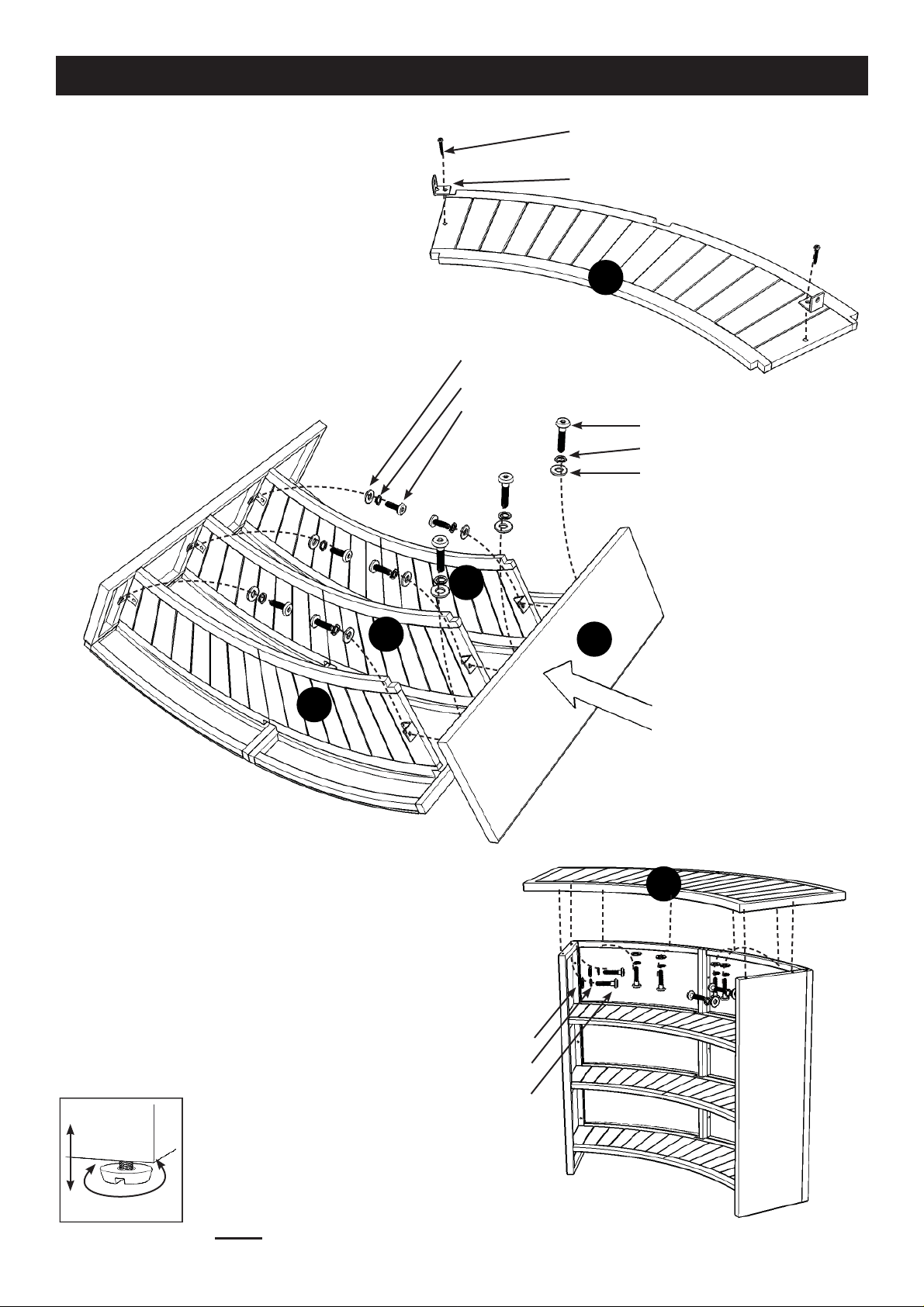

STEP 2
Attach Side Panel (D) to unit
with Head Cap Bolts (long),
Spring Washers and Flat Washers.
