88 5549 182
Crescent Hill
Pedestal Desk
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
G.
Drawer
1 Pc.
B.
Side Panel
1 Pc.
M.
Base
1 Pc.
C.
Side Panel
1 Pc.
O.
Door
1 Pc.
D.
Middle Panel
1 Pc.
N.
Base
1 Pc.
P.
Metal Strip
2 Pcs.
L.
Keyboard Front
1 Pc.
E.
Middle Panel
1 Pc.
H.
Drawer
1 Pc.
I.
Drawer
1 Pc.
J.
Drawer
1 Pc.
K.
Keyboard
1 Pc.
(Please refer to the last page of these
instructions for drawer assembly steps.)
Also need the following from carton 88 5549 181 :
Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
Assembly Instructions
IMPORTANT
* Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future.
* Do not tighten up all the bolts until each part is properly assembled.
* Use a soft cloth between these parts and the fl oor.
* After assembly item must be level to work properly. Use the included adjustable levelers to level.
STEP 1
Insert Cam Lock Screws into pre-drilled holes
of Top (A), Side Panels (B) and (C) and
Back Panel (F).
(See Figure 1)
A
F
3
2/10
Figure 1
Cam Lock Screw
B
C
Figure 2
Wood Screw
for magnet
D
STEP 2
Attach Magnet to Middle Panel (D) with
Wood Screw for magnet.
(See Figure 2)
STEP 3
Assembly Instructions
4
3/10
Attach Middle Panel (D) to Base (M) and Middle
Panel (E) to Base (N) with Head Cap Bolts.
(See Figure 3)
Figure 3
D
M
E
N
Head Cap Bolt
STEP 4
Attach units to Back Panel (F) with Cam Locks.
(See Figure 4)
F
STEP 5
Attach Side Panels (B) and (C)
to unit with Cam Locks and
Head Cap Bolts.
Figure 4
Cam Lock
Cam Lock
B
C
Head Cap Bolt
Cam Lock
Assembly Instructions
A
5
4/10

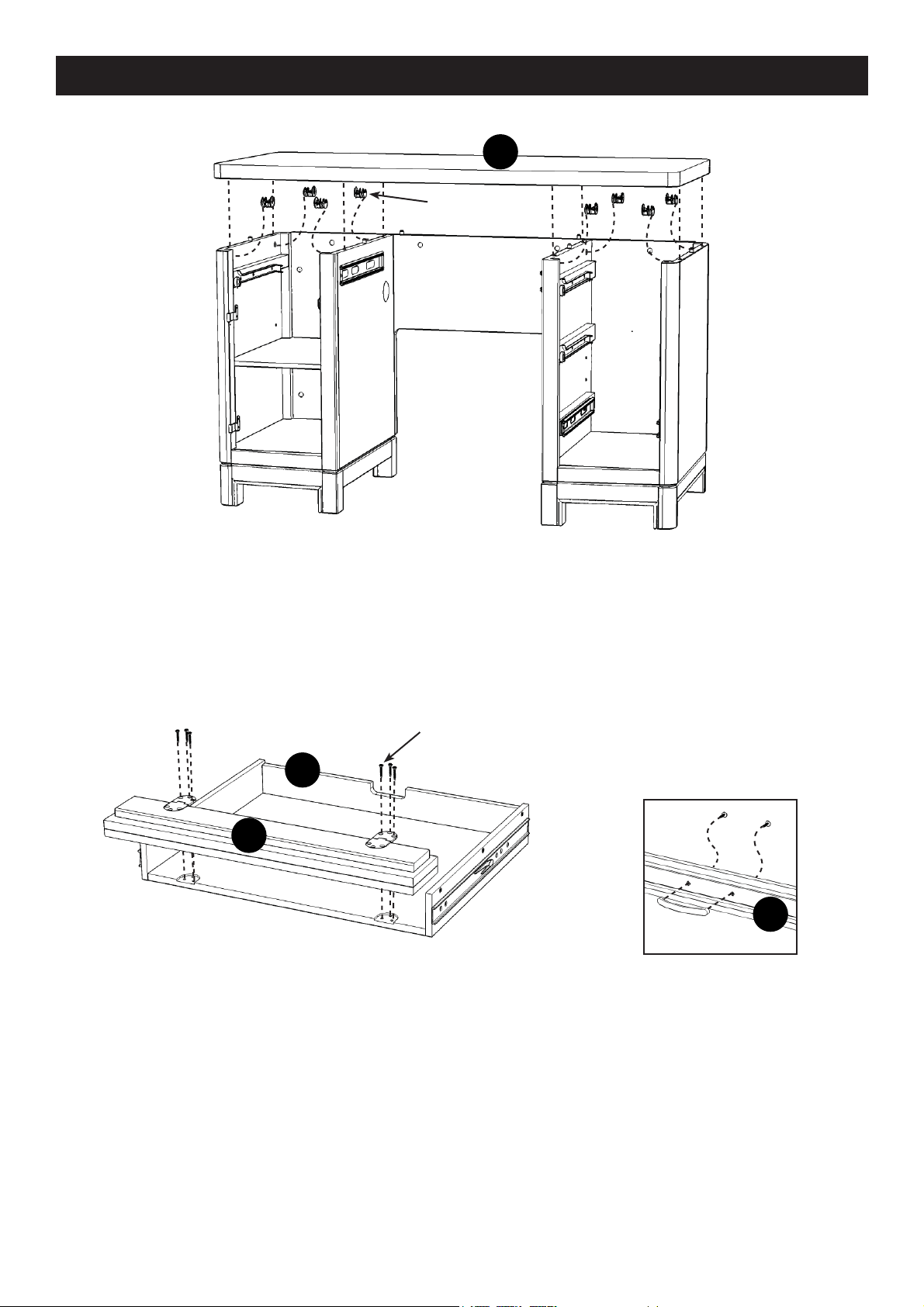

STEP 6
Turn the unit over to its’ upright position.
Attach Top (A) to the unit with Cam Locks.
K
L
Wood Screw
for Hinge
L
Figure 5
STEP 7
Attach Keyboard Front (L) to Keyboard (K) with Wood Screws for Hinge.
Attach Pull Handle to Keyboard Front (L) with Machine Screws.
(See Figure 5)
G
Assembly Instructions
5/10
6
Figure 6
O
Q
H
I
J
Adjustable Pin
Figure 7 Figure 9
Figure 8

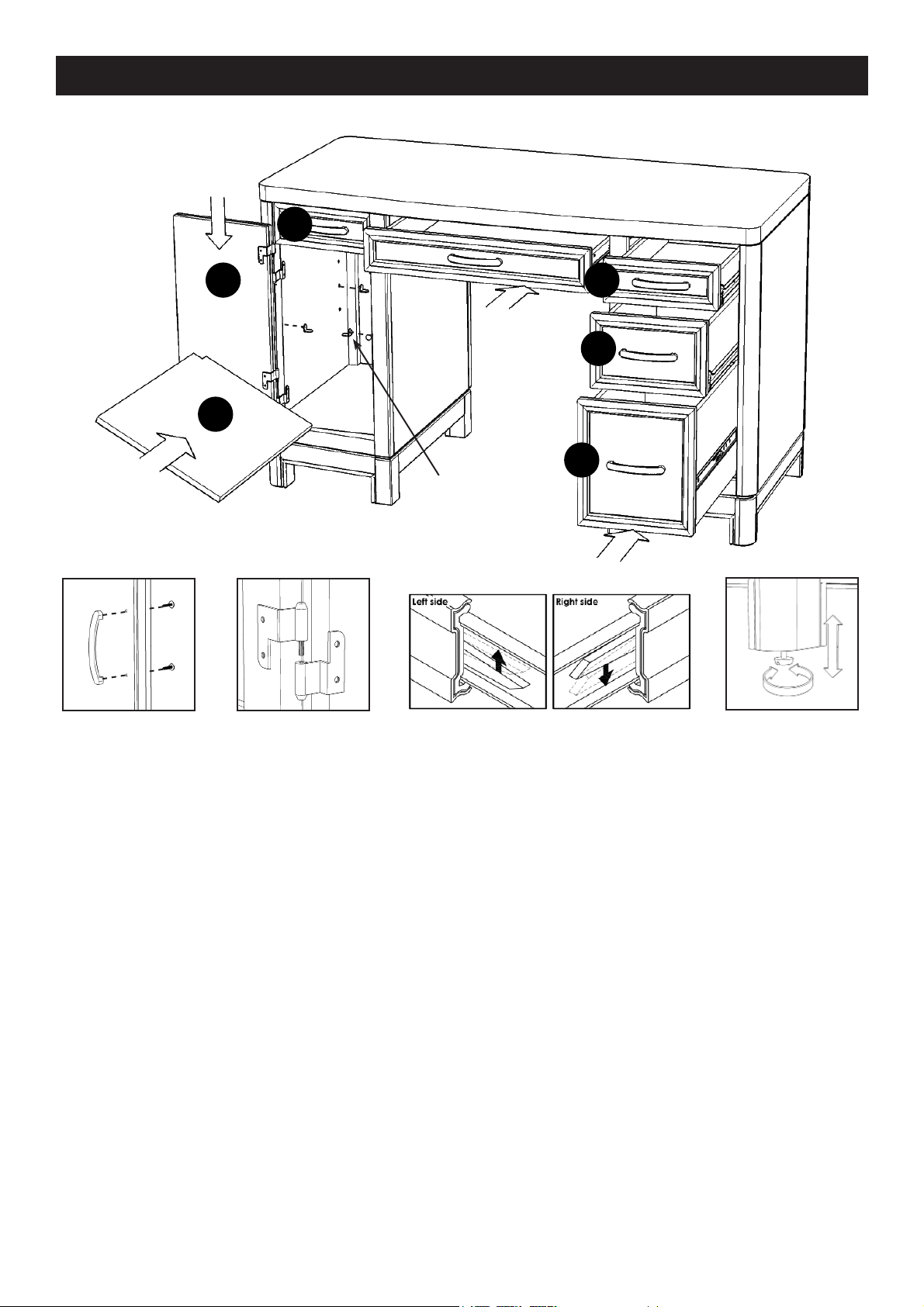

STEP 8
Insert Adjustable Pins into the side panel and middle panel at the
desired level.
Place Shelf (Q) into position.
Attach Pull Handle to Door (O) with Machine Screws.
(See Figure 6)
Attach Door (O) by sliding the door lift hinges into the side panel lift hinges. (See Figure 7)
Slide Drawers (G), (H), (I), (J) and keyboard into position.
If you want to remove the keyboard or fi le drawer in the future, push the plastic lever on its’ left
side up, push the plastic lever on its’ right side down and pull open slowly.
(See Figure 8)
To level the unit, adjust the adjustable levelers on the bottom of the base legs. (See Figure 9)
Note : Unit must be level to work properly.

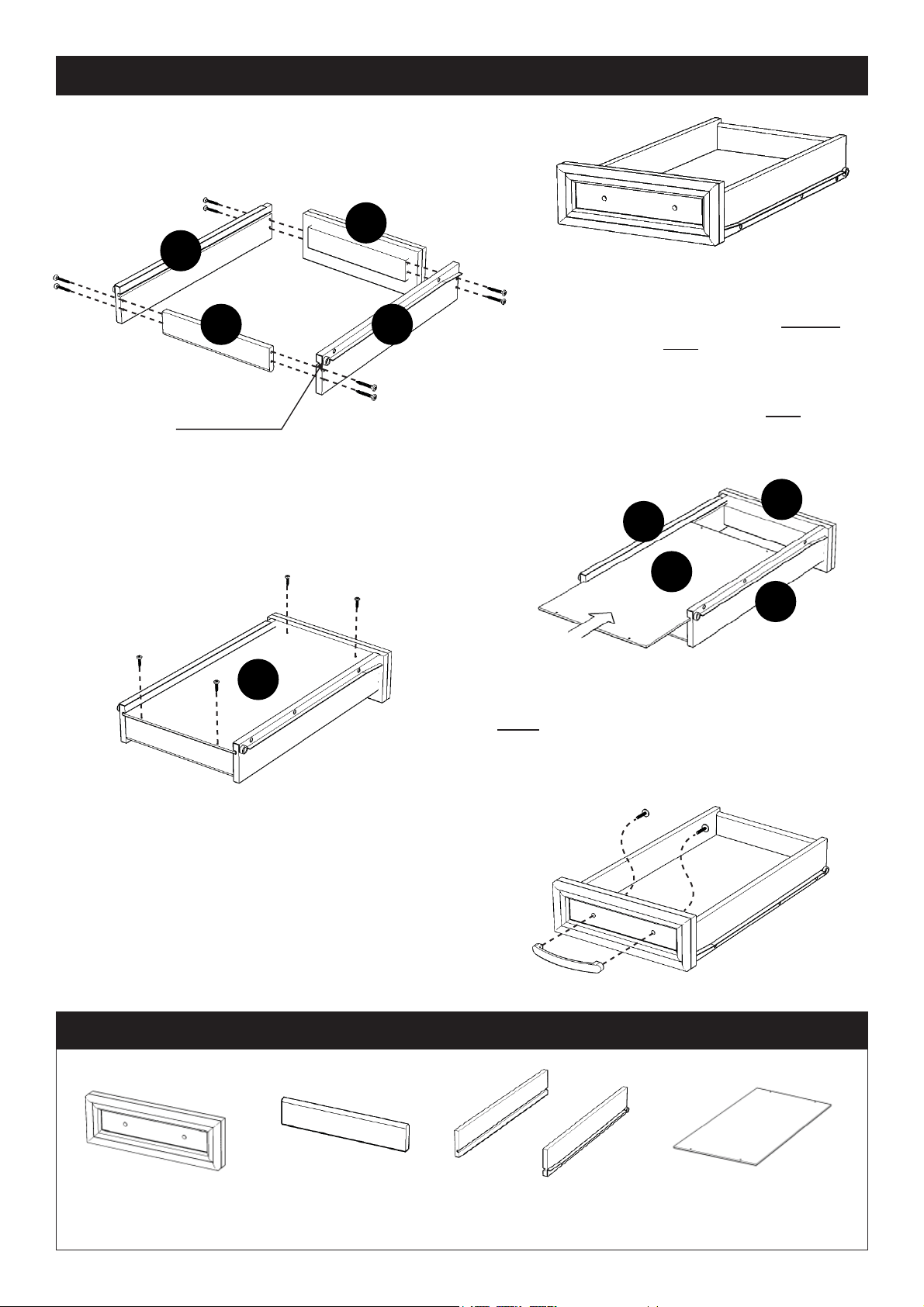

Drawer (G)
G3
G1
Assembly Instructions
STEP 1
6/10
7
Figure 1
G2
MAKE SURE ROLLER
IS ON THE BACK
G4
STEP 2
Slide G5 into grooves in G3 and G4. Be sure
to push G5 all the way forward so it meet G1.
(See Figure 2)
G5
Figure 3
Attach G1, G2 and G3 using a Phillips
screwdriver and long Wood Screws (4X),
tighten halfway.
Attach G1, G2 and G4 using long Wood
Screws (4X), tighten halfway.
(See Figure 1)
G1
G3
G5
G4
Figure 2
STEP 3
Insert short Wood Screws (4X) into the
pre-drilled holes in G5, tighten screws.
(See Figure 3)
STEP 4
Attach Pull Handle with Machine Screws.
(See Figure 4)
Tighten all screws used in drawer assembly.
Part List
G1.
Front Part
1 Pc.
G2.
Back Part
1 Pc.
G3.
Side Part
Pc.
G4.
Side Part
1 Pc.
Figure 4
G5.
Base Part
1 Pc.
Drawer (H)
H3
H1
Assembly Instructions
STEP 1
7/10
8
H2
H4
Figure 1
STEP 2
Slide H5 into grooves in H3 and H4. Be sure
to push H5 all the way forward so it meet H1.
(See Figure 2)
MAKE SURE ROLLER
IS ON THE BACK
H5
Figure 3
Attach H1, H2 and H3 using a Phillips
screwdriver and long Wood Screws (4X),
tighten halfway.
Attach H1, H2 and H4 using long Wood
Screws (4X), tighten halfway.
(See Figure 1)
H1
H3
H5
H4
Figure 2
STEP 3
Insert short Wood Screws (4X) into the
pre-drilled holes in H5, tighten screws.
(See Figure 3)
STEP 4
Attach Pull Handle with Machine Screws.
(See Figure 4)
Tighten all screws used in drawer assembly.
Part List
H1.
Front Part
1 Pc.
H2.
Back Part
1 Pc.
H3.
Side Part
Pc.
H4.
Side Part
1 Pc.
Figure 4
H5.
Base Part
1 Pc.

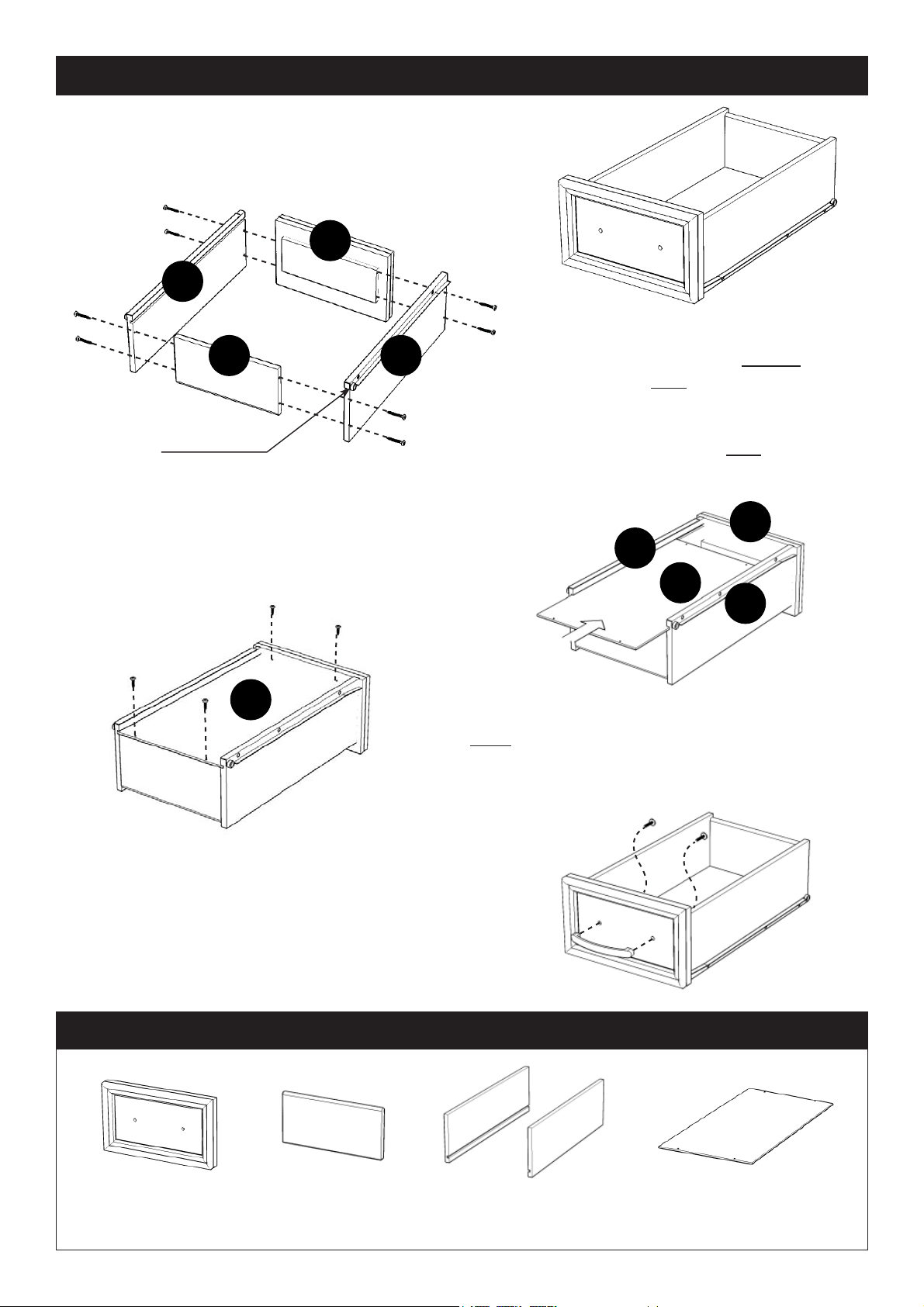

Drawer (I)
I3
I1
Assembly Instructions
STEP 1
8/10
9
Figure 1
I2
MAKE SURE ROLLER
IS ON THE BACK
I4
STEP 2
Slide I5 into grooves in I3 and I4. Be sure
to push I5 all the way forward so it meet I1.
(See Figure 2)
I5
Attach I1, I2 and I3 using a Phillips
screwdriver and long Wood Screws (4X),
tighten halfway.
Attach I1, I2 and I4 using long Wood
Screws (4X), tighten halfway.
(See Figure 1)
I1
I3
I5
I4
Figure 2
STEP 3
Insert short Wood Screws (4X) into the
pre-drilled holes in I5, tighten screws.
(See Figure 3)
Figure 3
STEP 4
Attach Pull Handle with Machine Screws.
(See Figure 4)
Tighten all screws used in drawer assembly.
Part List
I1.
Front Part
1 Pc.
I2.
Back Part
1 Pc.
I3.
Side Part
1 Pc.
I4.
Side Part
1 Pc.
Figure 4
I5.
Base Part
1 Pc.
Drawer (J)
J1
J3
J2
J4
Figure 1
STEP 2
Slide J5 into grooves in J3 and J4. Be sure
to push J5 all the way forward so it meet J1.
(See Figure 2)
J5
Assembly Instructions
10
9/10
STEP 1
Attach J1, J2 and J3 using a Phillips
screwdriver and long Wood Screws (6X),
tighten halfway.
Attach J1, J2 and J4 using long Wood
Screws (6X), tighten halfway.
(See Figure 1)
STEP 3
J3
J5
J4
J1
Insert short Wood
Screws (4X) into the
pre-drilled holes in J5,
tighten screws.
(See Figure 3)
Figure 2
Part List
Legal Size
Legal Size
Figure 5
Figure 3
STEP 4
Attach Pull Handle with
Machine Screws.
P
Figure 4
Tighten all screws used
in drawer assembly.
(See Figure 4)
STEP 5
Place Metal Strops (P) into position. (See Figure 5)
The Metal Strips can be adjusted for letter size or legal size fi les as
shown.
J1.
Front Part
1 Pc.
J2.
Back Part
1 Pc.
J3.
Side Part
1 Pc.
J4.
Side Part
1 Pc.
J5.
Base Part
1 Pc.

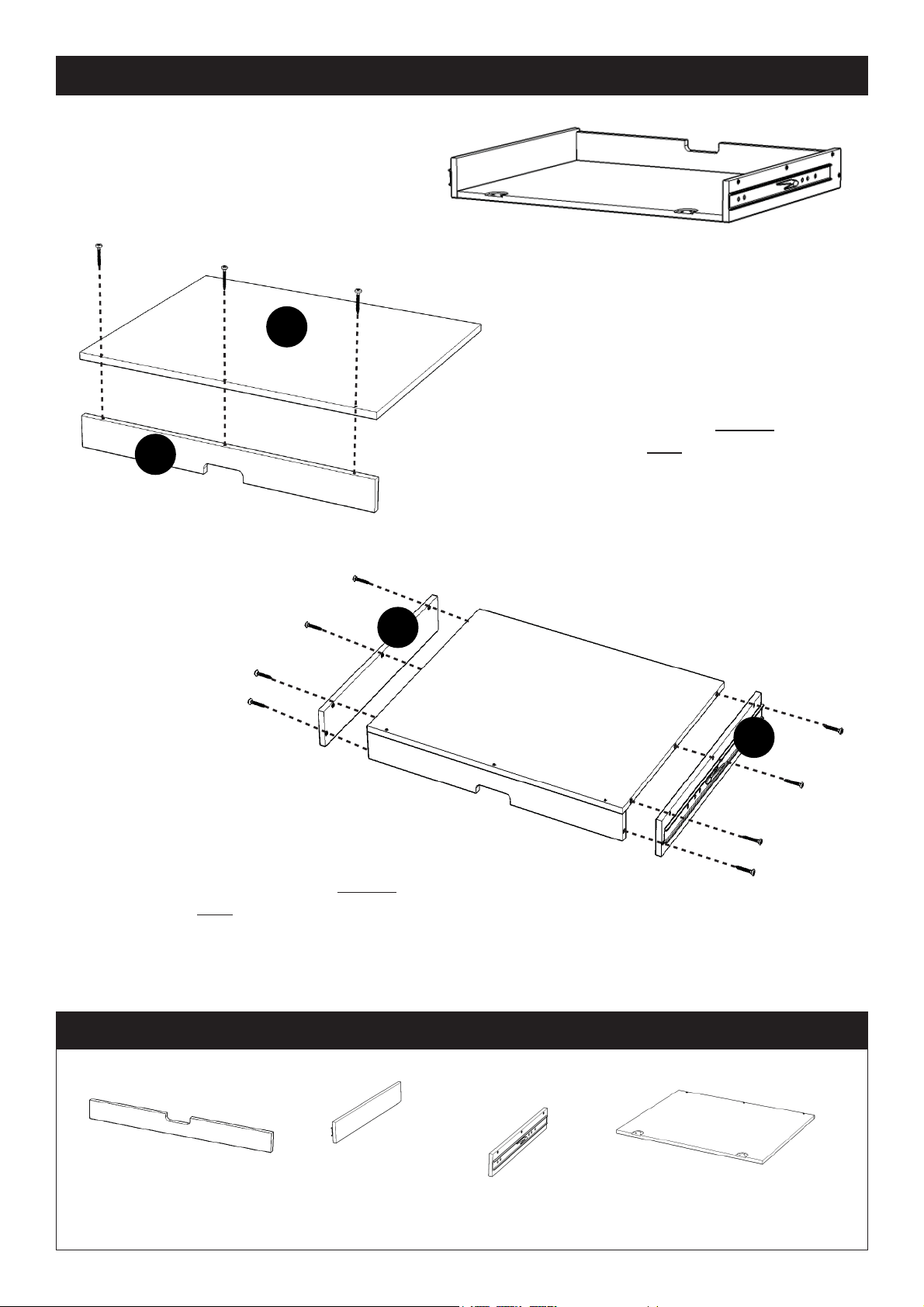

Keyboard (K)
K4
K1
Figure 1
Assembly Instructions
10/10
11
STEP 1
Attach K1 to K4, using a Phillips
screwdriver and long Wood Screws (3X),
tighten halfway. (See Figure 1)
K2
STEP 2
Attach K2 and K3 to unit, using a Phillips
screwdriver and long Wood Screws (8X),
tighten halfway. (See Figure 2)
Tighten all screws used in drawer assembly.
Part List
K3
Figure 2
K1.
Back Part
1 Pc.
K2.
Side Part
1 Pc.
K3.
Side Part
1 Pc.
K4.
Base Part
1 Pc.
