Windsor Entertainment Console
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
G.
Base
1 pc.
Hardware List
A.
Top
1 pc.
E.
Back Panel
2 pcs.
H.
Leg
4 pcs.
Side Panel
1 pc.
F.
Shelf
2 pcs.
B.
I.
Door
1 pc.
C.
Side Panel
1 pc.
D.
Middle Panel
1 pc.
J.
Door
1 pc.
Wood Screw
for Back Panel
12 pcs. (+1 extra)
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Cam Lock
12 pcs.(+4 extra)
Cam Lock Screw
12 pcs.(+1 extra)
Adjustable Pin
8 pc. (+1 extra)
Head Cap Bolt
8 pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
servicedesk@homestyles-furniture.com
Assembly Instructions 2/4
IMPORTANT
* Do not tighten up all the screws until each part is properly assembled.
* You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future.
* After assembly, item must be level to work properly. Use the included adjustable levelers to level.
Head Cap Bolt
H
H
H
G
H
Figure 1
Cam Lock Screw
G
A
STEP 1
Attach Legs (H) to Base (G) with Head Cap Bolts. (see Figure 1)
Put Cam Lock Screws into the pre-drilled holes of Top (A), Base (G) and tighten.
Cam Lock
B
D
C
Figure 2
G
STEP 2
Attach Side Panels (B), (C) and Middle Panel (D) to Base (G) with Cam Locks. (see Figure 2)
STEP 3
Assembly Instructions 3/4
Slide Back Panels (E) into place.
E
E
Cam Lock
A
F
Adjustable Pin
F
Figure 3
Adjustable Pin
STEP 4
Insert Adjustable Pins into the side panels and middle
panel at the desired level. (see Figure 3)
Place Shelves (F) into position.
Place Top (A) onto unit with Cam Locks.
STEP 5
Before installing the doors,
make sure the door Guides are
in the unlocked position.
(See figure 4)
Place the bottom rollers of Door (J)
in the bottom groove.
inner

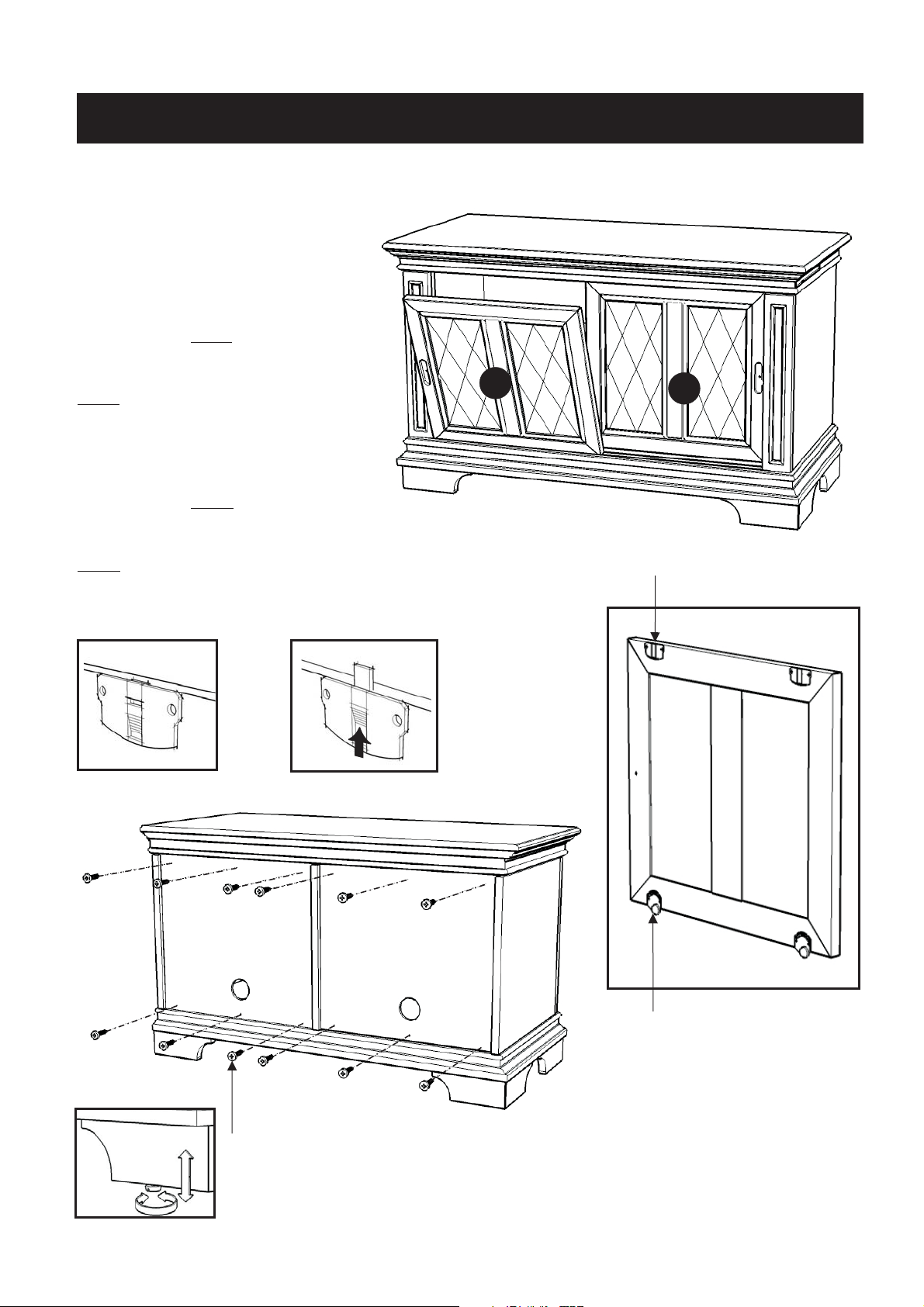

Assembly Instructions 4/4
Align top of the door with the upper
inner
lock tabs of the Guides.
(See figure 5)
Place the bottom rollers of Door (I)
in the bottom groove.
Align top of the door with the upper
outer
Guide
unlocked position
groove and push up the
outer
groove and push up the lock tabs of the Guides. (See figure 5)
Guide
locked position
Figure 4
Figure 5
I
J
Guide
Figure 6
Bottom roller
STEP 6
To level the unit, adjust the
adjustable levelers on the bottom
Wood Screw
Insert 12X Wood Screws from the back of the unit,
tighten up all the Wood Screws.
Note: Please make sure unit is level before tightening these screws.
of legs. (See figure 6)
