Stainless Steel Top
Kitchen Cart
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 pc.
E.
Back Rail
1 pc.
F.
Divider
1 pc.
Hardware List
B.
Side Frame
1 pc.
G.
Base
1 pc.
(Please refer to the last page of these
instructions for drawer assembly.)
C.
Side Frame
1 pc.
I.
Drawer
2 pcs.
D.
Front Rail
2 pcs.
H.
Shelf
1 pc.
J.
Side Bar
1 pc.
M4x16
Wood Screw (short)
12 pcs. (+1 extra)
M4x25
Wood Screw (long)
16 pcs. (+1 extra)
Caster
Two with lock and
Two non-locking
4 pcs.
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
M6x25
Head Cap Bolt (short)
2 pcs. (+1 extra)
M6x40
Head Cap Bolt (long)
15 pcs. (+1 extra)
Cam Lock Screw
4 pcs. (+2 extra)
Cam Lock
4 pcs. (+4 extra)
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
Wood Plug
13 pcs. (+1 extra)
Adjustable Pin
4 pcs. (+1 extra)
M4x25
Machine Screw
4 pcs.
Pull Handle
2 pcs.
Assembly Instruction 2 / 4
IMPORTANT
* Do not tighten up all the screws and bolts until each part is properly assembled.
* You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future.
* Use a soft cloth between these parts and the fl oor.
Cam Lock Screw

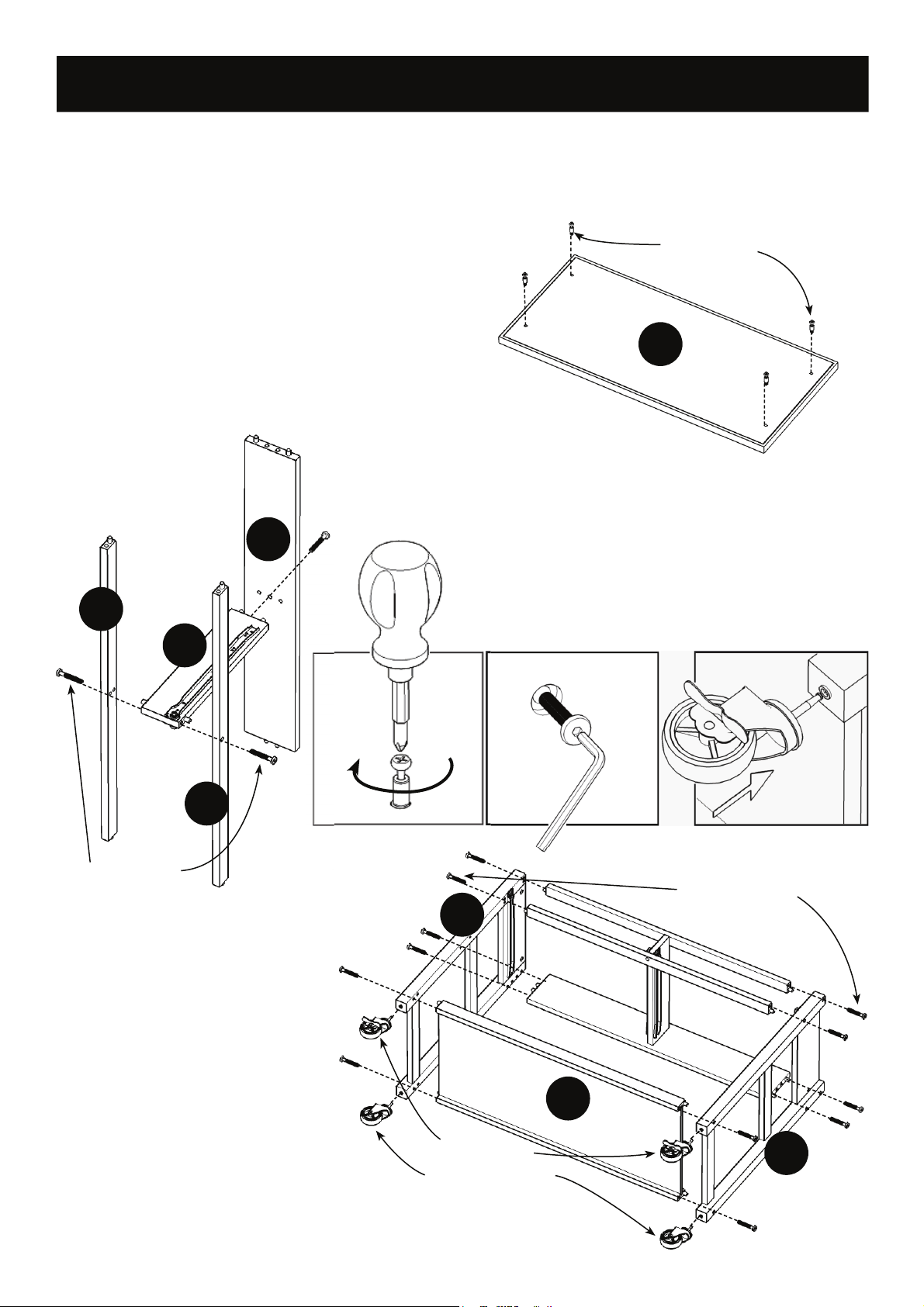

STEP 1
Insert Cam Lock Screws into the pre-drilled
holes of Top (A). (see Figure 1)
A
STEP 2
Attach Front Rails (D) and Back Rail (E) to Divider (F) with
Head Cap Bolts (long). (see Figure 2)
D
Head Cap Bolt (long)
F
D
E
Figure 1
B
Figure 2
Figure 3
Head Cap Bolt (long)
STEP 3
Attach Side Frames (B) and (C) to
the unit from Step 2 and Base (G)
with Head Cap Bolts (long).
Attach 4X Casters to unit with
locking casters at the front and
non-locking casters at the back.
(see Figure 3)
Locking Casters
Non-Locking Casters
G
C
Head Cap Bolt (short)
Assembly Instruction 3 / 4
Cam Lock
I
H
I
Adjustable Pin
A
J
STEP 4
Attach Side Bar (J) to unit with Head
Cap Bolts (short). (see Figure 4)
Place Top (A) onto the unit and attach
with Cam Locks. (see Figure 5)
Insert Adjustable Pins into the side
frames at the desired level and place
Shelf (H) into position. (see Figure 6)
Slide Drawers (I) into position.
Wood Plug
STEP 5
Cover all holes with Wood Plugs.
(see Figure 7)
Figure 5
Figure 6 Figure 7Figure 4
Drawer (I)
igure 2)
4
I3
Figure 1
Assembly Instruction 4 / 4
I1
I4
I2
STEP 1
Attach I1 to I2 and I4, using
a Phillips screwdriver and
long wood screws (4X), tighten
halfway.
Attach I2 to I3 and I4 using
long wood screws (4X), tighten
halfway. (see Figure 1)
Figure 3
I3
I5
I2
MAKE SURE ROLLER
IS ON THE BACK
Figure 2
I1
I4
I3
I2
I1
I5
I4
STEP 2
Slide I5 into the grooves in I3
and I4. Push I5 all the way
forward so it meets I1. (see
Figure 2)
Figure 4
igure
STEP 3
Insert short wood screws (6X)
into the pre-drilled holes in I5
and tighten. (see Figure 3)
Part List
I1.
Front Part
2 pcs.
I2.
Back Part
2 pcs.
STEP 4
Assemble Pull Handle
with machine screws.
(see Figure 4)
Tighten all screws used in drawer assembly.
I3.
Side Part
2 pcs.
I4.
Side Part
2 pcs.
I5.
Base Part
2 pcs.
