Home Styles 5050-34 User Manual
88 5050 06
Modern Craftsman
Media Console
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Cabinet
1 pc.
Hardware List
Hex Wrench
1 pc.
B.
Stretcher
4 pcs.
C.
Stretcher
1 pc.
D.
Side Frame
2 pcs.
E.
Shelf
2 pcs.
Spring Washer
24 pcs. (+1 extra )
Small
Hex Wrench
1 pc.
Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
Head Cap Bolt
24 pcs. (+1 extra)
servicedesk@homestyles-furniture.com
Flat Washer
24 pcs. (+1 extra )
Wood Screw
27 pcs.(+1 extra)
Assembly Instructions 2/4
IMPORTANT
* Do not tighten up all the screws until each part is properly assembled.
* You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future.
* Use a soft cloth between these parts and the floor.

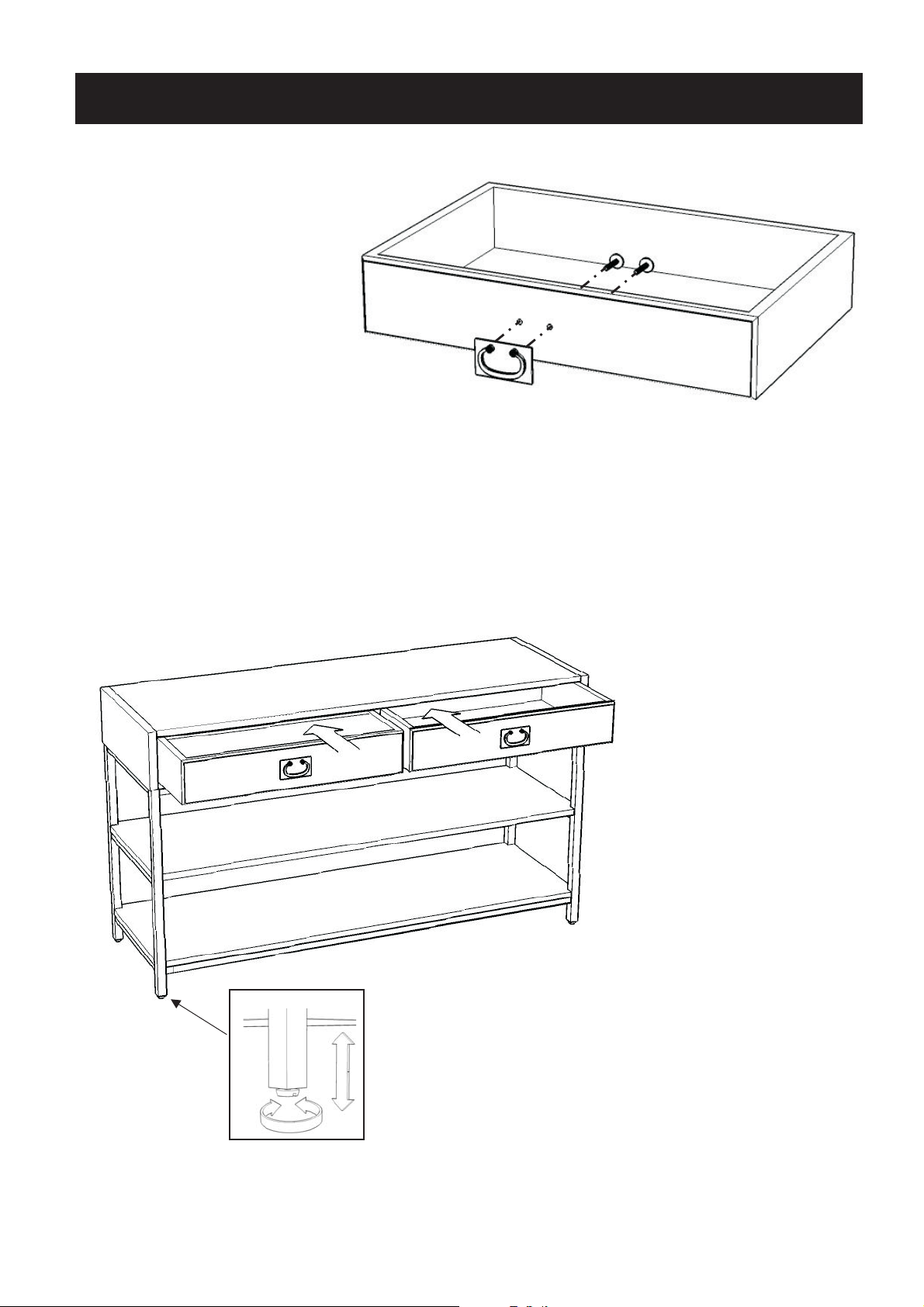

* After assembly, item must be level to work properly. Use the included adjustable levelers to level.
Flat Washer
Spring Washer
Head Cap Bolt
D
B
STEP 1
Attach Stretchers (B) and (C) to
Side Frame (D) with Head Cap Bolts,
Spring Washers and Flat Washers.
Tighten Head Cap Bolts only halfway. (See figure 1)
Attach the other Side Frame (D) to unit with
Head Cap Bolts, Spring Washers and Flat Washers.
Tighten all Head Cap Bolts.
B
B
B
C
D
STEP 2
Slide Shelf (E) into the middle of unit.
Attach with Head Cap Bolts, Spring Washers
and Flat Washers into the pre-drilled holes.
Attach with 7X Wood Screws.
Figure 1
E
Wood Screw
