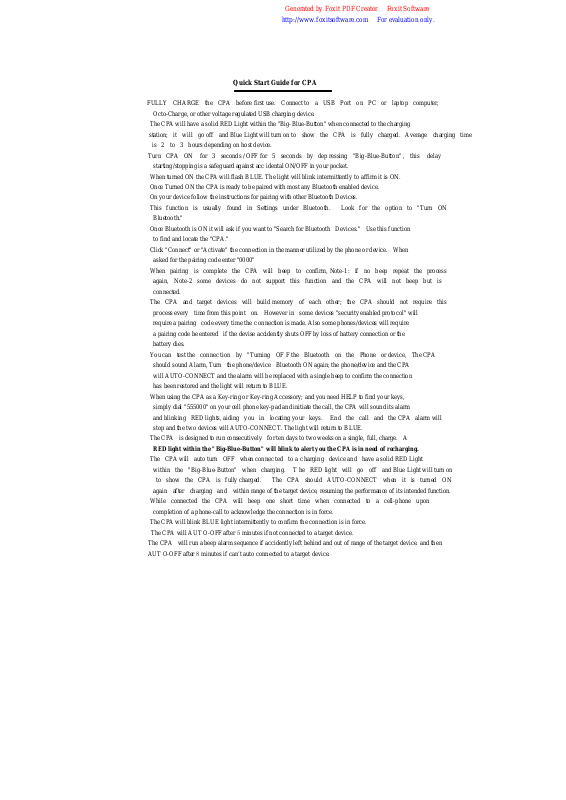

Quick Start Guide for CPA

FULLY CHARGE the CPA before first use. Connect to a USB Port on PC or laptop computer,

Octo-Charge, or other voltage regulated USB charging device.

The CPA will have a solid RED Light within the "Big-Blue-Button" when connected to the charging

station; it will go off and Blue Light will turn on to show the CPA is fully charged. Average charging time
is 2 to 3 hours depending on host device.

Turn CPA ON for 3 seconds / OFF for 5 seconds by dep ressing "Big-Blue-Button" , this delay

starting/stopping is a safeguard against acc idental ON/OFF in your pocket.
When turned ON the CPA will flash BLUE. The light will blink intermittently to affirm it is ON.
Once Turned ON the CPA is ready to be paired with most any Bluetooth enabled device.
On your device follow the instructions for pairing with other Bluetooth Devices.
This function is usually found in Settings under Bluetooth. Look for the option to "Turn ON

Bluetooth."
Once Bluetooth is ON it will ask if you want to "Search for Bluetooth Devices." Use this function

to find and locate the "CPA."
Click "Connect" or "Activate" the connection in the manner utilized by the phone or device. W hen

asked for the pairing code enter "0000"
When pairing is complete the CPA will beep to confirm, Note-1: if no beep repeat the process

again, Note-2 some devices do not support this function and the CPA will not beep but is

connected.
The CPA and target devices will build memory of each other; the CPA should not require this

process every time from this point on. However in some devices "security enabled protocol" will

require a pairing code every time the c onnection is made. Also some phones/devices will require

a pairing code be entered if the devise accidently shuts OFF by loss of battery connection or the

battery dies.
You can test the connec tion by "Turning OF F the Bluetooth on the Phone or device, The CPA

should sound Alarm, Turn the phone/device Bluetooth ON again; the phone/device and the CPA

will AUTO-CONNECT and the alarm will be replaced with a single beep to confirm the connection

has been restored and the light will return to BLUE.
When using the CPA as a Key-ring or Key-ring Accessory; and you need HELP to find your keys,

simply dial "555000" on your cell phone key-pad and initiate the call, the CPA will sound its alarm

and blinking RED lights, aiding you in locating your keys. End the call and the CPA alarm will

stop and the two devices will AUTO-CONNECT. The light will return to BLUE.
The CPA is designed to run consecutively for ten days to two weeks on a single, full, charge. A

RED light within the "Big-Blue-Button" will blink to alert you the CPA is in need of recharging.
The CPA will auto turn OFF when connec ted to a c harging device and have a solid RED Light

within the "Big-Blue-Button" when charging. T he RED light will go off and Blue Light will turn on

to show the CPA is fully charged. The CPA should AUTO-CONNECT when it is turned ON

again after charging and within range of the target device, resuming the performance of its intended function.
While connected the CPA will beep one short time when connected to a cell-phone upon

completion of a phone-call to acknowledge the connection is in force.
The CPA will blink BLUE light intermittently to confirm the connection is in force.
The CPA will AUT O-OFF after 5 minutes if not connected to a target device.

The CPA will run a beep alarm sequence if accidently left behind and out of range of the target device. and then

AUT O-OFF after 8 minutes if can’t auto connected to a target device.

Generated by Foxit PDF Creator Foxit Software

http://www.foxitsoftware.com For evaluation only.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.

However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interfe rence to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.

o Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
o Consult the dealer or an experienced radio/TV technician
for help.
