Home Protector CCTV User Manual

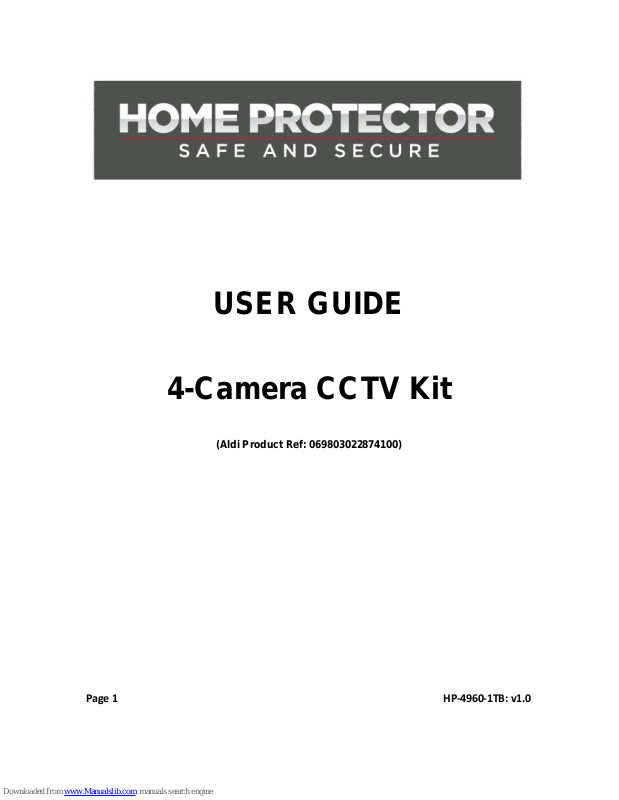

Page 1 HP-4960-1TB: v1.0

USER GUIDE

4-Camera CCTV Kit

(Aldi Product Ref: 069803022874100)

Page 2 HP-4960-1TB: v1.0

Introduction

The Home Protector CCTV kit is designed specifically
for security and surveillance in the home or small business.
It uses an embedded LINUX operating system with the
standard H.264 video compression format and G.711A
audio compression format ensuring the highest quality
image and low error coding ratio. The robust network
services greatly enhance the network data transmission
capacity and remote control capability.

Page 3 HP-4960-1TB: v1.0

Part One: Basic Operation

1. Connecting the System

Page 4 HP-4960-1TB: v1.0

2. Powering on the DVR

Plug in the power supply and turn on; the red power light
indicates the DVR is now powered on. When the startup is
completed you will hear a beep, and the default setting for
video output is a multiple-window display showing the
cameras.

NB: Restarting the DVR after an unscheduled power
off will automatically restore the DVR’s previous state.

3. Powering on the DVR

There are two methods to turn off the DVR; soft switch and
hard switch. For soft switch, select [Main menu] and
[Logout], select preferred option. For hard switch, turn off
power to the DVR.

NB: If replacing the backup battery, ensure DVR
settings are saved or these will be lost and will need to
be re-entered.

4. Login

When the DVR is powered on, the user must login in order
to view settings. There are two user settings;

 “admin”: super user settings with access to all

DVR functions

 “guest”: has the ability to view and playback

recorded video.
