Home Protector 63795 User Manual

2

Content

Introduction ................................................................................................. 4

Welcome ................................................................................................... 4

General Information and Safety Instructions ................................. 5

Warning ..................................................................................................... 5

Caution ...................................................................................................... 5

Assembly and Parts List ......................................................................... 8

Overview ..................................................................................................... 10

Front view .............................................................................................. 10

Control panel ......................................................................................... 11

LCD Display ........................................................................................... 13

Image/Video capacity ....................................................................... 14

Mounting the Security Light ............................................................... 15

1. Connect the Security Light to AC power ........................... 16

2. Replacing the halogen lamp if faulty ................................... 17

Camera set up / getting started ........................................................ 17

1. Inserting SD memory card ....................................................... 17

2. Testing the PIR coverage area ............................................... 18

3. Settings............................................................................................ 18

4. Setting the data and time ........................................................ 19

5. Setting the AE frequency to 60Hz or 50Hz ...................... 20

6. Setting the resolution ................................................................ 20

7. Set the Burst capturing and Video capturing ................... 21

8. Setting the capture interval time .......................................... 21

9. Setting the recording time ...................................................... 21

3

10. Delete the camera image/video ........................................ 22

Viewing images via PC .......................................................................... 23

1. Viewing images via your Security Light directly

on your PC ...................................................................................... 23

Technical Specifications ....................................................................... 24

1. System Requirements and Compatibility .......................... 24

2. Features and specifications ..................................................... 24

Disposal ....................................................................................................... 25

Warranty card ........................................................................................... 27

4

Introduction

Using a motion activated floodlight outside your home is a
good idea to deter unwanted visitors, but this one takes the
concept one step further - it actually records them. The
Security Light with Camera is able to record both videos and
photos. The Security Light comes with a powerful 300W
halogen bulb and the built-in PIR sensor has a 9 meter
detection range. The motion detector will activate the
floodlight and start recording, as soon as motion is detected.
Videos and images will be recorded directly to the SD card
with date/time stamp.

Welcome

You have made an excellent choice with the purchase of this
quality Home Protector product.

By doing so you now have the assurance and peace of mind,
which comes from purchasing a product that has been
manufactured to the highest standards of performance and
safety, supported by the high quality standards of Aldi.

We want you to be completely satisfied with your purchase,
so this Home Protector product is backed by a
comprehensive manufacturer’s 3-year warranty and an
outstanding after sales service through our dedicated
Helpline.

We hope you will enjoy using your purchase for many years
to come.

If you require technical support or in the unlikely event that
your purchase is faulty please telephone our Helpline for
immediate assistance. Faulty product claims made within the
3 year warranty period will be repaired or replaced free of
charge provided that you have satisfactory proof of purchase
(keep your till receipt safe!). This does not affect your
statutory rights.
However, be aware that the warranty will become null and
void if the product is found to have been deliberately
damaged, misused or disassembled.

5

General Information and Safety Instructions

Read all safety information below and operating instructions
before using this Security Light to avoid any damages to your
device.

1. Do not drop, disassemble, open, crush, bend, deform,

puncture, shred, microwave, incinerate, paint, or insert
foreign objects into this device.

Warning

The symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

The symbol is intended to alert the user to the

presence of uninsulated ”dangerous voltage”

within the product’s enclosure that may be
sufficient magnitude to pose a risk of electric
shock to persons.

Any changes or modifications to the construction of this
product which are not expressly approved by the person
responsible for compliance could void the warranty.

Caution

Hazard, Safety and Warning notices

 Incorrect use of the camera and accessories can be

dangerous for you and others and can damage or destroy
the camera. We therefore ask you to read and strictly
observe the following hazard, safety and warning notices.

Intended use

 This Security Light with audio transmission is solely

intended for the audio and image surveillance of exterior
areas. The specified maximum ranges are approximate and
can be impaired, depending on the environment and

6

natural weather conditions. You are responsible for
ensuring that no personal rights of third parties are
violated when using the Security Light.

 The Security Light has solely been designed for private use.

Hazards for children and persons with limited ability to
operate electronic equipment

 The Security Light, accessories and packaging are not toys

for children to play with and therefore should be kept away
from children. There could be a risk of electrocution,
poisoning and suffocation.

 The Security Light and accessories may not be used by

children or persons with a limited ability of operating
equipment. The Security Light may not be used by persons
(including children) with limited physical, sensory or mental
capacities or limited experience and/or knowledge. The
Security Light, and mains adapter may only be used by
persons that are physically or mentally able to operate the
equipment safely, unless they are supervised by a person
responsible for their safety or have been instructed by this
person as to how to use the equipment. Children should be
supervised to ensure that they are not playing with the
equipment.

Storing conditions

 Storage conditions:-20

o

C to 55 oC, 20-85% R.H., non-

condensing.

Special care instructions!!

 The Security Light is designed only to be weather resistant.
 Never attempt to immerse the unit in water or any other

liquid. This will damage the unit and void the warranty.

 Use a soft lens cloth for cleaning the lens. Avoid touching

the lens with fingers.

 Remove dirt or stains with a soft cloth dampened with water

or mild detergent. Keep the Security Light in a dry and cool
dust-free environment or container when it is NOT used.

 Do not open the Security Light for unauthorized service. This

could cause serious damage to the unit and will void your
warranty.

 This Security Light is a precision electronic device. Do not

attempt to service this camera yourself, as opening or

7

removing covers may expose you to dangerous voltage
points or other risks.

 Do not touch the floodlight when the power is on, it is

extremely hot.

Hazard of electrocution in case of wet and humid conditions

 The Security Light and any supplied components may not

be exposed to dripping or spray water. Containers filled
with liquid, such as vases or glasses may also not be placed
on or close to the camera. Danger of fire and electrocution.

 Do not use the camera and its components close to water

and protect against moisture and humidity. Danger of fire
and electrocution.

 Do not use the camera and its components in areas

exposed to high humidity, steam, smoke or dust. Danger of
fire and electrocution.

Electrical hazard

 Switch off the Security Light with Camera if a foreign body

or liquid has entered the light or camera. Wait until
completely dry, there is danger of fire and electrocution.

 Switch off if Security Light with Camera has been dropped

or if housing is damaged, there is danger of fire and
electrocution.

 The Security Light and its components may not be

dismantled, modified or repaired, there is danger of fire
and electrocution.

 Only use the supplied power cable provided or power

cable with the same specifications. Only connect to a
power supply that has a suitable voltage as specified on
the rating plate.

 Do not use power supply or output cable if damaged.

Replace with same type of power supply.

 The USB power supply may not be used during a thunder

storm, there is danger of electrocution.

8

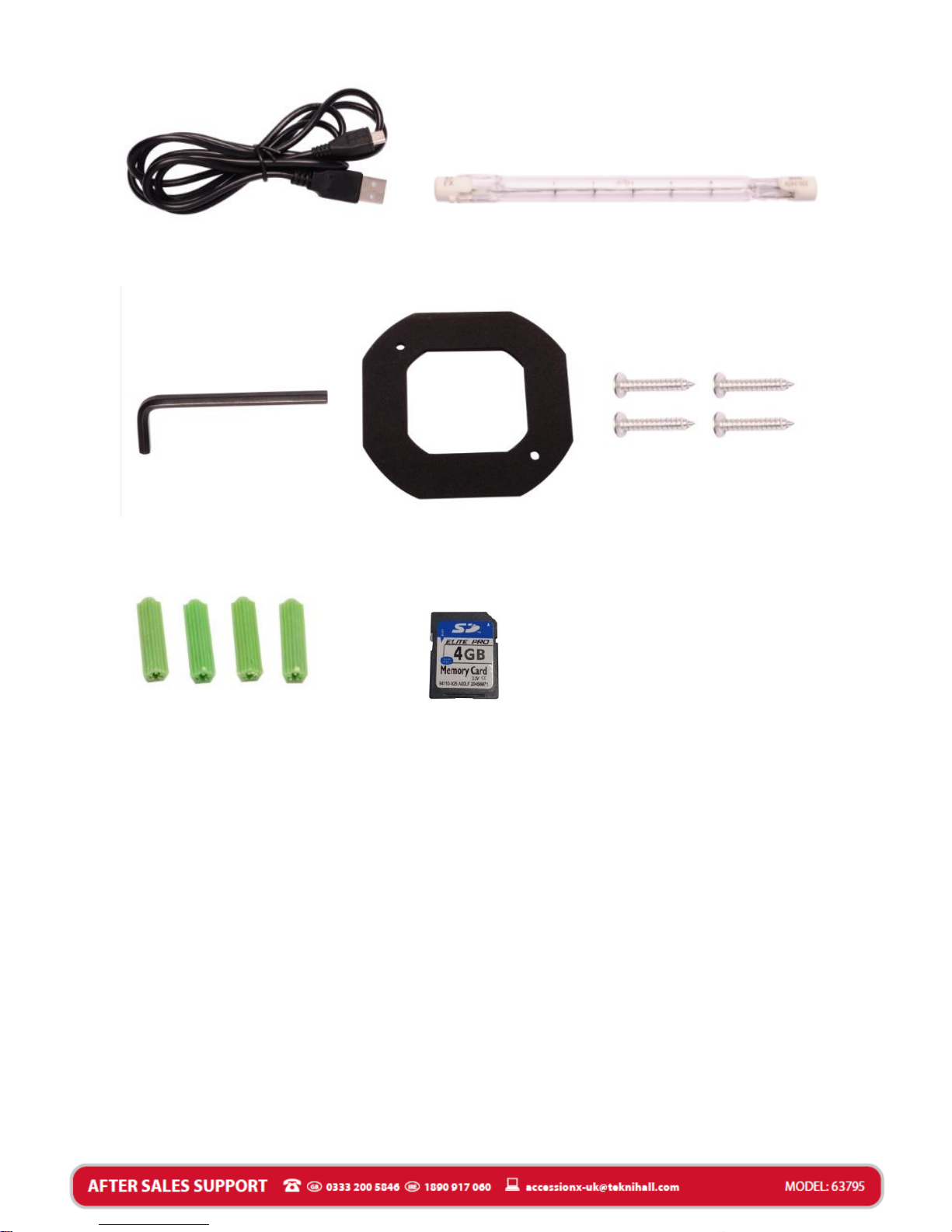

Assembly and Parts List

 Security Light with Camera  EVA foam

 USB cable  Screws (4 pcs.)

 300W halogen tube  Screws bolts (4 pcs.)

 Hexagon key  4GB memory card


