Home Protector 61859 User Manual

Contents

Introduction ..................................................... 4

Welcome ....................................................... 4

General Information and Safety

Instructions ...................................................... 5

Assembly and Parts List ............................. 7

Outdoor unit ................................................ 8

Indoor unit .................................................... 9

Accessories ................................................ 10

Getting Started .............................................. 12

Features .......................................................... 24

Instructions .................................................... 25

Replacing the batteries ......................... 25

Removing the micro SD card .............. 25

Buttons ........................................................ 26

Take a picture from the inside ............ 26

Take a picture using the doorbell ..... 27

Review and delete pictures ................. 27

2

Change the Date/Time .......................... 28

Screen shots .............................................. 29

Device timing operation ....................... 29

FAQ .................................................................. 30

Other Useful Information .......................... 31

Disposal ........................................................ 31

Specifications ............................................ 32

Warranty Conditions .............................. 33

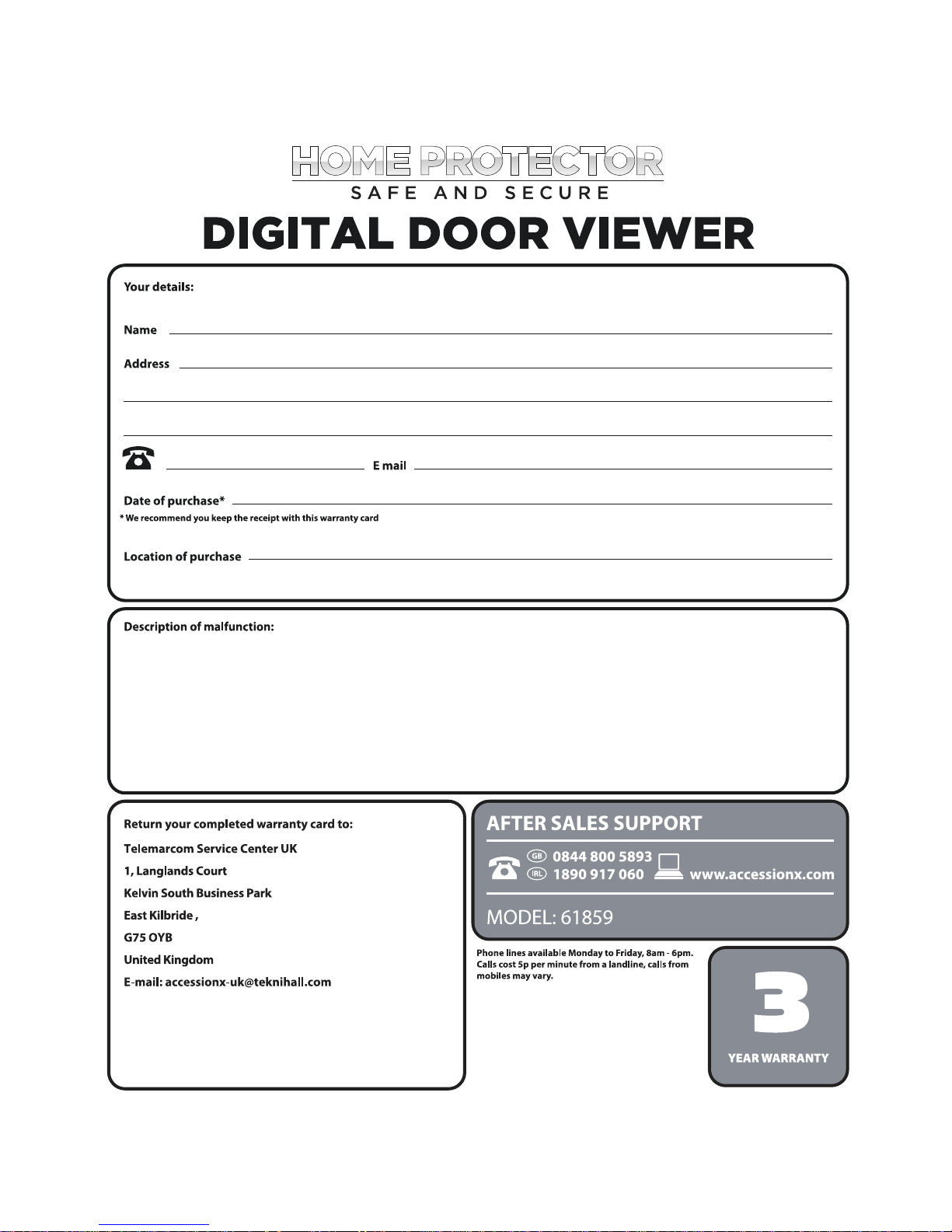

Warranty card ............................................... 37

3

Introduction

This Digital Door Viewer helps you to
protect yourself and your valuables. The
screen allows you to see & communicate
with whoever is at the door before
having to open it.

Welcome

You have made an excellent choice with
the purchase of this quality Home
Protector product.

By doing so you now have the assurance
and peace of mind which comes from
purchasing a product that has been
manufactured to the highest standards
of performance and safety, supported
by the high quality standards of Aldi.

We want you to be completely satisfied
with your purchase, so this Home
Protector product is backed by a
comprehensive manufacturer’s 3-year
warranty and an outstanding after sales
service through our dedicated Helpline.

4

We hope you will enjoy using your
purchase for many years to come.

If you require technical support or in the
unlikely event that your purchase is
faulty please telephone our Helpline for
immediate assistance. Faulty product
claims made within the 3 year warranty
period will be repaired or replaced free
of charge provided that you have
satisfactory proof of purchase (keep
your till receipt safe!). This does not aff
ect your statutory rights.
However, be aware that the warranty
will become null and void if the product
is found to have been deliberately
damaged, misused or disassembled.

General Information and Safety
Instructions

Read all safety information below and
operating instruction before using this
Digital Door Viewer to avoid any
damages to your device.

5

1. Do not drop, disassemble, open,

crush, bend, deform, puncture, shred,
microwave, incinerate, paint, or insert
foreign objects into this device.

2. Do not expose the Digital Door

Viewer / Camera (indoor unit) to
moisture or submerge it in liquid.
Keep it dry at all times.

3. Flat batteries should be immediately

removed from the device. Never mix
old and new batteries. Always replace
batteries in pairs.

4. Always keep the product out of reach

of babies and children, in order to
avoid any dangerous situation.

6

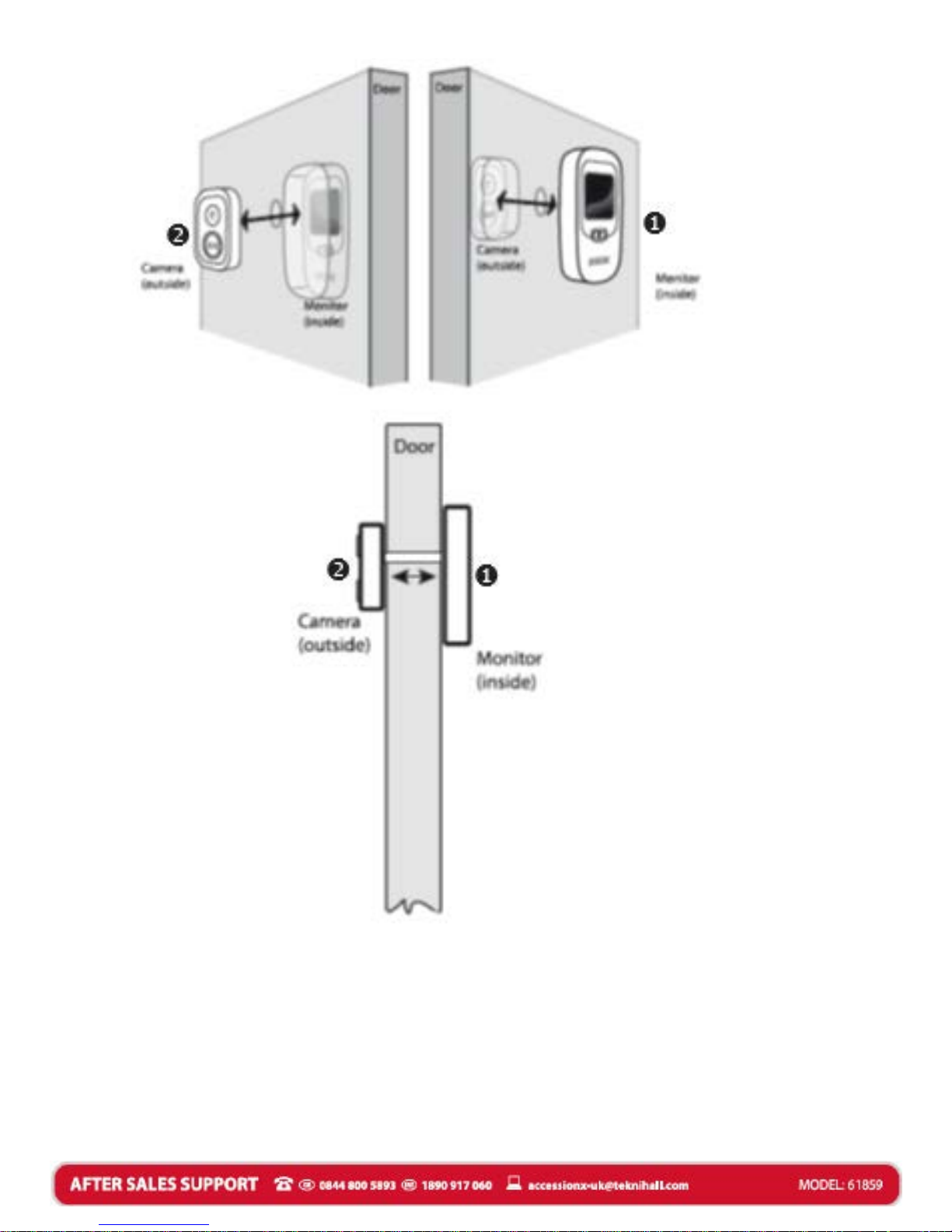

Assembly and Parts List

 Digital Door Viewer with pre-

installed 128 MB Micro SD card
(indoor/main unit/screen)

 Doorbell (outdoor unit)

 Metal tube

 Back plate

 Adhesive tape

 Screws (1 short, 2 long)

 Flat tool

 Micro SD Card (pre-installed)

 2 x AA batteries

7

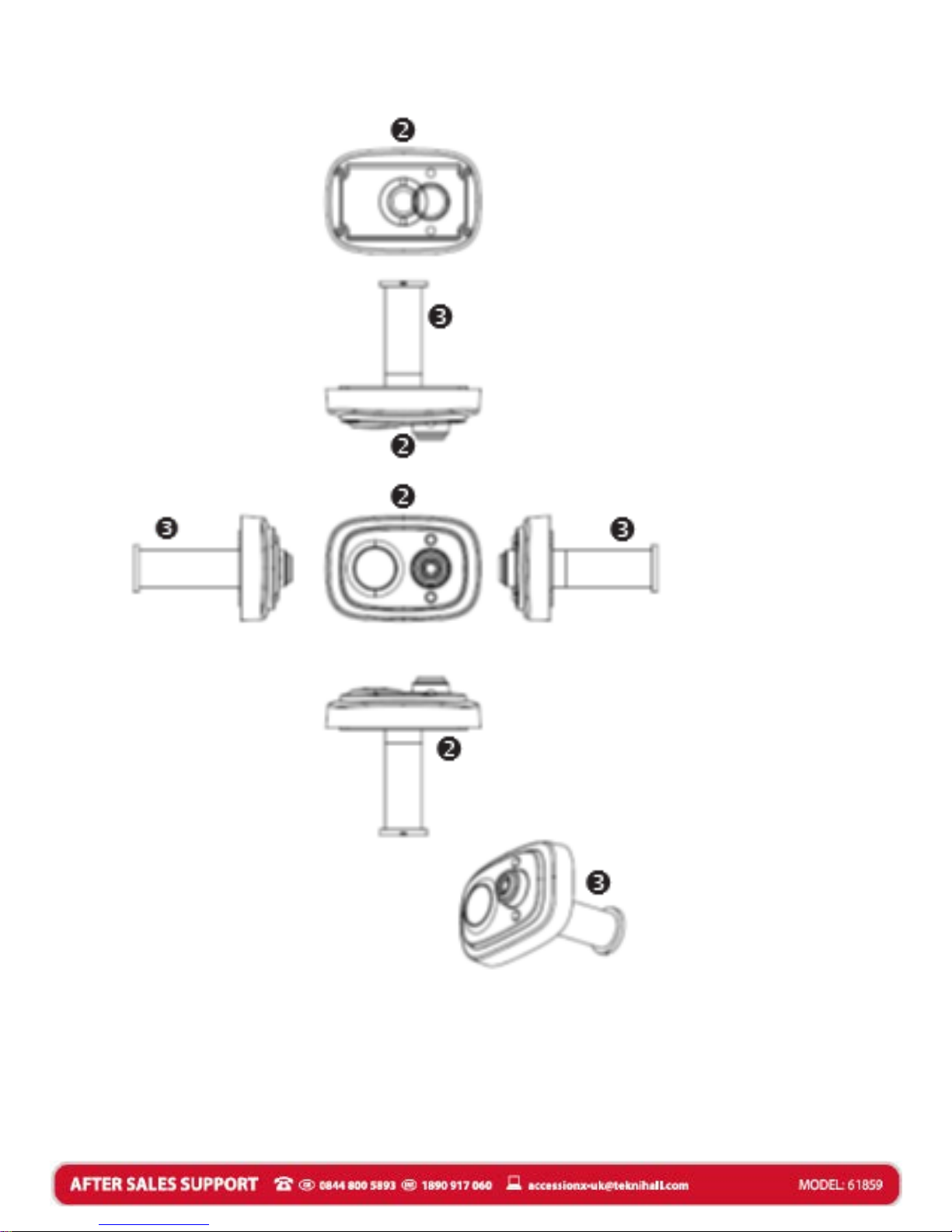

Outdoor unit

8

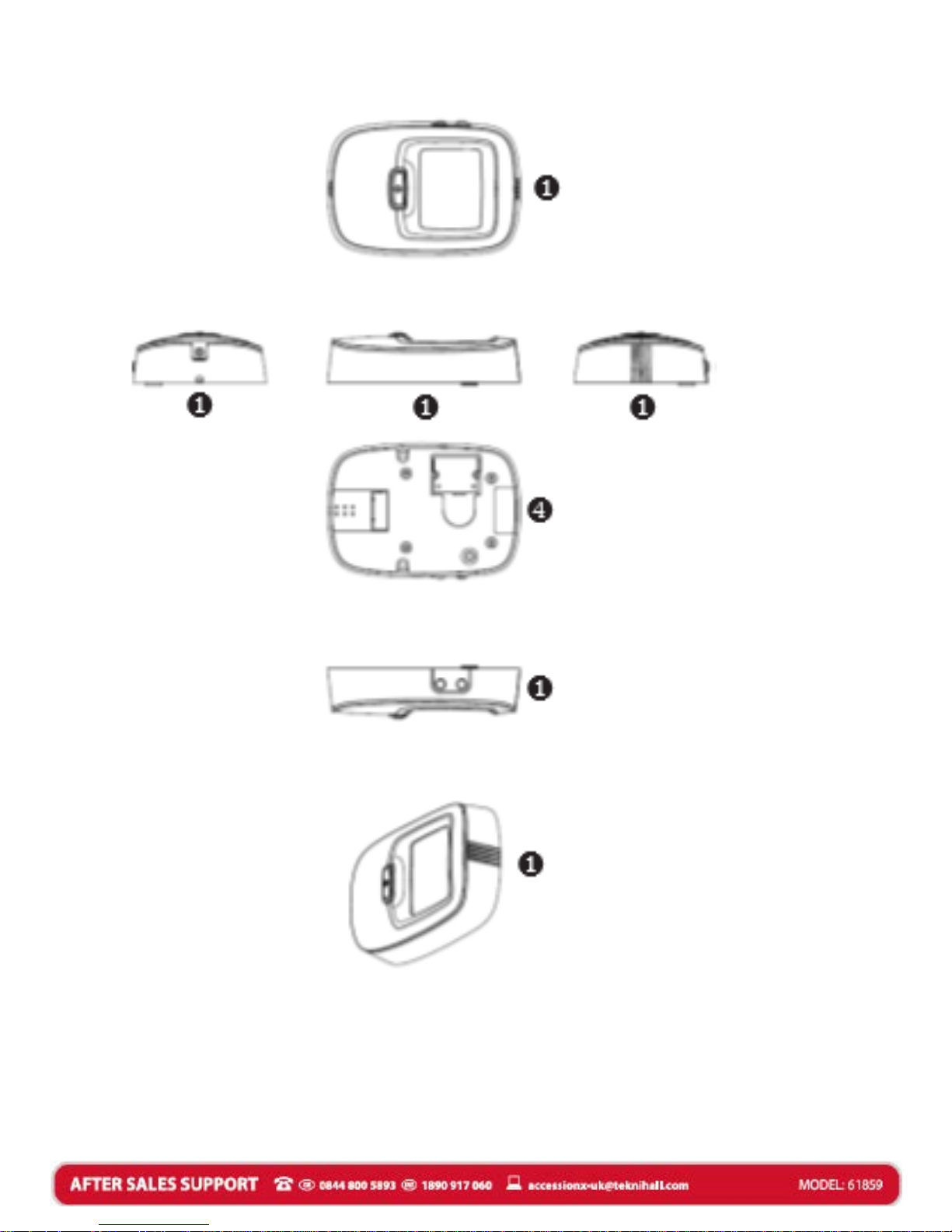

Indoor unit



9

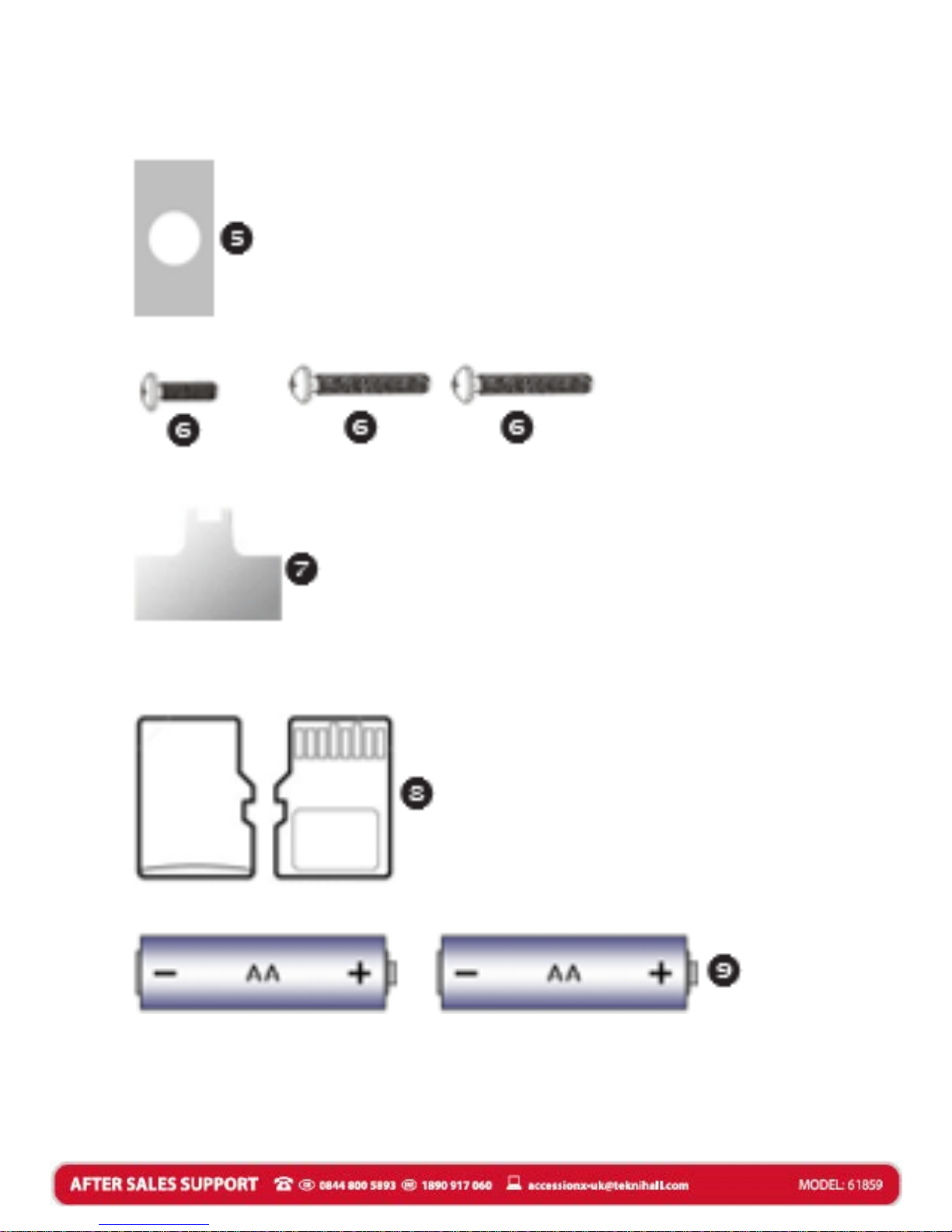

Accessories

10

11

Getting Started

Remove protection foam as shown
below.

1. Remove any existing Door Viewer

from the door.

12

2. If there is no Door Viewer you will

need to drill a suitable hole, using a
5/8" (7mm) drill bit.

3. Peel off the adhesive cover on one

side of the adhesive tape and attach
it to the back of the doorbell unit.
Then peel off the adhesive cover.

13

4. Place the doorbell unit on the

outside of the door and secure it by
using the adhesive tape.
Ensure that the metal threading is
exactly in the middle of the
peephole.

5. Make sure that the connection

ribbon goes through the hole.

14

6. Peel off the tape on the back of the

mounting plate. This will help
prevent scratches on your door
when attaching the main unit.
Place the backing unit against the
door and pull the connection ribbon
through the center hole.

15

7. Pull the connection ribbon through

the center hole.

8. Use the included flat tool to twist the

metal tube clockwise until it is firmly
in place.

16

9. Press the ribbon head against the

PCB (printed circuit board) for
correct position. Please note that
the PCB is very fragile so make sure
not to press the ribbon head too
hard against the PCB.
Snap the PCB to the connection
point.

17

10. Use a screwdriver to remove the

faceplate from the main unit.

18

11. Insert two AA batteries into the unit,

ensuring that you have the correct
polarity.

Attention

For the following steps, please note that
the main connection points are vital for
the operation of the Door Viewer.
If they are note properly connected the
device will not work.

19

(Back of main unit)

12. Place the unit on the door so that

the two parts connect securely.

Ensure the units

are securely
connected

20

13. Ensure that the unit is properly

connected.

14. Using the 2 long screws provided,

secure the Door Viewer using a
Philips head screwdriver.

21

15. Place the cover on the front of the

device. Use the short screw to
secure the faceplate to the device.

22

16. The Door Viewer is now fully

installed. Please note that the
outdoor lens has a clear plastic
cover to prevent scatches. Please
remove the plastic after installation.

23

Features

This door viewer camera allows you to
see who is at the door and will provide
you with a more secure feeling. It has a
built-in 128 MB micro SD card that can
store up to 1000 pictures of people who
pressed the doorbell. The door viewer
camera has a 2.4" LCD colour monitor
and is easy to install.

24

Instructions

Replacing the batteries

To replace the batteries simply remove
the faceplate of the main unit by
unscrewing the bottom screw of the
device.
Remove the old batteries and replace
them with two new AA batteries.
Refer to steps 10 & 11 for more details.

Removing the micro SD card

Remove the faceplate of the main unit
by unscrewing the bottom screw on the
device. Remove the batteries from their
position. Push the micro SD card in to
release it. You can now view the images
from the SD card on another device or
replace the micro SD card with a card
with more/less memory.

25

Use the below diagram to assist you
in the following instructions

Buttons

The Door Viewer comes with 4 buttons;
A, B, C & D.

Take a picture from the inside

To monitor who is outside your door,
you can press “A”, and the screen will
turn on after 3 seconds. When the
screen is on press “A” again to take a
picture. The display will be in “Live
mode” for 10 seconds and then timeout.

26

Take a picture using the doorbell

When a visitor presses the “B”, the main
device screen will turn on after 6
seconds, and automatically the unit will
take one picture.
The screen will stay on for an additional
30 seconds. The included 128MB micro
SD card stores up to 1000 images.

NOTE: The doorbell cannot be used
independently.

Review and delete pictures

When the screen is on, press “C” to
review all pictures.
Scroll to see all pictures. Press “D” to
delete pictures, and press “D” again to
confirm that the image has been
deleted.

NOTE: The door chime will still function
when pressed if the memory card is full,
however additional images will not be
stored.

27

Change the Date/Time

Once the screen is on, press “D” to
adjust the date and time.
Press “C” or “D” to change the date and
time. Press “A” to go to the next menu.
Once you have entered all the
information
Correctly, press and hold “A” for 3
seconds and automatically the system
will store the information.

IMPORTANT: Images will vary
depending on surrounding light
conditions.

28

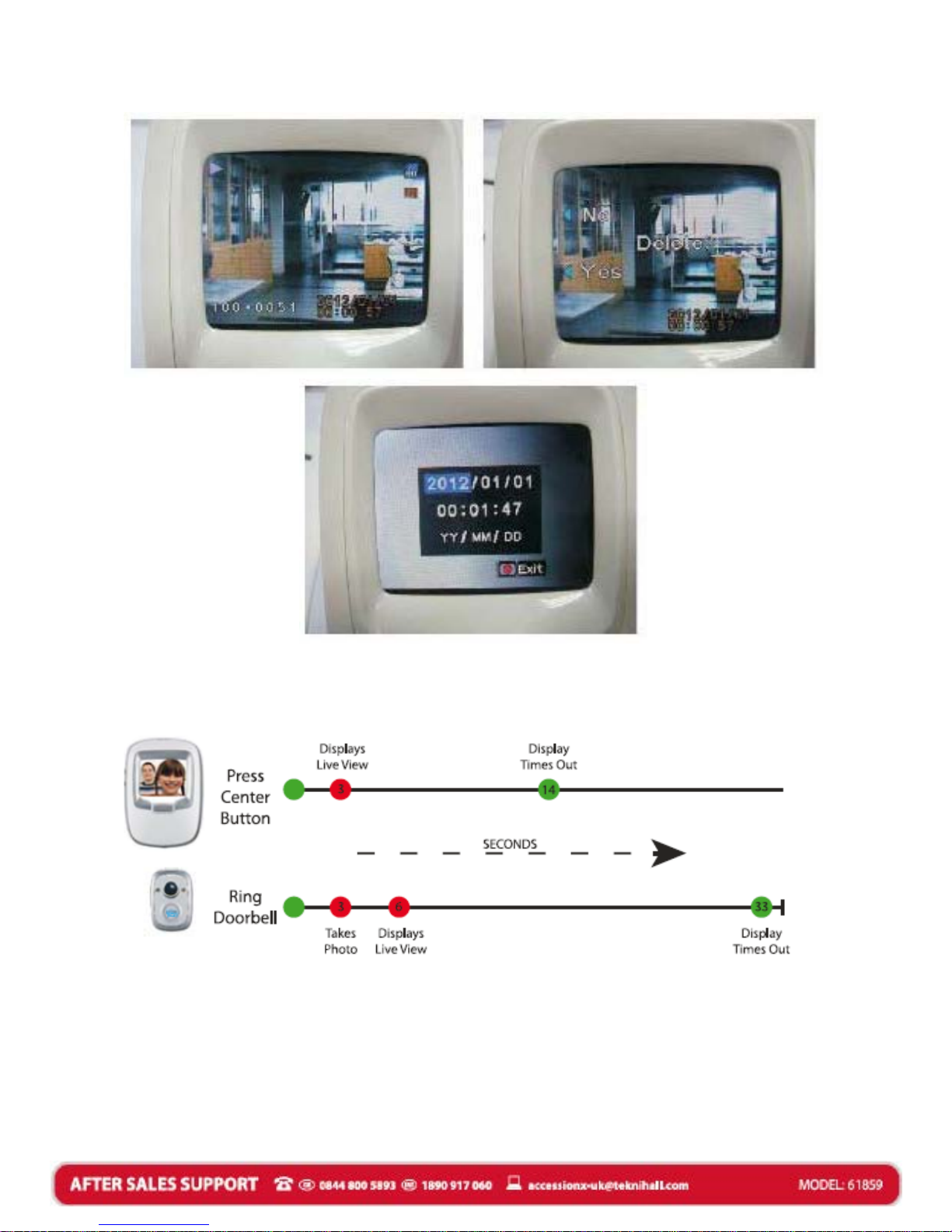

Screen shots

Device timing operation

29

FAQ

Q: No picture / No video
A: Make sure that the metal threading is

correctly connected with the PCB board.

Q: No power
A: Check the batteries in the main unit.

Q: Cannot save pictures/videos.
A: Make sure that the micro SD card is
not full.

30

Other Useful Information

Disposal

The packaging material is
partly recyclable. Dispose
of the packaging in an
environmentally friendly
way by bringing it to a
public collection centre.

The device and the

batteries must not be
disposed of together with
domestic waste. If you
want to dispose of the
device, do it the
environmentally friendly
way by bringing it to a
public waste centre.

31

Specifications

• 2.4 inch colour LCD display

• Suitable for door thickness 40 -

70mm

• Outdoor unit is with 0.3M pixel

camera, wide 120 degree view angle.

• Includes 128MB Micro SD card to store

up to 1000 pictures

• Traditional melody

• Powered by 2 x 1.5V AA batteries

(included)

• Life expectancy of batteries is

approx. 5 months.

• Batteries (2 x AA) weight: 0.0456 kg

• Indoor unit dimensions: 78 x 30 x 113

mm

• Outdoor unit dimensions: 39 x 62 x 57

mm

• Combined product weight: 0.201 kg

32

Warranty Conditions

Dear Customer,

The Aldi warranty offers you extensive
benefits compared to the statutory
obligation arising from a warranty:

Warranty period: 3 years from the date

of purchase

6 months for wear parts and

consumables under normal
and proper conditions of
use (e.g. rechargeable
batteries).

Costs: Free repair/ exchange or

refund. No transport costs.

Hotline: Free hotline
ADVICE: Please contact our service

hotline by phone, email or
fax before sending in the
device. This allows us to
provide support in the
event of possible operator
errors.

33

In order to make a claim under the
warranty, please send us:

• together with the faulty item the

original receipt and the warranty card
properly completed.

• the faulty product with all

components included in the
packaging.

The warranty does not cover damage
caused by:

• Accident or unanticipated events

(e.g. lightning, water, fire).

• Improper use or transport.

• Disregard of the safety and

maintenance instructions.

• Other improper treatment or

modification.

34

After the expiry of the warranty period,
you still have the possibility to have
your product repaired at your own
expense. If the repair or the estimate of
costs is not free of charge you will be
informed accordingly in advance.

In the event that a product is received
for repair, neither the service company
not the seller will assume any liability for
data or settings possibly stored on the
product by the customer.

Great care has gone into the
manufacture of this product and it
should therefore provide you with years
of good service when used properly. In
the event of product failure within its
intended use over the course of the first
3 years after date of purchase, we will
remedy the problem as quickly as
possible once it has been brought to our
attention. In the unlikely event of such
an occurrence, or if you require any
information about the product, please
contact us via our helpline support

35

services, details of which are to be
found both in this manual and on the
product itself.

If you are not entirely satisfied with this
product please return it to the store
where it was purchased and we will be
pleased to replace or refund it. This
does not affect your statutory rights.

PRODUCED IN CHINA FOR:

ALDI STORES LTD. PO BOX 26. ATHERSTONE.
WARWICKSHIRE, CV9 2SH.
________________________

ALDI STORE (IRELAND) LTD.
PO BOX 726, NAAS, CO. KILDARE.
Visit us at www.aldi.com

36
