HomePlug HP01 Easy Start

Easy Start

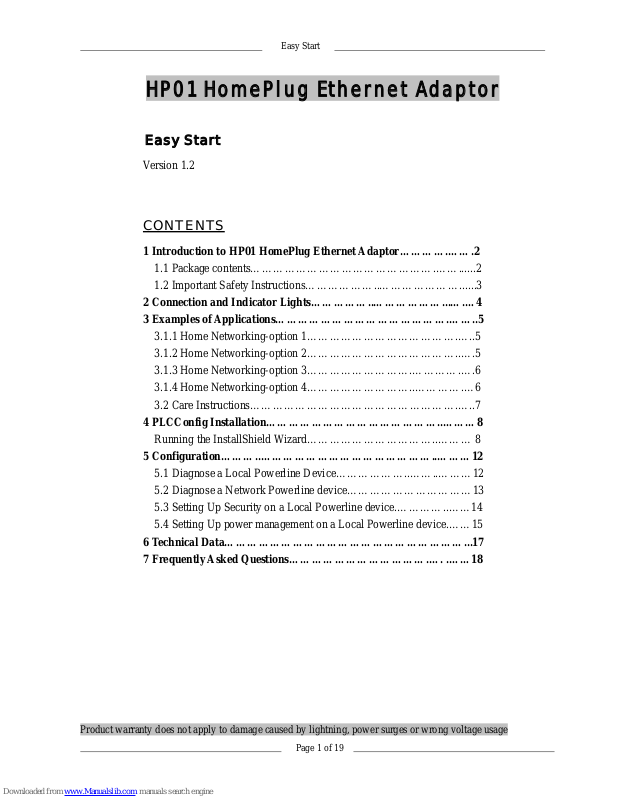

Page 1 of 19

HP01 HomePlug Ethernet Adaptor

Easy Star t

Version 1.2

CONTENTS

1 Introduction to HP01 HomePlug Ethernet Adaptor………….…….2

1.1 Package contents………………………………………….……......2

1.2 Important Safety Instructions………………..…………………......3

2 Connection and Indicator Lights……………..………………...….…4
3 Examples of Applications……………………………………….……..5

3.1.1 Home Networking-option 1………………………………….…..5

3.1.2 Home Networking-option 2…………………………………..….5

3.1.3 Home Networking-option 3……………………….………….….6

3.1.4 Home Networking-option 4………………………..………….…6

3.2 Care Instructions……………………………………………….…..7

4 PLCConfig Installation………………………………………..………8

Running the InstallShield Wizard……………………………..……… 8

5 Configuration………..………………………………………..………12

5.1 Diagnose a Local Powerline Device………………..……..………12

5.2 Diagnose a Network Powerline device……………………………13

5.3 Setting Up Security on a Local Powerline device.…………..……14

5.4 Setting Up power management on a Local Powerline device.……15

6 Technical Data………………………………………………………...17
7 Frequently Asked Questions……………………………….…. .……18

Product warranty does not apply to damage caused by lightning, power surges or wrong voltage usage

Easy Start

Page 2 of 19

1 Introduction to HP01 HomePlug Ethernet Adaptor

One of the major drawbacks in setting up home network is the absence of required wiring inside the
house to interconnect networked computers. In recent years several technologies have attempted to
address the issue. The most prominent technology so far is the family of WIFI (802.11X) products
Recently, however, another technology called HomePlug has come forth. It uses electrical grids, already
available inside walls to transmit data from computer to computer. HomePlug technology modulates
computer data in a way to enable them use power grid as a medium of transmission from point to point.
Using this technology, two computers have a virtual Ethernet connection without the need to be
physically connected to each other.

The HP01 HomePlug Ethernet Adaptor has 3 indicator lights(LEDs) and Ethernet port. The LEDs depict
the connection status, as well as other information , enabling detailed diagnosis of system malfunction.
The Ethernet port is to connect to a device in the home network. The HP01 HomePlug Ethernet Adaptor
has a standard power plug for connection to power outlet. There are four main kinds of power plugs:

 HP01-UK(UK)-3 pins UK plug with integrated 230V AC power supply.
 HP01-EU(EUR)-2 pins EU plug with integrated 230V AC power supply.
 HP01-US(US)-2 pins US plug with integrated 120V AC power supply.
 HP01-AU(AU)-3pins AU plug with integrated 230V AC power supply

Computer networking in the office or home has the following advantages:

1. Share centrally stored data

2. Share one printer

3. Multi-access to one Internet connection

4. Multi-user games over network.

1.1 Package Contents

Make sure that you have the following items. If any of the items is damaged or missing, please contact
your dealer immediately.

HP01-A2 HomePlug Ethernet Adaptor(Qty:2) CD (Qty:1)

CAT-5 UTP Straight Ethernet Network cable(RJ-45)(Qty:2)

Easy Start

Page 3 of 19

1.2 Important Safety Instructions

Please read these instructions carefully:

1. Unplug the HP01 HomePlug Ethernet Adaptor from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.

2. Do not use the HP01 HomePlug Ethernet Adaptor near water.

3. The HP01 HomePlug Ethernet Adaptor should never be placed near or over a radiator or heat register,
or in a built-in installation unless proper ventilation provided.

4. The HP01 HomePlug Ethernet Adaptor should be operated form the type of power indicated on the
marking label. If you are not sure of the type of power available, consult your dealer or local power
company.

5. The HP01 HomePlug Ethernet Adaptor relies on the building’s electrical installation for short-circuit
(over current ) protection. Ensure that a fuse or circuit breaker no larger than 120 VAC or 230
VAC(depends on the power supply type in your country ) is used on the phase conductors(all
current-carrying conductors).

6. Plug the HP01HomePlug Ethernet Adaptor directly into a 100V AC ~ 240V AC(depends on the power
supply type in your country ) wall outlet. Do not use an extension cord between the adapter and the
AC power source.

7. Do not attempt to service the HP01 HomePlug Ethernet adaptor yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks as well as ruin product warranty.
Refer all servicing to qualified service personnel.

8. Unplug the HP01 HomePlug Ethernet Adaptor from the wall outlet and refer the product to qualified
service personnel for the following conditions:

- If liquid has been spilled into the product .

- If the product has been exposed to rain or water.

- If the product does not operate normally when the operating instructions are followed.

- If the product exhibits a distinct change in performance.

Easy Start

Page 4 of 19

2. Connection and Indicator Lights

The HP01 HomePlug Ethernet Adaptor has three lights indicator(LEDs) and an Ethernet

port:

PL-ACT: Flash when the powerline device is transmitting or receiving data.

PL-LINK: Lights up powerline network is ready to use.

10/100MB: Red/Green Lights up when connector to the 10/100M Ethernet.

Flash when transmitting or receiving data.

ETHERNET: This is the connection point for connecting it to a computer or other devices with

Ethernet port.

Easy Start

Page 5 of 19

3. Examples of Applications

This section demonstrates some of the application scenarios.

3.1.1 Home Networking-option 1

Workstation with Internet connection over an ADSL/Cable modem

3.1.2 Home Networking—option2

Networking for Online Gaming.

Easy Start

Page 6 of 19

3.1.3 Home Networking—option 3

Networking for several workstations with one Internet connection over an ADSL/Cable modem router

3.1.4 Home Networking—option 4

Networking for several workstations with one Internet connection over an ADSL/Cable router and an
ADSL/Cable modem
