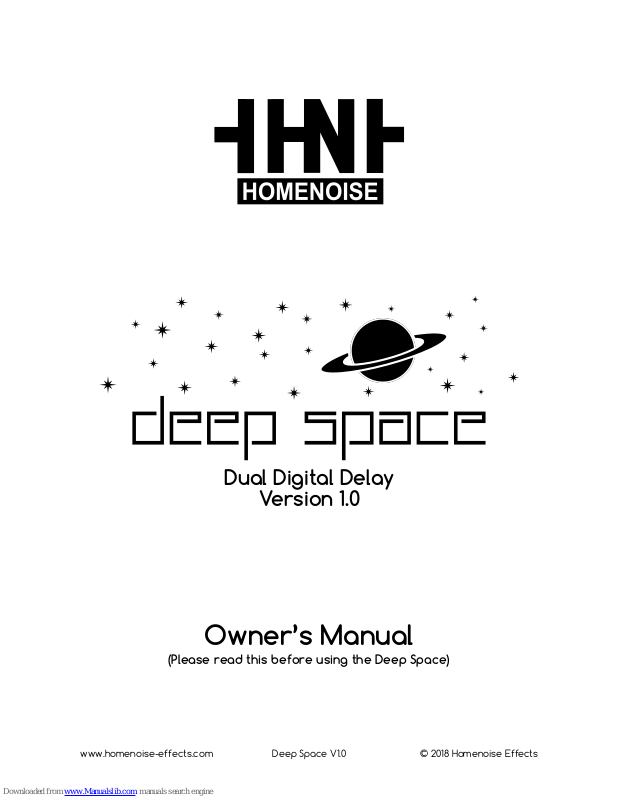

Page 1
!
www.homenoise-effects.com
Deep Space V1.0
© 2018 Homenoise Effects
Owner’s Manual
(Please read this before using the Deep Space)
Dual Digital Delay
Version 1.0
Page 2
!
www.homenoise-effects.com
Deep Space V1.0
© 2018 Homenoise Effects
Featuring two echo circuits in a single box, the Deep Space allows you to create
rhythmic echoes, long lo-fi delays as well as an endless wash of echo reflections. It has
all of the standard delay controls and two added knobs for blending and feedback
paths between the two delay circuits.
It is handmade in Leuven, Belgium.

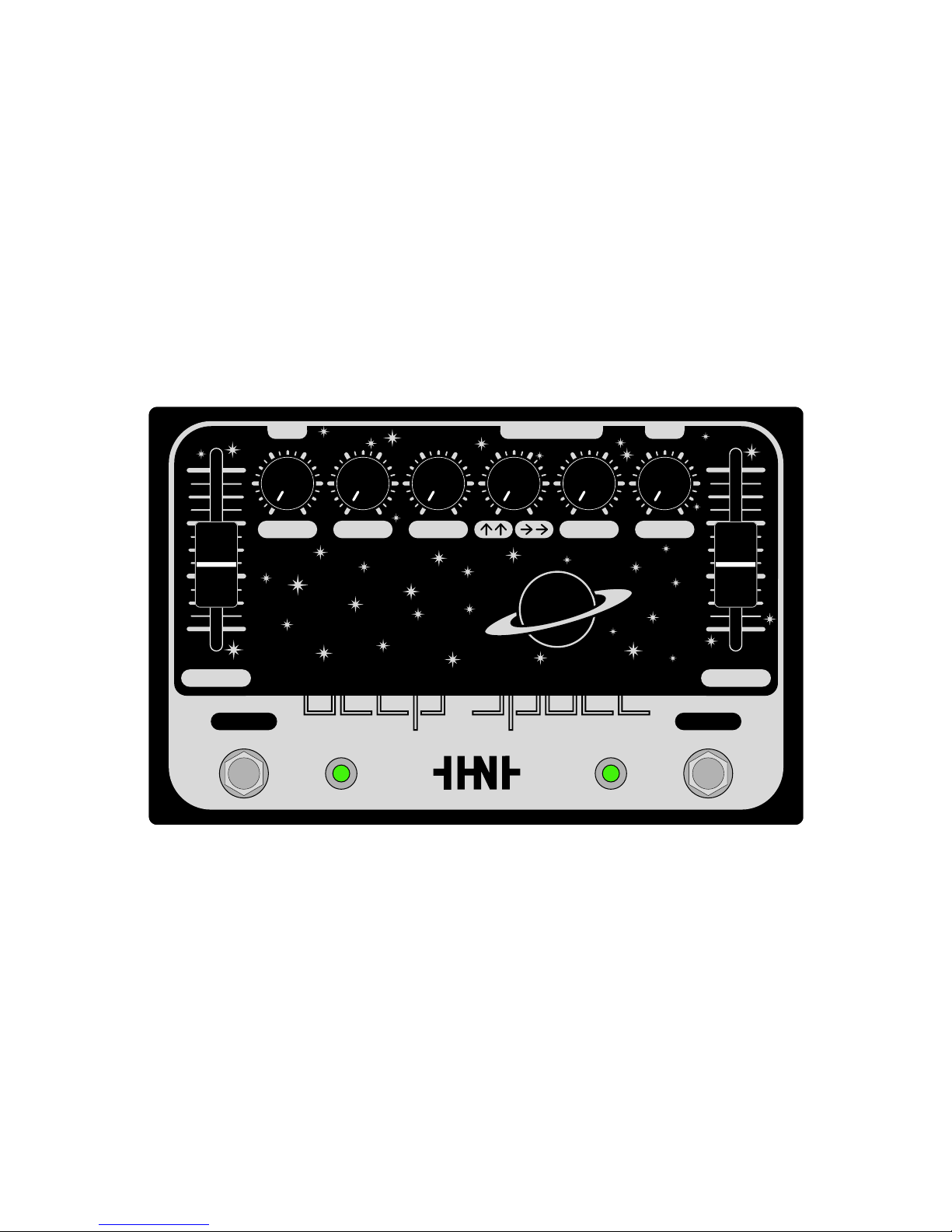

Deep Space
___________________________________________________________________________________________
INOUT
LO - F I BYPA SS
TIME B TIME A
F.B. AMIX ATRANS
DEEP space
MIX BF.B. B
TIME A EXP
Page 3
!
www.homenoise-effects.com
Deep Space V1.0
© 2018 Homenoise Effects
Delay
The Deep Space consists of two identical
dig ita l de l ay c ir cu it s tha t ca n be
configured in some interesting settings.
Both delays are controlled by their own
set of Mix, F.B. and Time knobs.
MIX is the volume control for each echo
circuit.
F.B. s et s t he a mou nt of r ep ea t s.
Oscillating fun starts past 3 ‘o clock.
TIME controls the delay time of each
echo circuit. Instead of knobs, high quality
faders are used to set the delay time. Try
sweeping them up and down! Delay time
ranges from about 40 to 320ms.
is the knob that you can use to
rearrange the two circuits. All the way to
the left the delays are in parallel. Like
running two delay pedals next to each
other. All the way to the right the output
of Delay A is fed to the input of Delay B
creating a serial structure. Since this
control is a knob and not a switch, you
can also choose to use anything in
between parallel and serial.
TRANS Can set the amount of signal
being sent from Delay A to Delay B. This
one is interactive with the parallel/serial
knob.
Expression
An expression pedal input has been added
to the pedal to allow you to use your foot
to control the time on Delay A. Make sure
you turn off the pedal before connecting
an expression pedal.
____________________________________________
Footswitches
The Deep Space features true bypass
switching. To activate the effect, press the
BYPASS switch. If the green LED next to the
footswitch is lit, the signal goes through
the effect. If the LED is turned off, the
effect is bypassed. The LO-FI switch is
used to activate a very long delay time on
delay B. When the LO-FI switch is turned
on, the green LED next to that switch will
be lit. With the LO-FI switch engaged the
delay time ranges from about 650ms to 1s.
Controls
___________________________________________________________________________________________
Page 4
www.homenoise-effects.com
Deep Space V1.0
© 2018 Homenoise Effects
WARN IN G
When using the Deep Space to generate oscillations and noise, always start with the MIX
A and MIX B controls at a very low setting. The oscillations generated by the Deep
Space can be very loud and may damage your ears when playing on high volumes!
Presets
___________________________________________________________________________________________

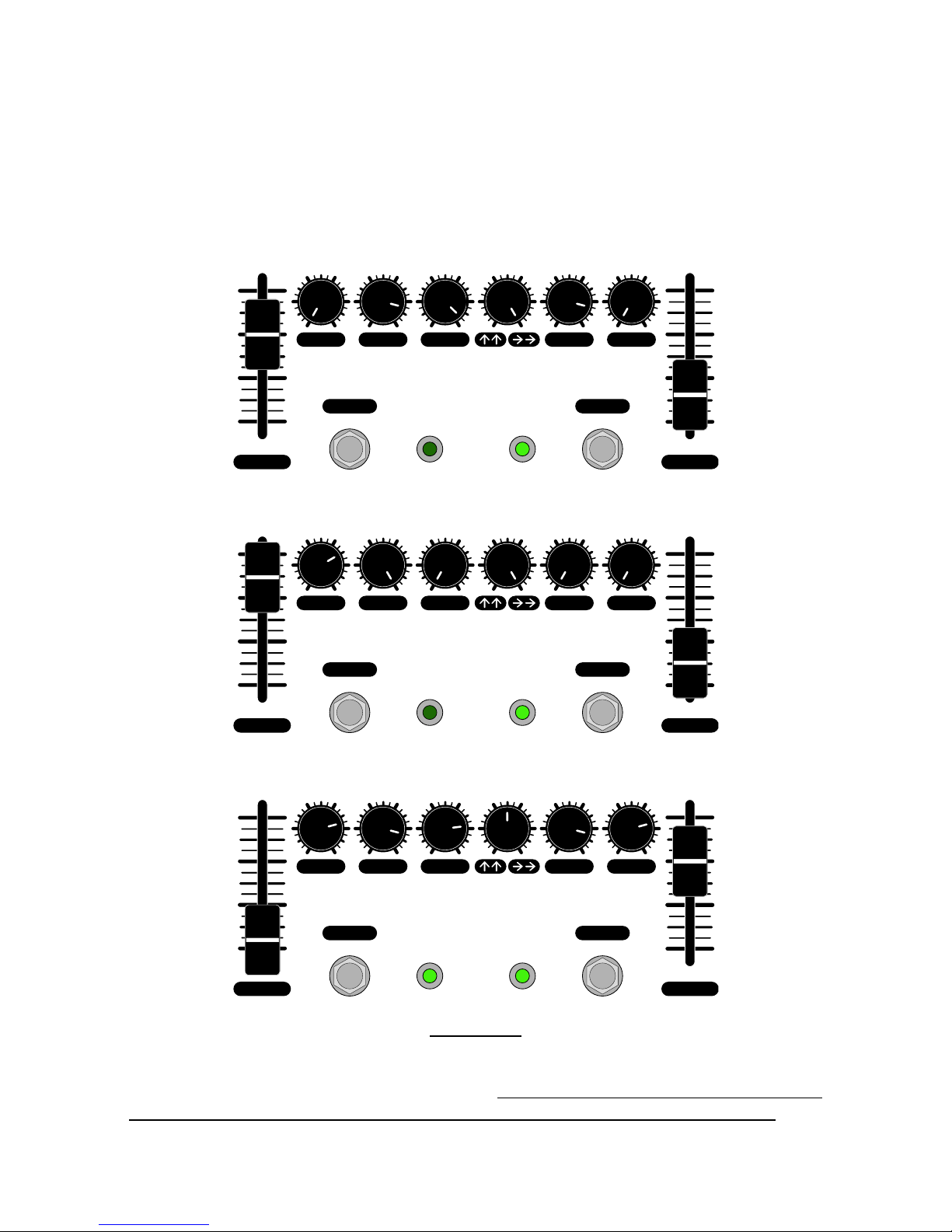

These are a few presets to get you started on your journey to Deep Space. Apart from
the given examples there are still a ton of other combinations that can be achieved so
keep on experimenting!
TIME B TIME A
F.B. AMIX ATRANSMIX BF.B. B
LO-FI BYPASS
TIME B TIME A
F.B. AMIX ATRANSMIX BF.B. B
LO-FI BYPASS
TIME B TIME A
F.B. AMIX ATRANSMIX BF.B. B
LO-FI BYPASS
Rhythmic repeats
Delayed delays
Spacey stuff
Page 5
www.homenoise-effects.com
Deep Space V1.0
© 2018 Homenoise Effects
Input
Impedance 1 MΩ
Connector Tip - Hot
Sleeve - Ground
Output
Impedance 1 kΩ
Connector Tip - Hot
Sleeve - Ground
Expression
Connector Tip - Ground
Ring - Hot
Sleeve - Not Connected
Power
Input 9V DC
Consumption 100 mA max
Connector 2,1 mm negative centre barrel
Dimensions
w x d x h 188 x 122 x 55 (mm)
7,4 x 4,8 x 2,2 (inch)
Technical Specifications
___________________________________________________________________________________________
