Packing list........................................................................................the 2nd cover
Names of the parts................................................................................................1
Safety precautions .............................................................................................2
Installation and adjustment ...................................................................................4
Preparation before washing .................................................................................5
Putting clothes in ..............................................................................................6
Usage of the detergent.........................................................................................6
Process washing...................................................................................................7
Disposal after washing .......................................................................................8
Trouble shooting ...........................................................................................9
Specifications.....................................................................................9
Contents
User's manual
Name
One
One
One
Quantity
Packing list
Water inlet hose
Washing machine
Warranty manual
One
Page 3
1
Meaning and description of the symbols
Names of the parts
Warning sign
Forbidden sign
Contents marked with this symbol are related to the safety
of the product and the personal safety of the users. Please
operate in strict conformity to the instructions, otherwise it
may cause damage to the machine or endange the
personal safety of the user.
Contents marked with this symbol are actions forbidden to
perform. Performing of those actions may result in
destruction of the machine or permanent injury to the user.
fixed foot
Cabinet
Base frame
Drain hose
Knob
Control panel
Filter cover
Power line
Pulsator
Button
Handle
1
2
3
MAX
Top lid
Water-filling
entrance
Page 4
2

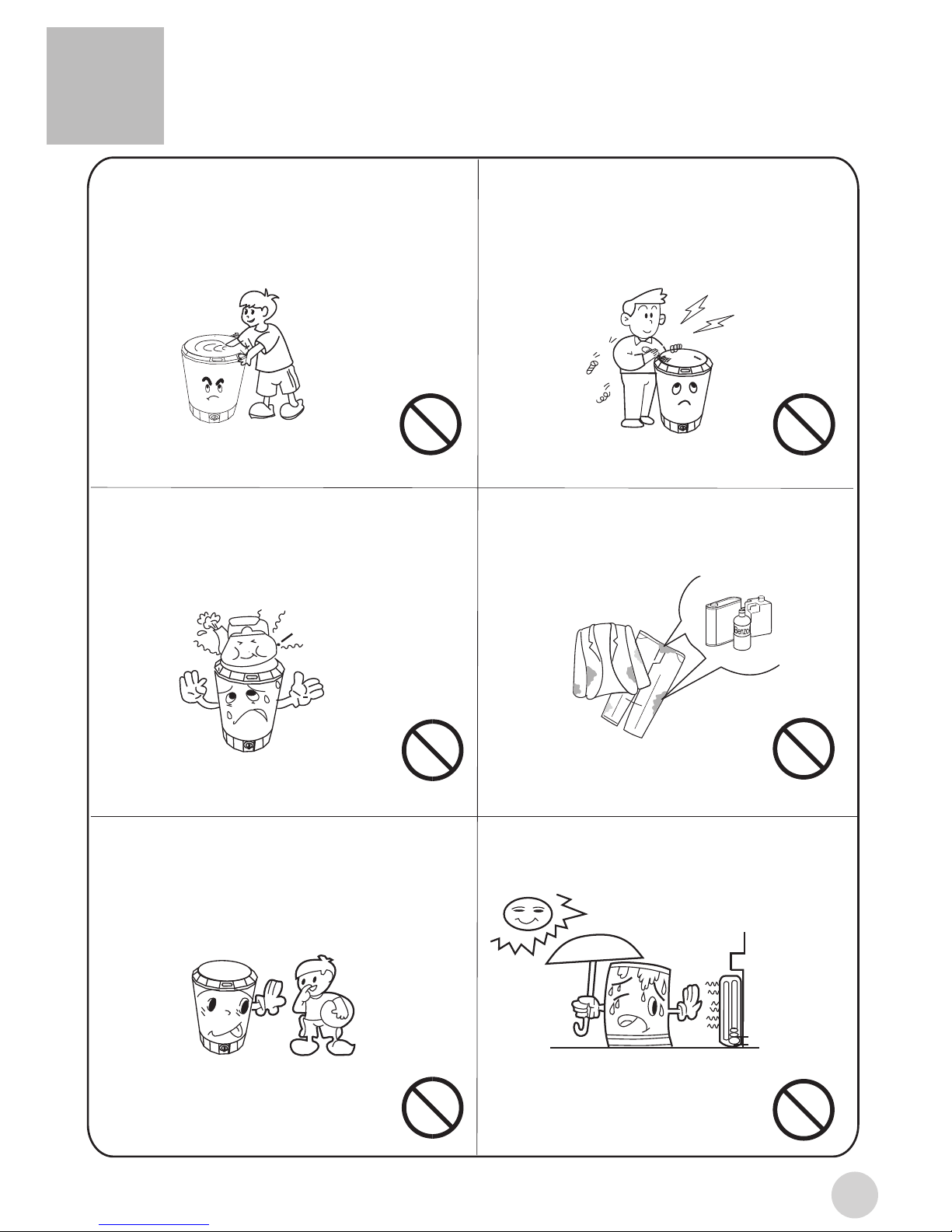

Safety precautions
Do not twist pinch or otherwise damage the cord,
if the cord or plug becomes damaged.Return the
unit to the supplier for repair.
If the washing machine is installed on
carpet, do not block the ventilation hole
with carpet.
Do not let the machine share one power point with other
electric appliances. If the power plug is damaged or
loose, do not use the plug any more.
Do not wash water-proof items like
the raincoat, bike covers etc.
Do not use water hotter than 50 C .
Do not put the machine in damp places like
the bathroom. Never wash it with water.
Do not put wet clothes on the control panel.
soft items
The ventilation holes
at the bottom
Please plug the washer into a
220V-240V a.c receptacle. Be sure
to use single-phase three pin
receptacle. Ensure the earthing
prong of the power receptacle is
earthed reliably. Use leakage
protector if possible.
Earth
In normal usage of the washing machine,
the power plug should be ready to be pulled
out easily. Be sure to pull the plug out and
close the water faucet in following cases:
power failure, installing the machine,
leaving the machine idle or cleaning the
machine. Do not push or pull the power plug
with wet hand.
If the appliance is supplied from an
extension cord or electrical portable outlet
device the plug
should be positioned
so it is not subject to
splashing or ingress
of moisture.
Page 5
3
Safety precautions
Do not repair or alter the machine by
yourself.
Do not put any hot or heavy items on the
washing machine.
Do not wash clothes, with volatile
materials (such as thinner, petrol etc.)
Do not allow children to use the washing
machine.
Keep the machine away from direct
sunlight and heat sources.
Do not put your hands into the working
area of the machine. It is dangerous even
if the rotation is slow. Take special care of
children. Do not let children climb on the
washing machine.
Petro
l
Thi
nner
Page 6
4

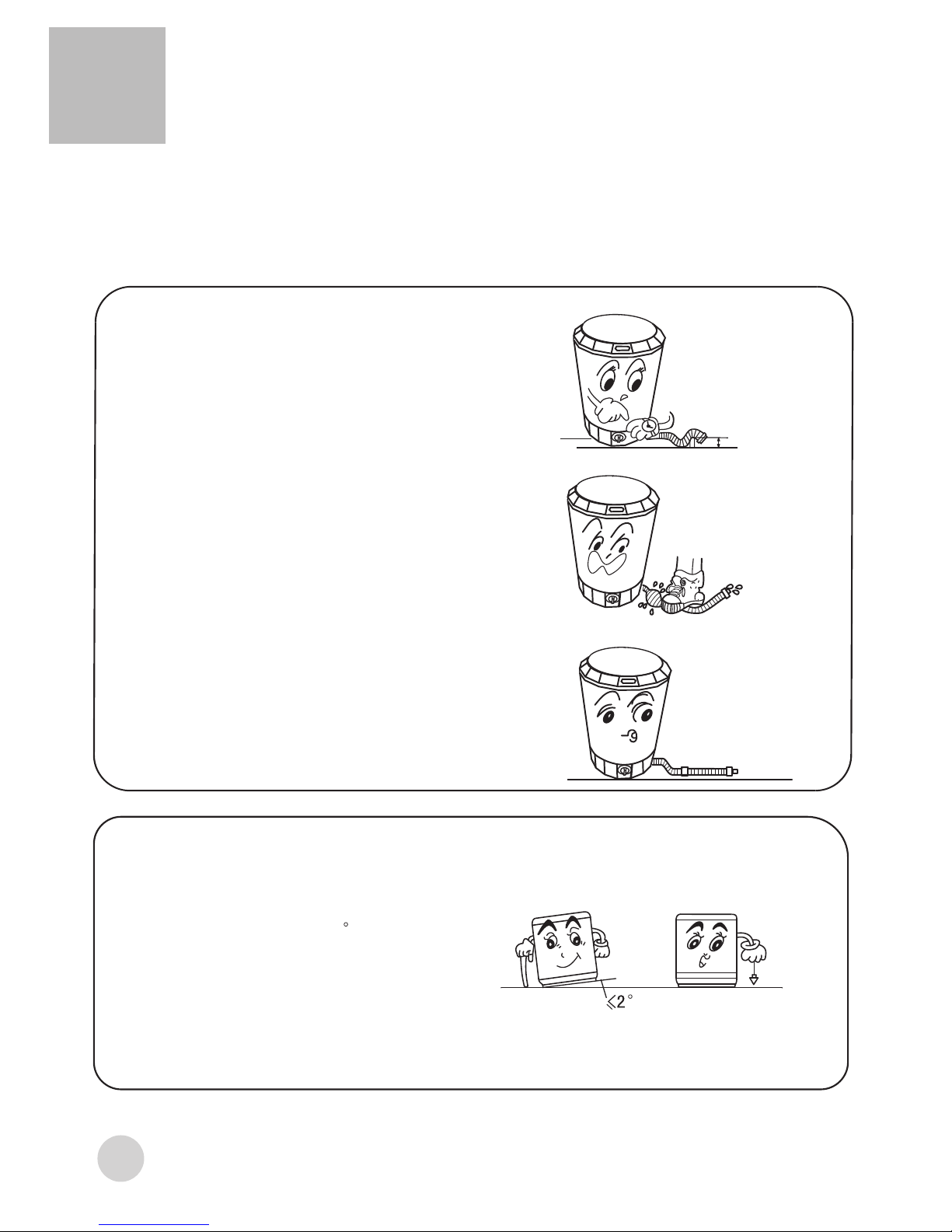

Installation and adjustment
The largest allowed slope of the
base of the machine is 2 .
More than this will result in unstable
running or stoppage of the machine.
Adjust the installation position
Please install and adjust the machine according to the requirement of the manual. It is
very important to your safety and correct operating the machine.
1.The height of the drain hose shall be
less than 10cm, or the drainage will not
be smooth.
2.Do not trample or press the drain hose.
Usage of the drain hose
The drain hose shall drain smoothly
<10cm
3. Do not lengthen or cut down the drain hose.
Page 7
5

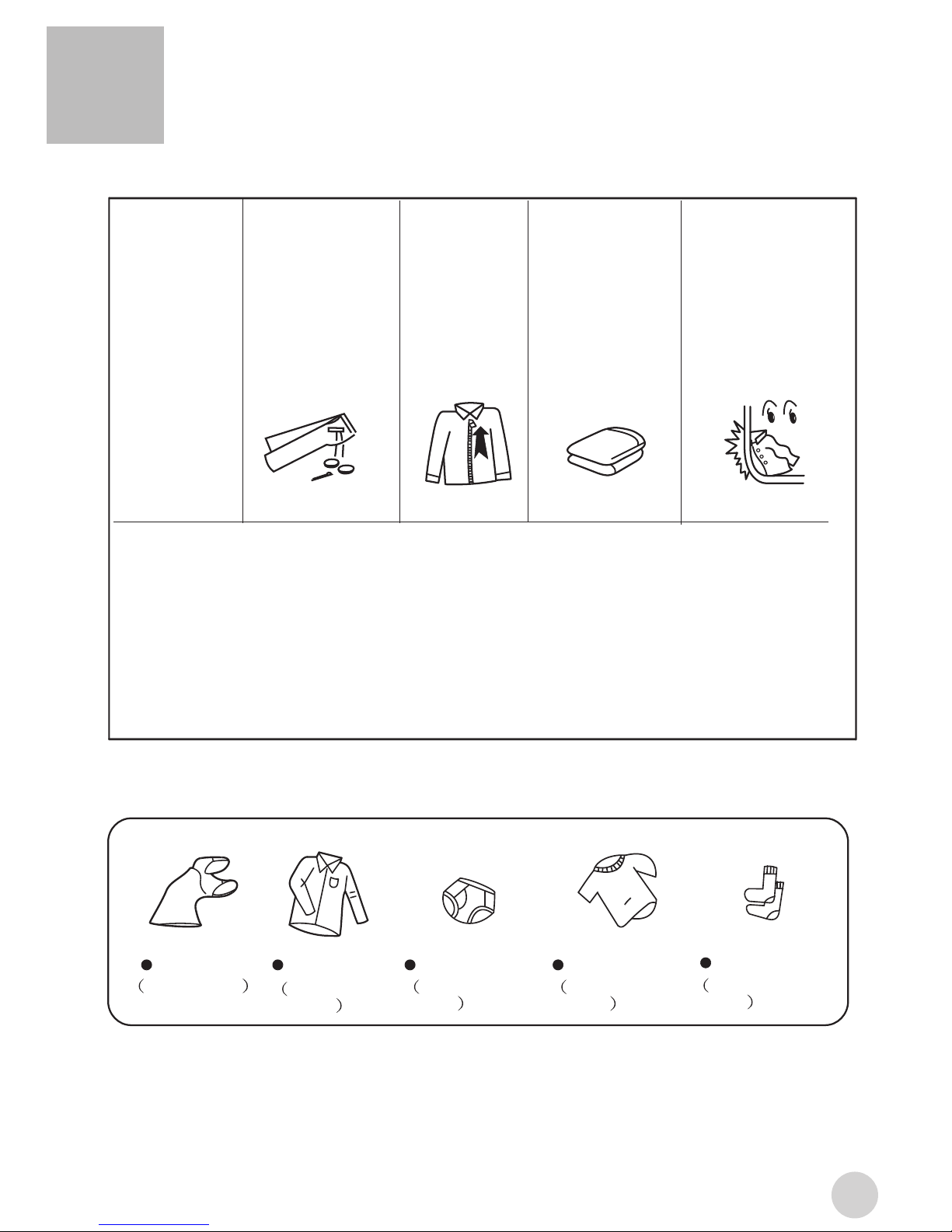

Preparation before washing
Pay attention to the following before washing.
Check if your
laundry has
special washing
requirements.
Clear the pockets.
Take out the
coins ,keys,
hairpins etc.
Fasten the
buttons and
zippers.
When the pulsator
is running , the
buttons on the
clothes may
cause noise. To
avoid this turn
clothes that
have bottons
inside-out.
The quantity of
the clothes
shall not exceed
the rated value.
The large clothes
like jeans should
be put in loosely.
A.Please check if the clothes are applicable for washing.
b.Separate those that are not colorfast from other washing.
c.For laundries that are not water absorbing, please push them into the water with your
hands.
d.For very dirty clothes,it is easier to remove most of the loose soiling before washing.
e.For laundries likely to get lint ball or with long fibers, first turn them inside out before
putting them into the water.
F.Do not put clothes polluted with chemicals directly into the washing machine.
g.For those small clothes likely to be twisted or worn, and woollen clothes,
please put them into a mesh bag before washing.
Reference weight of the laundries:
shirt
Socks
underpants
undershirt
Pyjamas
cotton, about
300g
blend, about
50g
cotton, about
70g
cotton, about
180g
about 200g
Page 8
6
The capacity of washing of the machine
refer to the largest weight of the standard
clothes under dry condition that can be
washed in one time. The largest capacity
of this machine is 1.5kg.
The thickness, size and type of the cloth
will influence the actual washing capacity.
Do not select "High" water level for a small
amount of clothes,so as to avoid splashing
water.
Put in the laundries
How to use the whitener
Fill water to decided level. Dilute the whitener and pour it slowly into
the washing tub.
Avoid using whitener on laundries with color or patterns as they are prone to
lose color.
The whitener should not touch the laundries directly.
Refer to the user's manual for the usage and quantity of the whitener.
For powder whitener, please dissolve it before use.
How to use the washing powder
Powder dissolved in the machine
1.Fill water to "1" water level.
2.Add the powder. Run for 30 seconds to dissolve it completely.
3.Put in the clothes. Select suitable water level.
Soap flakes
1.Prepare warm water of 30 in a container.
2.Add the powder while stirring to fully dissolve it.
Put in the proper quantities detergent according to the water level and the
washing quantities .
It is suggested not to use high sudsing detergent.
Washing powder of poor quality or powder that is old may be caked.
Usage of the detergent
Page 9
7

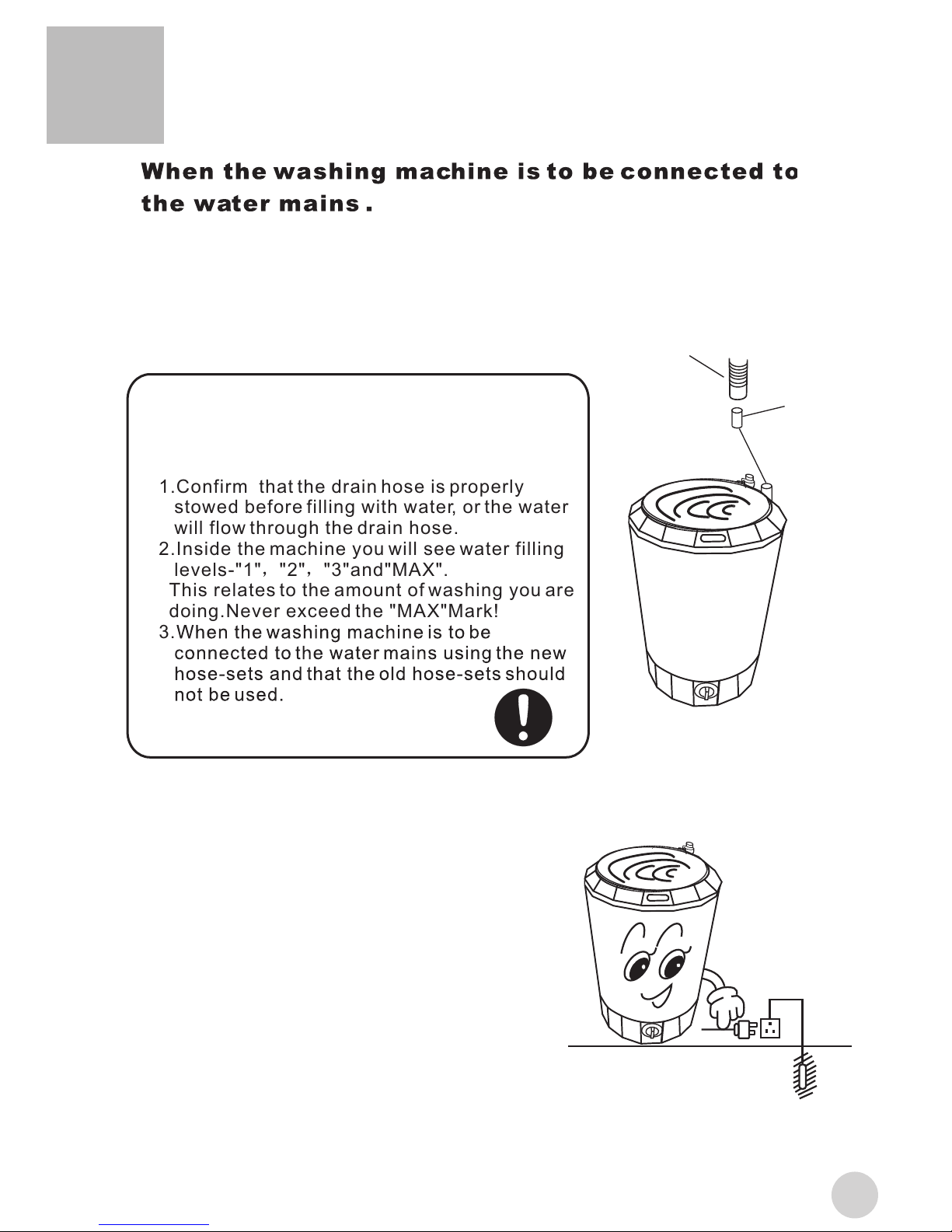

Process washing
1.Put in the laundry and detergent,then fill with this
correct amount of washer.
Install the water inlet hose
Insert the water inlet hose into the water-filling
entrance on the control panel.
Water inlet hose
Water-filling
entrance
Install the water inlet hose
2.Close the top lid
3.Connect the power line
Confirm that the washing machine is
earthed reliably. Then insert the power
plug into the receptacle. Do not connect
the earth terminal to the gas pipe and
tap water pipe.
1.Confirm that the drain hose is properly
stowed before filling with water, or the water
will flow through the drain hose.
2.Inside the machine you will see water filling
levels-"1" "2" "3"and"MAX".
This relates to the amount of washing you are
doing.Never exceed the "MAX"Mark!
3.
NOTE
Page 10
8
9
12
15
3
6

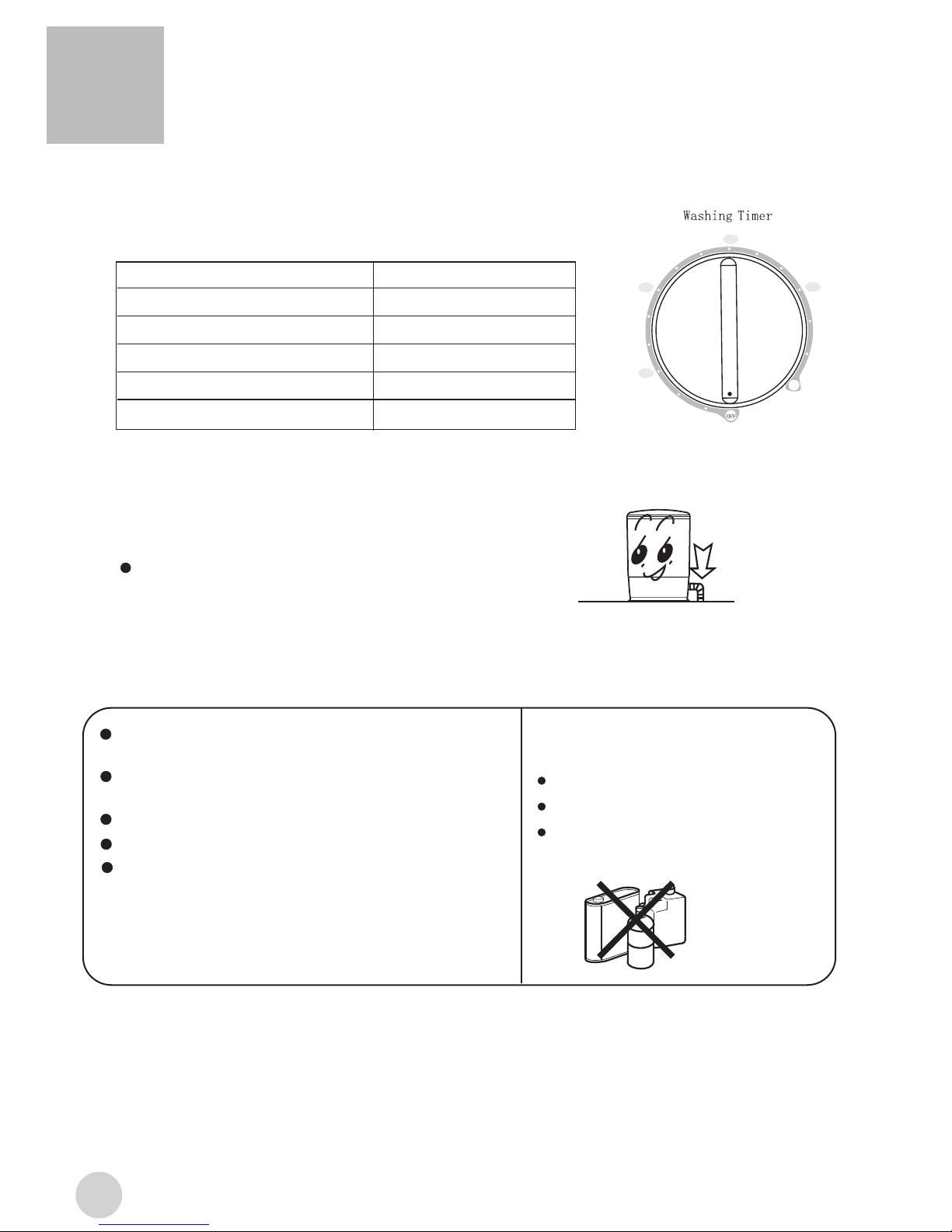

4.Washing duration reference
Select washing duration depending on the laundry
About ~36
About7~8
About8~10
About2 4~
Laundry
Washing Duration(min)
Silk fabric(thin laundry)
Knitted fabric/man-made fabric
Bed sheet
Cotton, blending or linen fabrics
Very dirty or heavy laundry
About10~15
5.Finish washing
The tumbler stops revolving.Level the draining hose
down to let the waste water out.
If the cabinet is dirty, wipe it with
wet cloth
Do not flush it directly with water.
Wipe it with neutral detergent.
Do not wipe it with thinner, petrol,
alcohol etc.
Disposal after washing
After washing, close the water faucet. ( If needed,
you can dismantle the water inlet hose).
Hang up the power cord and drain hose.
Be sure to pull off the power plug before maintenance.
Do not store water in the washing machine for a long
period. Drain the water completely after each using.
Wipe off the water drops on the surface of the
machine and inside the tub. Open the top lid for
some time (about 1 hour), then close the top lid.
T
hinner
Alco
ho
l
Petrol
When you set 2 minutes or less,you need to adjust it over 6 minutes
then turn back.
Page 11
9
Trouble shooting
If you experience trouble with your HYDRO-GENIC.Please pull out the plug
before checking anything.The following table may help in troubleshooting.If
there is still a problem,return the unit to your supplier for help.
How to settle
Phenomena
The machine
does not act
There's abnormal
sound inside the
machine
Is there power failure?
Use it when the power is on.
Insert the power plug tightly.
Is the power plug loose?
Is the machine slanting?
Level the machine properly.
Are there some metal
foreign bodies in a tub?
Remove the metal foreign
bodies
Specifications
Water level/ Water
quantity (L)
Rated washing capacity (kg)
Water inlet
pressure MPa
Page 12
