HOMELITE
26cc MIGHTYLITE BLOWER
MODEL NOS. UT08520 AND UT08921
REPAIR SHEET
HOMELITE 26cc MIGHTYLITE BLOWER – MODEL NUMBERS UT08520, UT08921
18
19
21
17
16
13
12
11
10
9
15
20
2
1
3
4
5
6
7
8
14
22
Figure A
2
HOMELITE 26cc MIGHTYLITE BLOWER – MODEL NUMBERS UT08520, UT08921
PARTS LIST (FIGURE A)
Key Part
No. Number Description Qty.
1 940752001 Logo Label .......................................................................................................................1
2 940647012 Choke Label .....................................................................................................................1
3 308680001 Fuel Cap ...........................................................................................................................1
4 678435001 * Nylon Nut (M5) .................................................................................................................1
5 678434002 * Wavy Washer (M5) ...........................................................................................................1
6 678434001 * Washer (M5) .....................................................................................................................1
7 518496001 Choke Dial Cover .............................................................................................................1
8 940734015 Starting Label ...................................................................................................................1
9 518538001 Top Volute ........................................................................................................................1
10 518540001 Upper Nozzle ...................................................................................................................1
11 660674001 * Screw (10-14 x 7/8 in.) .....................................................................................................4
12 660970004 * Screw (M4 x 77.5 mm) .....................................................................................................1
13 678126005 Washer .............................................................................................................................1
14 518265002 Fan ...................................................................................................................................1
15 650016001 Washer .............................................................................................................................1
16 660730001 * Nylon Hex Nut (3/8-24) ....................................................................................................1
17 518539001 Bottom Volute ..................................................................................................................1
18 660629001 * Screw (10-14 x 3/4 in.) .....................................................................................................9
19 518543001 Volute Plate ......................................................................................................................1
20 660621001 * Screw (10-14 x 1/2 in.) .....................................................................................................1
21 518537001 Handle ..............................................................................................................................1
22 870174001 * Spark Plug (Champion RCJ6Y) ........................................................................................1
987000046 Operator’s Manual (960477001)
1-25-07
(Rev:00)
* STANDARD HARDWARE ITEM – MAY BE PURCHASED LOCALLY
3
HOMELITE 26cc MIGHTYLITE BLOWER – MODEL NUMBERS UT08520, UT08921
Figure B
33
30
31
32
1
2
3
9
8
6
7
10
19
11
12
13
14
20
27
28
21
29
34
35
36
38
37
22
15
16
17
4
5
18
23
24
25
26
4
HOMELITE 26cc MIGHTYLITE BLOWER – MODEL NUMBERS UT08520, UT08921

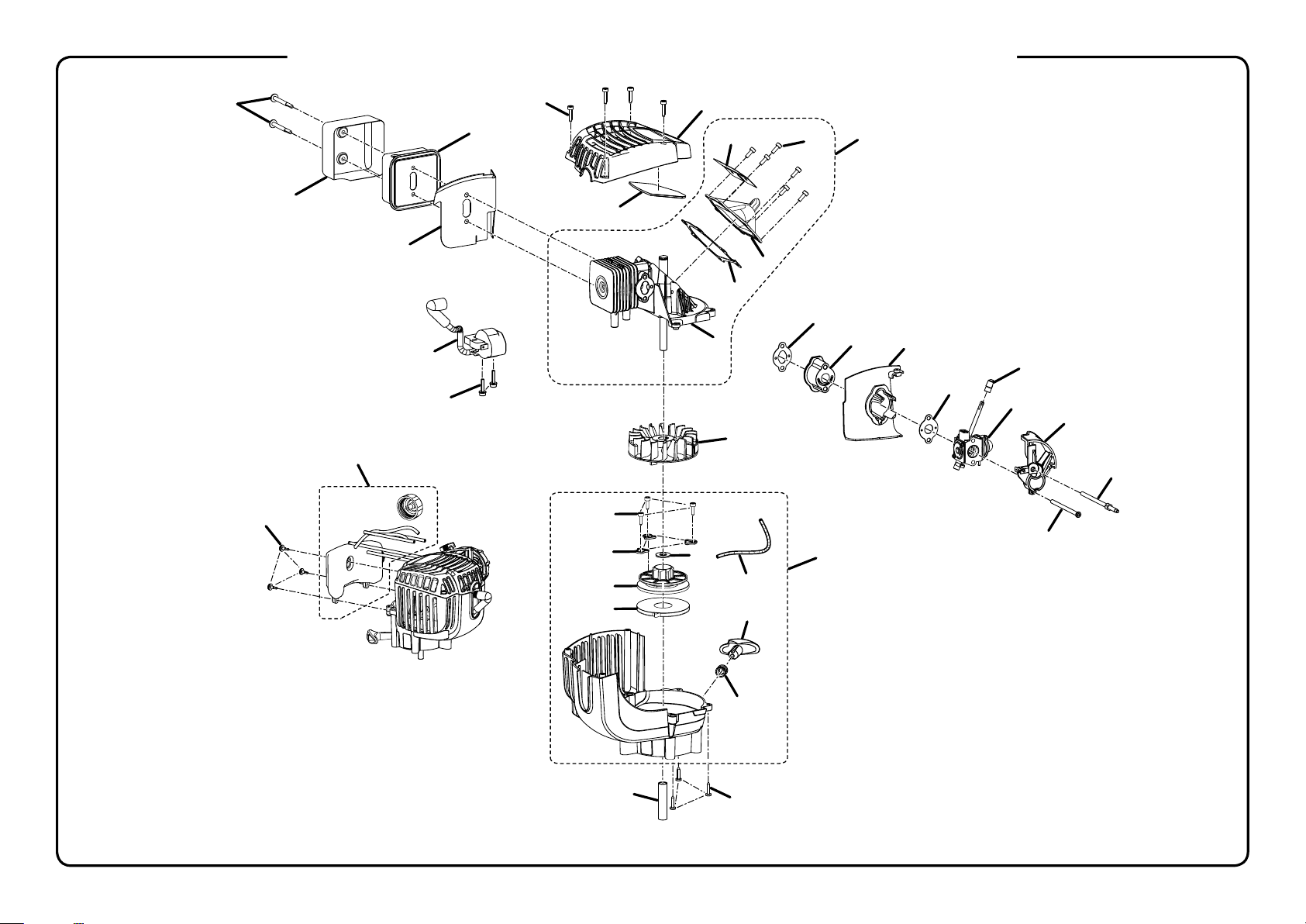

PARTS LIST (FIGURE B)
KEY PART
NO. NUMBER DESCRIPTION QTY
1 660466001 * Screw (M4 x 18 mm) ............................................
2 518535001 Upper Housing .....................................................1
3 900951006 Heat Shield Gasket ..............................................1
4 309960001 Short Block Assembly ..........................................1
5 638442003 Cylinder Heat Shield .............................................1
6 660925003 * Screw (M4 x 12 mm) ............................................6
7 638337001 Crankcase Cover ..................................................1
8 901550001 Crankcase Cover Gasket .....................................1
9 640099001 Cylinder ................................................................1
10 901551001 Intake Gasket .......................................................1
11 518497001 Heat Dam .............................................................1
12 518690001 Baffle Plate ...........................................................1
13 901552001 Carburetor Gasket ................................................1
14 518709001 Throttle Lever .......................................................1
4
KEY PART
NO. NUMBER DESCRIPTION QTY
20 308889001 Lower Housing with Starter Assembly .................1
21 518502001 Starter Grip ...........................................................1
22 638088002 Eyelet ....................................................................1
23 660970001 * Screw (M4 x 16 mm) ............................................3
24 638091006 Crankshaft Spacer ...............................................1
25 660970002 * Screw (M4 x 10 mm Shoulder) .............................3
26 308675002 Fuel Tank with Cap Assembly ..............................1
27 660968001 * Screw (M4 x 9 mm) ..............................................2
28 850108001 Ignition Module .....................................................1
29 900849002 Starter Rope .........................................................1
30 901452003 Gasket Muffler ......................................................1
31 308990003 Muffler Assembly ..................................................1
32 638442002 Heat Shield ...........................................................1
33 660638003 * Screw (M4 x 18 mm) ............................................2
15 308028007 Carburetor ............................................................1
16 518532001 Air Box Base .........................................................1
17 660453001 Double Sided Hex Bolt .........................................1
18 660454001 * Screw (M5 x 70 mm) ............................................1
19 308674001 Flywheel Assembly ...............................................1
* STANDARD HARDWARE ITEM – MAY BE PURCHASED LOCALLY
34 638033001 Spring & Container Assembly ..............................1
35 518501001 Starter Pulley ........................................................1
36 638389001 Pulley Retainer .....................................................3
37 650017001 Flat Washer ..........................................................1
38 660967001 * Screw (M4 x 14 mm) ............................................3
