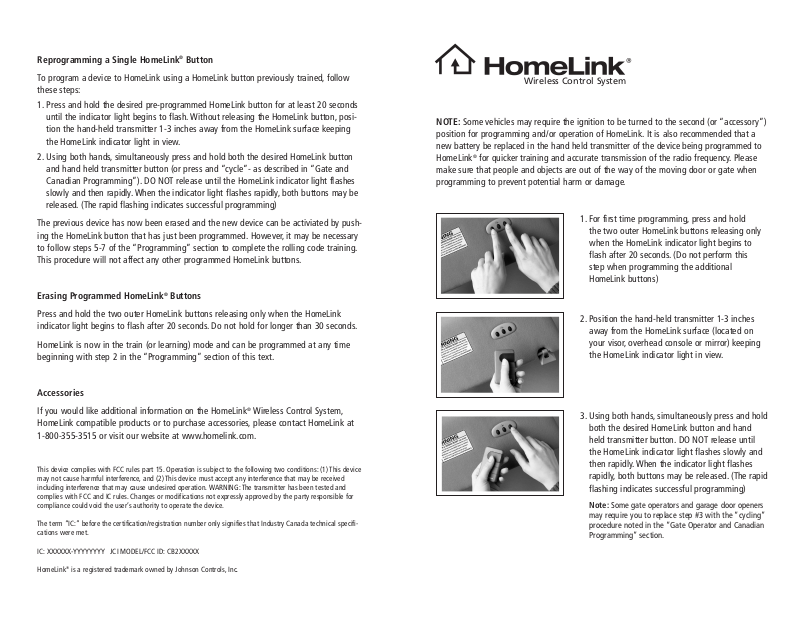

HomeLink CB2 User Manual

NOTE: Some vehicles may require the ignition to be turned to the second (or “accessory”)

position for programming and/or operation of HomeLink. It is also recommended that a
new battery be replaced in the hand held transmitter of the device being programmed to
HomeLink

®

for quicker training and accurate transmission of the radio frequency. Please
make sure that people and objects are out of the way of the moving door or gate when
programming to prevent potential harm or damage.

1. For first time programming, press and hold
the two outer HomeLink buttons releasing only
when the HomeLink indicator light begins to
flash after 20 seconds. (Do not perform this
step when programming the additional
HomeLink buttons)

2. Position the hand-held transmitter 1-3 inches
away from the HomeLink surface (located on
your visor, overhead console or mirror) keeping
the HomeLink indicator light in view.

3. Using both hands, simultaneously press and hold
both the desired HomeLink button and hand
held transmitter button. DO NOT release until
the HomeLink indicator light flashes slowly and
then rapidly. When the indicator light flashes
rapidly, both buttons may be released. (The rapid
flashing indicates successful programming)

Note: Some gate operators and garage door openers
may require you to replace step #3 with the “cycling”
procedure noted in the “Gate Operator and Canadian
Programming” section.

Wireless Control System

4. Press and hold the programmed HomeLink

button and observe the indicator light.

• If the indicator light is solid/continuous, pro­gramming is complete and your device should
activate when the HomeLink button is pressed
and released.

• If the indicator light blinks rapidly for 2 sec­onds and then turns a solid/continuous light,
proceed with the following programming
instructions for a rolling code device. A second
person may make the following steps quicker
and easier.

5. At the garage door opener receiver (motorhead

unit) in the garage, locate the “learn” or
“smart” button (usually near where the hang­ing antenna wire is attached to the unit). If
there is difficulty locating the training button
reference the garage door opener’s manual,
visit our website www.homelink.com or con­tact us at 1-800-355-3515.

6. Press and release the “learn” or “smart” but-

ton (the name and color of the button may
vary by manufacturer). NOTE: Once the button
is pressed, there are 30 seconds in which to
initiate the next step.

7. Return to the vehicle and firmly press and hold

the programmed HomeLink button for two
seconds and release. Repeat the “press/hold/
release” sequence up to 3 times to complete
the training process.
