Smart Living
Robot vacuum cleaner
User manual
Smart Living
Smart Living
Contents
Pages
The Homeflow Smart Robot Vacuum should only be used for
domestic cleaning, as described in this User Manual. Please
ensure that this User Manual is fully understood before
operating the appliance. Please keep this User Manual for
reference. Use only consumables or spares recommended or
supplied by Homeflow.
Safety instructions
Product parts
Host
Charging dock
Remote control
Product specification
Accessories list
Product operation
Important matters
Charging mode
Installing the side brush
Remote control operation
Start cleaning
Downloading the Homeflow App
Water tank operation
1
3
3
5
5
6
7
8
9
10
11
12
13
18

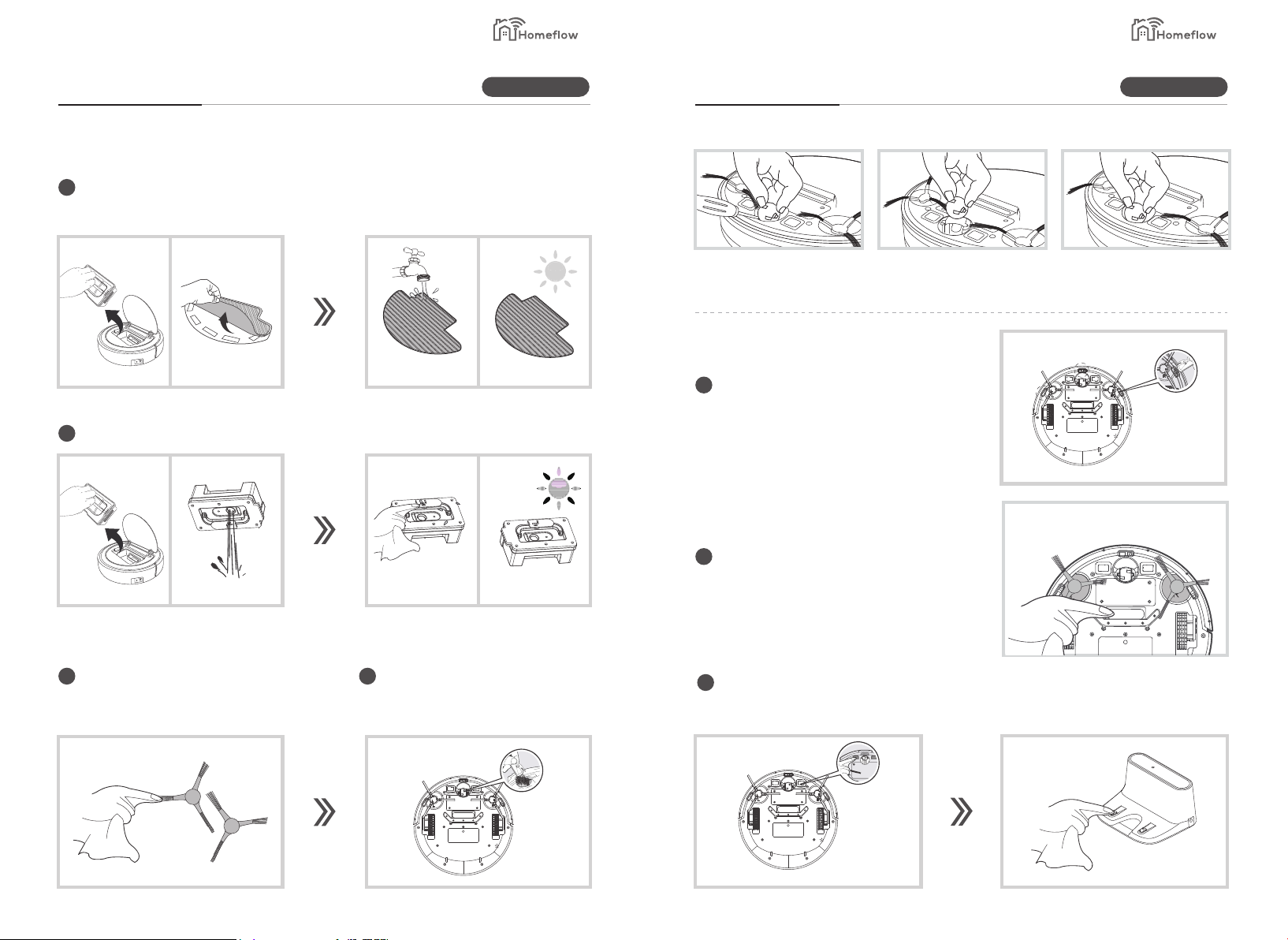

Maintain

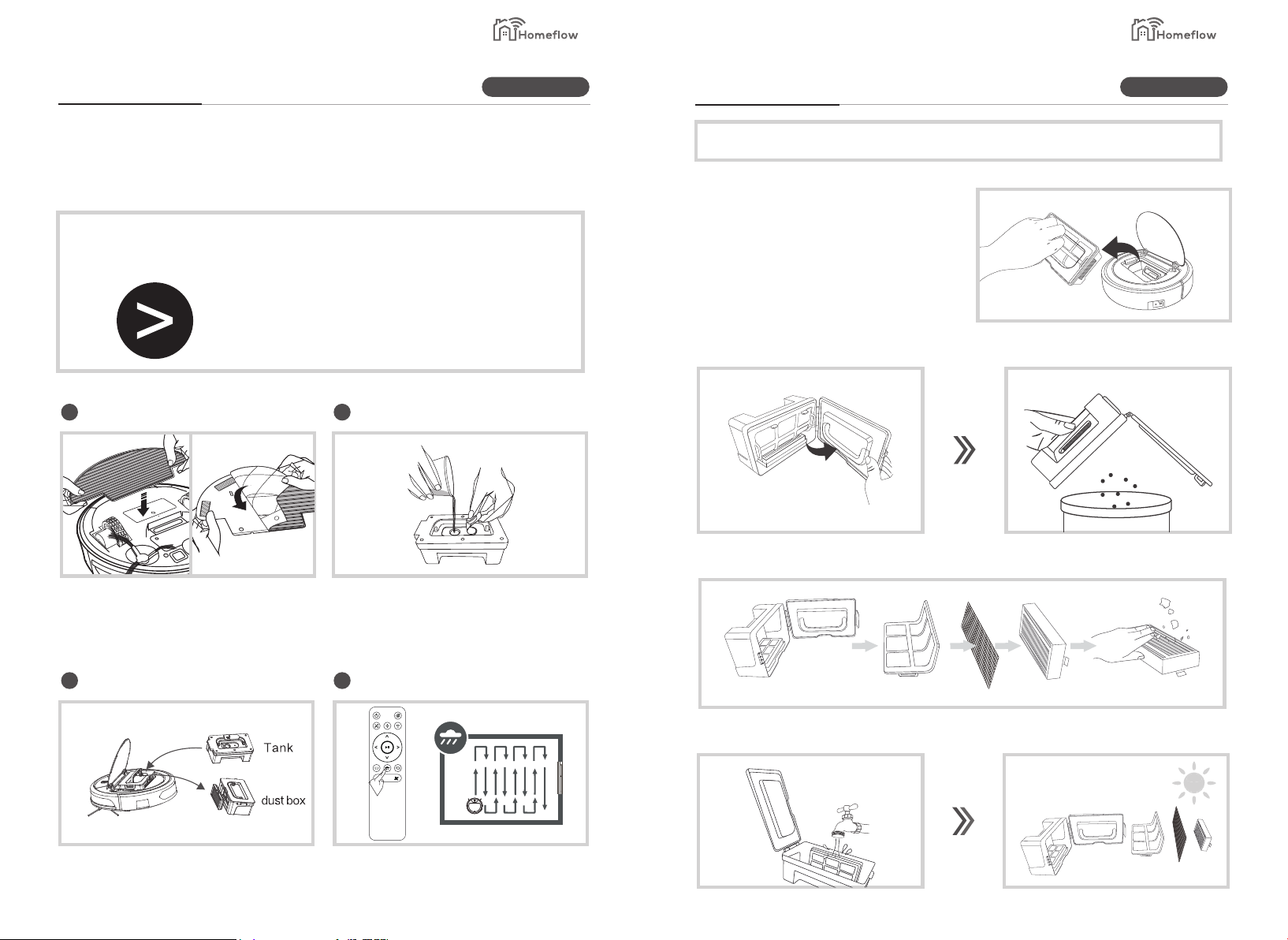

Dust box and HEPA filter cleaning
Water tank component cleaning
Other component cleaning
Troubleshooting
19
20
21
21
Safety instructions
Smart LivingSmart Living
Important Safety Reminders
WARNING:
Electricity can be extremely dangerous. This appliance is powered by
rechargeable Ni-MH batteries and is provided with a Charger Base Station.
Please ensure the voltage marked on the mains power adapter is suitable
for connection to standard mains power outlet voltage.
REMINDERS:
Ÿ Always store the appliance indoors. Do not use outdoors or expose the
appliance to the elements, humidity or heating sources (oven, fireplace,
wet floor).
Ÿ Do not expose the vacuum or accessories to excessive heat / cold (keep
between 0 - 30°C).
Ÿ Do not drop the vacuum or use any accessory if it has been dropped,
damaged, left outdoors or dropped in water.
Ÿ Never unplug or pull the mains power adaptor by the power cord.
Ÿ Never pick up matches, hot ash, cigarette ends, or sharp objects.
Ÿ Do not spray with, or pick up flammable liquids, cleaning fluids, aerosols, or
their vapours, as this may cause risk of fire/explosion.
Ÿ Do not continue to use your vacuum if it appears to be faulty. If the mains
power adaptor power cord is damaged, stop using it IMMEDIATELY. Only
an authorised Homeflow Service engineer must replace the Power Cord.
Ÿ The vacuum is for use on wooden flooring, rubber, ceramic tile, linoleum
and short pile carpet.
Ÿ Do not use to clean stairs.
Important Notes Before Use
Please read the following information carefully before using your Homeflow
Smart Robot Vacuum or its accessories.
Do not disassemble the vacuum and do not attempt to repair it yourself. If
a fault occurs, please contact the Homeflow Geek Group for professional
advice.
Battery Use: Your Homeflow Robot Vacuum is powered by rechargeable,
high capacity NiMh batteries. These rechargeable batteries are
guaranteed for a period of 6 months if they are maintained and operated
according to this User Manual.
In the event of a significant drop of the vacuum performance, replacement
batteries can be obtained from a retailer.
Only use Homeflow approved replacement parts for your vacuum cleaner.
Use of parts that are not approved by Homeflow are dangerous and will
invalidate your warranty.
Only use the supplied Charger Base Station and mains power adaptor to
recharge your vacuum.
Use of the incorrect Charger Base Station or mains power adaptor is
dangerous and will invalidate your warranty.
After Use:
Return the Homeflow Robot Vacuum to the Charger Base Station. Always
switch off and disconnect the mains power adaptor before cleaning or
attempting any maintenance task. If the vacuum will not be used for a long
time (several weeks), unplug the Charger Base Station according to the
instructions in this User Manual.
Safety with children, the elderly or infirm:
This cleaner is not a toy.
Do not let children play with the appliance or its controls. Please supervise
the use of the appliance by older children, the elderly or the infirm.
1 2
Smart LivingSmart Living
Wi-Fi Indicator
Cover
1
2
1. On/Off
2. Wi-Fi indicator light (connect with the Homeflow App)
Electrode Plate
Left Brush
Downward Sensor
Left Drive Wheel
Water Outlet
Product Information Product Information
ComponentComponent
2.1 Host 2.2 Host
Infra-red Front Bumper
On/Off
Middle Cover
Universal Wheel
Right Brush
Battery Cover
Dust Sensor
Right Drive Wheel
Speaker
Soft Rubber Cover
Electric Pump
Water In
Water Tank
Middle cover
Dust box/ water tank
Spring contacts
DC port
Power on/off
Pull-tab
Touch Point
Primary Filter
Dust Box
Filter Wool
(HEPA) Filter
High Efficiency Filter Sealing Ring
Water Outlet
3 4
Rag Stent
Water Seepage Rag
Smart LivingSmart Living
Product Information Product Information

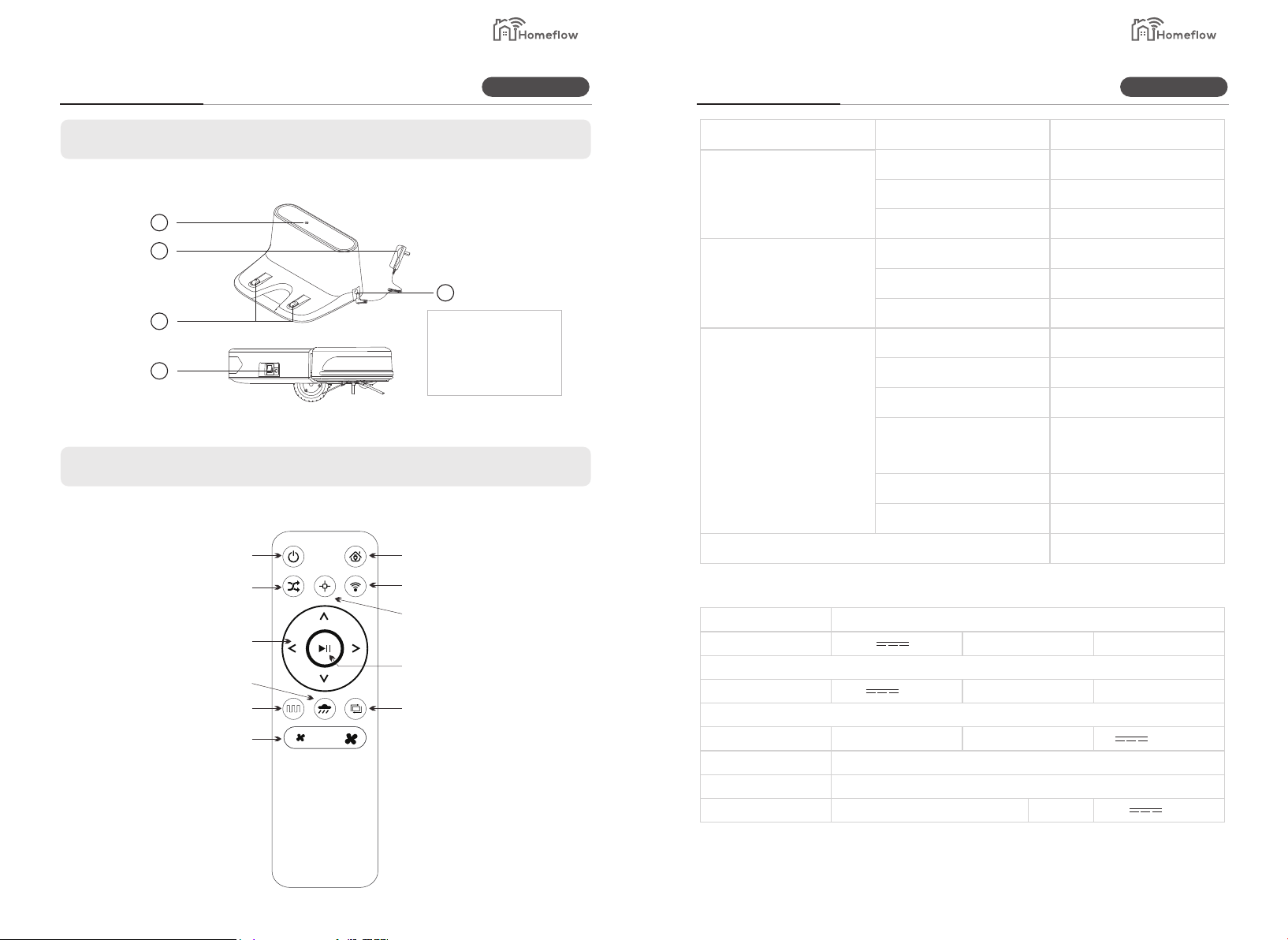

2.3 Charging Dock
1
2
3
4
5
1. Power Indicator
2. Adapter
3. Power Socket
4. Electrode Patches
5. Adapter Port
SpecificationsComponent
Classify
Structure
Electrics
Sweeping Specs.
Item
Diameter
Height
Net weight
Voltage
Battery
Power
Dust box volume
Water tank volume
Charging mode
Sweeping mode
Specification
320mm
78mm
2.8 kgs
14.8V
Li-ion battery 2600mAh
28W
600ml
350ml
Auto/Hand
Planning, designated
along wall, booking mop floor
2.4 Remote Control
Charging/time
Sweeping/time
About 280mins
About 100-120mins
Stand by
Random Mode
Direction
Mop Mode
Sweeping Mode
Suction Control
Back to Charging Dock
Wi-Fi Connect
Fixed Point Mode
On/Off
Along the Wall Cleaning Mode
Model No.
Work voltage (V)
Input (V)
Remote control model
Battery and specs
Adapter model
Input
Host key type
14.8
Charging dock
19
Main part model no. and specs.
KM-151
Li-ion battery 2600mAh
NLB060190W1C4S35
100-240V 0.6A MAX 50/60Hz
5 6
Power (W)
Output current (A)
Input (V)
Output
Physical buttons
28
0.6
3
19V 0.6A
Smart LivingSmart Living
Product Information Product Information

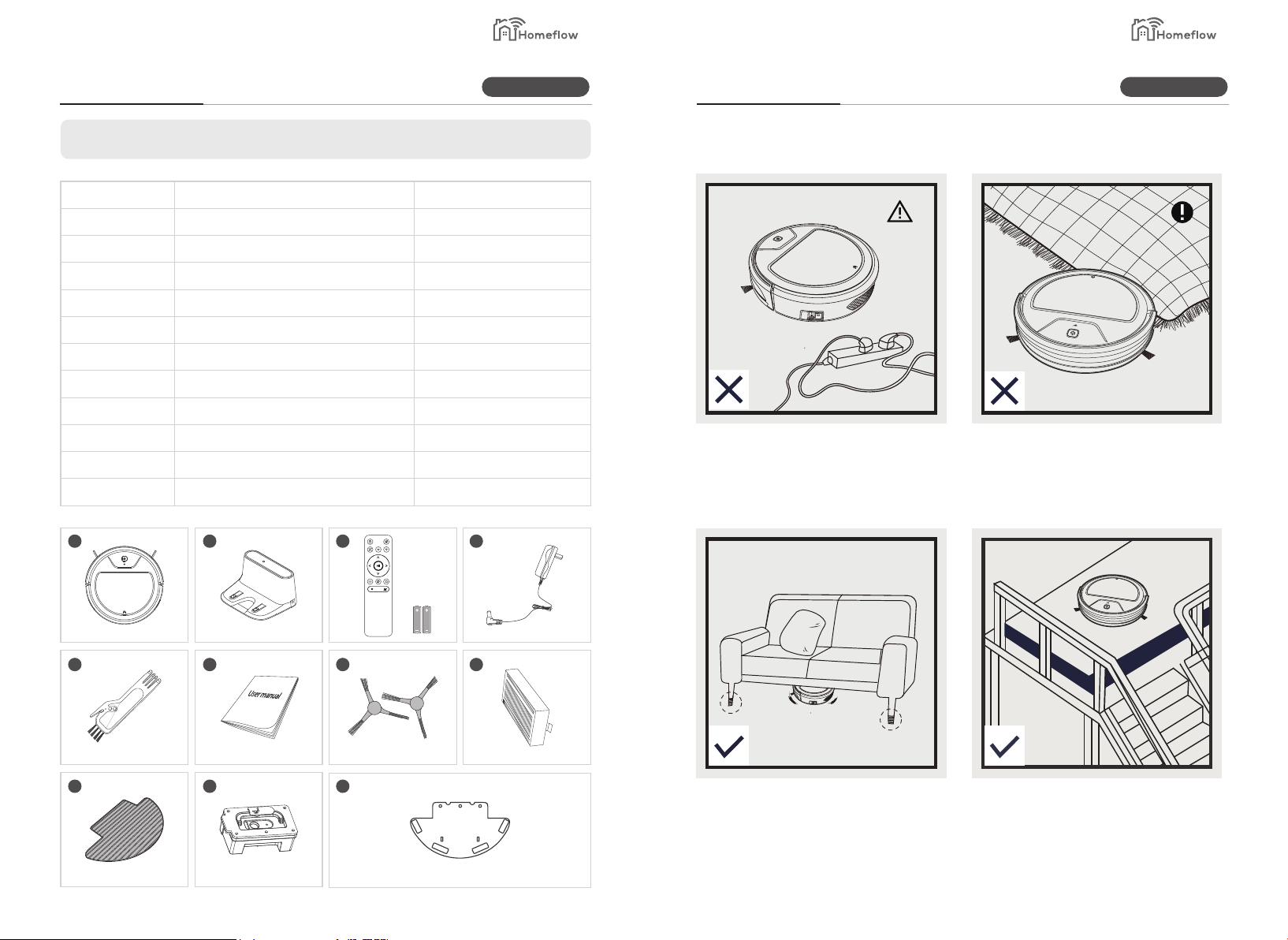

OperationAccessories
Before using it, please refer to the following instructions:
List
Item
1
2
3
4
5
6
7
8
9
10
11
1
Remote Control + 7AAA Battery
Description
Host (including battery)
Charging Dock
Adapter
Cleaning Brush
User Manual
Side Brush
HEPA Filter
Water Seepage
Water Tank
Rag Stent
2
3
Quantity
1
1
1
1
1
1
Left 1pc & Right 1pc
1
1
1
1
4
Sundries such as power cords scattered on
the ground can trip or entangle products,
please keep them aside.
Roll up the side of the carpet fringe or use
the vacuum on undercoat carpet
5
9
6
10
7
11
8
If the gap between the floor and sofa is less
than 8cm then cover the area to prevent the
vacuum from getting stuck.
Double layer edges should be protected.
7 8
Smart LivingSmart Living
Product Information Product Information
3.1 Charger Base Station Setup
Charging dock placement
1
Place the Charging Dock, on a non-reflective level floor, preferably against the wall.
There should be no objects around the area for 3m in front and 0.5m each side.
*Warm prompt
After charging dock is connected to adapter, the light on the top of charging dock turns on.
Automatic Charging
2
A. Under sweeping model, when power is at 15%, the vacuum will stop cleaning and search for the charging
dock.
B. Under other modes, press automatic charging key and the vacuum will search for the charging dock.
C. Press start/stop button for 3 seconds for the vacuum to enter the automatic recharge mode.
OperationOperation
Manual Charging
3
A. Turn on the power switch on the side of the vacuum. Directly connect the mains power adaptor to
the vacuum.
*Warm prompt
A. Before using it for the first time, please charge for 12 hours. The key with orange light means
product is charging. When finished charging, the green light will turn on.
B.During daily use, please put the machine on charging dockand make sure the charging dock
is plugged in.
4
Install side bush
Please install the side brush according to the L-R letter which are labelled on the brush.
Please make sure to install the brush well.
*Warm prompt
Please clean the electrode on charging dock every other day to avoid any impact on charging.
9 10
Smart LivingSmart Living
Operation Operation

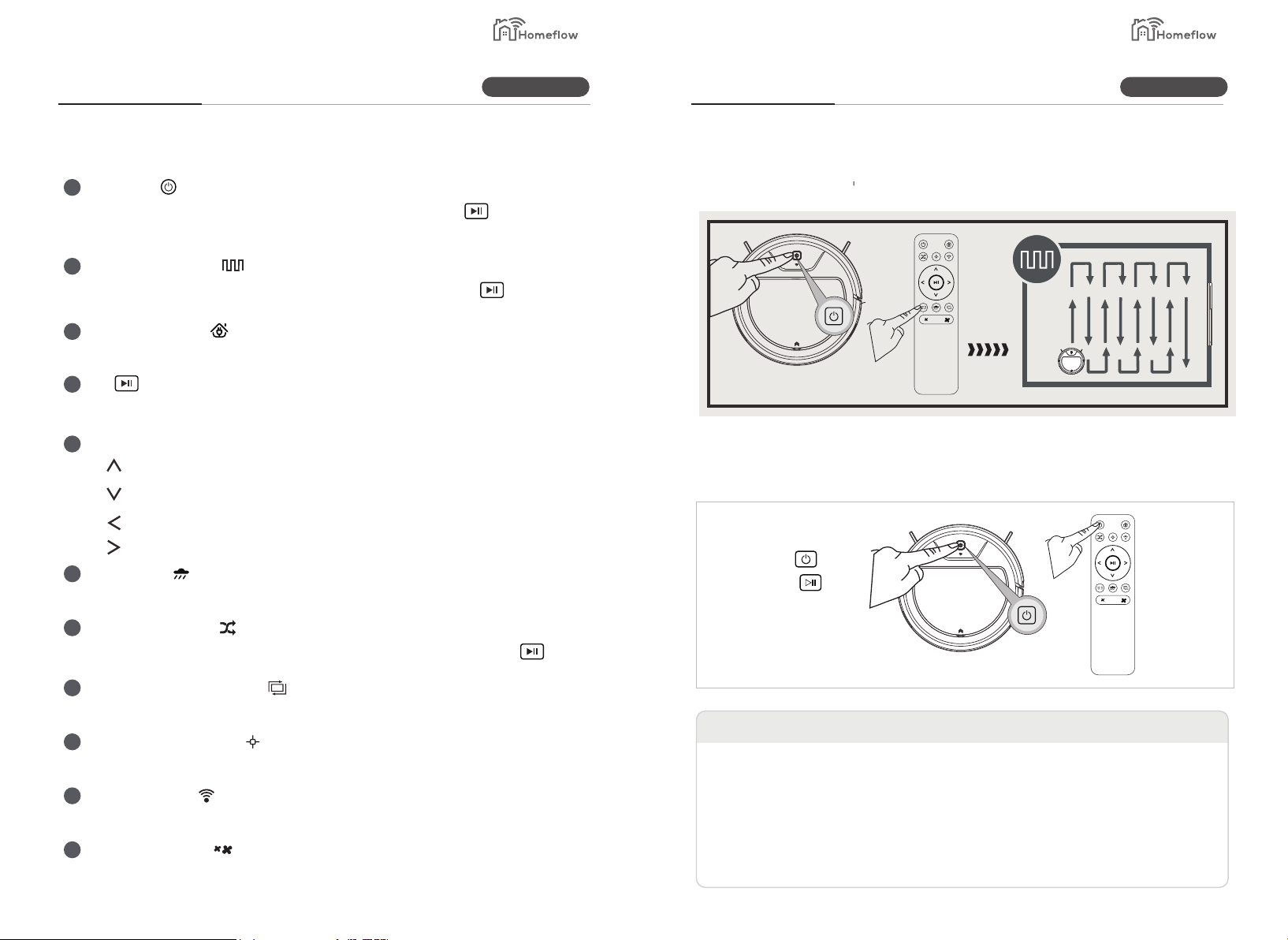

3.2 Remote Control
Stand by
1
Press the key for the machine to enter sleep mode and please press key if wakeup
is required..
The machine may automatically enter sleep mode if it is idle for two minutes.
Sweeping Mode
2
Press the key of vacuum to enter the sweeping mode, please press this key to
paush.
Back to charge
3
Press the key for the machine to enter charging mode.
4
Off
Press the key for the machine to pause and press the same key for the machine to exit
sleep mode.
5
Direction
A “ ” Forward Press the key to drive the machine forward in selection mode
B“ ” Backward Press the key to drive the machine forward in selection mode
C “ ” Left Press the key to drive the machine left in selection mode
Product Information Product Information
3.3 Start Cleaning
Pres s on/off bu tton on the vacuum or the remote to start the vacuum.
3.4 Stop Cleaning
Pres s on/off bu tton on the vacuum or the remote to stop the vacuum.
D “ ” Right Press the key to drive the machine right in selection mode

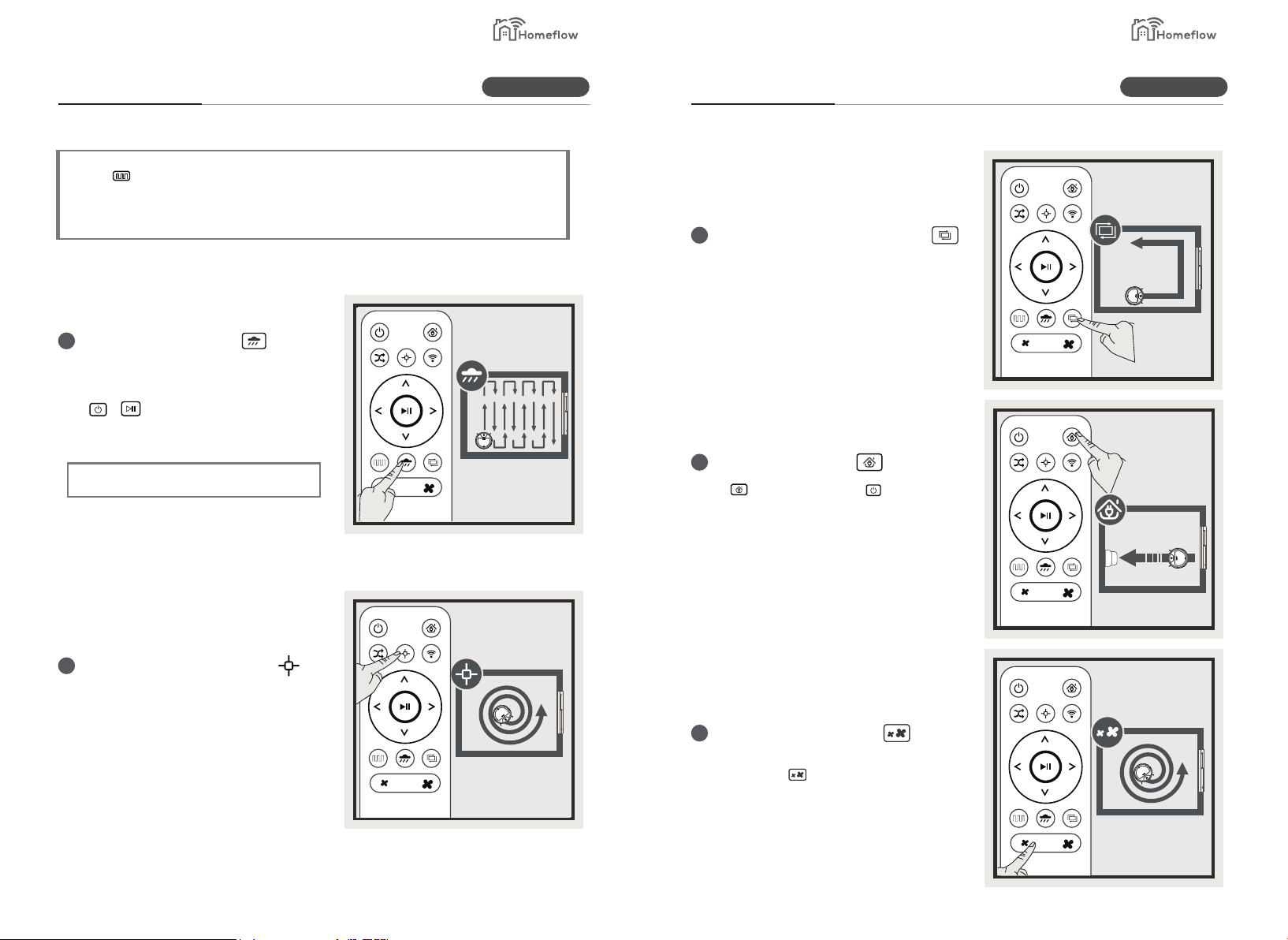

Mop mode
6
Press the key to start the mopping mode after you have correctly inserted the water tank.
7
Random Pattern
Press the key for the machine to enter random cleaning mode, please press this key if
the machine requires to be paused.
Along the wall cleaning
8
Press the key to start the machine cleaning along the wall corner.
9
Fixed Point Pattern
Press the key to start the machine's spiral point cleaning.
10
WiFi Connect
Press the Wi-Fi button for 5 seconds while pointing at the device to reset it.
11
Suction control
Press the key in work mode to switch between "quiet / strong" suction.
11 12
* Warm prompt
*Please take off battery and keep it well if long time do not use the machine. If the battery leaks,
please take off the battery and clean the battery case.
*When battery is over-discharged or long time unused, the capacity will be lower suggest to active
the battery.
*The battery is with long life, no need to change frequently. If you need tochange, please contact
our after-sales center.
Smart LivingSmart Living
Product Information Product Information

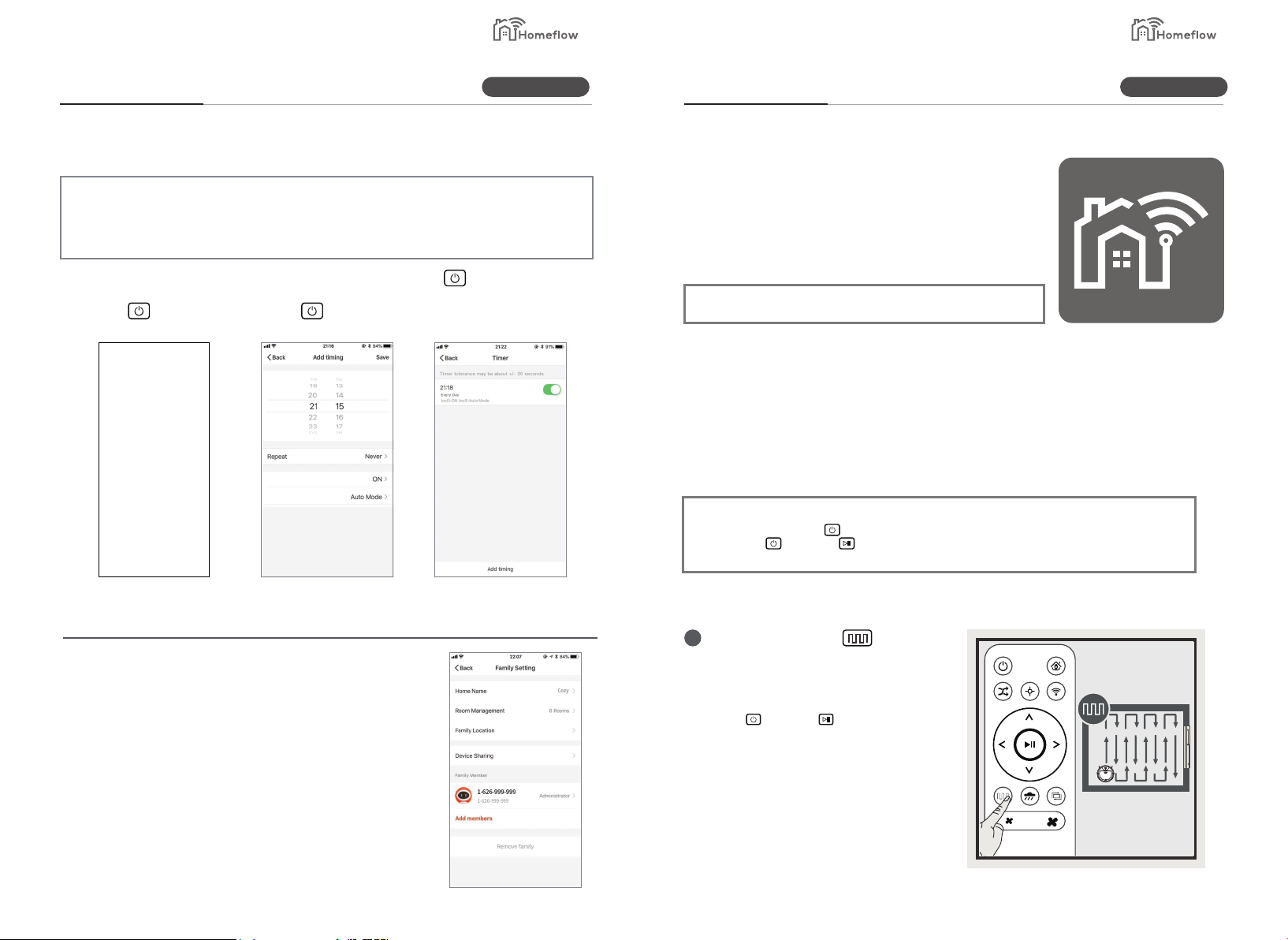

3.5
Preset
For the convenience of cleaning, the product is equipped with the function of “scheduled cleaning”. You
should set the scheduled cleaning time through the Homeflow app connected to machine. After the preset is
complete, the machine shall perform cleaning at the set time every day. (Please refer to “APP Operation
Guide” for the specific method of connecting the machine to the mobile APP.)
Before setting the time, make sure the green light of the key on the machine
is always on and machine is in the startup state. If the machine is not started,
press the key on machine or the key on remote control to start it.
OperationProduct Operation
3.6 App download and instructions
(Some products do not have this function)
This product support remote control by mobile App.
Use your phone to download the Homeflow app on Apple App
Store or Google Play .
*Please refer to the APP operation guide for more function.
3.7 Choose model
The Product has serv modes of cleaning for different types of floor. you
can choose through the remote control or app.
¬ Thought remote control or APP to switch between any model.
¬ Make sure green light is on host is wake up. If host is not wake up, please
press or remote
Select Preset Time
Edit Scheduled
Cleaning Time
3.6 Disconnect the Machine
Disconnect with mobile phone
1. Log in the Homeflow App.
2. In Operation interface of App, click “my” - “Family
Management” - “Family Name” - “Remove Family” - “Confirm
to Leave”.
3. After the device is disconnected, if you need to connect it
again, Please refer to “App Operation guide” for re-connct.
13 14
When to Cancel the scheduled
setting delete the preset
time in”scheduled” item.
Sweeping mode
1
Please the key above for the vacuum to
enter the sweeping mode. If there is an
obstacle the vacuum will change direction.
(press or remote key, machine will
stop to work.)
Smart LivingSmart Living
Operation Operation
*Please Key, Machine will sweep automatically.
*The host might stop for a while during cleaning to check for any missed areas or for path
planning. in this case, please wait with patience.
Mop the floor mode
2
Install the cloth at the bottom of the machine,
replace the dust box with water tank and enter
the mopping mode via app or remote control.
Press or key, host stops to work) suggest
first to clean dust then mop the floor.
*Please do not use this function on carpet.
Product Information Product Information
Sweep along the wall mode
4
This mode is for cleaning the interior corners.
Machine will sweep along object, (like wall). After
finishing sweep, host back to charge dock.
Recharging mode
5
Press on remote control or press key on
remote control for 3-5 mons for machine ti go back
to charging dock automatically. During sweeping,
machine will know when the power is low, and enter
‘recharge change’ mode aautomatically.
Fixed point sweep mode
3
Suitable for areas where dust has been
concentrated. Machine will clean in a spiral
mode and will proceed with normal cleaning
after the concentration cleaning has been
completed.
6
Suction control mode
This machine is with suction adjusting function.
During work, press switch to “quiet/strong”
mode.
15 16
Smart LivingSmart Living
Operation
Product Information Product Information
4.1 Tank Operation
This machine is equipped with tank. After clean the floor, and need to mop the floor, Please
charge the dust boz and tank. The way to clean, Please refer to user manual (maintain) chapter.
*During mopping, if the vacuum stops working then please add more water or clean the water
see page rag and restart the machine.
*Please do not mop on the carpet.
*Please remove the tank when charging the machine.
Stick the water seepage rag
1
2
Add water
Maintain
*Please turn off the charging dock when clean the machine and accessories.
4.1 Clean dust box and filter
Remove dust box and clean.
Open the dust box lock and remove any dust and dirt.
Fix both sides of the water seepage rag along the lower
end of the holder and insert the water seepage rag.
Install the holder with water seepage rag to the bottom
of the host, attath to the bottom of the host.
3
Installed the tank
Open the cover of machine and replace the dust box
with the tank.
Remove the filter, do not clear HEPA with waterand simplypat it softly to clean dust.
Open the injector rubber plug, add the water slowly,
when added fully, cover the rubber plug.
Mop floor
4
Wash the dust box and the primary filter and dry the dust box and filter,
Start any mode of clean and the machine will do both
clean and mop.
17 18
Smart LivingSmart Living
Maintain Maintain
Product Information Product Information
4.3 Clean tank
1
Clean the cloth
After mopping take off the cloth and wash and dry the cloth.
Step 1: Take out the universal
wheel with special tool carefully.
5
Clean downward sensor
Use a dry soft cloth or cotton swab to
2
Clean the tank
wipe the sensors.
Step 2: Take off the wheel, and
clear the hair
Step 3: Put the wheel back the
and press it tightly.
4.4 Clean the other accessories
Clean the side brush, Rotate the floor
1
brush and use scissors in the
packaging to remove any tangled
threads.
6
Clean suction area
Please use the cloth to clean the dust
around the suction area.
Clean the universal wheel with dry cloth
2
Clean electrode patch
7
Use dry cloth to clean electrode patch on bottom set of host and on charging dock.
19 20
Trouble Shooting
5.1 Instruction of Indicator light
Smart Living
Follow instructions below
Smart Living
Follow instructions below
Trouble Shooting
Follow instructions below
For any further issues with the product, please feel free to contact the Homeflow Support
Team at geekgroup@gethomeflow.com
Machine status
Charging
Finish Charge
Selecting Mode
Machine with Problem
Low Power
Sweep Mode
According to the state
Orange light blinks
Green light is on
Green light blinks
Red light is on
Orange light is on
Green light is on
5.2 Warning
If there are any issues with the vacuum then the red light will flash or stay on. Please refer to the
following table:
Item
1
2
3
4
5
6
7
8
9
Voice Prompt
Power is low, please charge
the robot
Battery problem
Wheel is off the ground
Please check the
wheel whether it is stuck
Please check the side brush
whether it is stuck
Fan is abnormal
Check whether front
bump is stuck
Remove the machine
to empty area
Cloth and bracket unset
Reason
Battery is lower than 12V
Battery charging problem
During running wheel,
is off track
Stuck
Side br ush is st uc k
Issue with fan
Infra-red front b ump
or wheel i s stuck
The host is s tuck
Did not set t he
bracket or cloth
Solution
Charge the host
Contact Homeflow
Put on floor
Clean
Clean
Contact Homeflow
Clean
Move the host to other
place and reopen it
Install cloth and bracket
Harmful Substances
21 22
23 24
Loading...
