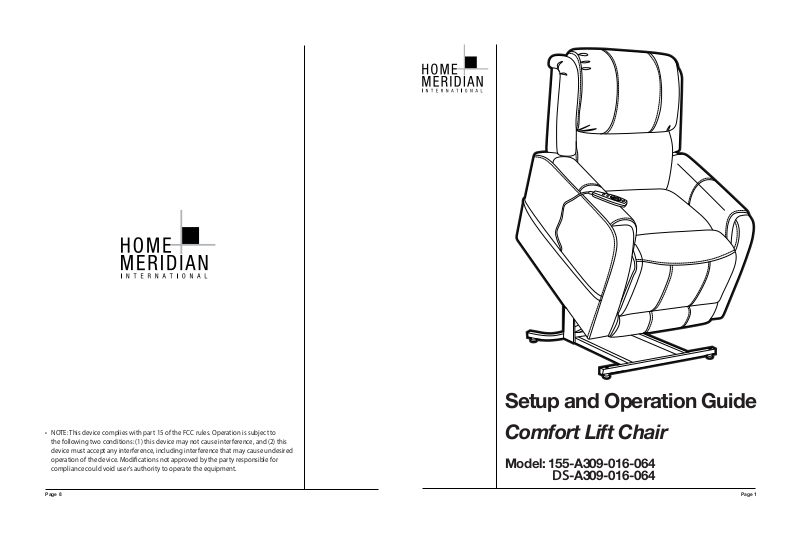

Setup and Operation Guide
• NOTE: This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device. Modications not approved by the party responsible for
compliance could void user's authority to operate the equipment.
Comfort Lift Chair
Model: 155-A309-016-064
DS
-A309-016-064
Page 1Page 8
Page 2
TABLE OF CONTENTS
Important Safety Information .................................................................................3
Fabric Care............................................................................................................... 4
Assembly Of Your Lift Chair
Transformer and Cord Connections...................................................................... 4
Attaching the Chair Back to the Chair Base ......................................................... 4
Operating Your Lift Chair
Raising the Chair.................................................................................................5
Lowering the Chair..............................................................................................5
Reclining the Chair.............................................................................................. 5
Lock and Unlock the Hand Control....................................................................5
Heat Function Operation.....................................................................................6
Massage Function Operation .............................................................................6
Replacing Backup Batteries...................................................................................7
Trouble Shooting..................................................................................................... 7
Note:
protection such as an area rug or furniture pads. Area rugs and padding not included
with purchase.
4. Batteries not included.
Wiring plugs are not
connected correctly
according to the
illustration on page 4
(20 minutes)
(Not Included)
plugs
correctly
Restart the handset by
turning off and back on
plugs
correctly
plugs
correctly
Page 7Page 2
Page 3
Page 6
Page 4
FABRIC CARE INSTRUCTIONS

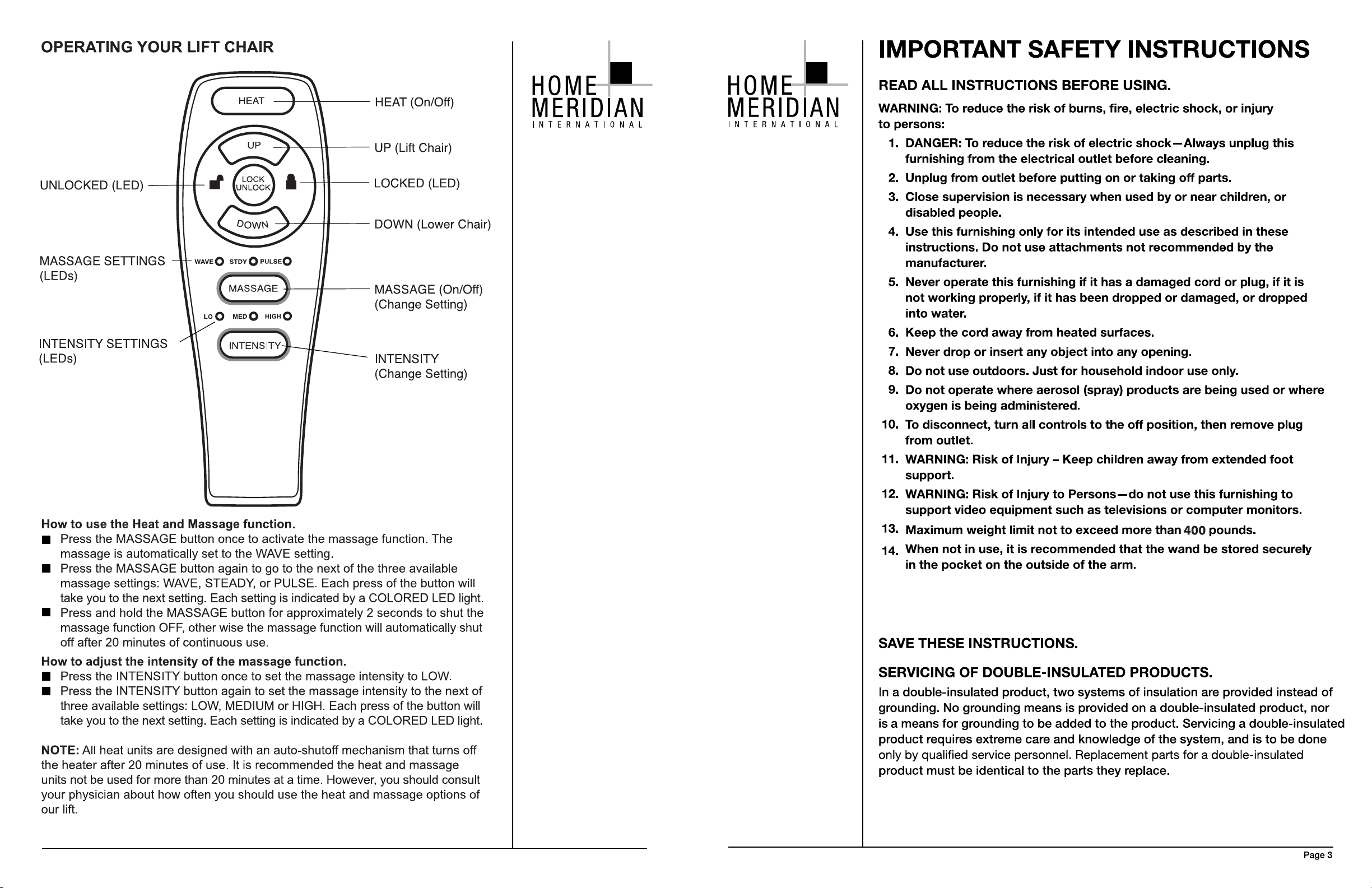

OPERATING YOUR LIFT CHAIR
CORD AND TRANSFORMER CONNECTIONS
The transformer and the power cable are in
a foam bag located on top of the chair.
Connect to the plug coming from the seat.
Connect the massage unit from the back to
the plug marked BACK.
Connect the heat unit from the back to the
plug marked HEAT.
Transformer
and cable
UNLOCKED (LED)
MASSAGE SETTINGS
(LEDs)
INTENSITY SETTINGS
(LEDs)
WAVE
LO
HEAT
UP
LOCK
UNLOCK
D
O
N
W
PULSE
STDY
MASSAGE
HIGH
MED
INTENSITY
HEAT (On/Off)
UP (Lift Chair)
LOCKED (LED)
DOWN (Lower Chair)
MASSAGE (On/Off)
(Change Setting)
INTENSITY
(Change Setting)
HEAT
BACK
Sitting in your lift chair
Press and hold the UP button to raise your lift chair to the standing position.
Back into the lift chair and sit in the center of the seat, using the armrests for
support if needed.
Press the DOWN button to lower the lift chair to a comfortable seated position.
Reclining the lift chair
Press and hold the DOWN button until comfortably reclined.
Press and hold the UP button to return to an upright position. Release the button
when the lift chair reaches a comfortable seated position.
Standing from your lift chair.
Press and hold the UP button to raise your lift chair.
Release the button when the lift chair reaches a height where you can stand
up comfortably.
How to lock and unlock the chair functions
Press and hold the LOCK button for approximately 3 seconds to lock the hand
control. The RED LED to the right of the button will light up to indicate the hand
control has been locked.
Press and hold the LOCK button for approximately 6 second to unlock the hand
control. The GREEN LED to the left of the button will light up to indicate the hand
control has been unlocked.
Page 4
Page 5
