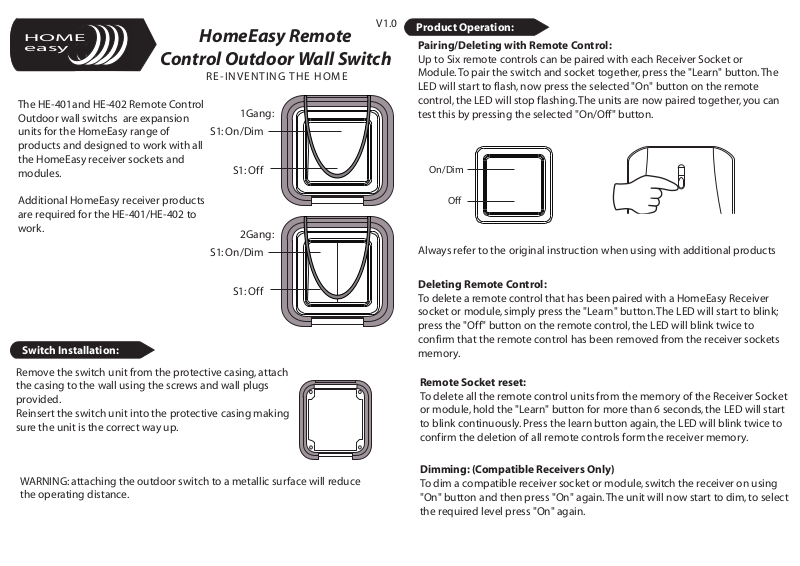

Home Easy HE402 User Manual

HOME

easy

Control Outdoor Wall Switch

The HE-401and HE-402 Remote Control
Outdoor wall switchs are expansion
units for the HomeEasy range of
products and designed to work with all
the HomeEasy receiver sockets and
modules.

HomeEasy Remote

RE-INVENTING THE HOME

1Gang:

S1: On/Dim

S1: Off

V1.0

Product Operation:

Pairing/Deleting with Remote Control:

Up to Six remote controls can be paired with each Receiver Socket or
Module. To pair the switch and socket together, press the "Learn" button. The
LED will start to flash, now press the selected "On" button on the remote
control, the LED will stop flashing. The units are now paired together, you can
test this by pressing the selected "On/Off" button.

On/Dim

Additional HomeEasy receiver products
are required for the HE-401/HE-402 to
work.

S1: On/Dim

Switch Installation:

Remove the switch unit from the protective casing, attach
the casing to the wall using the screws and wall plugs
provided.
Reinsert the switch unit into the protective casing making
sure the unit is the correct way up.

WARNING: attaching the outdoor switch to a metallic surface will reduce
the operating distance.

2Gang:

S1: Off

Off

Always refer to the original instruction when using with additional products

Deleting Remote Control:

To delete a remote control that has been paired with a HomeEasy Receiver
socket or module, simply press the "Learn" button. The LED will start to blink;
press the "Off" button on the remote control, the LED will blink twice to
confirm that the remote control has been removed from the receiver sockets
memory.

Remote Socket reset:

To delete all the remote control units from the memory of the Receiver Socket
or module, hold the "Learn" button for more than 6 seconds, the LED will start
to blink continuously. Press the learn button again, the LED will blink twice to
confirm the deletion of all remote controls form the receiver memory.

Dimming: (Compatible Receivers Only)

To dim a compatible receiver socket or module, switch the receiver on using
"On" button and then press "On" again. The unit will now start to dim, to select
the required level press "On" again.

Changing Battery:

Product Specification:

Remove the switch unit from the protective casing, using a small screwdriver to
unclip the front cover from the wall switch unit.

Replace the battery with a new CR2032
battery (Byron SX100), making sure the
polarity is correct, then replace the front
cover.

Remote Control: HE401/402
Battery: 3v Cr2032
Range: 30 Metres (Open Distance)
Frequency: 433.92MHz

Warning: Never Exceed the Product Specification

Product Compatability:

The HE-401/402 outdoor wall switch is compatible with all HomeEasy
products

Contact:   Helpline: 0845 2301 231

Contact Details:

C H Byron
34, Sherwood Rd
Aston Fields
Bromsgrove
B60 3DR

Tel: [phone]
Fax: [phone]
Web: www.chbyron.com
E-mail:
[e-mail]
