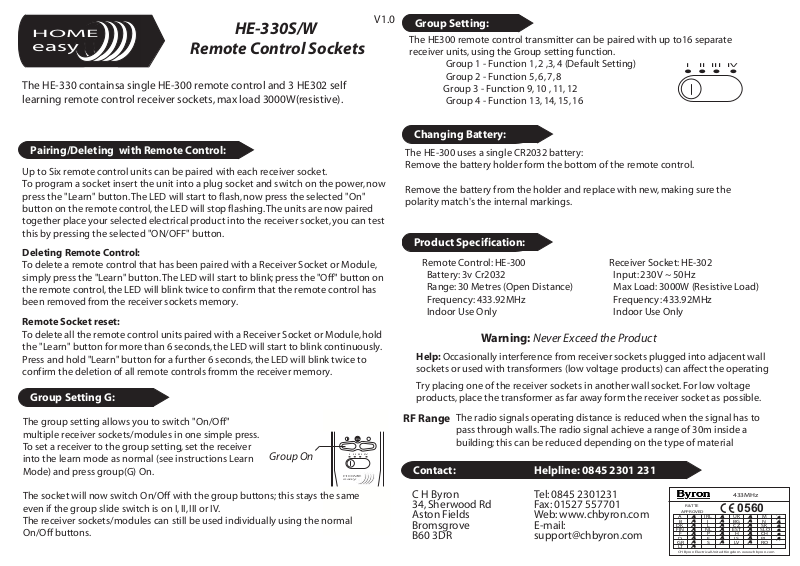

Home Easy HE-330 Installation Instruction
V1.0
HOME
easy
Remote Control Sockets
HE-330S/W
The HE-330 containsa single HE-300 remote control and 3 HE302 self
learning remote control receiver sockets, max load 3000W(resistive).
Pairing/Deleting with Remote Control:
Up to Six remote control units can be paired with each receiver socket.
To program a socket insert the unit into a plug socket and switch on the power, now
press the "Learn" button. The LED will start to flash, now press the selected "On"
button on the remote control, the LED will stop flashing. The units are now paired
together place your selected electrical product into the receiver socket, you can test
this by pressing the selected "ON/OFF" button.
Deleting Remote Control:
To delete a remote control that has been paired with a Receiver Socket or Module,
simply press the "Learn" button. The LED will start to blink; press the "Off" button on
the remote control, the LED will blink twice to confirm that the remote control has
been removed from the receiver sockets memory.
Remote Socket reset:
To delete all the remote control units paired with a Receiver Socket or Module, hold
the "Learn" button for more than 6 seconds, the LED will start to blink continuously.
Press and hold "Learn" button for a further 6 seconds, the LED will blink twice to
confirm the deletion of all remote controls fromm the receiver memory.
Group Setting G:
Group Setting:
The HE300 remote control transmitter can be paired with up to16 separate
receiver units, using the Group setting function.
Group 1 - Function 1, 2 ,3, 4 (Default Setting)
II IIII IV
Group 2 - Function 5, 6, 7, 8
Group 3 - Function 9, 10 , 11, 12
Group 4 - Function 13, 14, 15, 16
Changing Battery:
The HE-300 uses a single CR2032 battery:
Remove the battery holder form the bottom of the remote control.
Remove the battery from the holder and replace with new, making sure the
polarity match's the internal markings.
Product Specification:
Remote Control: HE-300
Battery: 3v Cr2032
Range: 30 Metres (Open Distance)
Frequency: 433.92MHz
Indoor Use Only
Receiver Socket: HE-302
Input: 230V ~ 50Hz
Max Load: 3000W (Resistive Load)
Frequency: 433.92MHz
Indoor Use Only
Warning: Never Exceed the Product
Help: Occasionally interference from receiver sockets plugged into adjacent wall
sockets or used with transformers (low voltage products) can affect the operating
Try placing one of the receiver sockets in another wall socket. For low voltage
products, place the transformer as far away form the receiver socket as possible.
The group setting allows you to switch "On/Off"
multiple receiver sockets/modules in one simple press.
To set a receiver to the group setting, set the receiver
into the learn mode as normal (see instructions Learn
Mode) and press group(G) On.
Group On
HOME
easy
II IIII IV
The socket will now switch On/Off with the group buttons; this stays the same
even if the group slide switch is on I, II, III or IV.
The receiver sockets/modules can still be used individually using the normal
On/Off buttons.
RF Range
G
The radio signals operating distance is reduced when the signal has to
pass through walls. The radio signal achieve a range of 30m inside a
building; this can be reduced depending on the type of material
