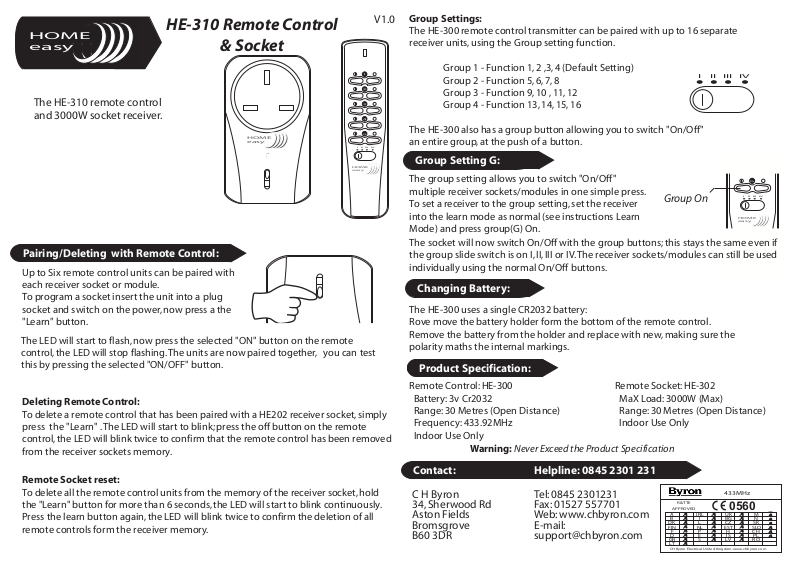

Home Easy HE-310 Installation Instruction
HOME
HE-310 Remote Control
easy
The HE-310 remote control
and 3000W socket receiver.
Pairing/Deleting with Remote Control:
Up to Six remote control units can be paired with
each receiver socket or module.
To program a socket insert the unit into a plug
socket and switch on the power, now press a the
"Learn" button.
The LED will start to flash, now press the selected "ON" button on the remote
control, the LED will stop flashing. The units are now paired together, you can test
this by pressing the selected "ON/OFF" button.
& Socket
HOME
easy
rrr
I IV
HOME
easy
1
2
3
4
G
II III
V1.0
Group Settings:
The HE-300 remote control transmitter can be paired with up to 16 separate
receiver units, using the Group setting function.
Group 1 - Function 1, 2 ,3, 4 (Default Setting)
Group 2 - Function 5, 6, 7, 8
II III
I IV
Group 3 - Function 9, 10 , 11, 12
Group 4 - Function 13, 14, 15, 16
The HE-300 also has a group button allowing you to switch "On/Off"
an entire group, at the push of a button.
Group Setting G:
HOME
easy
G
II IIII IV
The group setting allows you to switch "On/Off"
multiple receiver sockets/modules in one simple press.
To set a receiver to the group setting, set the receiver
Group On
into the learn mode as normal (see instructions Learn
Mode) and press group(G) On.
The socket will now switch On/Off with the group buttons; this stays the same even if
the group slide switch is on I, II, III or IV. The receiver sockets/modules can still be used
individually using the normal On/Off buttons.
Changing Battery:
The HE-300 uses a single CR2032 battery:
Rove move the battery holder form the bottom of the remote control.
Remove the battery from the holder and replace with new, making sure the
polarity maths the internal markings.
Product Specification:
Deleting Remote Control:
To delete a remote control that has been paired with a HE202 receiver socket, simply
press the "Learn" . The LED will start to blink; press the off button on the remote
control, the LED will blink twice to confirm that the remote control has been removed
from the receiver sockets memory.
Remote Socket reset:
To delete all the remote control units from the memory of the receiver socket, hold
the "Learn" button for more than 6 seconds, the LED will start to blink continuously.
Press the learn button again, the LED will blink twice to confirm the deletion of all
remote controls form the receiver memory.
Remote Control: HE-300
Battery: 3v Cr2032
Range: 30 Metres (Open Distance)
Frequency: 433.92MHz
Remote Socket: HE-302
MaX Load: 3000W (Max)
Range: 30 Metres (Open Distance)
Indoor Use Only
Indoor Use Only
Warning: Never Exceed the Product Specification
Contact: Helpline: 0845 2301 231
Contact Details:
C H Byron
34, Sherwood Rd
Aston Fields
Bromsgrove
B60 3DR
Tel: 0845 2301231
Fax: 01527 557701
Web: www.chbyron.com
E-mail:
support@chbyron.com
433MHz
R&TTE
APPROVED
A
IRL
B
DK
FIN
F
D
GR
LT
CH Byron Electrical United Kingdom. www.chbyron.com
I
L
NL
P
E
S
0560
UK
BG
CZ
EST
H
IS
LV
SLO
CH
RO
M
N
SK
PL
Page1:2
Indavidual
F
F
O
N
O
Group
C R2032
ON
easy
HOME
MAX
MAX
3000W
30m
1
2
ON
easy
HOME
OFF
3000W
easy
HOME
ON
easy
1
243
G
II III
I IV
easy
HOME
HOME
+3 SEC
1
2
3
4
G
IV
III
II
I
HOME
ON
easy
easy
HOME
Quick Guide
