The beauty of living well.
Mail To:
HoMedics
Consumer Relations
Service Center Dept. 168
3000 Pontiac Trail
Commerce Township, MI
48390
e-mail:
cservice@homedics.com
TWO YEAR LIMITED WARRANTY
(Valid in USA only)
HoMedics, Inc., guarantees this product free from defects in material and workmanship for a period of two years from the date of purchase, except as noted below.
This HoMedics product warranty does not cover damage caused by misuse or
abuse; accident; the attachment of any unauthorized accessory; alteration to the
product; or any other conditions whatsoever that are beyond the control of
HoMedics. This warranty is effective only if the product is purchased and operated
in the USA. A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured,
approved and/or authorized, or repair of products damaged by these modifications
is not covered under warranty. HoMedics shall not be responsible for any type of
incidental, consequential or special damages. All implied warranties, including but
not limited to those implied warranties of fitness and merchantability, are limited
in the total duration of two years from the original purchase date.
To obtain warranty service on your HoMedics product, either hand deliver or mail
the unit and your dated sales receipt (as proof of purchase), postpaid, along with
check or money order in the amount of $10.00 payable to HoMedics, Inc. to cover
handling.
Upon receipt, HoMedics will repair or replace, as appropriate, your product and
return it to you, postpaid. Warranty is solely through HoMedics Service Center.
Service of this product by anyone other than HoMedics Service Center voids warranty.
FFoorr mmoorree iinnffoorrmmaattiioonn rreeggaarrddiinngg oouurr pprroodduucctt lliinnee iinn tthhee UUSSAA,, pplleeaassee vviissiitt:: wwwwww..hhoommeeddiiccss..ccoomm
The beauty of living well.
™

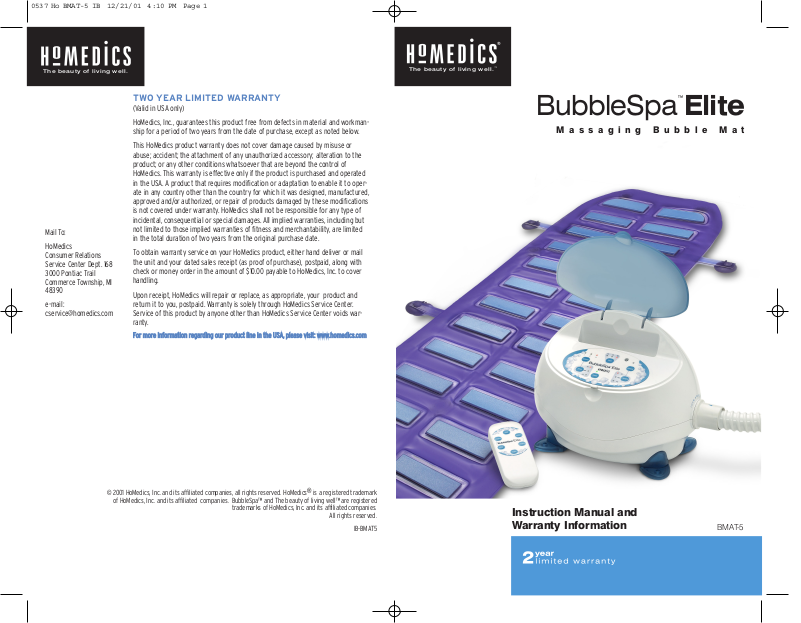

BubbleSpa™Elite
Massaging Bubble Mat
© 2001 HoMedics, Inc. and its affiliated companies, all rights reserved. HoMedics®is a registered trademark
of HoMedics, Inc. and its affiliated companies. BubbleSpa™ and The beauty of living well™ are registered
trademarks of HoMedics, Inc. and its affiliated companies.
All rights reserved.
IB-BMAT5
Instruction Manual and
Warranty Information
BMAT-5
The beauty of living well.
Caution:
Do not allow the
Transform your bath into a personal
hydro spa.
Thank you for purchasing BubbleSpa Elite Bathmat, HoMedics refreshing home spa. Like the entire HoMedics line, it is built with high-quality
craftsmanship to provide you with years of dependable service. We
hope that you’ll find it to be the finest product of its kind.
BubbleSpa Elite fills your bathtub with thousands of massaging
bubbles designed to relax your mind and revitalize your body in the
privacy and comfort of your own home.
Relax. Renew. Enjoy.
IMPORTANT SAFETY INSTRUCTIONS:
When using an electrical appliance, basic precautions should always
be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING
DANGER:
• Control unit should never be placed in water.
• Always unplug this appliance from the electrical outlet immediately
after using and before cleaning.
• Do not reach for an appliance that has fallen into water.
Unplug it immediately.
• Do not place or store power unit where it can fall or be pulled
into a tub or sink. Do not place in or drop into water or other liquid.
Store in dry place.
WARNING:
injury to persons:
• An appliance should never be left unattended when plugged in.
Unplug from outlet when not in use and before putting on or taking
off parts or attachments.
• Close supervision is necessary when this product is used by, on
or near children, invalids or disabled persons.
• Use this appliance only for its intended use as described in this
manual. Do not use attachments not recommended by HoMedics.
• Do not operate this appliance if it has a damaged cord or plug, if
it is not working properly, if it has been dropped or damaged or
dropped into water. Return it to HoMedics Service Center for
examination and repair.
• Do not carry this appliance or power unit by supply cord, or use
cord as a handle.
•Keep cord away from heated surfaces.
To reduce the risk of electric shock:
To reduce the risk of burns, fire, electric shock or
2
control unit to
become wet. Only
mat and hose
should come in
contact with water.
Do not obstruct
any opening of the
control unit.
Please disconnect
the mat and hose
after use.
In the case of
a power surge, the
unit will automatically shut off.
Unplug and then
reinsert to turn the
unit on.
The suction cups
under the bubble
mat work perfectly
when used on
smooth and shiny
bathtub surfaces.
If your bathtub has
a rough or textured
surface, take
extreme caution
when entering the
tub in order to
avoid slippage and
possible danger.
• Do not block the air openings of the appliance or power
unit or place it on a soft surface, such as a bed or
couch, where the air openings may be blocked. Keep air
openings free of lint, hair, dust, etc.
• Do not drop or insert any object into any opening.
• This product is designed for indoor use only.
• Never use this appliance while sleeping or drowsy.
• Do not operate where aerosol (spray) products are
being used or where oxygen is being administered.
• Do not use in outdoor pools.
•To disconnect, turn all controls to the “off” position, then
remove plug from outlet.
• This appliance must be connected to 120V electrical
supply.
To reduce the risk of electric shock, this appliance has
a polarized plug (one blade is wider than the other).
This plug will fit into a polarized outlet only one way. If
the plug does not fit into the outlet, reverse the plug. If
it still does not fit, contact a qualified electrician. Do
not attempt to defeat this safety feature.
SAVE THESE INSTRUCTIONS
SPECIAL WARNINGS:
• This unit is not a toy. Children should not use or play
with it.
• Always unplug the unit when not in use and when
cleaning or moving the unit.
• Ensure that your hands are dry when operating the
switch or removing the plug.
• Do not cover unit or power unit with any type of material
while it is in operation.
• Do not use if you have sensitive skin areas or poor
circulation. Use by unattended children or incapacitated
persons may be dangerous.
• Do not use in inflatable tubs or pools.
Medical Precautions
• This unit should not be used in the following cases:
Tuberculosis, benign and malignant tumors, hemorrhages, inflammations of the skin, phlebitis and thrombosis, open and fresh wounds, bruises, broken skin or
varicose veins, or undetermined calf pain.
• If you intend to use your BubbleSpa for therapeutic purposes, consult your physician first.
•Do not use on any part of the body that is anesthetized.
•Do not use on any part of the body where surgery has
been performed.
3
X
15 30 60
HI
HI
MED
MED
LO
LO
1 2 3
TIMER
MASSAGE
STRENGTH
POWER
SPEED
PROGRAM
X
15 30 60
HI
HI
MED
MED
LO
LO
1 2 3
TIMER
MASSAGE
STRENGTH
POWER
SPEED
PROGRAM
BubbleSpa Elite
TM
X
15 30 60
HI
HI
MED
ED
LO
O
3
TIMER
MASSAGE
STRENGTH
POWER
UNLOCK LOCK
UNLOCKLOCK
Figure 1
Hose
Control
Unit
Remote
Holder
Figure 2
Mat
Suction
Cups
Figure 3
Figure 4
Suction Cup
Connector
Bathtub Floor
Mat
Mat
• Do not use on any unexplained pain before consulting your doctor.
• If you have any concerns regarding your health, consult
your doctor before using this product.
BubbleSpa Elite Features
• 3 Massage programs with 3 speeds
• Steady massage option with 3 strengths: low, medium or high
• 60-Minute timer function
• Operate via Central Programming Unit or cordless remote control
• Lightweight, compact and portable
Installation Instructions
1. Remove the mat from its packaging and make sure all
necessary components are included: mat, remote control, hose
suction cup, control unit and hose (Fig. 1).
2. Be sure the control unit is unplugged and positioned on a sturdy
surface where it cannot fall or be pulled into the tub, preferably the
floor.
3. To place the mat, first dampen tub surface with a slight amount
of water. This will help the adhesion of suction cups (on bottom
of mat) to bathtub floor (Fig. 2).
4. To connect the hose to the control unit, line up the arrow on the
hose with the unlock mark on the control unit. Insert the hose end
(with raised bead) into the control unit and turn counter clockwise to
the lock position (Fig. 3). The raised bead should be lined up with
the channel when inserted.
5. Insert the other end of the hose into the mat (Fig. 4).
6. Attach the hose to the side of the bathtub with the suction cup,
which is attached to the hose (Fig. 5). The suction cup will help
to stabilize the hose, and should be attached along the upper
edge of the bathtub.
7. Plug unit into 120 volt electrical outlet.
Instructions for Use
Power:
• After plugging in the control unit, press the POWER button
on the control unit panel. The corresponding POWER LED
will illuminate (Fig. 6).
• Each function button on the control unit panel features
a corresponding LED, which will illuminate when in use.
Caution:
Mat may move
when entering or
exiting bathtub.
Exercise caution.
Figure 5
Attach as
close to rim
as possible
Figure 6
PRESS POWER BUTTON
ON CONTROL UNIT
Remote Control:
• All programming functions may also be utilized in a similar
fashion using the remote control. However, the remote does
not provide an LED illumination of selections. Only the control
unit provides LED illumination.
• The remote control is water-resistant only. If dropped into water,
it should be removed immediately. A remote control holder
is included to conveniently store your remote. Just dampen
the suction cup and attach to the wall or side of the bathtub.
• The remote is powered by two CR2032 3V batteries. For initial use,
you will need to insert the batteries. To insert or replace, use a coin
to turn the lock on back of remote. Take off cover and insert both batteries, “+” side up. Set cover in place and turn to lock.
Timer Function:
• The bath mat has a timer function which allows you to choose from
15, 30 or 60 minutes.
• Press the TIMER button to activate the function, then select the
desired time by pressing the TIMER button until its corresponding
LED is illuminated.
Choose Bubble Massage Option:
•Your BubbleSpa Elite offers you a choice of either steady massage
action or three massage programs as follows:
Steady Bubble Massage:
• Press the MASSAGE button on the control unit. The low strength
LED will automatically illuminate.
• The massage speed may be increased or decreased by
pressing the STRENGTH button repeatedly. The corresponding
LED for each strength level will illuminate when selected.
• If desired, press the TIMER button to select a bubble massage
of 15, 30 or 60 minutes. These functions may also be performed
using the remote control, but LEDs are only available on the
control unit.
Bubble Massage Programs:
• Press the PROGRAM button on the control unit. The corresponding
LED will illuminate.
•You may choose any one of 3 programs by pressing the program
button until the desired program is selected. The speed may be
increased or decreased from low to high by pressing the SPEED
button repeatedly until the desired level is selected.
• If desired, press the TIMER button to select a bubble massage
of 15, 30 or 60 minutes. These functions may also be performed
using the remote control, but LEDs are only available on the control
unit.
4
5
Figure 8
Figure 9
Hose inlet
Do not attempt to
repair BubbleSpa.
There are no user
serviceable parts.
For service, send
the unit to the
HoMedics
address listed
in the warranty
section.
BubbleSpa Care and Maintenance
Keep the BubbleSpa Elite clean and clear of obstructions. Check
the intake area frequently for potential obstructions that could block air
or water flow, including lint and hair. Never store your BubbleSpa wet.
Storage
• After use, turn the control unit off. Drain the tub.
•To remove any remaining water inside the mat, lift mat, keeping the
hose attached and hold at an angle so water collects in the corner
(Fig. 8). Turn unit on and blow air through the mat for 30-45 seconds.
Towel dry outside of mat.
• After mat is completely dry, you can roll for storage.
Cleaning
• Unplug the unit and allow it to cool before cleaning. Clean only
with a soft, slightly damp sponge.
NOTE: Do not use abrasive cleaners, brushes, gasoline, kerosene,
glass/furniture polish or paint thinner to clean.
• Bubble Spa mat should be disinfected periodically to keep it free
from bacteria. Disinfect with household cleanser once a week if
used several times a week. If used less frequently, disinfect after
each use.
• This product is not designed to be used in conjunction with any
soaps, gels, shampoos or the like. However, should this occur,
follow these next steps to insure the longevity of this product:
1. Disconnect hose from mat
2. Fill mat with fresh water, through hose inlet on mat (Fig. 9).
3. Empty water. Repeat several times until inside residue is removed.
4. Rinse outside of mat and sponge off to make sure all
residue is removed.
5. Follow draining instructions, as described under “Storage” section.
BubbleSpa™Elite
Massaging Bubble Mat
Timer
Choose a 15, 30, or 60
minute massage length
Comfortable,
Air-filled
Bubble Mat
Soft mat contours to any
bath surface, while elevating
you on a cushion of air
Fully Programmable
Touchpad Control
LED touchpad control allows
you to create a customized
bubble massage by choosing
your own speed, program,
and length
Caution:
All servicing of this
BubbleSpa must
be performed by
authorized
HoMedics service
personnel only.
Remote Control
and Holder
Hand-held
convenience
6
Hose
Loading...
