EX100UHD User manual
HomeCinemaSolution Contact: [email protected] 2
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please keep
this manual for future reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.
Page 3
EX100UHD User manual
HomeCinemaSolution Contact: [email protected] 3
Table of Contents
1. Introduction......................................................................................... 4
2. Features...............................................................................................4
3. Panel Descriptions.................................................................................5
4. Application Diagram....................................................................7
5. Specifications....................................................................................... 7
6. Package Contents................................................................................ 8
7. Maintenance.......................................................................................9
8. Exclusive Remedies................................................................................. 9
Page 4
EX100UHD User manual
HomeCinemaSolution Contact: [email protected] 4
Introduction
EX100UHD Extender (Transmitter + Receiver) is a Dual HDMI and VGA/Audio to HDBaseT
Switcher Extender. It switches between HDMI and VGA/audio inputs, digitizes, and transmits via
HDBaseT. It offers manual/auto-switching between both HDMI and VGA inputs. By using
EX100UHD the transmission distance for 1080P reaches 100 meters (330ft), and 4K x2K
reaches 70 meters (230ft).
EX100UHD have the ability of equalization and amplification to ensure signal’s transmission
through long cable with PoE without quality loss.
EX100UHD was designed for simple low-cost systems in schools and businesses.
Features
Switching between HDMI and VGA with 3.5mm audio input, HDMI output with L/R Analog
audio and Coax Digital audio outputs.
HDMI v1.4 and HDCP compliant, support 1080p@60Hz, 3D and 4Kx2K.
Support 1080P@60Hz or VESA: 1920x1200@60Hz up to 100m (330ft).
Transmission distance for 4Kx2K@30Hz up to 70m (230ft).
Support all popular VGA resolution inputs:
640x480@60/75Hz, 720x400@70Hz, 800x600@60/75Hz, 1024x768@60/75Hz,
1152x864@75Hz, 1280x720@60Hz, 1280x768@60/75Hz, 1280x800@60/75Hz,
1280x960@60Hz, 1280x1024@60/75Hz, 1360x768@60Hz, 1366x768@60Hz,
1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz,
1920x1080@60Hz, 1920x1200@60Hz
Support Bi-Directional PoE and Bi-Directional IR.
Support EDID learning mode
RS232 supports 3 modes: Bypass through HDBaseT link(Default), update Valens FW and
update MCU FW
With ESD Protection.
Page 5
EX100UHD User manual
HomeCinemaSolution Contact: [email protected] 5
Panel Descriptions

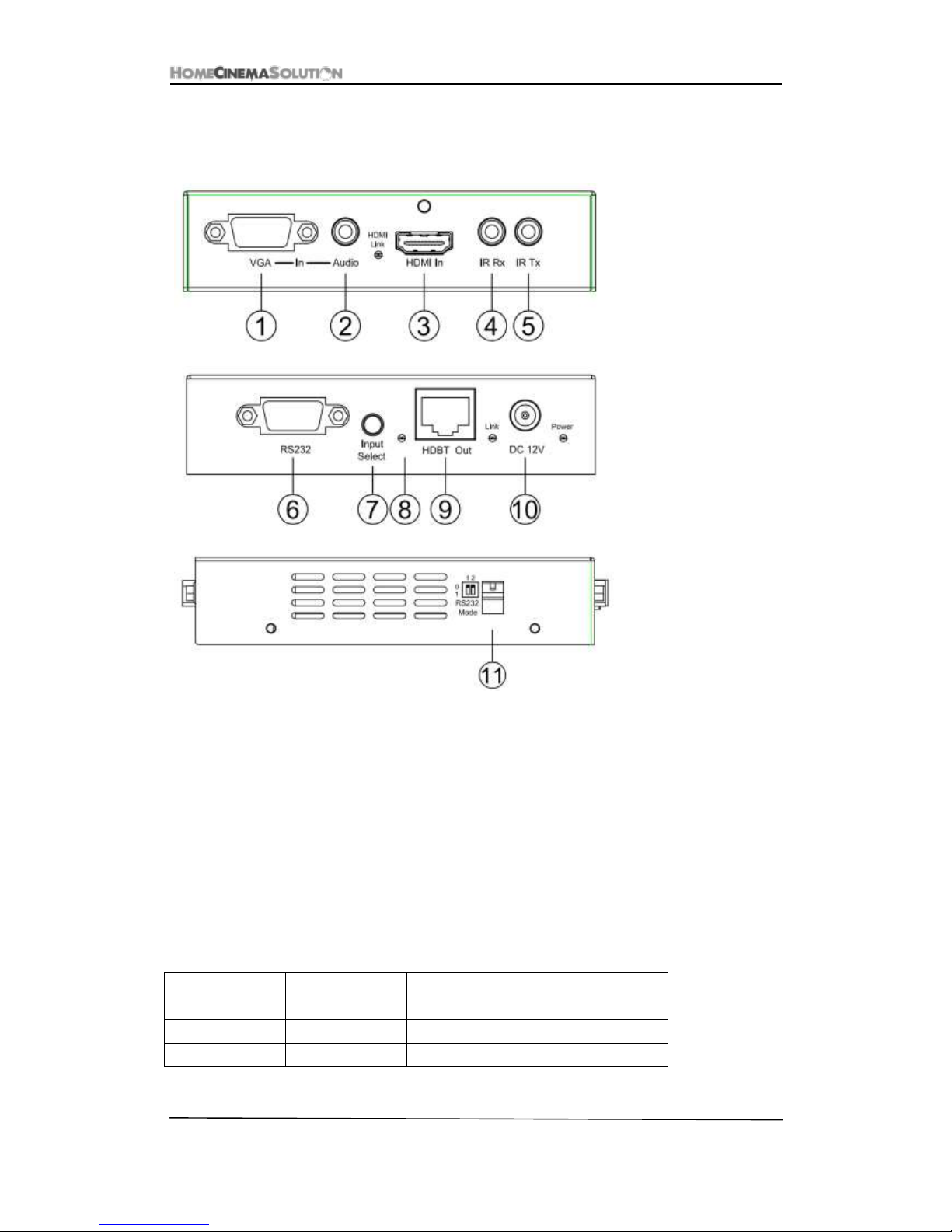

EX100UHD (Trasmitter):
1. VGA input
2. Audio input(go with VGA input)
3. HDMI input
4. IR Receiver jack
5. IR Transmitter jack
6. RS232 port
7. Input select button
8. Inputs indicator light, red for VGA input, blue for HDMI input
9. HDBaseT output
10. DC power input
11. RS232 Mode DIP switch, mode selections as below:
RS232 Mode-1
RS232 Mode-2
Mode
0 0 Bypass through HDBaseT link (Default)
0 1 Update Valens FW
1 0 Update MCU FW
Page 6
EX100UHD User manual
HomeCinemaSolution Contact: [email protected] 6

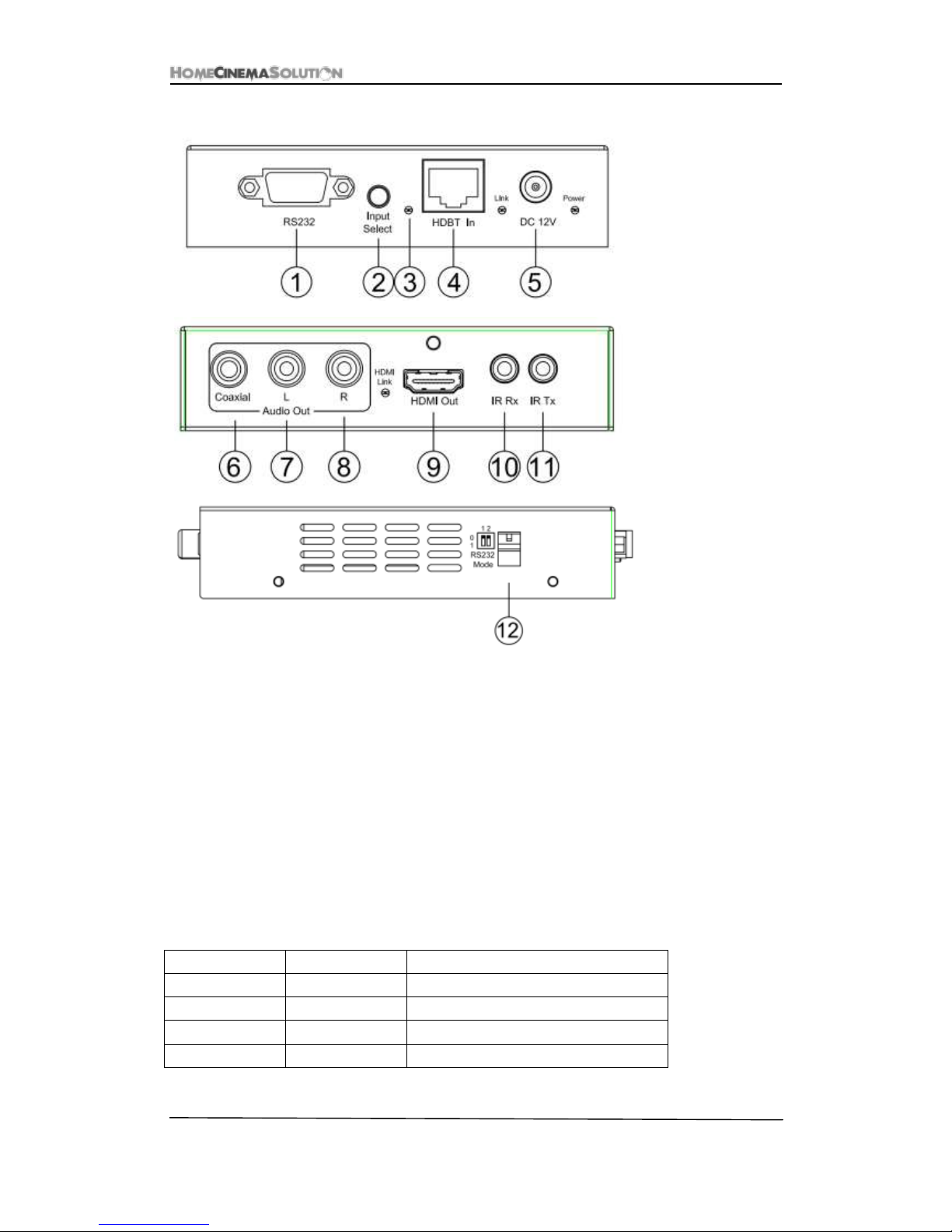

EX100UHD (Receiver):
1. RS232 port
2. Input select button
3. Inputs indicator light, red for VGA input, blue for HDMI input
4. HDBaseT input
5. DC power input
6. Coaxial Digital Audio output,SPDIF
7. RCA L: Left channel of stereo analog audio output
8. RCA R: Right channel of stereo analog audio output
9. HDMI output
10. IR Receiver jack
11. IR Transmitter jack
12. RS232 Mode DIP switch, mode selections as below:
RS232 Mode-1
RS232 Mode-2
Mode
0 0 Bypass through HDBaseT link (Default)
0 1 Update Valens FW
1 0 Update MCU FW
1 1 Not available
Page 7
EX100UHD User manual
HomeCinemaSolution Contact: [email protected] 7

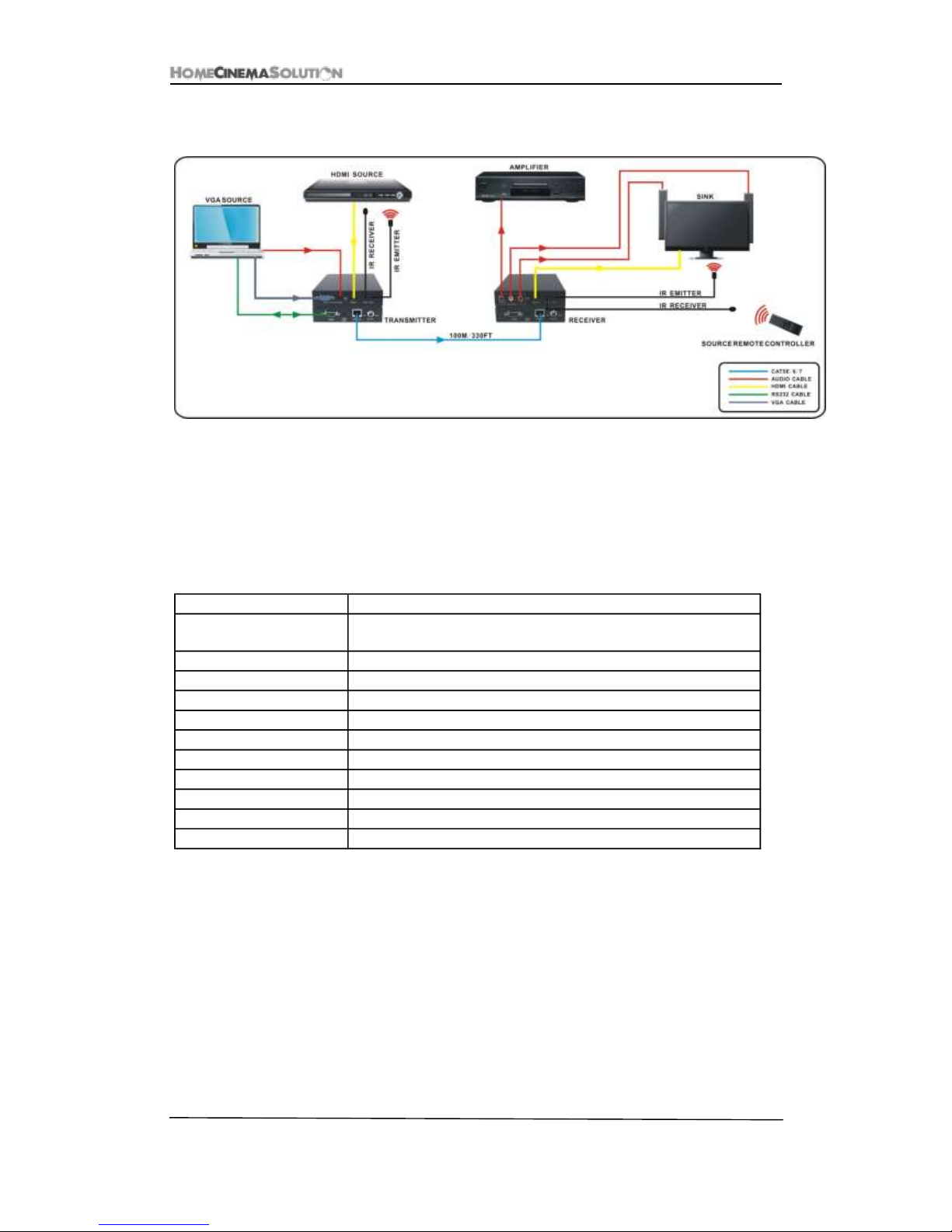

Application Diagram
Specifications
EX100UHD (Trasmitter):
Bandwidth: 2.97Gbps per color
Video Input Connectors:
1 x HDMI Type A, 19-pin, female, locking
1 x VGA Type A, 15-pin, female, locking
Video Output Connectors: 1x RJ-45
RS-232 serial port: DB-9, female
IR Input ports:
1x 3.5mm stereo jack
IR Output ports: 1x 3.5mm stereo jack
Rack-Mountable:
Rack ears included
Dimensions (W x H x D): 125mm x 112mm x 27mm , without feet
Shipping Weight:
375g
Operating Temperature:
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
Power Supply:
12V/2A DC
Page 8
EX100UHD User manual
HomeCinemaSolution Contact: [email protected] 8
EX100UHD (Receiver):
Package Contents
1. 1x EX100UHD Trasmitter
2. 1x EX100UHD Receiver
3. 1x 12V DC power supply
4. 1x IR Transmitter, 1x IR Receiver.
5. 4x mounting brackets.
6. 1x Operation manual.
Bandwidth: 2.97Gbps per color
Video Input Connectors:
1x RJ-45
Video Output Connectors:
1 x HDMI Type A, 19-pin, female, locking
Audio Output Connectors:
3x RCA, female
RS-232 serial port: DB-9, female
IR Input ports:
1x 3.5mm stereo jack
IR Output ports: 1x 3.5mm stereo jack
Rack-Mountable:
Rack ears included
Dimensions (W x H x D): 125mm x 112mm x 27mm , without feet
Shipping Weight:
375g
Operating Temperature:
32°F to 104°F (0°C to 40°C)
Storage Temperature :
-4°F to 140°F (-20°C to 60°C)
Power Supply:
12V/2A DC
Page 9
EX100UHD User manual
HomeCinemaSolution Contact: [email protected] 9
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this
unit.
Exclusive Remedies
HCS warranty, as stated is in lieu of all other warranties, expressed, implied, or statutory,
including those of merchantability and fitness for a particular purpose. The buyer shall pass on
to any purchaser, lessee, or other user of HCS products, the aforementioned warranty, and
shall indemnify and hold harmless HCS from any claims or liability of such purchaser, lessee,
or user based upon allegations that the buyer, its agents, or employees have made additional
warranties or representations as to product preference or use.
The remedies provided herein are the buyer’s sole and exclusive remedies. HCS shall not be
liable for any direct, indirect, special, incidental, or consequential damages, whether based on
contract, tort, or any other legal theory.
