RC-1000 and RC-2000
Programmable Communicating Thermostat
User’s Guide
Contents
About your thermostat ................................................................................................................................. 1
Features:......................................................................................................................................................................1
Getting to know your thermostat’s controls............................................................................................... 2
Getting to know your thermostat’s display (Advanced Display) .............................................................. 4
Filter Reminder ...........................................................................................................................................................4
Getting to know your thermostat’s display (Simplified Display).............................................................. 6
Changing the desired temperature settings................................................................................................ 7
Changing the thermostat mode....................................................................................................................8
About the fan and hold settings................................................................................................................... 9

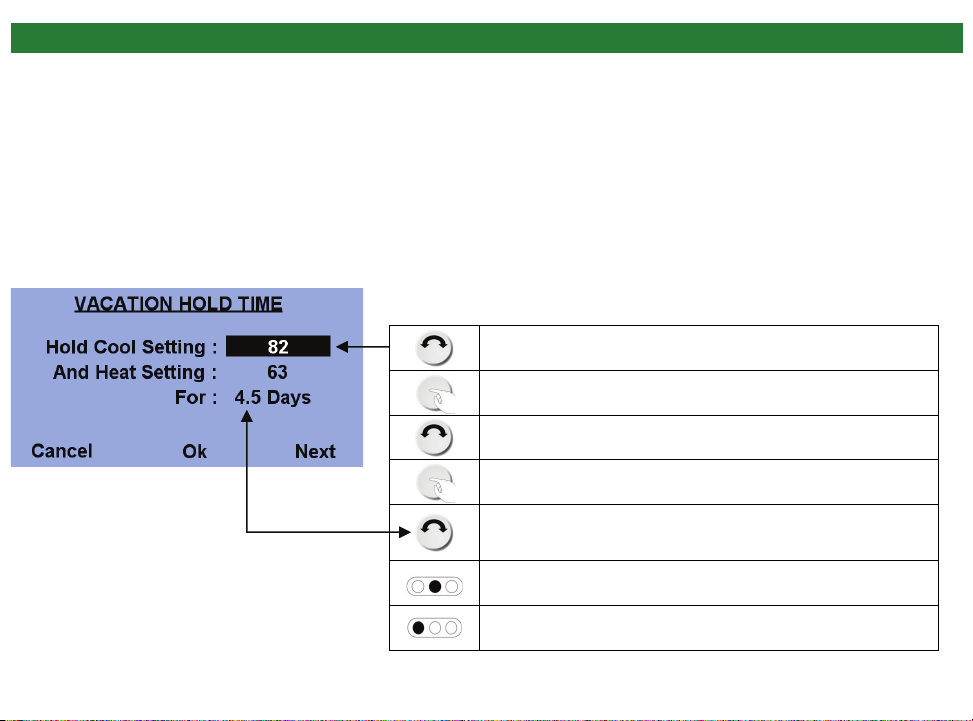

About the hold settings............................................................................................................................... 10

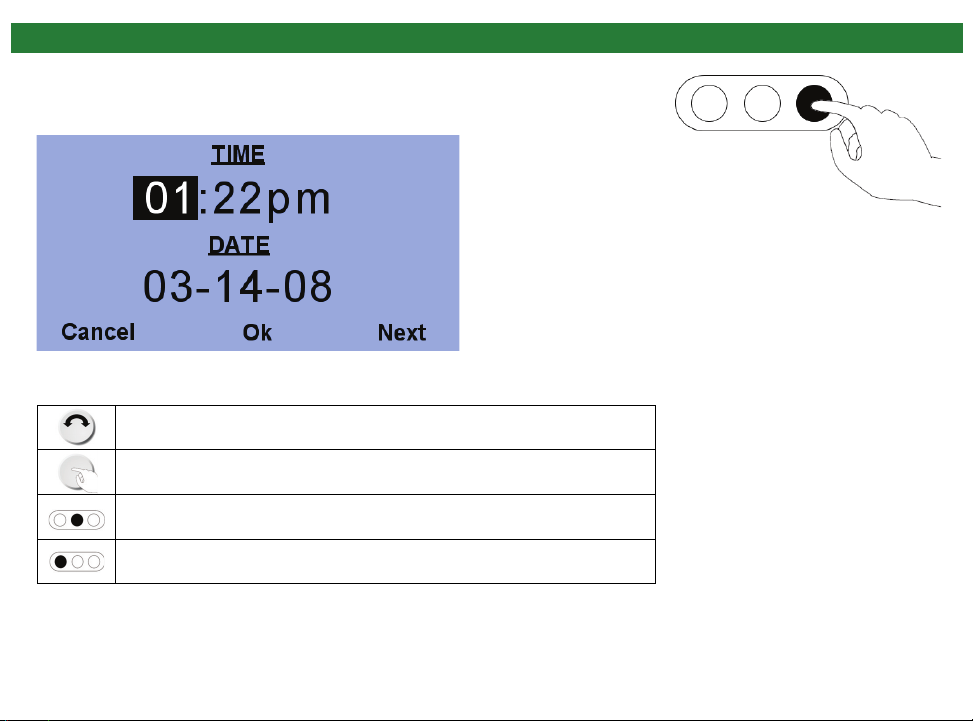

Setting the time and date............................................................................................................................ 11
Modifying the program schedule............................................................................................................... 12
Changing the desired humidity setting (RC-2000)................................................................................... 16
Display the runtime graph of air conditioning and heating usage.......................................................... 17
Document Number 65A17-1, March 2008
Copyright ® 2008 Home Automation, Inc.
About your thermostat
About your thermostat
Thank you for purchasing your new Omnistat2 electronic communicating thermostat. Your thermostat will provide you with
comfort, convenience, and energy savings for years to come.
The Omnistat2 is a precision digital thermostat. It has the capability of being controlled both locally and remotely. It offers stand
alone operation, programmability, and communications with automation systems, utility control systems, and personal computers.
Please take a few moments to become familiar with all of the features of your new thermostat by reviewing this guide. A complete
Omnistat2 Owner’s Manual can be downloaded from our web site at www.homeauto.com
.
Features:
x Digitally precise temperature control
x 7 day programmable
x Multicolor backlight, user defined color
x Proximity/motion detector, screen lights up when approached
x Vacation mode
x Easy to navigate menus
x Communicates with automation systems, utility control systems, and personal computers
x Displays outdoor temperature
x Graphical display of HVAC usage, by week
x Filter reminder
x Large graphical display
x Learns the patterns of your house and uses smart control to apply maximum comfort with efficiency
x Automatic heat/cool changeover
x Fan cycle mode
x Humidity sensing
x Humidifier control
x Dehumidifier control
1
Only available on the RC-2000
1
1
1
1
Getting to know your thermostat’s controls
j
Getting to know your thermostat’s controls
To take advantage of all the benefits and features offered by your new thermostat, we recommend that you start by becoming
familiar with its controls.
Task Buttons
Press to select the task that is displayed
above the respective button.
Large Graphical Display
Customizable multicolor backlit display
shows everything necessary to operate
your system and monitor temperature
and humidity.
Proximity/Motion Sensor
The display lights up when
approached, making it easy to
ust in the dark of night.
ad
Scroll Wheel
Turn to adjust the temperature,
navigate menus, and change
values and settings.
Press for the Main Menu, and to
make or confirm a setting.
2
Getting to know your thermostat’s controls
The following icons are used throughout this guide:
Turn the Scroll Wheel to the right or to the left.
Press the Scroll Wheel.
Press the Task Button on the left.
Press the Task Button in the middle.
Press the Task Button on the right.
Adjusting the color of the thermostat display:
To adjust the color of the thermostat display press and hold [HOLD] while turning the Scroll Wheel:
Press and hold [HOLD].
While pressing [HOLD], turn the Scroll Wheel to
adjust the color.
When complete, release [HOLD].
Adjusting the contrast of the thermostat display:
To adjust the contrast of the thermostat display press and hold [FAN]
while turning the Scroll Wheel:
Press and hold [FAN].
While pressing [FAN], turn the Scroll
Wheel to adjust the contrast.
When complete, release [FAN].
3
Getting to know your thermostat’s display (Advanced Display)
(3)
Getting to know your thermostat’s display (Advanced Display)
The following graphics will be displayed on the Home Page when using the Advanced Display:
Message Bar (6)
Status Indicators (5)
Period Indicator (10)
Current Indoor
Temperature
(1)
Cool Setting
(2)
Heat Setting
Thermostat Mode
(4)
Fan Setting (8) Hold Setting (7)
Filter Reminder
Your thermostat logs the amount of time your heating and cooling system has been running and gives you a reminder when it's time to replace your
filter. “Change Filter” will be displayed on the Message Bar when it is time to change your filter.
4
Press the Scroll Wheel twice to clear the change filter reminder. Don't forget to change your filter!
Relative Humidity (9)
(RC-2000)
