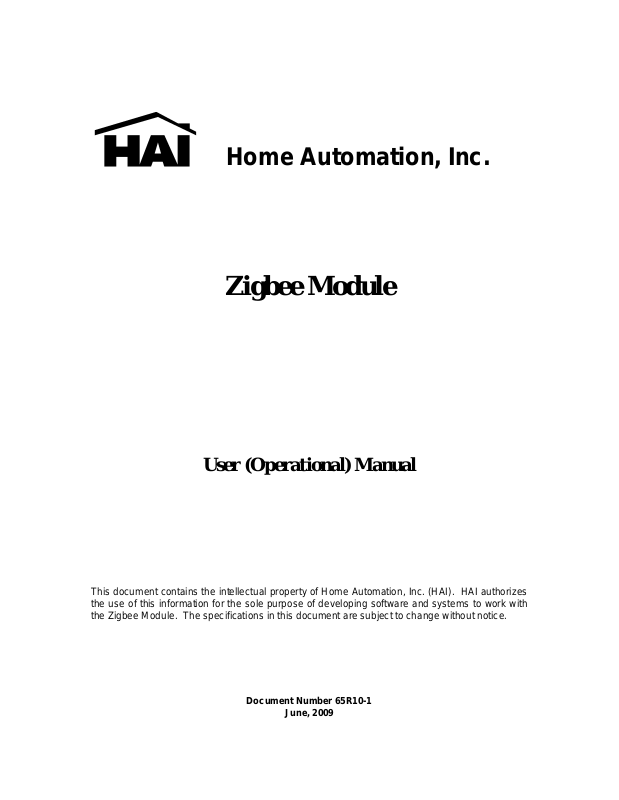

Home Automation, Inc.
Zigbee Module
User (Operational) Manual
This document contains the intellectual property of Home Automation, Inc. (HAI). HAI authorizes
the use of this information for the sole purpose of developing software and systems to work with
the Zigbee Module. The specifications in this document are subject to change without notice.
Document Number 65R10-1
June, 2009
INTRODUCTION
This document describes the wireless communications of the Zigbee Module. The Zigbee Module is a
portable device that allows for wireless communication between multiple Host devices. This document
describes the installation process, electrical connections, electrical specifications, and the FCC statements
for compliance.
INSTALLATION
1.) Begin by installing the Zigbee Module in the back of the Host device.
2.) After screwing the Zigbee to the back of the Host device, power the Host.
3.) Consult the Host User Manual for network details.
ELECTRICAL CONNECTIONS
The expansion board should connect to the thermostat using the 8 pin dual row J10 header on the read side
(side opposite of LCD). This header consists of a 5V supply, GND, and SPI full-duplex communication or
I/O Connections.
8 pin expansion module pin out.
ELECTRICAL SPECIFICATIONS
Min Typical Max
Voltage Level: 4.5V 5.0V 5.5V
Current: - - 90ma
SPI TX High 2.8V 3.3V 3.6V
SPI RX High 2.64V - 5.5V
SPI Baud - - 100khz
Copyright © 2008 Home Automation, Inc.
All Rights Reserved
Page 1
Copyright © 2008 Home Automation, Inc.
All Rights Reserved
Page 2
FCC STATEMENTS OF COMPLIANCE
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired operati o n.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
FCC Interference Statement (Part 15.105 (b))
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reason able protection
against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or telev ision
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment a nd receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
FCC/IC RF Exposure
To comply with FCC/IC RF exposure limits for general population /
uncontrolled exposure, the antenna(s) used for this transmitter
must not be co-located or operating in conjunction with any
other antenna or transmitter.
RF Exposure (OET Bulletin 65)
To comply with FCC/IC RF exposure requirements for
mobile transmitting device s, this transmitter should only
used or installed at locations where there is at least 20cm
separation distance between the antenna and all persons.
Copyright © 2008 Home Automation, Inc.
All Rights Reserved
Page 3
OEM Responsibility
OEM Responsibility to the FCC Rules and Regulations
The Zigbee Module has been certified per FCC Part 15 rules for integration into products
without further testing or certification. To fulfill the FCC certification requirements the OEM of
the Zigbee Module must ensure that the information prov ided on the Zigbee Label is place d on
the outside of the final product.
The Zigbee Module is labeled with its own FCC ID Number. If the FCC ID is not visible when the
module is installed inside another device, then the outside of the device into which the module
is installed must also display a label referring to the enclosed module. This exterior label can
use wording such as the following:
“Contains Transmitter Module FCC ID: HHC-65A10”
or
“Contains FCC ID: HHC-65A10”
The OEM of the Zigbee Module must only use the approved antenna, which has been cert ified
with this module.
The OEM of the Zigbee Module must test their final product configuration to comply with
Unintentional Radiator Limits before declaring FCC compliance per Part 15 of the FCC rules.
Section 7.1.5 of RSS-GEN
Operation is subject to the following two conditions:
1) this device may not cause interference, and
2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Copyright © 2008 Home Automation, Inc.
All Rights Reserved
Page 4
