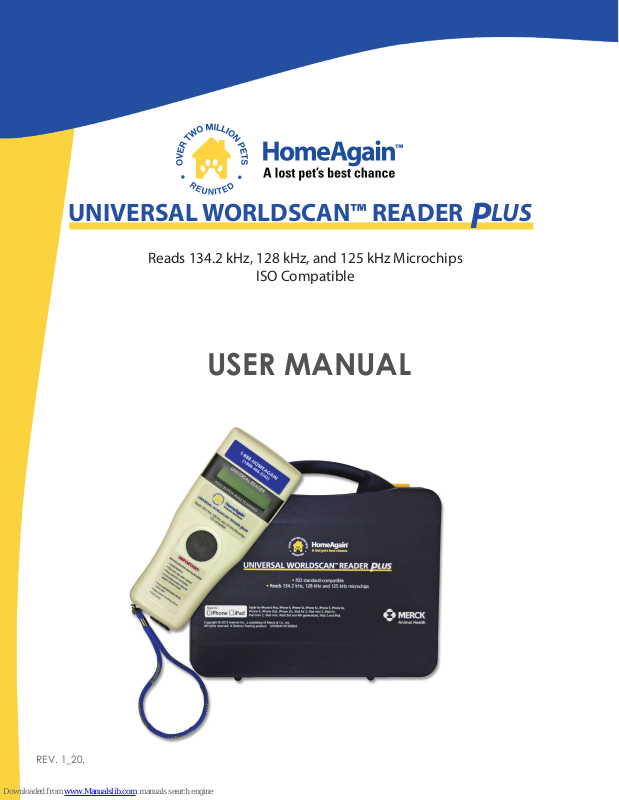

UNIVERSAL WORLDSCAN™ READER LUS
Reads 134.2 kHz, 128 kHz, and 125 kHz Microchips
ISO Compatible
P
USER MANUAL
REV. 1_20.

Table of Contents
1 Description....................................................................................................................................
2 Case and Components...............................................................................................................
3 Operation and Settings................................................................................................................
3.1 Getting Started..............................................................................................................................
3.2 Battery handling instructions........................................................................................................
3.3 Power on / off instructions............................................................................................................
3.4 Reading an implanted microchip..............................................................................................
3.4.1 Scanning and LOCATING AN IMPLANTED MICROCHIP............................................................
SETTING UPTRANSMITTING DATA TO COMPUTERADVANCED OPERATIONS
3.4.2 Read range performances..........................................................................................................
3.5 Tones...............................................................................................................................................
4 Installing Software........................................................................................................................
4.1 System Requirements....................................................................................................................
4.2 Program Installation.......................................................................................................................
5 Connecting to a PC......................................................................................................................
5.1 Using USB interface........................................................................................................................
5.2 Using wireless Bluetooth® connection.........................................................................................
5.2.1 BLUETOOTH® management..........................................................................................................
5.2.2 Pairing from MM Software.............................................................................................................
5.2.3 Using Bluetooth® interface to pair, from Windows....................................................................
5.2.4 Connect by Bluetooth® when reader is already paired..........................................................
6 Memory.........................................................................................................................................
6.1 Memory management..................................................................................................................
6.2 Download memory........................................................................................................................
6.3 Temperature measurement..........................................................................................................
3
3
4
4
4
4
5
5
6
6
6
6
7-9
9
9
10
10
10
12
13
14
14
14
14
7 Connecting the reader to an Application on smart phone or Mobile Device.......................
7.1 Pairing with iPhone/iPad® devices .............................................................................................
7.2 Pairing with Android™ devices.....................................................................................................
8 Appendix.......................................................................................................................................
8.1 .NET Framework 3.5 installation....................................................................................................
9 Troubleshooting............................................................................................................................
10 Specications...............................................................................................................................
11 Reader Physical Intergrity...........................................................................................................
12 Limited Product Warranty............................................................................................................
13 Regulatory Information................................................................................................................
14 Regulatory Compliance..............................................................................................................
15
15
15
16
16
18
19
19
19
20
20
2

3
1. Description
2. Case and Components
The device can read a wide range of technologies: FDX-B ISO, HDX ISO, FDX-A (FECAVA), Trovan and Avid
Encrypted. UWSR+ can also read and display the Microchip Temperature™ when reading microchips with tem-
perature sensing implants from Destron Fearing™ or Allex®.
In addition to its microchip reading functions, the UWSR+ scanner can store up to 3000 IDs, each associated
with a time/date stamp in its internal memory and transmit them to a personal computer via an USB cable or
wirelessly using Bluetooth®.
Figure 1 – Packing
Figure 2 - Reader features and user interface.
Table 2 - Reader features and description of useTable 1 - Packing list
1
2
3
5
4
6
7
8
6
5
4
1
3
2
7
8
Item Features Description of use
Emits activation signal and receives
RFID microchip signal.
Displays information about current
reader status.
Applies power and causes
activation signal to be emitted for
reading microchips
Eyelet to place the lanyard
Protector for electrical interface for
attaching USB cable.
Anti-slip griping surface
Cover to access battery
Screw on battery cover
1 Antenna
2 Large graphical
readout with
backlight
3 “SCAN” button
4 Eyelet
5 USB port cover
6 Handle grip
7 Battery cover
8 Battery cover screw
Item Features Description of use
Use to transport the reader in a
robust case
Quick Start Guide
Helps prevent drops and keeps
hands free.
Power Supply – Powers reader and
charges batteries.
Universal WorldScan™ Reader Plus
1 microchip to demonstrate and
test reading capabilities.
Supplies power to the reader.
Conveys data to and from reader.
1 Plastic case
2 Guide
3 Lanyard
4 Wall adapter
5 Reader
6 Key chain with test
microchip
7 Rechargeable NiMH
battery
8 USB Cable

4
Remove retention screw located on center of back of UWSR+.
Place batteries according to polarity indicators. Replace lid and screw.
Remove USB port cover and attach cable in the UWSR+.
Plug the adaptor into power outlet. The battery level icon will ash
while charging and stop ashing when fully charged. A full charge
may take 3 hours.
1
2
3
3.2 Battery handling instructions
Please read and follow the handling instructions for the batteries before its use. The batteries should
only be charged with the USB cable and wall adapter supplied with the reader. Improper use of
batteries may cause its capacity deterioration or cause heat, re, rupture or damage. For best perfor-
mance of batteries, unit should be charged at least every three months, if reader is unused.
Caution
Use rechargeable batteries with same capacity and do not mix rechargeable and standard batteries.
Do not attempt to charge standard alkaline batteries.
Batteries must be charged indoors only, at temperature between 32º F and 104°F.
Risk of explosion if batteries are replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Warning
Do not use the reader near water when connected to the AC/DC adapter.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that
produce heat.
Do not charge the battery pack from AC main sources during electrical storms or when unused for
long periods of time.
3.3 Power on / off instructions
To turn the UWSR+ on, press and release the “SCAN” button once. During this start up time the reader will dis-
play the screen below, beep once, and then display “READY”.
The UWSR+ can now be tested with the test microchip provided with key chain. While holding down scan but-
ton microchip number should appear on the display.
Note 1: Once activated, the reader will stay on for 2 minutes by default.
1 We recommend Duracell® or Energizer® alkaline batteries
3. Operation and settings
3.1 Getting Started
UWSR+ comes supplied with six AAA rechargeable NiMH batteries which must be fully charged prior to use, as
diagram below (step 1 through 3).
If preferred, six standard non-rechargeable AAA Alkaline1 batteries can also be used and only step 1 should
be followed (step 2 and step 3 do not apply).

5
3.4 Reading an implanted microchip
3.4.1 Scanning and LOCATING AN IMPLANTED MICROCHIP
When searching for implanted microchips, press and hold scan button while placing reader so it touches the
animal as shown in diagrams below.
For Pets
Keep scanner touching animal and scan slowly following patterns below:
Use the following scanning patterns to locate the microchip. Perform pattern 1 and 2 on Left, Top and Right
sides of animal’s neck and shoulders, as microchip placement might vary per animal.
While pressing the scan button, the reader will display “SEARCHING” until a microchip is found or the scan but-
ton released.
If a microchip is not detected, the reader will display “NO ID FOUND”. In that case, we recommend re-scanning
the test chip to ensure reader is operating properly. The animal, then should be re-scanned, moving slower and
in varying angle according to the patterns described above.
The following picture shows the result of a successful reading session:

6
Typical read distances will vary when reading different types of microchips.
3.5 Tones
The scanner has distinct beep tones for different functions: after start up, when scan button is pushed or re-
leased, when microchip is found, or during low battery condition.
4. Installing Software
The UWSR+ is supplied with the Microchip Management Software. MM Software provides the following capabil-
ities:
Change reader settings.
Congure a Bluetooth® connection with a remote device.
Download reader memory and export animal ID’s to Excel.
Use your reader as a virtual keyboard.
Update your reader rmware.
4.1 System requirements
Microsoft® Windows® 2000 Service Pack 4, Windows XP, Windows Vista, Windows 7, Windows 8,
Windows 8.1, and Windows 10 (This software is not compatible with Mac OS).
Personal computer with:
512 MB of RAM minimum.
40 MB free hard disk space.
MM Software requires .NET Framework 3.5 which is usually installed with Windows operating
system. If it is not installed on your computer, the installation program will prompt you to install it (Refer
to Appendix to see how to install .NET framework).
3.4.2 Read range performances
The gure below (Figure. 3) illustrates the reading zone of the reader, within which microchips can be success-
fully read. Optimum read distance occurs depending upon the orientation of the microchip. Microchips are
best detected when positioned as shown below.
Figure 3 - Optimum Read Distance Microchip Orientation (position 1, 2, 3 and 4)

7
Follow the steps below to complete the installation process:
1. Double-click on the setup package to start the installation and choose the appropriate language.
4.2 Program installation
The Microchip Management Software (MM Software) is available for download at
http://microchip.homeagain.com/ :
Click on SOFTWARE DOWNLOAD,
then Save, followed by Run.

8
2. Then, follow the steps according to screens below:

9
The USB drivers will then be installed. Then, check “Always trust software…” and click on Install button. Click on
Finish at the end of the process to close the installation.
5. Connecting to a PC
5.1 Using USB interface
Open the MM Software and connect the reader to a PC with the USB
cable by removing the USB port cover and attaching the cable to the
UWSR+ connector (after use, replace protective cap to guard the
reader against foreign material contamination once the USB cable is
removed). Install the USB cable by attaching it to UWSR+.
Plug the other extremity of the USB cable into a USB port on your com-
puter. When reader is connected, Windows will automatically nd the
driver and install the reader properly.
A message is displayed on screen, which ensures a valid connection
with the PC.
Note 2: Once the USB cable is connected, the reader is automatically powered on and it will remain ac-
tivated until the cable is disconnected. The reader will be able to read a microchip if sufciently charged
batteries are inserted. With depleted batteries, the reader will not be able to read a microchip, but will
remain on with other functions fully active.
Note 3: If a microchip was detected and the reader is connected via its USB interface or its Bluetooth
®
interface to a host computer, it will send the microchip number to the host computer.
1
2
3

10
Blinking Fixed
The UWSR+ is equipped with a Class 22 Bluetooth® module to communicate. This device is compliant with the
Bluetooth® Serial Port Prole (SPP).
Enable the Bluetooth® feature by using the “Microchip Management Software”
Bluetooth® works on a premise that one end of the communication will be paired to the other one. A host ini-
tiates communications and looks for other devices to connect. Smart phones and computers usually establish
the connection with readers which are connectable and discoverable.
Note 4: Understanding the Bluetooth® icon:
Note 5: A single beep is emitted with a visual message when the Bluetooth® connection is established. Three
beeps are emitted with a visual message when the disconnection occurs.
Note 6: If you are using a Smartphone or a PDA, an application is required (not supplied).
MM Software is able to search for Bluetooth devices in the vicinity and pair to one of them. The target here is to
nd your reader and to connect it to your computer by Bluetooth.
NOTE: Before continuing, make sure the Bluetooth is enabled on your reader.
1. Click on “Connect” menu and select “Connect Bluetooth Reader…”
2. Power-on your reader and click on “Search for devices”:
Disabled Connectable mode Host mode
No icon
Blinking Fixed
Not connected Connected Not connected Connected
2 Operating distance of communication is around 15 m (49 ft).
5.2.2 Pairing from MM Software
5.2 Using wireless Bluetooth® connection
5.2.1 BLUETOOTH® management

11
3. Your reader should appear in the list. Click on “Pair device” to start the pairing with the reader.
Make sure your reader is still on.
4. By default, the pairing code is 1234. Click OK to continue the pairing. At this moment, Windows
will install the driver to create a virtual COM port.
5. Once Windows installed the driver, the COM port number appears in the Port column. You can
now click on “Connect Reader” button to connect your reader using Bluetooth.
NOTE: If the reader name is not displayed, as shown in the following picture, devices can be searched again and
should now display the name.

12
Alternately, you can pair the reader using Windows Control Panel.
Find below the instructions for pairing with Windows 7:
1. Open Window’ Control
Panel
2. In “Hardware and
Sound” section, select
“Add a device”
3. Switch-on the reader
and wait until the reader
appears in the device list
as following:
4. Select the appropriate
reader and click with right
button
5. Type the PIN code and
click Next.
NOTE: Your reader may appear as a Bluetooth headset.
1234
5.2.3 Using Bluetooth® interface to pair, from Windows

13
5.2.4 Connect by Bluetooth® when the reader is already paired
NOTE: If the reader is congured with Bluetooth Authentication option enabled, the pairing process is based on
a code generated automatically. In this case, click next to continue (the code will not appear on the reader
6. Windows will now install the driver needed as following:
When your reader has already been paired to your computer, go to “Connect menu”, select “Bluetooth link”
and click on the appropriate COM port:
7. Your reader is now ready to connect.
“Bluetooth Peripheral Device” is
a service dedicated to Apple’s
devices and is unknown from
Windows’ operating system that
the reason why the PC mentions
“no driver found”.

14
6. Memory
6.1 Memory Management
6.2 Download Memory
6.3 Temperature measurement
The UWSR+ can store up to 3000 IDs, each associated with a time/date stamp, in its internal memory and transmit
them to a personal computer via an USB cable or wirelessly using Bluetooth®.
The tool “Microchip Management Software” allows you to enable/disable the memory storage. By default, the
memory storage is DISABLED. To enable the memory storage follow the steps below:
1. To enable/disable memory feature, go into the reader settings panel by clicking on the “Reader settings”
button or using the top menu as following:
2. In the reader setting panel, locate “Memory” and choose “Enabled or Disabled“ option:
When memory is enabled and a microchip is read, the UWSR+ displays the number of microchips stored in mem-
ory, above the microchip number, as shown in picture below:
The UWSR+ can read and display the Microchip Temperature™ when reading microchips with temperature sens-
ing implants from Allex® or Destron Fearing™.
3
The Microchip Temperature™ is displayed above the microchip number as shown in picture below:
1. When memory feature is enabled, the animal identication codes can be downloaded from reader.
2. Click on “Read Memory” button to download the memory from the reader.
3. Export the ID code list to Excel by clicking on “Export to Excel” button.
4. Once nished, you can click on “Clear memory” to erase animal identication codes stored in the reader.
3 Microchip Temperature™ range is from 33ºC (91.4ºF) to 43ºC (109.4ºF). If the temperature is below or above this range, it will display
“TEMP BELOW RANGE” OR “TEMP ABOVE RANGE”.

15
For advanced and technical application development, the UWSR+ was designed with the capability to connect
to iPhone, iPad and Android through wireless Bluetooth® connection. The current UWSR+ package does not in-
clude software or application for this feature.
7. Connecting the reader to an Application on smart
phone or on Mobile Device
7.1 Pairing with iPhone®/iPad® devices
Make sure your reader is on
and tap on UWSR+
Make sure your reader is on
and tap on UWSR+
Type 1234
Type 1234
Paired
4
Paired
7.2 Pairing with Android™ devices
4 Once paired to the iPhone, your reader will automatically switch into master mode to
be able the reconnect to the iPhone automatically the next time.

8.1 .NET Framework 3.5 installation
8. Appendix
MM Software requires .NET Framework 3.5 to be installed on the machine.
If the following message is displayed while running the setup package, click “Yes” and follow the .NET Frame-
work 3.5 installation instructions. This message may vary depending on your Operating System.
NOTE: The .NET Framework installation requires an internet connection.
1. After clicking on “Yes”, your internet browser will be opened with the following page. Click on “Download”
button to continue.
2. Uncheck unnecessary downloads (Download summary should only contain Microsoft .NET Framework 3.5)
and click on “No thanks and continue”:
16

3. Click Save on the bottom of the page to start .NET Framework installation.
4. Click Run on the bottom of the page to start .NET Framework installation.
17
5. Then, click on “Download and install this feature”.
6. At this step, the .NET Framework 3.5 installation program will download the required les from internet and then
install the framework. This message will appear. It is now safe to close browser.

9. Troubleshooting
MICROCHIP NOT DETECTED:
Verify that UWSR+ is able to read test microchip provided on key chain.
Conrm that scanning is being performed away from metal objects and computer
equipment, including metal collars and metal tags and away from stainless steel table.
Scan animal following patterns on item 3.4.1, with slow movements and reader touching animal all the
time. If the animal moves too quickly, the microchip may not be located in the reading zone
long enough for the ID code information to be obtained.
Replace batteries if power is weak, as it might not be sufcient to activate the eld and reading
distances can be reduced.
Some animals might be implanted with two microchips too close to each other. In these cases, there
is a risk that reader performance might be affected. Continue to scan as indicated on page 7, with slow
movements, trying to identify one microchip at a time.
MICROCHIP IS FOUND BUT NOT STORED IN MEMORY:
Verify scanner reads test chip.
Verify Memory is enabled.
CANNOT DOWNLOAD MEMORY:
Make sure memory is enabled in reader settings (refer to Microchip Management Software User Guide).
MICROCHIP IS FOUND BUT DOES NOT DISPLAY TEMPERATURE :
Verify Microchip is a temperature sensing implant from ALLFLEX® or DESTRON FEARING™
Verify Temperature Scanning is enabled.
READER DOES NOT START:
Verify batteries have been installed correctly and have full charge.
LOW BATTERIES:
If reader displays “Low battery” with standard AAA cells: Replace the batteries.
If reader displays “Low battery” with rechargeable cells: Recharge the batteries.
DEPLETED BATTERIES
If reader displays “Battery depleted” with standard AAA cells: Replace the batteries.
If reader displays “Battery depleted” with rechargeable cells: Recharge the batteries.
BLUETOOTH NOT VISIBLE:
Check if Bluetooth icon appears on the reader. If not, enable Bluetooth using Microchip Management
Software.
BLUETOOTH VISIBLE BUT NOT CONNECTABLE:
Make sure your reader is congured to be visible and connectable in Microchip Management Software
(refer to Microchip Management Software User Guide available for download at http://micro
chip.homeagain.com/ for more information).
INCORRECT DATE / TIME
Connect the reader to Microchip Management Software. This will synchronize the date and time with
the computer.
18

10. Specications
General
Norms ISO 11784 and ISO 11785 for HDX, FDX-B, FDX-A (FECAVA), Trovan and Avid Encrypted
microchips and implants
Special feature: Temperature scanning with TD and BT implants between 33°C and 43°C (between
91.4°F and 109.4°F)
User interface Graphical display: 122 x 32 dots - visual area: 56 x 12.7 mm
1 button
1 buzzer
USB port and Bluetooth
USB interface CDC class (Serial emulation) and HID class
Bluetooth® interface Class 2(up to 15m)
Serial Port Prole (SPP)
Memory 3000 IDs
Batteries 6 “AAA” 1.5V Alkaline or 6 NiMH rechargeable “AAA” 1.2V
Date/Time autonomy 2 months without reader usage @ 20°C
Battery charge duration Up to 3h30 in fast charge (external power supply)
Up to 9h00 in slow charge (computer)
Reading distances Up to 10 cm (3.9 in) depending on microchip type and microchip orientation.
Mechanical and physicals
Ingress Protection IP54 with closed battery door.
Dimensions 202 x 80 x 36.5 mm (7.95 x 3.15 x 1.44 in)
Weight 330 g (including batteries) (11.6 oz)
Operating Temperature 0° to +50°C (+32° to +122°F)
Storage Temperature -20° to +65°C (-4° to +149°F)
Humidity 10% - 90%
Non Condensing
®
module
Default settings
Memory Storage Disabled
ID code format: 15 digits
Temperature scanning Enabled
Timestamp Disabled
Bluetooth® Disabled
Bluetooth® pin code 1234
Beeper Enabled
11. Reader Physical Integrity
The device has been built from rugged and durable materials to withstand use in harsh environments for long
periods of time. However, the reader contains electronic components that can be damaged if they are deliber-
ately exposed to extreme abuse. This damage can adversely affect, or stop the reader’s operation. The user must
avoid deliberately striking other surfaces and objects with the device. Damage that results from such handling is
not covered by the warranty described below.
12. Limited Product Warranty
The Universal WorldScan™ Reader Plus is warranted against defects in materials and workmanship, under normal
use and service for two (2) years from the day of shipment.
This warranty will not apply if adjustment, repair or parts replacement is required because of accident, neglect,
damage during transportation or causes other than ordinary use.
Manufacturer’s sole responsibility under this warranty shall be at its option, to either repair or replace any product
which fails during the warranty period. In no event shall Manufacturer be liable for any indirect or consequential
damages or loss of prot.
19

13. Regulatory Information
14. Regulatory Compliance
13.1 USA-Federal Communications Commission (FCC)
This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not
cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the
instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the distance between the equipment and the receiver.
Connect the equipment to outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice to consumers:
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authori-
ty to operate the equipment.
13.2 Canada – Industry Canada (IC)
This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of this device.”
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) Il ne doit pas produire d’interférence et (2) l’utilisateur du dispositif doit être prêt à accepter toute interférence ra-
dioélectrique reçu, même si celle-ci est susceptible de compromettre le fonctionnement du dispositif.
Avis aux consommateurs:
Toutes modications non expressément approuvées par la partie responsable de la conformité peuvent annuler le droit de
l’utilisateur à utiliser cet équipement.
13.3 Miscellaneous information
Snapshots are according to the latest version at the moment this document was printed.
Changes may occur without notice.
13.4 Trademarks
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
Windows is a trademark or registered trademark of Microsoft Corporation in the United States and/or other countries. All
other trademarks are trademarks of their respective owners.
13.5 Apple - Legal Notice
iPhone, iPad are a trademark of Apple Inc., registered in the U.S. and other countries.
“Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specically to
iPhone, or iPad, respectively, and has been certied by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note
that the use of this accessory with iPhone or iPad may affect wireless performance.
ISO 11784 & 11785
This device complies with the standards set forward by the International Standardization Organization. Specif-
ically with standards:
11784: Radio frequency identication of animals -- Code Structure
11785: Radio frequency identication of animals -- Technical Concept.
FCC WMQ-30005
IC 4284A-30005
CE Marking
20
