Black Wheel U-Bracket Double Track Bypass Barn Door Hardware
Installation Manual
Page 2
SAFETY PRECAUTIONS
WARNING!
Power tools can cause serious damage if not professionally used. Safety gear
must be worn before installation to prevent unexpected injuries.
Pick an area free of hazardous condition before you start on the project .
Please use t ools and power tools responsibly any loss o f control and
accident deaths may occur due to abuse of tools.
Please make sure all hardware is secured on to the door is sufficiently tight.
Doors with loose hardware may result in unexpected serious injuries. To
avoid any problems, be sure hardware is secure before door is put on the track.
All hardware provided is for safety reasons. Anti-Jump systems are to prevent
doors from falling off the track while in use. Please follow each instruction
carefully. Track
secure from serious problems. All safety hardware and instructions included
in this project must be used and followed specifically to prevent any unforeseen
serious problems.
must be installed on studs in order to keep the track and doors
!CAUTION!
Big objects required in this project are needed to be carefully and responsibily
moved. Be sure to wear safety gloves and shoes to prevent any serious injury.
Be extremely careful to not put any parts of your body against a moving part
of the hardware. This may cause bruising, punctures, and other results of
injuries when for example when fingers are caught in the closing area
of the doors.
Precautions should be taken when opening or closing the door(s). Handles
should be used when attempting to slide the door(s). Always keep you and
children aware and safe from any unexpected situations.
Any extreme uncontrolled pressure opening or closing the door(s) can damage
the hardware gradually. Use handle(s) to open and close the door(s) with care
at all times.
Page 3

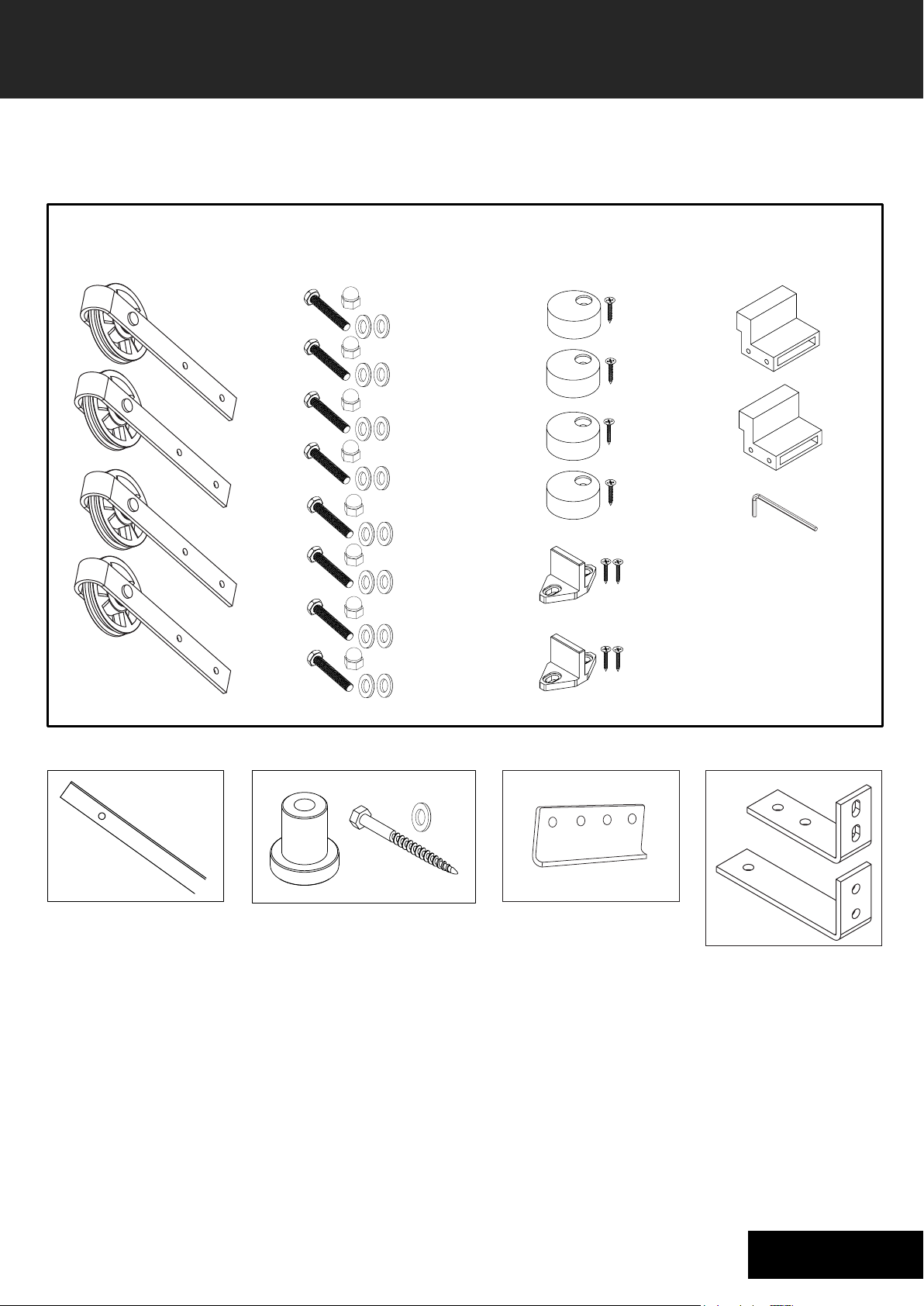

HARDWARE INCLUDED
Different track length comes with different hardware quantity.
Please be sure to check the hardware you should have before installation.
Hanger/Roller Box
Steel Hanger/Roller (4)
2
contains:
Hex Bolt (8), Acorn Nut (8), Washer (16)
Anti-Jump Pad (4), Floor Guide (2)
Door Stopper (2), Hex Wrench (1)
Flat Track
Spacer, Lag Bolt and, Washer Set
www.homacer.com
Junction Plate
Bracket
2
Page 4

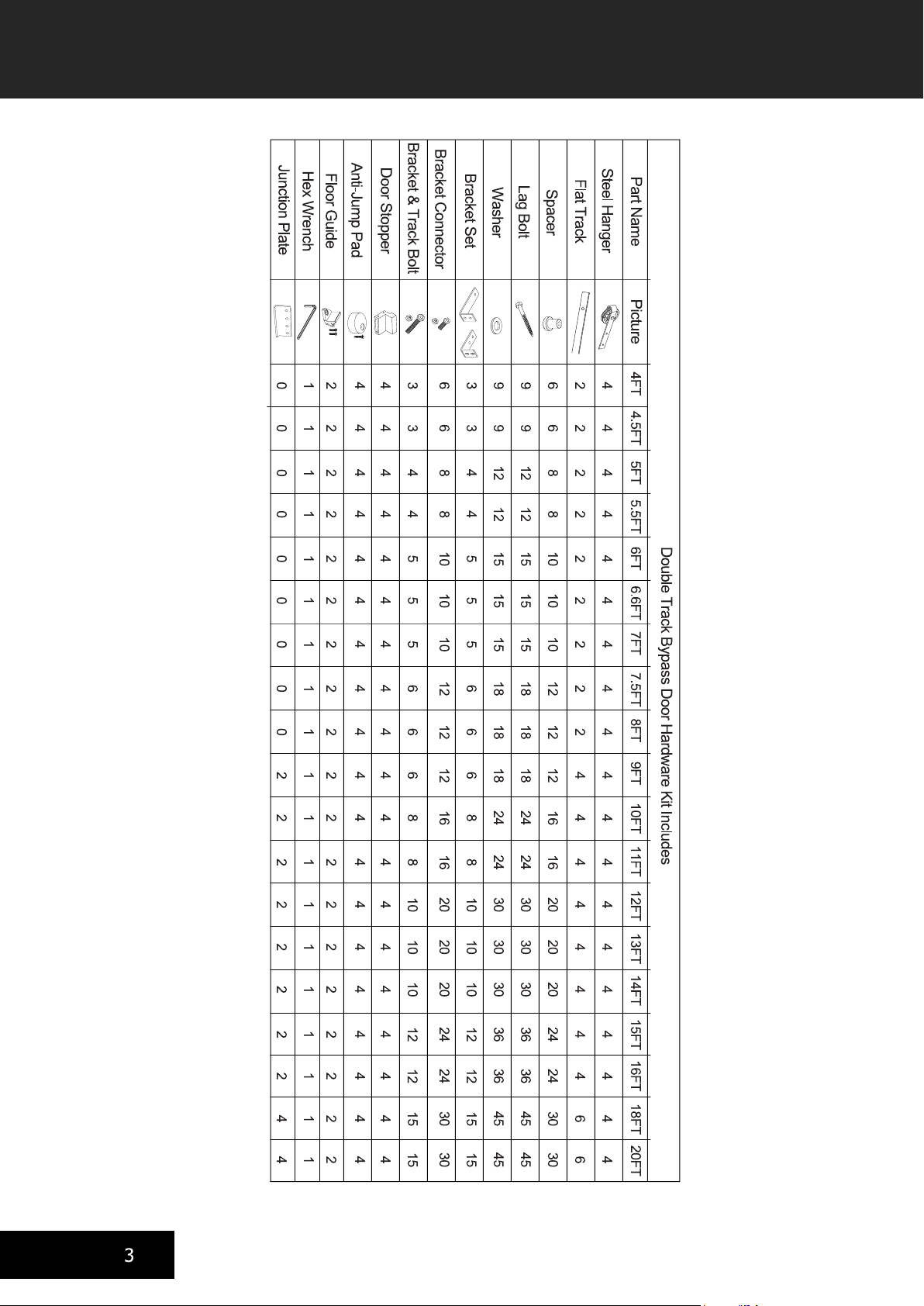

CHECK LIST
www.homacer.com
Page 5

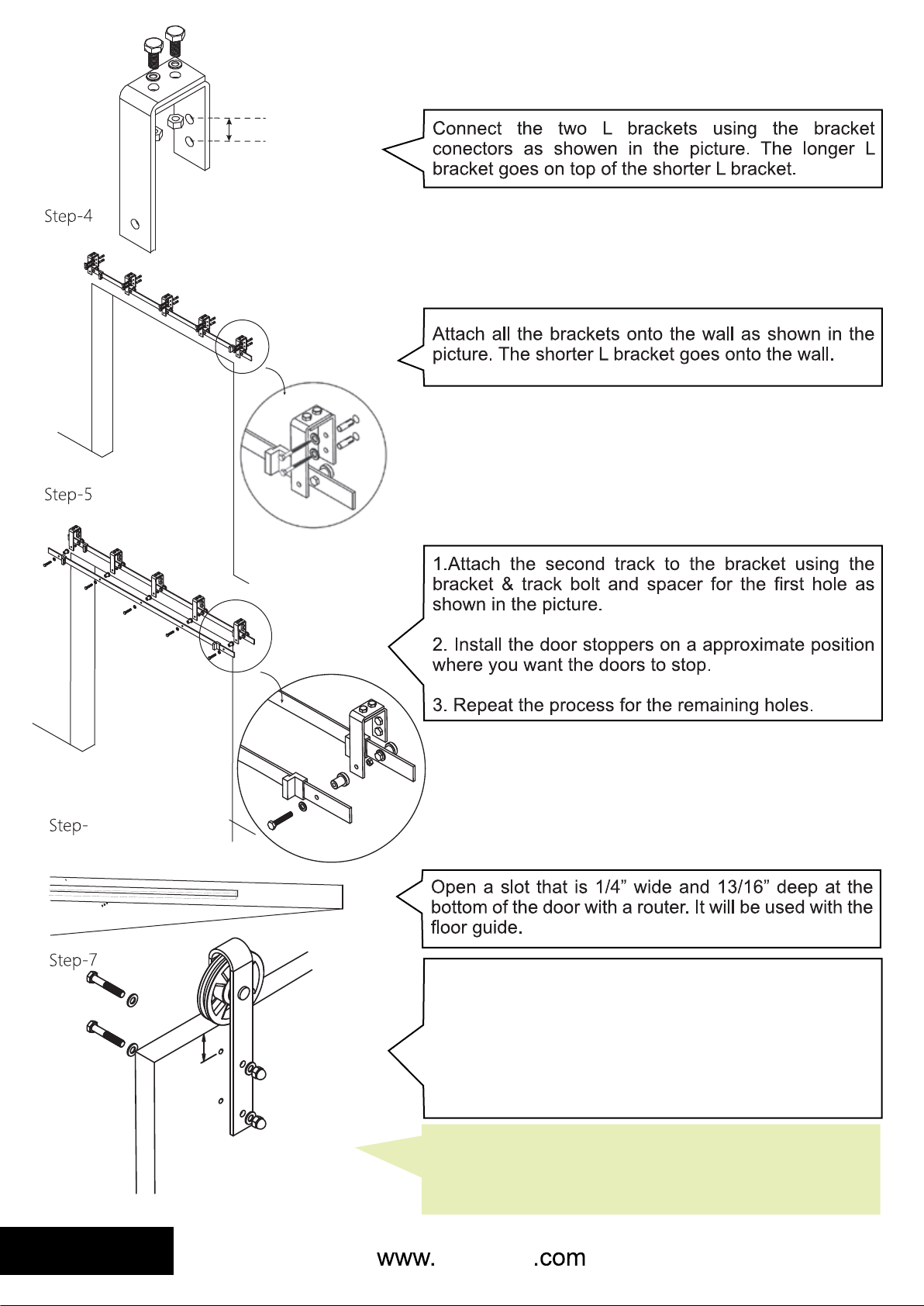

INSTRUCTIONS
③
②
①
3”
2 1/4”
1 1/2”
2 1/4”
If your track comes in 2pcs
or more, install the junction
plate on to each two tracks
like the diagram shown here.
REMINDER: Depth of first track to wall is 1 3/8”.
If you have a door trim be sure to use a header that
has the same thickness of your trim before installation
of the track or a second option would be a 3/4”
spacer extenders which we can offer when
requested so the door can clear off the door trim
when sliding. Also if your track cannot line up to the
studs be sure to use a header board for safety purposes.
CAUTION:Do not over tighten when installing
the track on any drywall surfaces or you may be
at risk of damaging your drywall.
homacer
4
Page 6
3’’
6
Step- 8
Drill the holes for the hanger according to the
dimension given in the picture. The distance between
the top edge of the door and the center of the upper
hole is 1 5/8”. The distance between the side edge of
1 5/8''
the door and the hanger is up to your choice. Typically
around 2” to 4”. Next, install the hex bolts and acorn
nuts as shown in the picture.
Please follow the diagram above on how the hexbolt,
washers and nut should be installed on the door and
hangers. Do not install them any other way since it may
interfere with the funcion of the sliding system.
5
homacer
Page 7

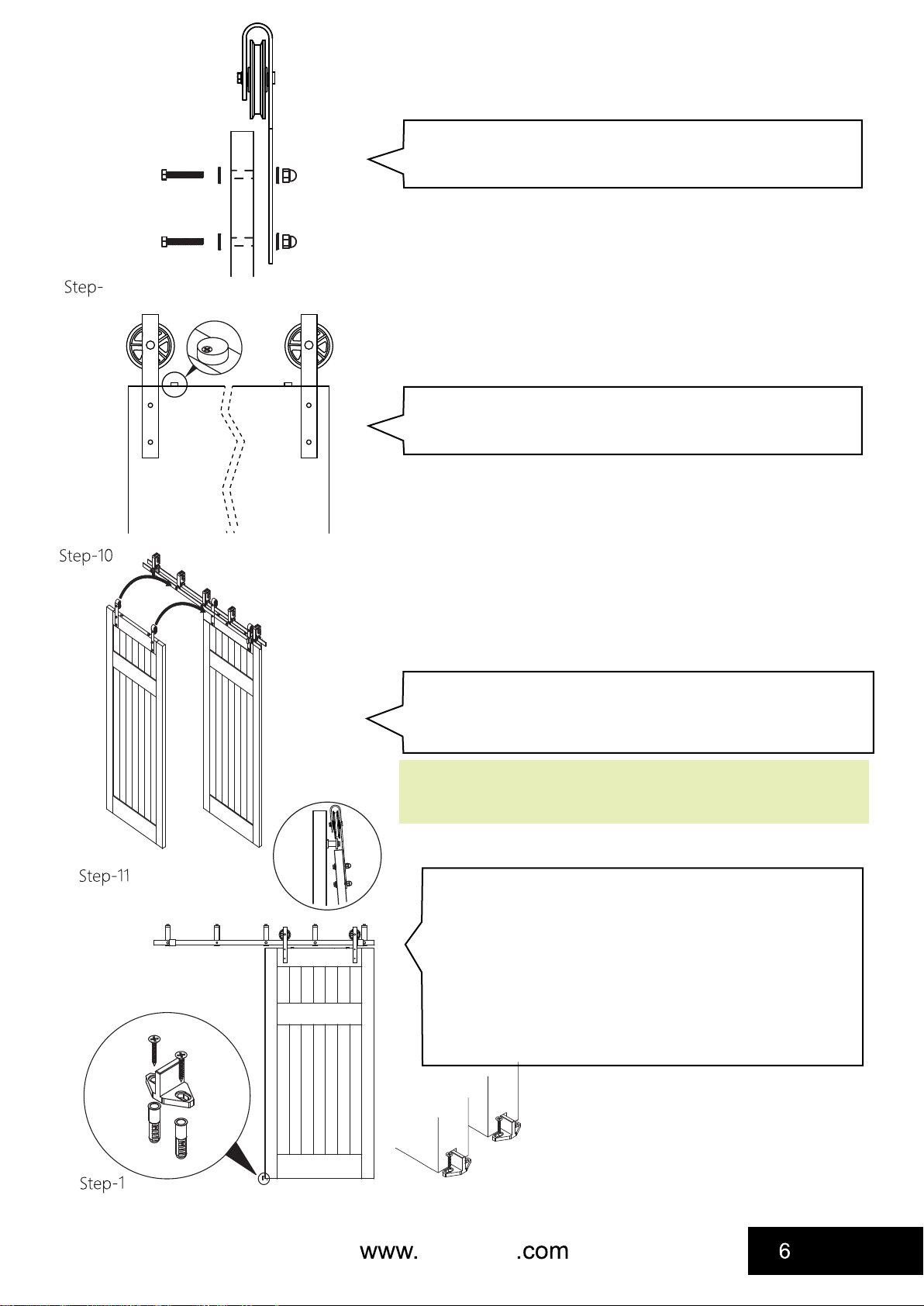

Install the hex bolts and acorn nuts as shown in the
picture.
9
Install the anti-jump pads as shown in the picture.
To mount your doors onto the track, you will have to lift
your door at a slight angle and rest both wheel grooves
onto the top of the track carefully.
Notice: Please repeat Step 7 to Step 12 again for
your second door installation.
Usually floor guides are installed in the middle of
the opening for U-bracket bypass hardwares but
we recommend to install the regular floor guide in
your own location preference depending on how
you want your inside door to slide. After the door is
hung on to the track you will be able to locate
where you want the oor guide to be installed according
to your decision of sliding.
2
YOUR INSTALLATION IS COMPLETE!
homacer
