HOLUX Technology TRACKER007 Users Manual
GPS Tracking System
Tracker-007
User’s Manual
Table of Contents
Introduction........................................................................................................................1
Application .........................................................................................................................1
Parts names and Functions........................................................................................................................... 2
LED Indication ............................................................................................................................................... 3
Package Contents ......................................................................................................................................... 4
Before You Getting Started ...............................................................................................5
Possible Additional Fee ................................................................................................................................. 5
About GPS..................................................................................................................................................... 5
About Power .................................................................................................................................................. 5
For XP SP3 Users ......................................................................................................................................... 5
About SIM PIN Code & GPRS ...................................................................................................................... 6
Notice:.................................................................................................................................6

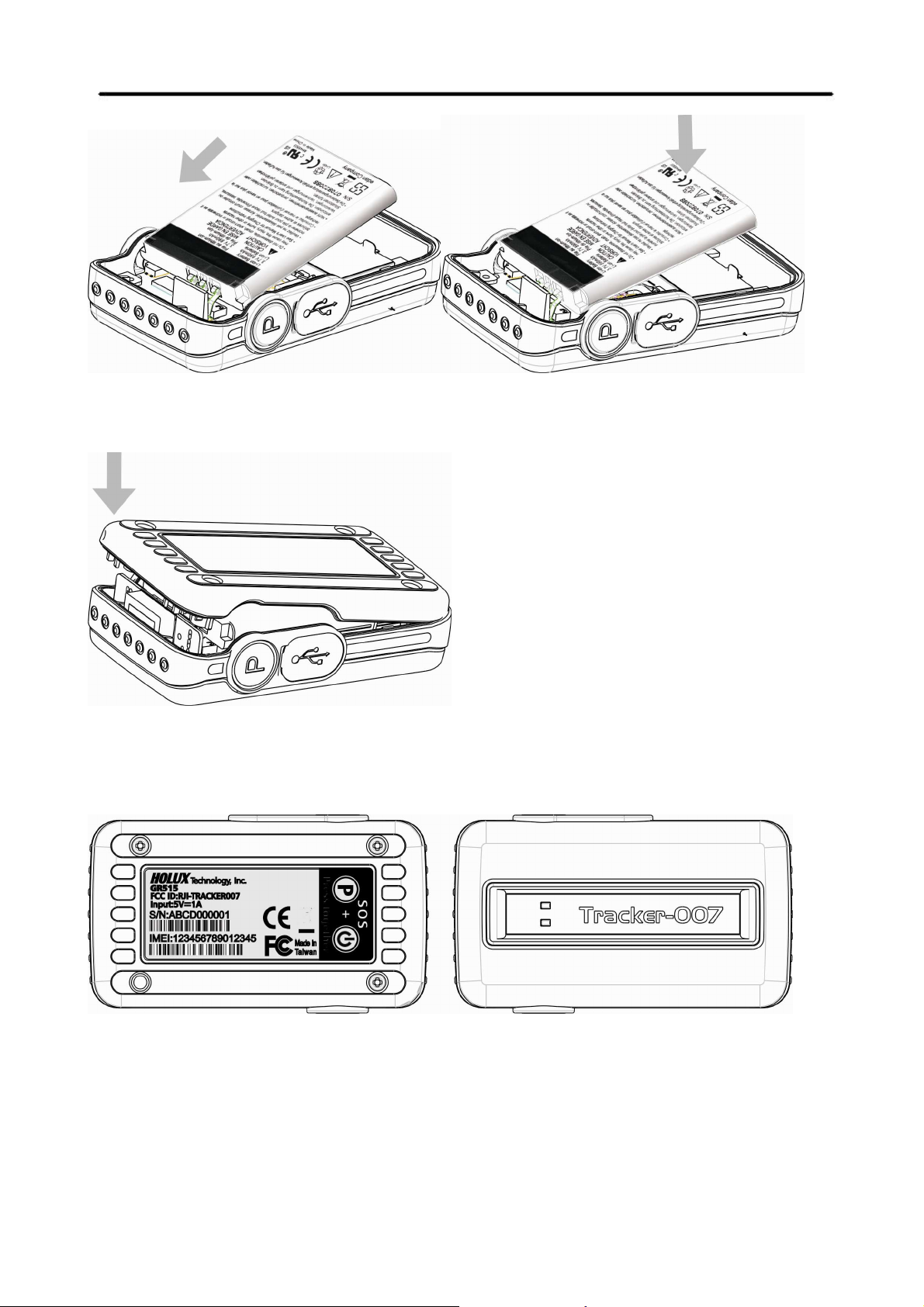

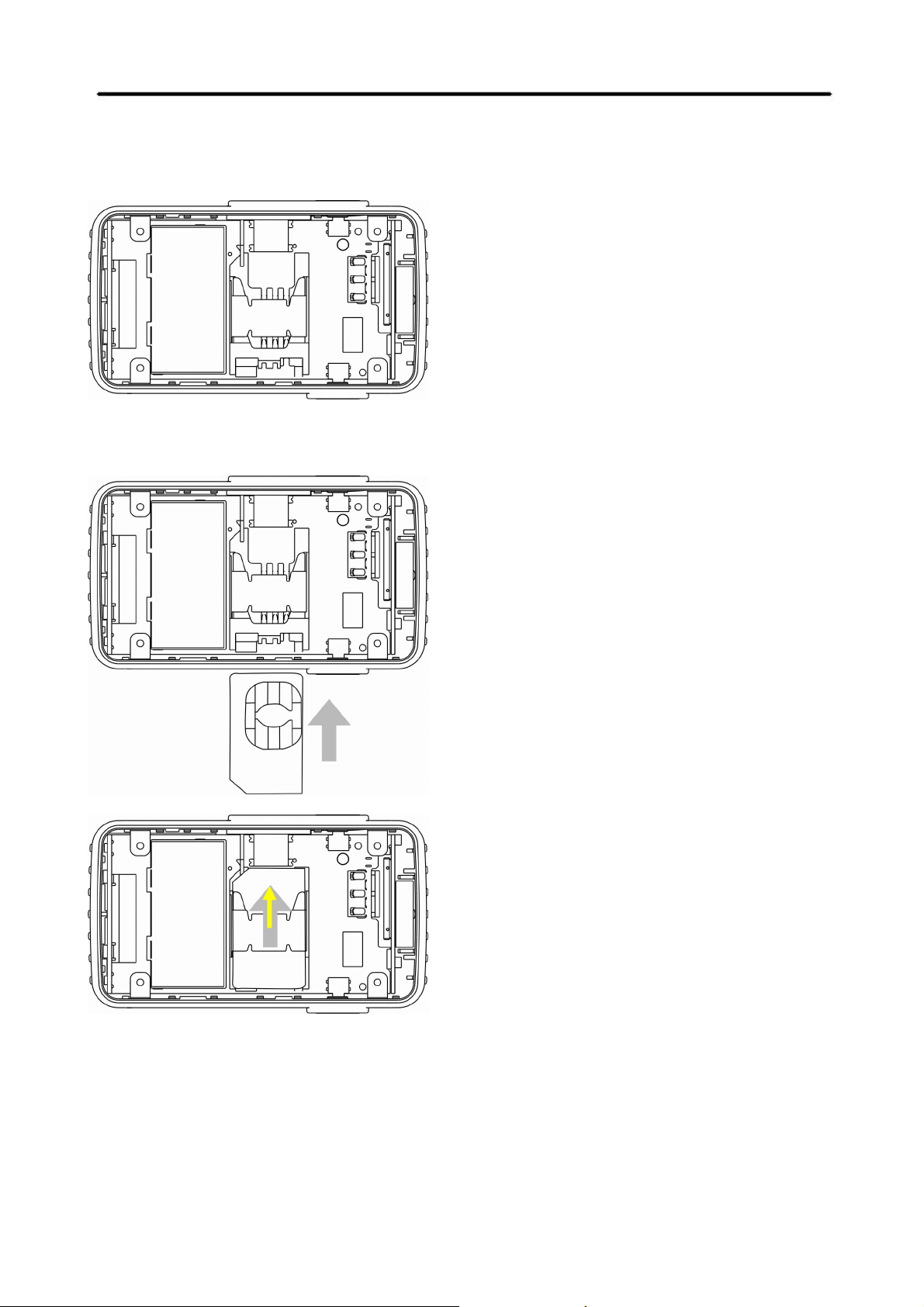

Installing SIM Card and Battery........................................................................................7
ezSpot Service ...................................................................................................................9

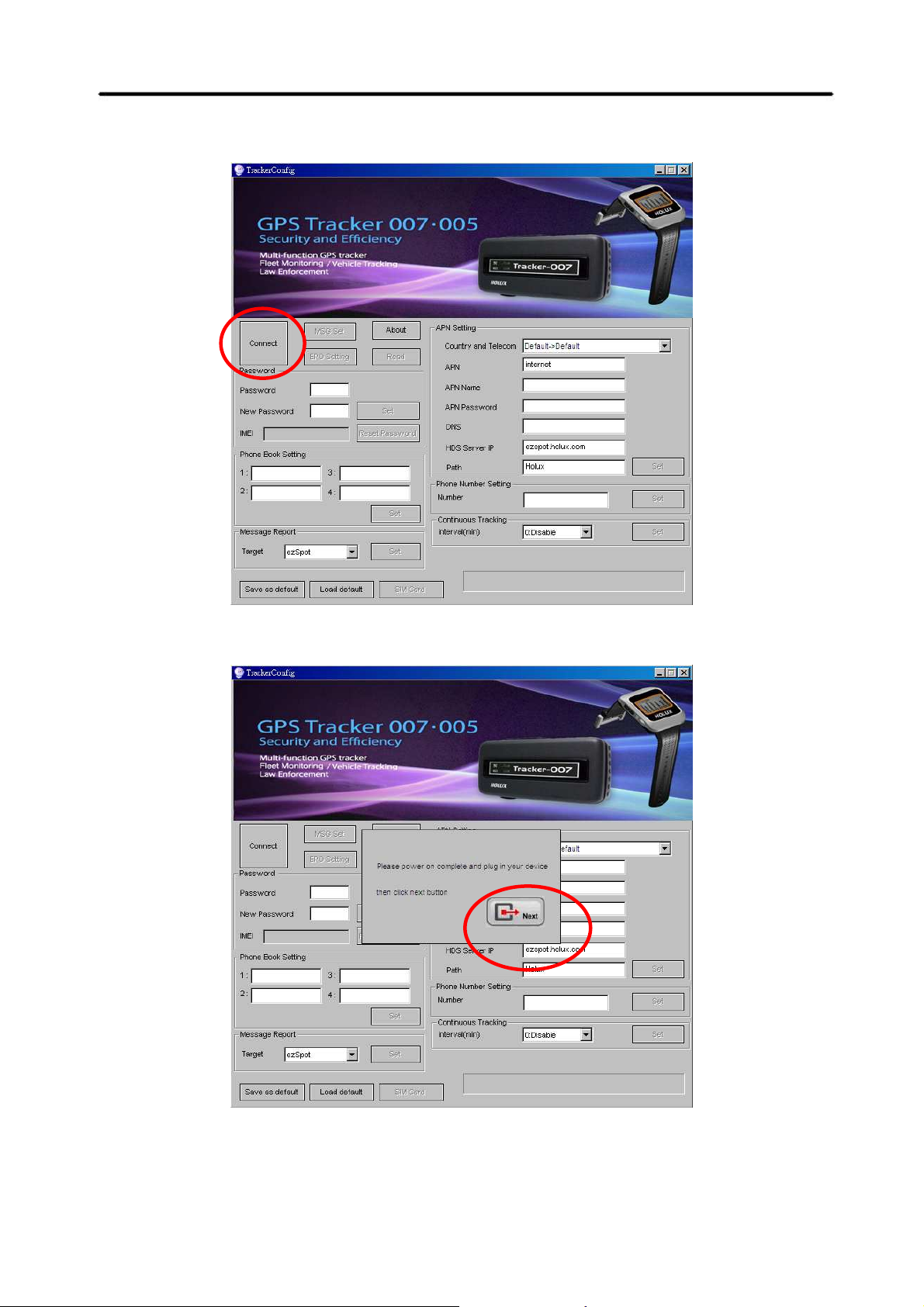

User Utility (TrackerConfig) ............................................................................................10

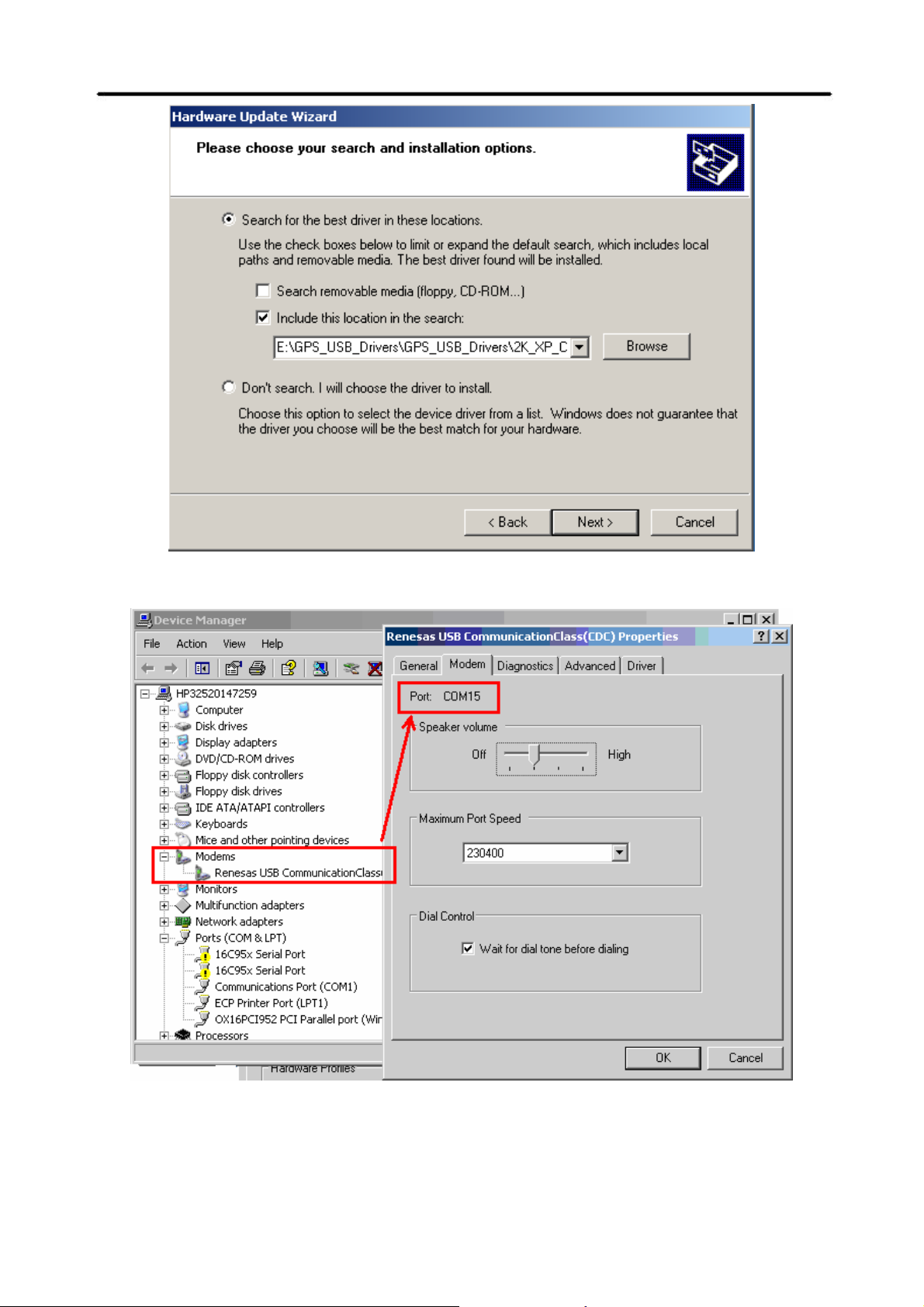

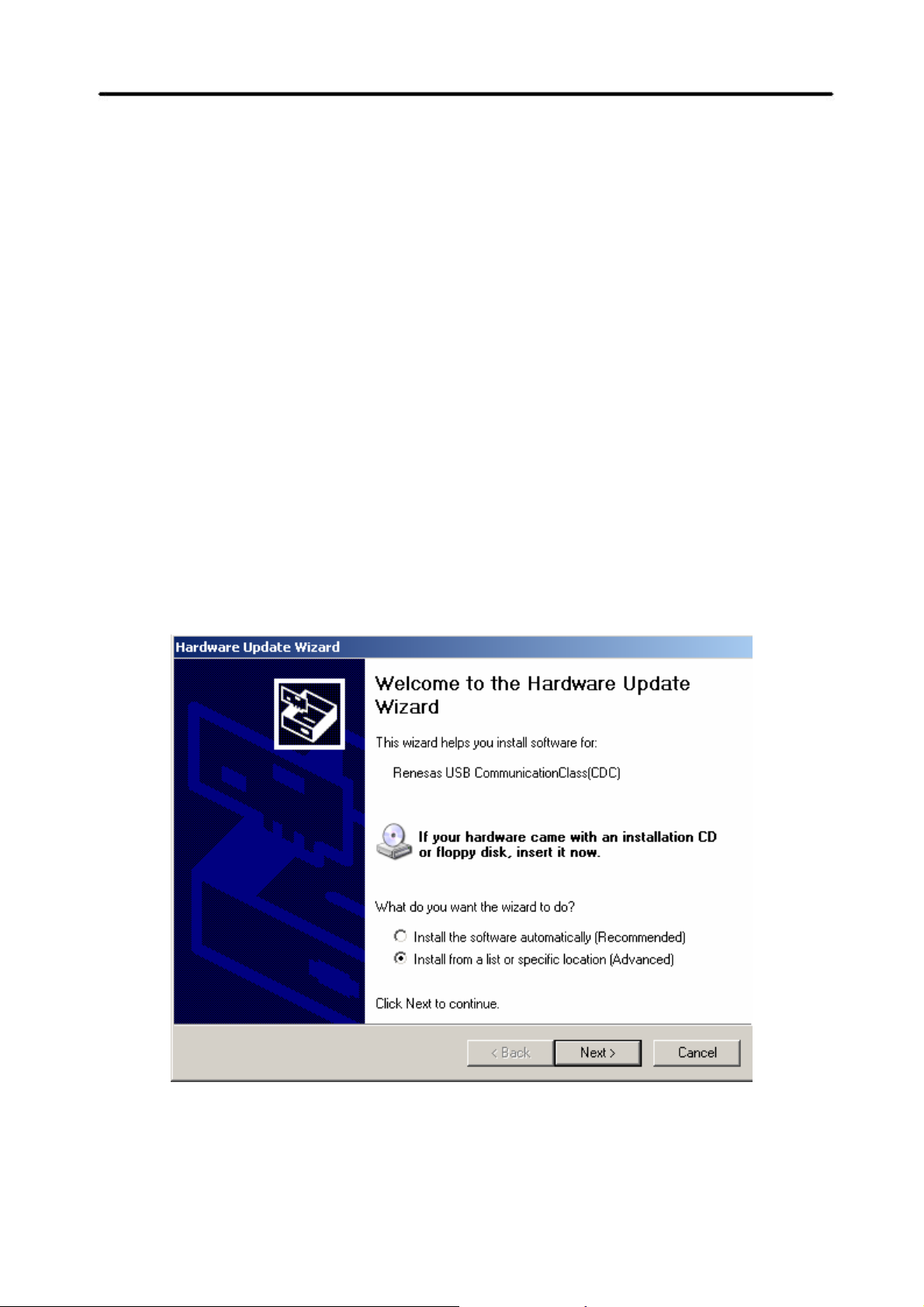

Installing Device Driver for Virtual Comm Port ............................................................................................ 10

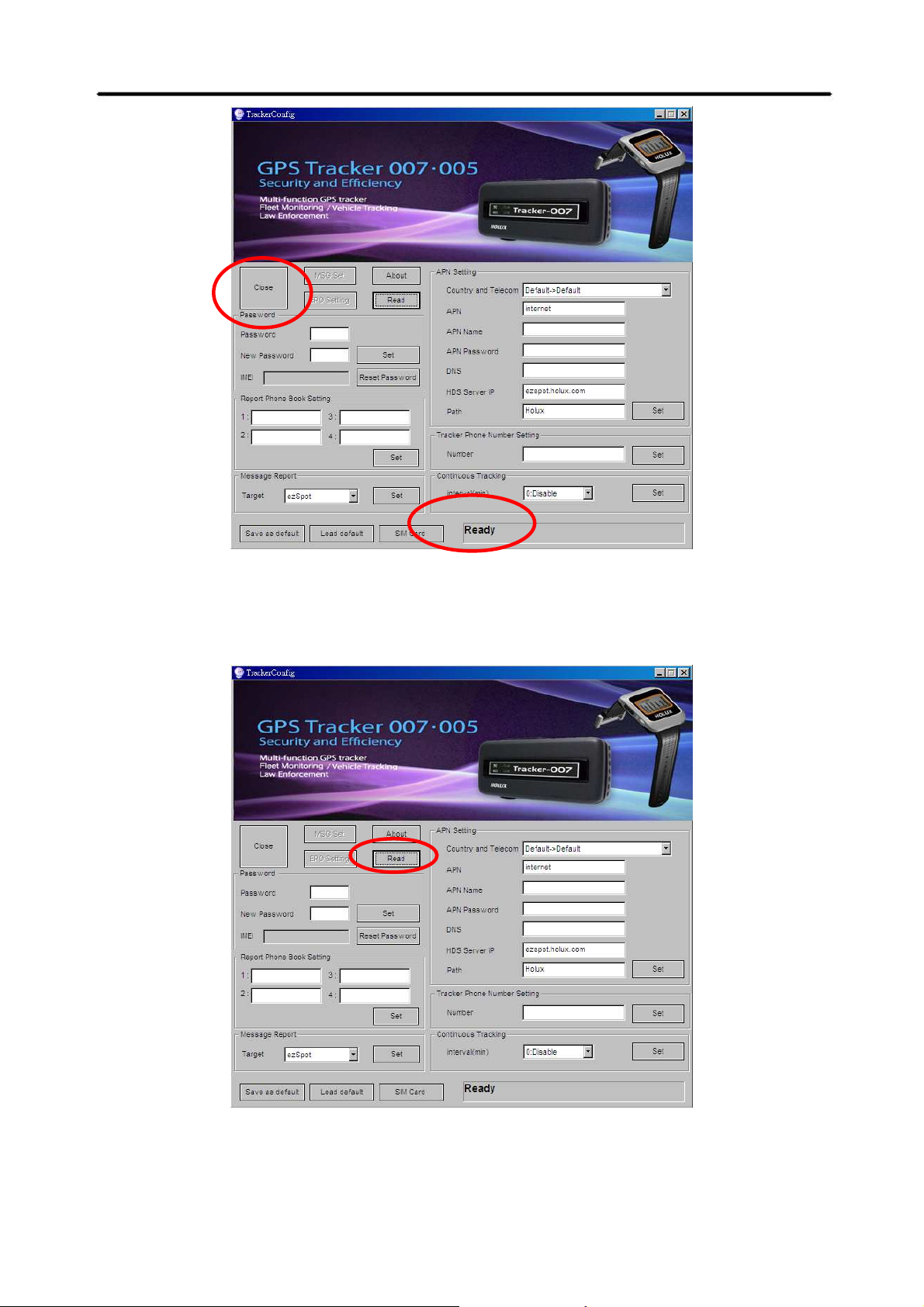

Parameter Setting and Retrieval ................................................................................................................. 12
Read Device information ............................................................................................................................. 13

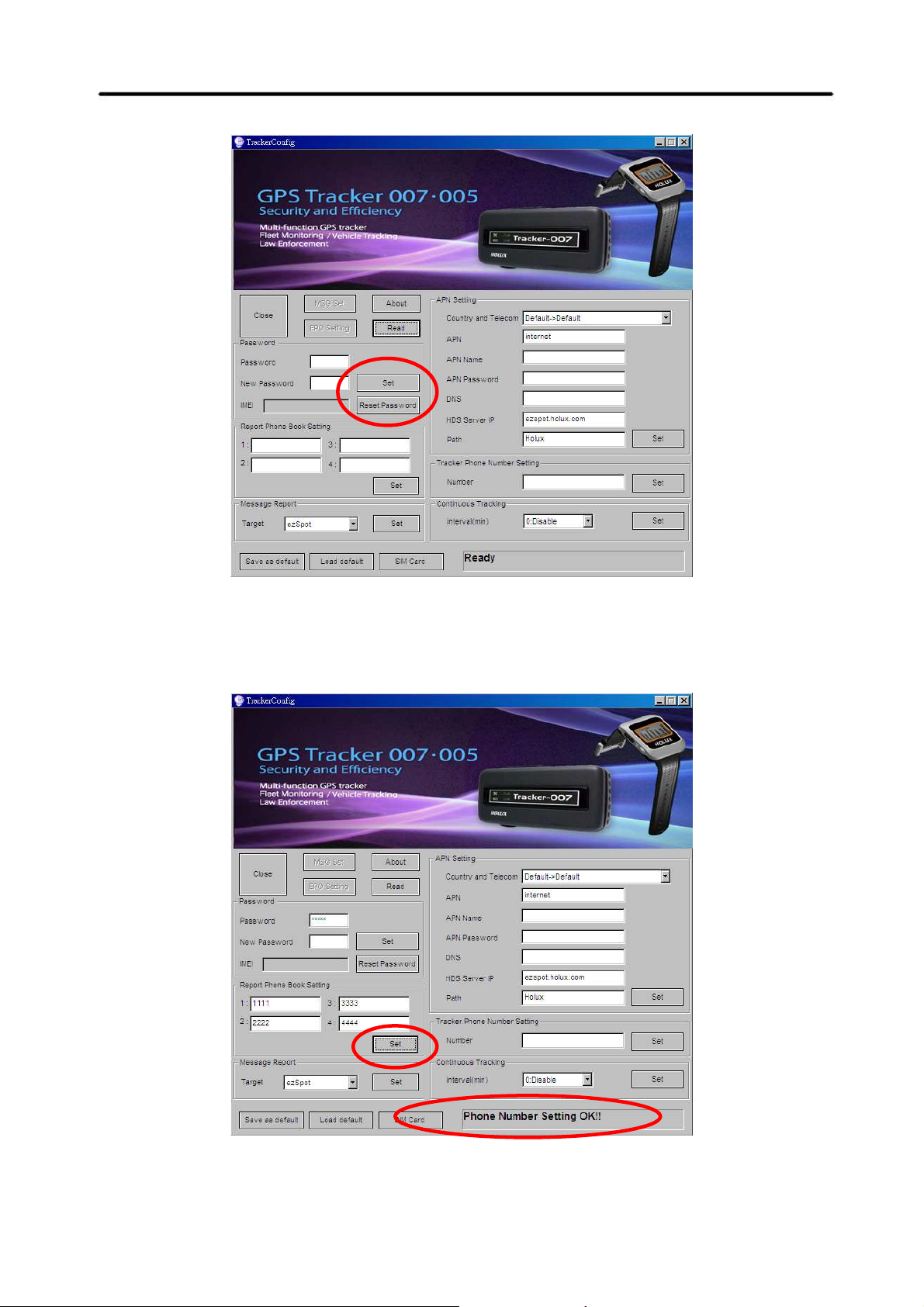

Change Password and Reset Password..................................................................................................... 13
Report Phone Number Setting .................................................................................................................... 14

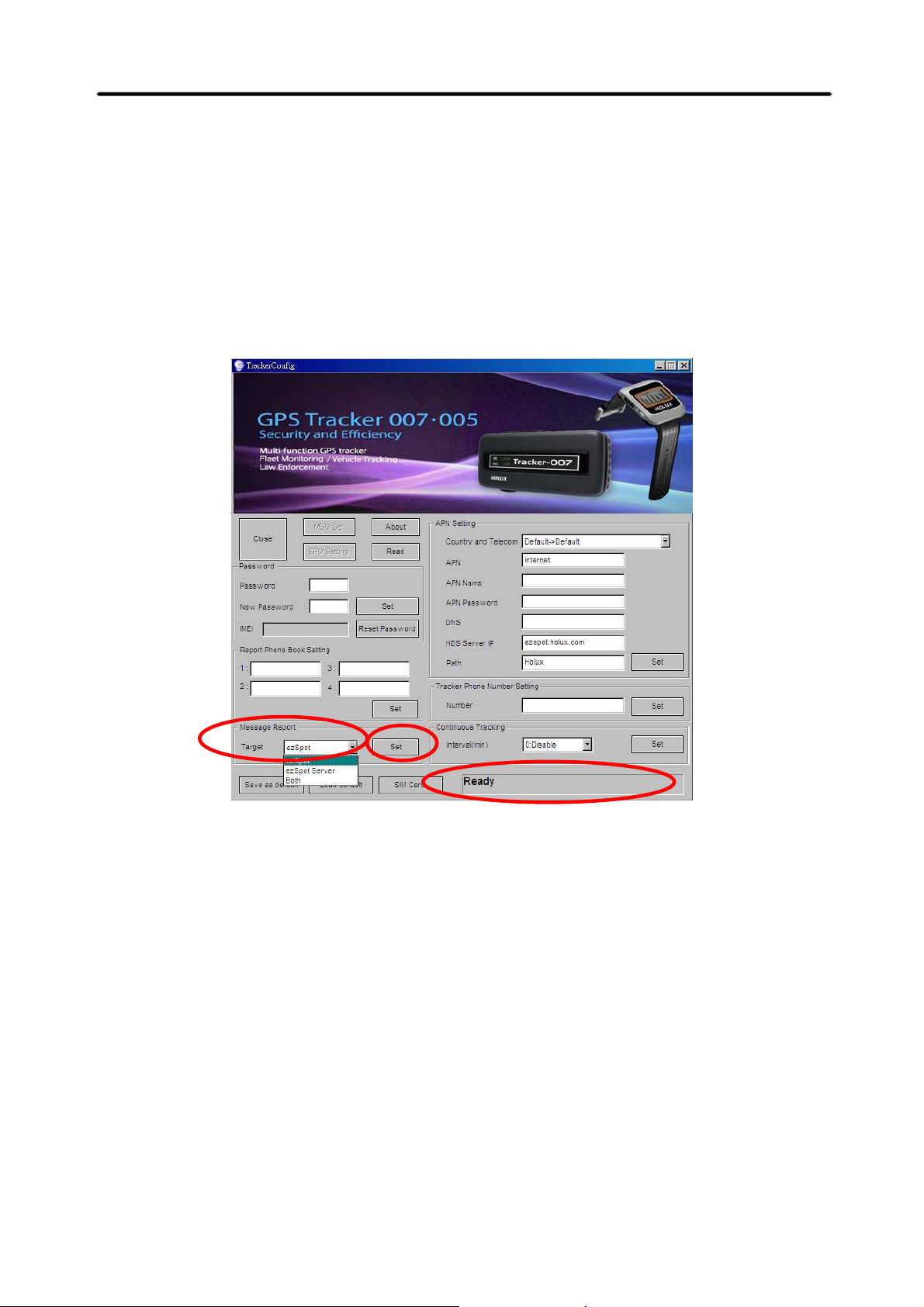

Message Type Setting................................................................................................................................. 15

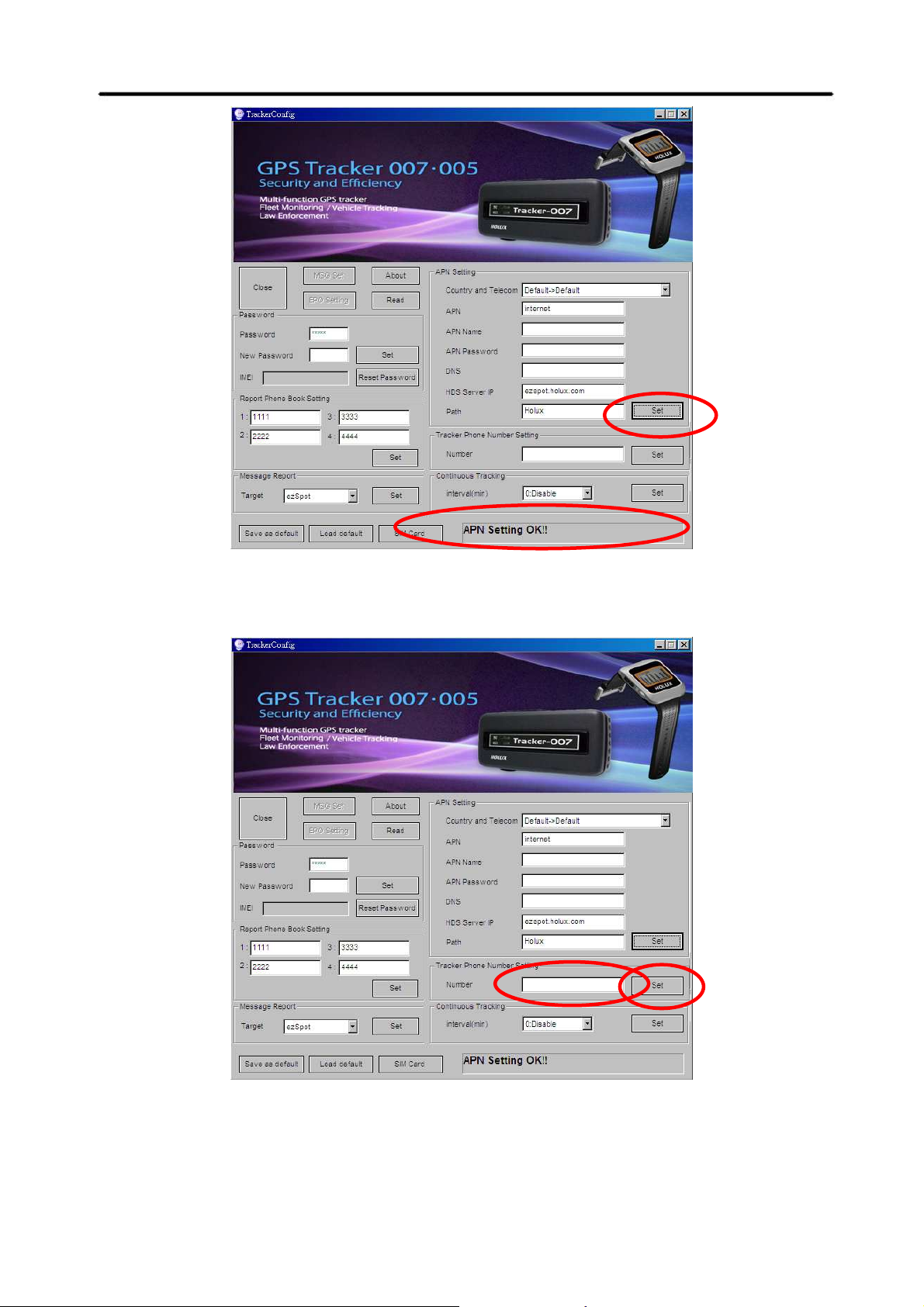

APN Setting ................................................................................................................................................. 15
Phone Number Setting ................................................................................................................................ 16

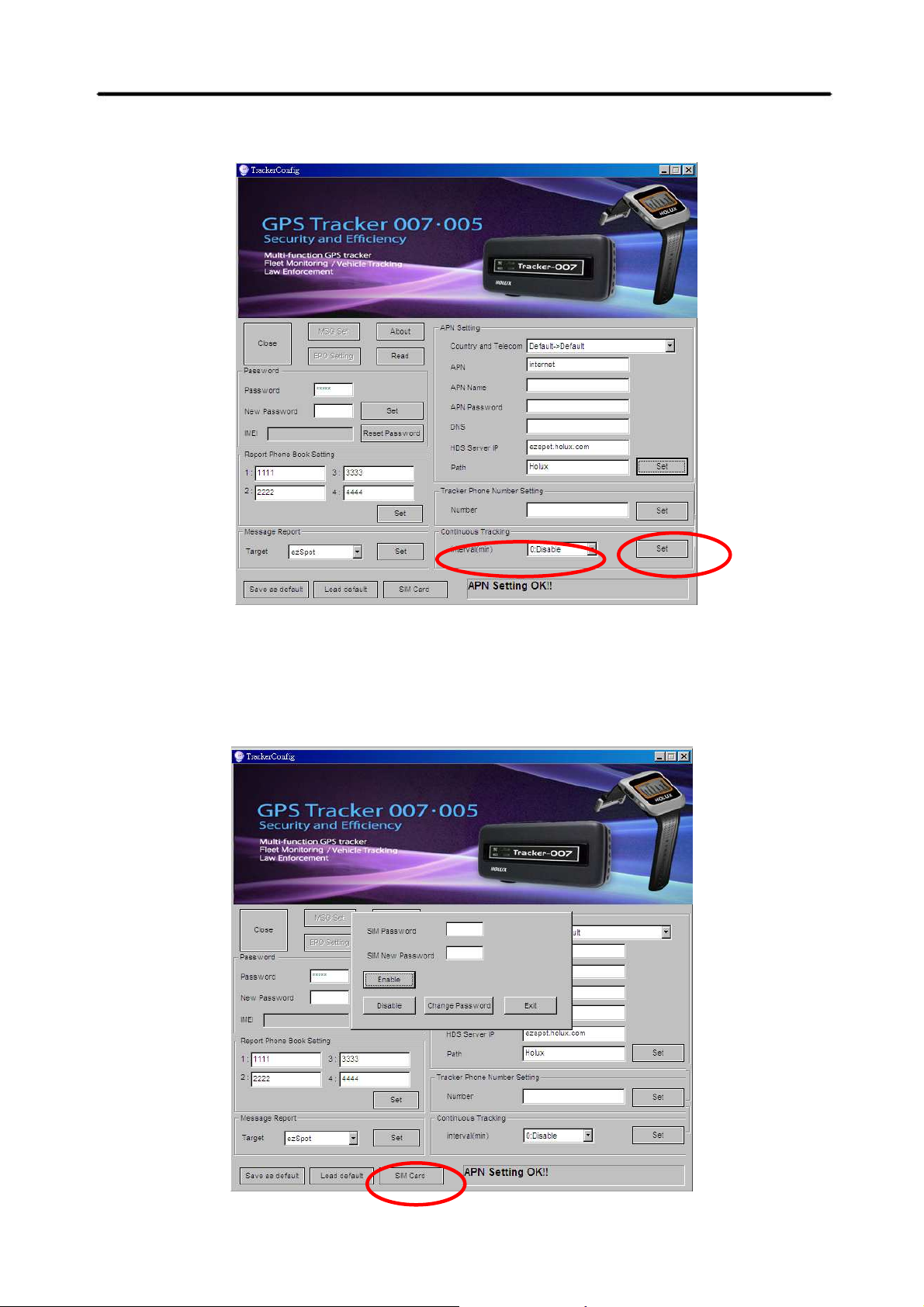

Continuous Tracking ................................................................................................................................... 16
SIM PIN ....................................................................................................................................................... 17

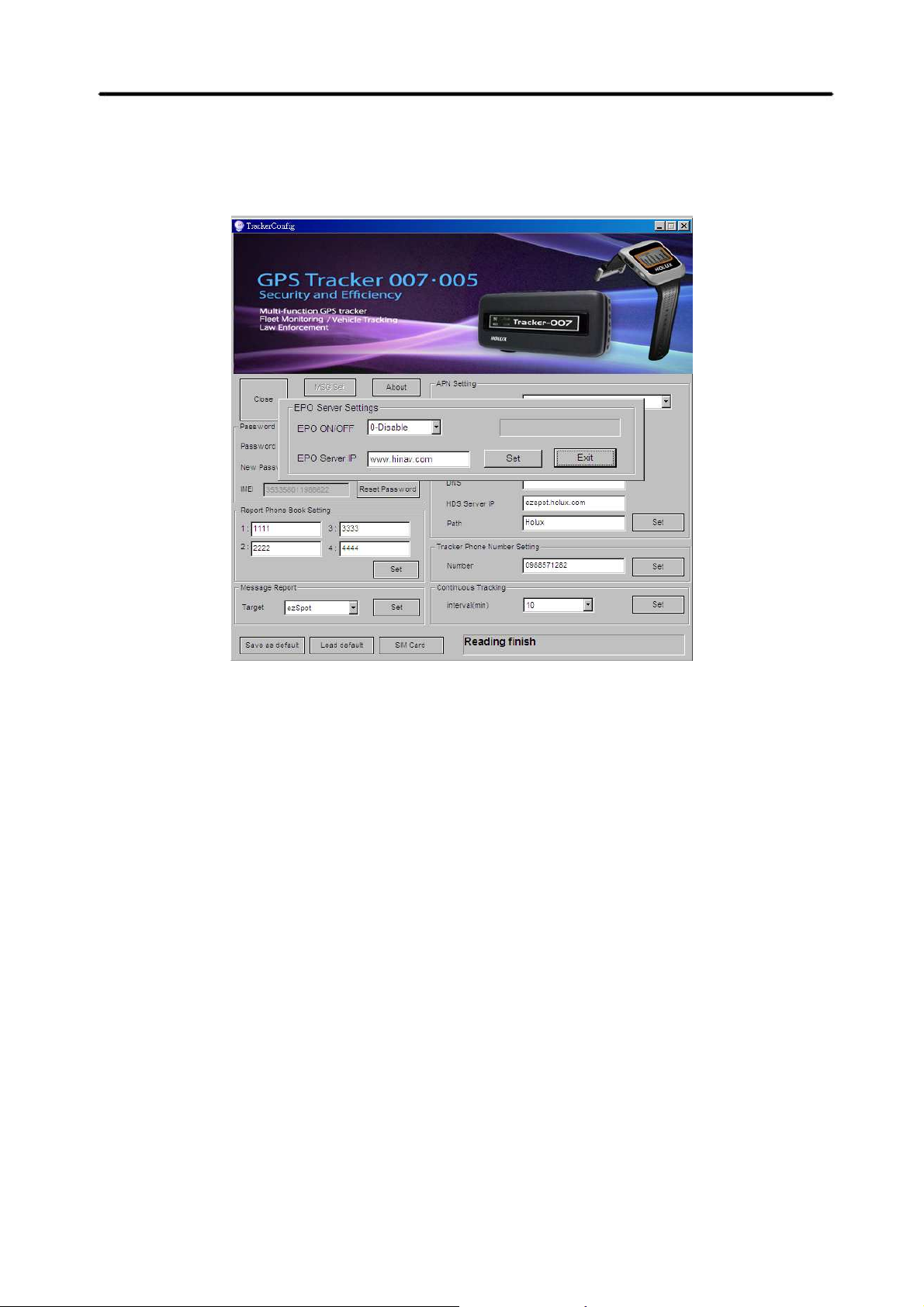

EPO Setting................................................................................................................................................. 18
Basic Operation ...............................................................................................................19
Turn on Tracker ........................................................................................................................................... 19
Turn off Tracker ........................................................................................................................................... 19
Position Request ......................................................................................................................................... 19
Position Lock (Park) .................................................................................................................................... 20

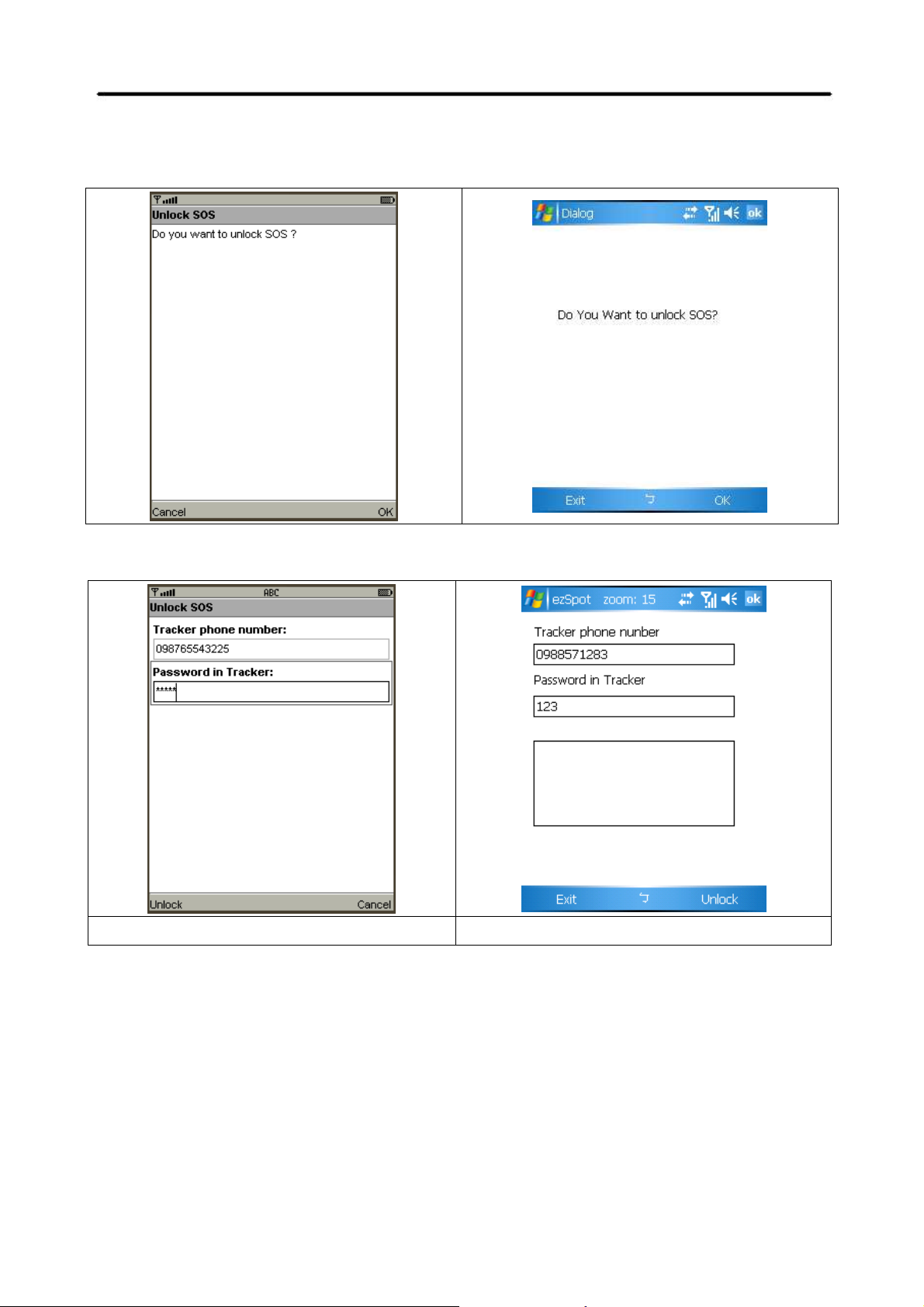

Emergency Report (SOS) ........................................................................................................................... 20
Terminology .....................................................................................................................22
Appendix A. Specifications.............................................................................................23
Physical Characteristics .............................................................................................................................. 23
System......................................................................................................................................................... 23
GPRS Protocol ............................................................................................................................................ 23
GSM Antenna .............................................................................................................................................. 23
Certification.................................................................................................................................................. 23
GSM module................................................................................................................................................ 23
GPS ............................................................................................................................................................. 23
Power Consumption .................................................................................................................................... 24
Holux Tracker-007
Introduction
Tracker-007 is a multi-functional tracker. Combining with GPRS and high performance
GPS, the device can be used to track and report device’s position and status to mobile
phone through SMS or Main Data Server (MDS) through HTTP. The operation modes
include continuous tracking and position lock (park). SOS buttons can be used to send
emergency call. All configurations can be set through SMS or USB interface. The wireless
communication includes UDP, TCP/IP, HTTP and SMS. With MTK EPO, it can get shorter
TTFF at distressed environment.
Application
- 1 -
Holux Tracker-007
Parts names and Functions
GPS Status (Blue LED)
Park Key
USB Connector
SOS, Press two
keys together.
Power Signal (Amber) & Status
Signal (Green)
- 2 -
Holux Tracker-007
LED Indication
Item LED LED icon /color Status Indication
1 Power
2
3
4
5
6
7
8
Amber
Amber
Green
Green
Green
Amber
Green
Amber
Blinks every 4
Battery is low
seconds
Glows steadily Battery is recharging
Glows steadily Battery is full
Blinks every 4
seconds
Blink every 0.5
second
Blink every 0.5
second
Blink 2 times every 2
seconds
Device is functioning
normally
Device is powering off
when battery is normal
Device is powering off
when battery is low
GPRS connection fails
or SIM card is invalid
when power is normal.
Blink 2 times every 2
seconds
GPRS connection fails
or SIM card is invalid
9 GPS
10
11
12 Status
13
14
Blue
Blue
Blue
Amber
Green
Amber
when power is low.
Blinks every 2
Acquisition in process
seconds
Blinks every 4
Acquisition fails
seconds
Turns off Acquisition succeed and
position is fixed
Blinks 6 times in 3
SOS mode is activated
seconds. All LED
turn off.
Blinks every 2
Park mode is activated
seconds
Blinks every 2
seconds
Park mode and battery
is low
- 3 -
Holux Tracker-007
Package Contents
Thank you for purchasing the Tracker-007 wireless GPS logger. Before you start, make
sure that the following items are included in your package. If any of these items are missing,
please contact your original local HOLUX dealer or distributor.
Tracker-007 Device 1 set
Power adapter 1 set
Car Charger 1 set
USB Cable 1 set
Tool CD 1 pcs
Quick Guide 1 pcs
Warranty Card 1 pcs
Battery 1 pcs
Screw and cap 4 pcs
- 4 -
Holux Tracker-007
Before You Getting Started
Possible Additional Fee
• Position request and position response sent by SMS will be charged.
• Each zoom operation will be charged also according to data quantity transferred.
About GPS
• GPS signals are incapable of penetrating solid objects that are non-transparent.
The signals will be also be affected by surface cover such as tall buildings, tunnels,
elevated expressways, forests etc., or weather conditions such as overcast and
rain. If the vehicle is poorly insulated against heat and contains metal parts, GPS
signals will not be able to penetrate.
• All wireless communication devices such as cell phones, or traffic police speed
detectors can interfere with the reception of GPS signals and results in unstable
signals.
• To get position fix successfully, please hold the GPS logo or function key up for
better signal orientation.
• There is no guaranty that SOS message will be successfully sent at distressed
environment where GPS or GSM signals are weak.
About Power
• Though this device is USB compliant and can be bus powered, it is NOT
recommended to charge the device though your computer via USB connection.
The manufacturer disclaims any liabilities for damage to the handset or personal
PC caused by any improper use.
• It takes 5 ~ 120 seconds for the device to be completely powered off. If the device
is in the process of acquiring position fix or position report, the power-offing will not
be performed until the previous process is complete.
• Tracker-007 cannot be powered on if battery voltage is below 3.5 volts.
For XP SP3 Users
• Due to the incompatibility problem between Windows XP SP3 and the virtual
Comm port of Windows driver, usbser.sys for XP SP2 is required for XP SP3
users to install the utility. For more information, please refer to FAQ at
http://www.holux.com
- 5 -
Holux Tracker-007
About SIM PIN Code & GPRS
Notice: SIM PIN should be unlocked before being inserted into the device. SIM PIN can be
disabled through ordinary mobile phone.
• SIM card GPRS function enabled is required for normal operation.
• The default PIN code in device is 0000. If SIM lock is enabled and password is
incorrect, power on/off device three times will make the SIM card locked
permanently. Only PUK code can unlock the SIM in such case. If SIM PIN is
enabled, make sure the PIN code is set to device by TrackerConfig. The PIN code
set will be saved in non-volatile memory.
• If the SIM card is not inserted or SIM card is invalid, position fix function will be
disabled.

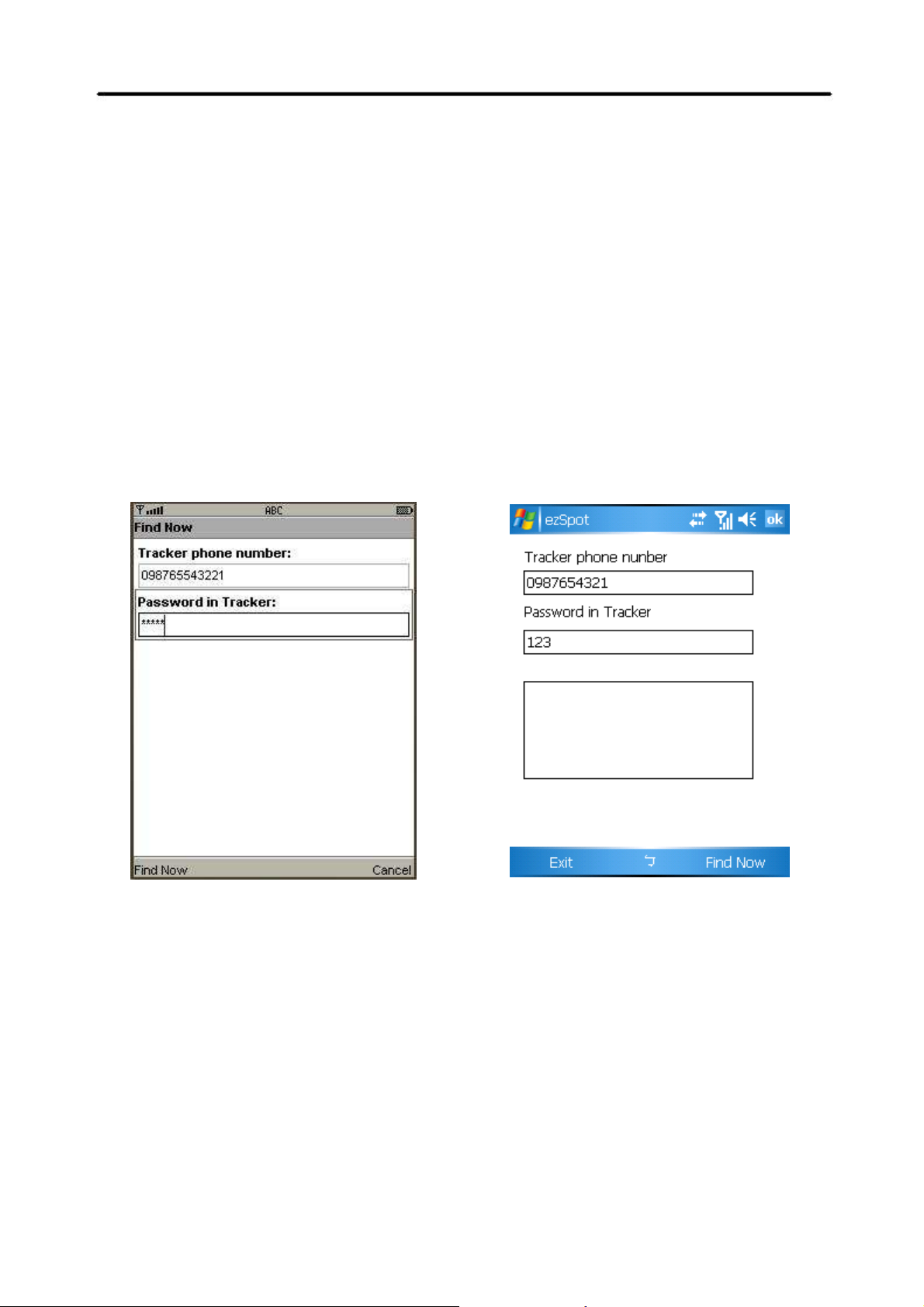

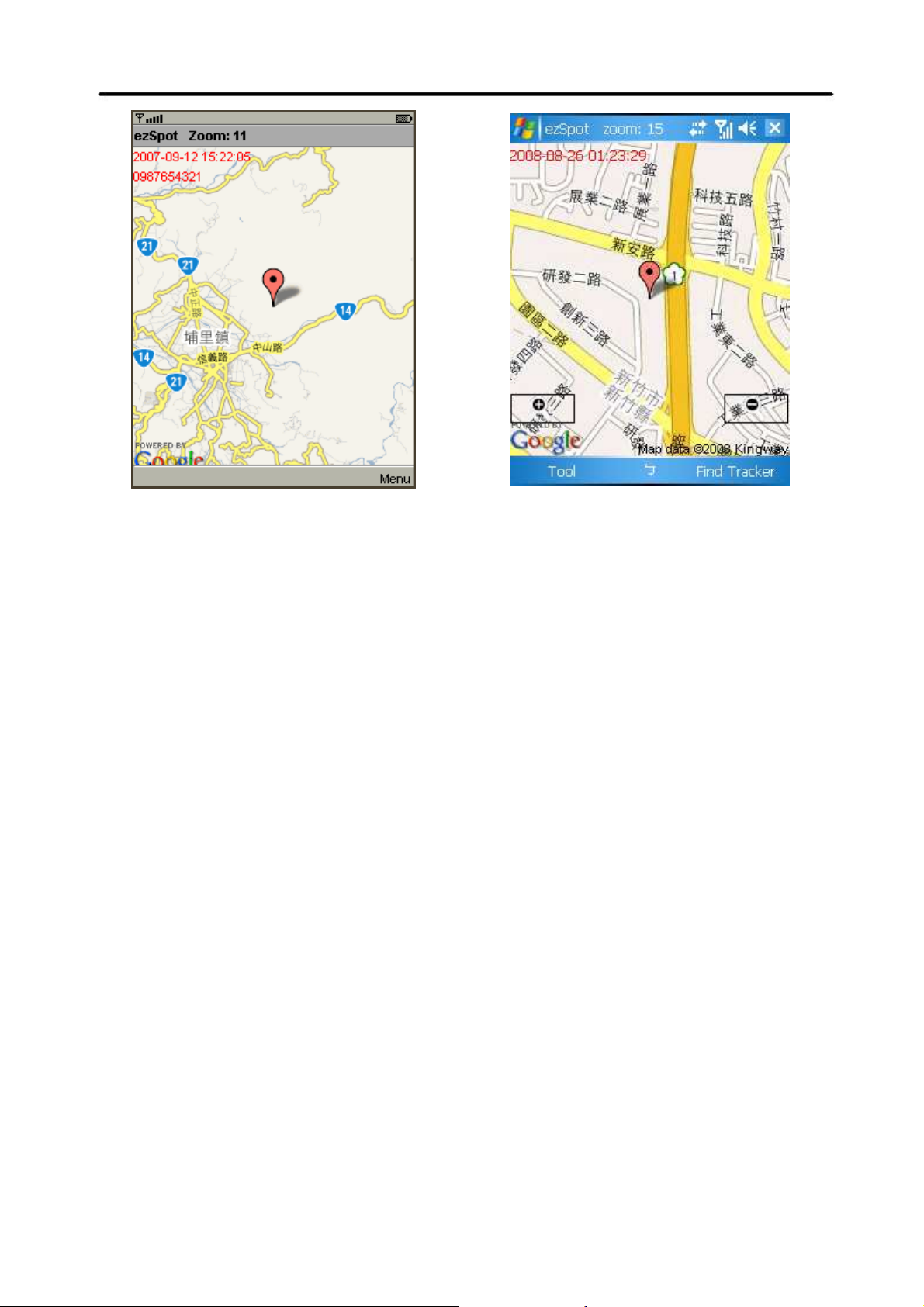

• Google map installed in your cell phone will be downloaded by GPRS
automatically when ezSpot is well installed.
Download documents, Driver and Utility
All related documents, driver and utility programs can be downloaded from the ezSpot
server at http://ezspot.holux.com/Holux.
- 6 -
