HOLUX Technology GR260XX User Manual
GPSport 260
HOLUX GPSport 260
User’s Guide
1
HOLUX GPSport 260
Safety Precautions
• Use the power adapter included with the package, using power adapters
other than the one provided will result in malfunction and could prove
dangerous.
• Do not use the power adapter in a wet environment. When hands and feet
are wet, do not touch the power adapter.
• While using the power adaptor ensure that the area is well ventilated. Do
not let paper or other material cover the power adaptor, as this will interfere
with cooling. Do not use the power adaptor whilst it is in a bag.
• Do not attempt to repair the device. If device is damaged or is in a wet
environment, replace the device immediately.
• This device is waterproof (meets IPX 7 standard) but not protected against
water immersion.
Warranty Information
The GPSport 260 is warranted to be free from defects in material and functions
for a period of one year from the date of purchase. If there is a product failure of
within this period (under normal conditions), a replacement will be provided at
no charge to the customer.
Copyright Information
No part of this manual, including the products and software described in it, may
2
HOLUX GPSport 260
be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form or by any mean, without the express
written permission of Holux Technology, Inc.
Copyright© 2008 Holux Technology, Inc. All Rights Reserved.
Federal Communications Commission (FCC)
Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
3
HOLUX GPSport 260
CAUTION
Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
RF Exposure Warning
This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not be
co-located or operated in conjunction with any other antenna or transmitter.
End-users and installers must be provided with antenna installation instructions
and transmitter operating conditions for satisfying RF exposure compliance.
4
Table of Contents
HOLUX GPSport 260
Getting Started ........................................................................................ 7
F
EATURES
U
NIT APPEARANCE
B
UTTON
A
CCESSORIES
C
HARGING THE BATTERY
Using the AC Charger ..................................................................... 12
I
NSTALLING BIKE MOUNT
C
ONNECTING TO A
D
RIVER INSTALLATION
Using the GPSport 260 ......................................................................... 19
.............................................................................................. 7
................................................................................. 8
................................................................................................. 9
...................................................................................... 10
..................................................................... 12
...................................................................... 13
PC.......................................................................... 15
.......................................................................... 16
Turn on system power..................................................................... 19
Turn off system power..................................................................... 19
Menu................................................................................................ 19
Status Icons..................................................................................... 19
Sport Mode...................................................................................... 22
Plot Mode ........................................................................................ 24
Multi Finder...................................................................................... 25
Pedometer Mode............................................................................. 26
Self Training Mode .......................................................................... 26
Follow Course Mode ....................................................................... 27
Weather Forecast Mode ................................................................. 29
History Mode ................................................................................... 30
Setting Mode ................................................................................... 32
5
HOLUX GPSport 260
Normal Care and Maintenance............................................................. 41
Specifications ........................................................................................ 43
6
HOLUX GPSport 260
7
Getting Started
Thank you for purchasing the GPSport 260. The GPSport 260 is a
compact and lightweight device designed for sporting use. It is equipped
with GPS tracking to calculate the amount of CO2 emissions reduced
and the amount of calories consumed by not driving.
Features
● GPS positioning
● Automatic page flipping
● Auto power off after a specified interval with no signal
● Multi Finder can record up to 10 locations and supports return to
starting point
● Can simulate an analog speedometer or use a large-font display
● 4 sport modes for calorie calculations
● Track Log function can start recording after satellite fix
● One touch POI recording
● Supports metric and imperial measurements
● Supports time zones
● Supports 12-hour or 24-hour time display
● 2.4G wireless heart sensor and pedometer
Unit Appearance
Front View
HOLUX GPSport 260
1.8’’ LCD screen
Backlight
Menu
Exit
Enter/
Power/
Pause
Up/ Down/ Right/ Left
button
8
Rear View
HOLUX GPSport 260
Mini USB Port
Button
Basic button functions
Name Icon Function
Power button
Menu
Exit
Cursor buttons
Turn unit on or off.
Exit menu.
Use Up, Down, Left and Right to select an
option. Press the Enter button in the
middle to confirm input.
9
HOLUX GPSport 260
Accessories
Please make sure the following accessories are included in the box.
Please contact your supplier immediately if there are any missing items.
GPSport 260
Quick Guide
USB cable
AC Adapter
Warranty Card
Bicycle Mounting Kit
CD-ROM
10
HOLUX GPSport 260
11
Charging the Battery
Using the AC Charger
1.
Plug the mini USB plug of the AC charger into the mini USB
port on the top of the handset.
2.
Plug the AC charger into a wall outlet.
HOLUX GPSport 260
When charging, the Power indicator shows . After charging is
complete, the Power indicator shows .
12
HOLUX GPSport 260

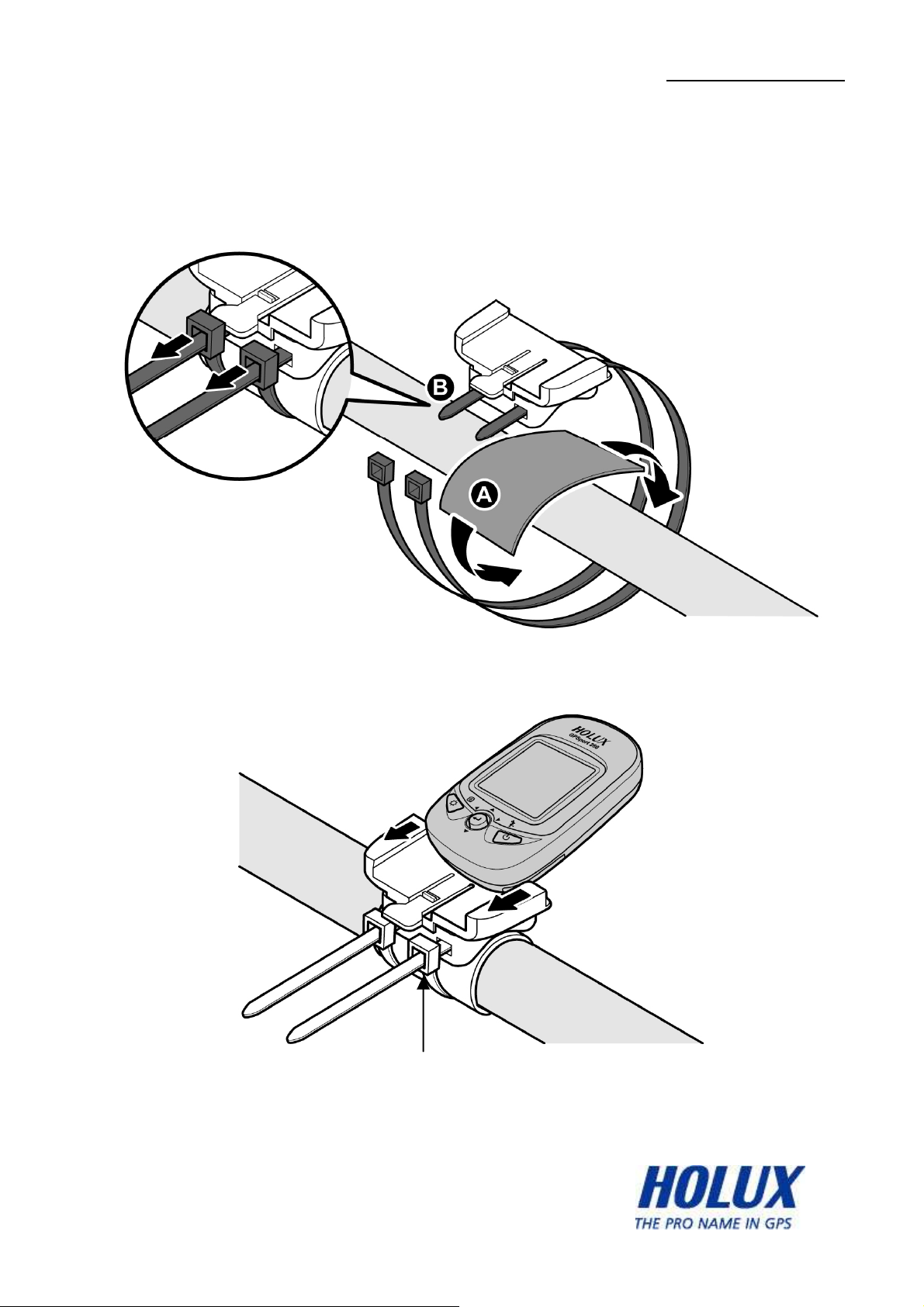

Installing Bike Mount
You can install the bike mount and the GPS on the left or right side of
the handlebar or on the stem.
1. Attach the bracket to the bracket holder.
2. Thread the two cable ties through the slots of the bracket holder.
13
