HOLUX Technology CAD01 Users Manual

ANT+ 2.4G Wireless
Cadence / Speed Sensor
Cadence/Speed
ver: 1.0
Holux Technology
www.holux.com
Content
Content.......................................................................................................................................................1
Cadence Sensor.........................................................................................................................................2
Installing Cadence Sensor...................................................................................................................2
Replacing the Battery of Cadence Sensor..........................................................................................4
Cadence Spec.....................................................................................................................................5
Speed Sensor.............................................................................................................................................6
Installing Speed Sensor.......................................................................................................................6
Replacing the Battery of Speed Sensor..............................................................................................8
Speed Spec. ........................................................................................................................................9
Wireless Link- GPSport 260.....................................................................................................................10
Activate Wireless Link.......................................................................................................................10
Scan Sensor......................................................................................................................................10
Connect and Detect...........................................................................................................................10
1
Cadence Sensor
Cadence is the number of revolutions of the crank set per minute for cyclists.
Installing Cadence Sensor
 The cadence comes in two parts, the cadence sensor itself and the magnet.  Place the sensor on the chain stay. Rotate the crank to make sure the sensor will not touch the
rotating crank. If the sensor touches the crank, move the sensor slightly upwards. Use the cable ties to secure the cadence sensor.
 Place the magnet on the crank. Use two cable ties to secure the magnet.  The cadence sensor and the magnet should pass facing each other with no more than 25 millimeters

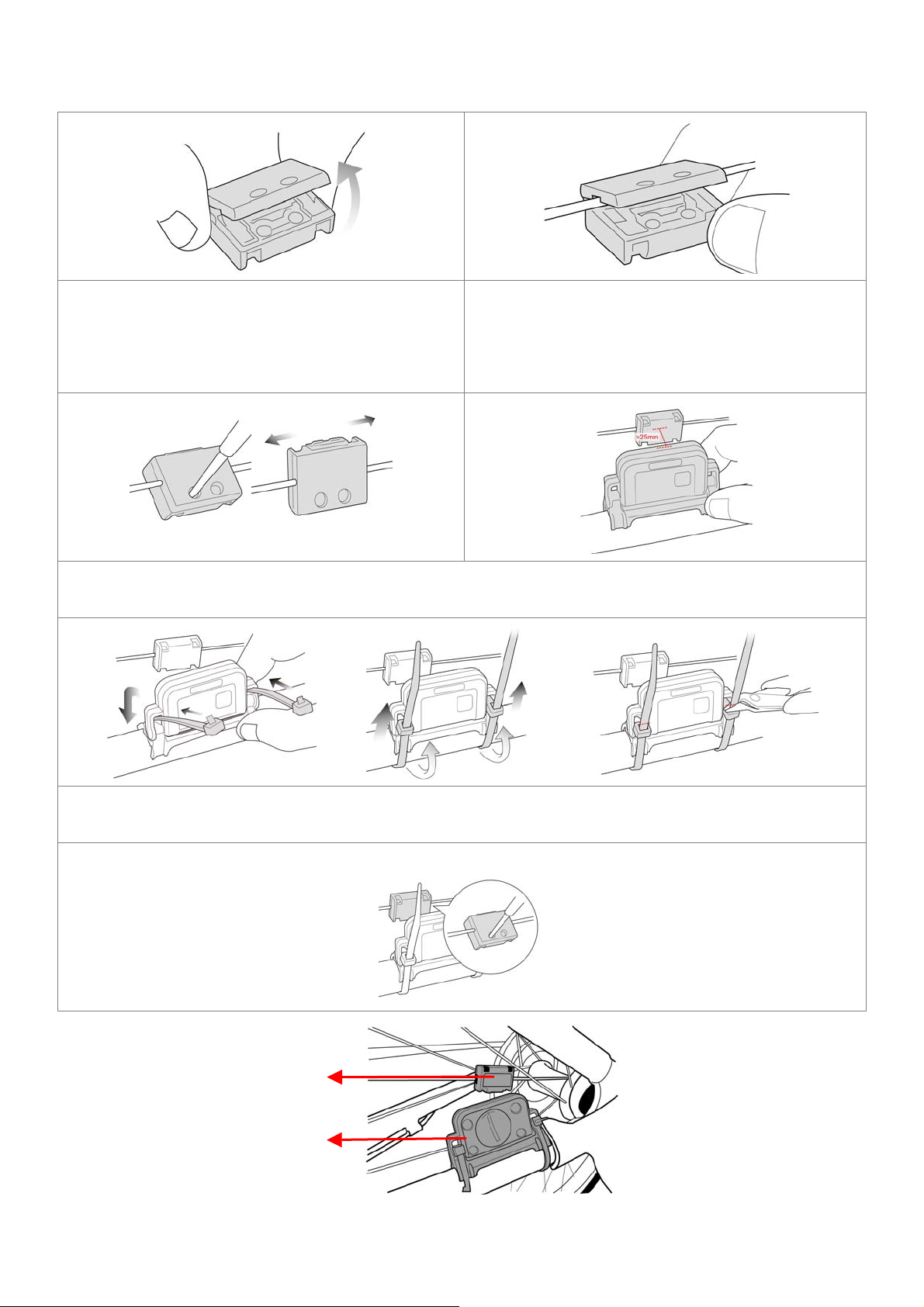

between the two to transmit accurate data. The details please reference for below: The cadence comes in two parts, the cadence sensor itself and the magnet. The cadence sensor should be placed on the chain stay, and the magnet on the crank.
Thread the two included cable ties (thicker ones) through the cadence sensor. Wind the cable ties to secure the cadence sensor onto the chain stay.
Place the rubber pad on the chain stay. Place the cadence sensor on the rubber pad.
DO NOT pull the cable ties yet now. Leave the cable ties loose enough to be adjusted. The cable ties should be fixed only when the magnet is fixed. Continue to next step to fix the magnet.
Place the magnet on the inner side of the crank. Make sure the cadence sensor and the magnet pass facing each other with no more than 25 millimeters between the two.
Thread and wind the included two cable ties (thinner ones) to secure the magnet onto the crank. Once the rotation is assured and the position of the two is fixed, pull the cable ties to secure the magnet.
2
Pull the cable ties to fix the cadence sensor and the magnet.
Cadence Sensor
Magnet
Trim the cable ties if they hinder the rotation.
Note: There is a power button on the surface of the cadence sensor. Do not push it unless you want to
reset it.
