Holtek Semiconductor Inc HT48CA3 Datasheet

Features

·

Operating voltage: 2.2V~3.6V

·

23 bidirectional I/O lines (max.)

·

1 interrupt input shared with an I/O line

·

8-bit programmable timer/event counter with overflow
interrupt and 8-stage prescaler (TMR0)

·

16-bit programmable timer/event counter and
overflow interrupts (TMR1)

·

On-chip crystal and RC oscillator

·

Watchdog Timer

·

24K´16 program memory ROM
(8K´16 bits´3 banks)

·

224´8 data memory RAM

General Description

The HT48CA3 is an 8-bit high performance, RISC archi
tecture microcontroller device specifically designed for
multiple I/O control product applications. The data ROM
can be used to store remote control codes. This device
is the mask version which is fully pin and functionally
compatible with the OTP version HT48RA3 device.

HT48CA3

8-Bit Remote Type MCU

·

PFD supported

·

HALT function and wake-up feature reduce power
consumption

·

8-level subroutine nesting

·

Up to 1ms instruction cycle with 4MHz system clock at
V

=3V

DD

·

Bit manipulation instruction

·

16-bit table read instruction

·

63 powerful instructions

·

All instructions in one or two machine cycles

·

28-pin SKDIP/SOP package

The advantages of low power consumption, I/O flexibil

­ity, timer functions, oscillator options, watchdog timer,
programmable frequency divider, HALT and wake-up
functions, as well as low cost, enhance the versatility of
this device to suit a wide range of application possibili
ties such as industrial control, consumer products, sub­system controllers, and particularly suitable for use in
products such as universal remote controller (URC).

-

-

Block Diagram

P r o g r a m

I n s t r u c t i o n

R e g i s t e r

I n s t r u c t i o n

D e c o d e r

T i m i n g

G e n e r a t o r

O S C 2

R O M

O S C 1

R E S
V D D
V S S

P r o g r a m

C o u n t e r

B P

M P

A L U

S h i f t e r

A C C

M U X

S T A C K

M
U
X

D A T A

M e m o r y

S T A T U S

I N T / P F 0

I n t e r r u p t

C i r c u i t

I N T C

T M R 1 C

T M R 1

T M R 0

T M R 0 C

W D T S

W D T P r e s c a l e r

P A C

P O R T A

P A

P F D

P B C

P O R T B

P B

P C C

P O R T C

P C

P F C

P O R T F

P F

/ 4

f

M
U
X

E N / D I S

W D T

S Y S

T M R 1

P r e s c a l e r

T M R 0

P A 0 ~ P A 7

P B 0 ~ P B 7

P C 0 ~ P C 5

P F 0

M
U
X

f

S Y S

W D T O S C

f

S Y S

/ 4

M
U
X

Rev. 1.40 1 July 16, 2003

Pin Assignment

HT48CA3

Pin Description

Pin Name I/O

RES

PA0~PA7 I/O

PB0/PFD
PB1~PB7

VSS

PC0/TMR0
PC1~PC4
PC5/TMR1

PF0/INT

VDD

OSC1
OSC2

P B 0 / P F D

P F 0 / I N T

P C 0 / T M R 0

ROM Code

Option

I

¾

Wake-up*

Pull-high***

I/O

Pull-high**

PB0 or PFD

¾¾

I/O Pull-high*

I/O Pull-high*

¾¾

I

O

Crystal

or RC

P B 5

P B 4

P A 3

P A 2

P A 1

P A 0

P B 3

P B 2

P B 1

V S S

P C 1

1

2

3

4

5

6

7

8

9

1 0

1 1

1 2

1 3

1 4

2 8

2 7

2 6

2 5

2 4

2 3

2 2

2 1

2 0

1 9

1 8

1 7

1 6

1 5

P B 6

P B 7

P A 4

P A 5

P A 6

P A 7

O S C 2

O S C 1

V D D

R E S

P C 5 / T M R 1

P C 4

P C 3

P C 2

H T 4 8 C A 3

2 8 S K D I P - A / S O P - A

Description

Schmitt trigger reset input, active low.

Bidirectional 8-bit input/output port. Each bit can be configured as a
wake-up input by a mask option. Software instructions determine the
CMOS output or Schmitt trigger input with/without pull-high resistor. The
pull-high resistor of each input/output line is also optional.

Bidirectional 8-bit input/output port. Software instructions determine
the CMOS output or Schmitt trigger input with/without pull-high resis­tor. The pull-high resistor of each input/output line is also optional. The
output mode of PB0 can be used as an internal PFD signal output and
it can be used as a various frequency carrier signal.

Negative power supply, ground

Bidirectional 6-bit input/output port. Software instructions determine
the CMOS output or Schmitt trigger input with/without pull-high resis
tor. Thepull-high resistor of each input/output line is also optional. PC0
and PC5 are pin shared with TMR0 and TMR1 function pins.

Bidirectional 1-bit input/output port. Software instructions determine
the CMOS output or Schmitt trigger input with/without pull-high resis
tor. The pull-high resistor of this input/output line is also optional. PF0
is pin shared with the INT

Positive power supply

OSC1, OSC2 are connected to an RC network or Crystal (determined
by hardwareoption) for the internal system clock. In the case of RC op
eration, OSC2 is the output terminal for 1/4 system clock.

function pin.

-

-

-

Note: * Bit option

** Nibble option
*** Byte option

Rev. 1.40 2 July 16, 2003

HT48CA3

Absolute Maximum Ratings

Supply Voltage...........................VSS-0.3V to VSS+4.0V

Input Voltage..............................V

-0.3V to VDD+0.3V

SS

Note: These are stress ratings only. Stresses exceeding the range specified under ²Absolute Maximum Ratings² may

cause substantial damage to the device. Functional operation of this device at other conditions beyond those
listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliabil
ity.

Storage Temperature ............................-50°Cto125°C

Operating Temperature...........................-40°Cto85°C

-

D.C. Characteristics

Symbol Parameter

V

I

DD

I

STB1

I

STB2

V

V

V

V

I

OL

I

OH1

I

OH2

R

Operating Voltage

DD

Operating Current 3V

Standby Current (WDT Enabled) 3V No load, system HALT

Standby Current (WDT Disabled) 3V No load, system HALT

Input Low Voltage for I/O Ports

IL1

Input High Voltage for I/O Ports

IH1

Input Low Voltage (RES Ports)

IL2

Input High Voltage (RES Ports)

IH2

I/O Port Sink Current 3V

I/O Port Source Current 3V

I/O Port Source Current 3V

Pull-high Resistance 3V

PH

A.C. Characteristics

Symbol Parameter

f

SYS

f

TIMER

t

WDTOSC

t

WDT1

t

WDT2

t

RES

t

SST

t

INT

t

ACC

System Clock 3V

Timer I/P Frequency (TMR0/TMR1) 3V 50% duty 0

Watchdog Oscillator 3V

Watchdog Time-out Period
(WDT OSC)

Watchdog Time-out Period (f

External Reset Low Pulse Width

System Start-up Timer Period

Interrupt Pulse Width

Data ROM Access Time

SYS

Test Conditions

V

DD

Conditions

¾¾

No load, f

SYS

=4MHz

¾¾

¾¾

¾¾

¾¾

=0.1V

V

OL

DD

=0.9V

V

OH

V

OH

=0.8V

DD

DD

¾

Test Conditions

V

DD

Conditions

¾

Min. Typ. Max. Unit

2.2

¾

¾

¾

0

0.8V

0

0.9V

¾

35mA

510

0.1 1

¾

¾

DD

¾

¾

DD

510

-2 -5 ¾

-4 -8 ¾

40 60 80

Min. Typ. Max. Unit

400

¾

¾

¾

45 90 180

3V Without WDT prescaler 11.5 23 46 ms

/4)

3V Without WDT prescaler

¾¾

Power-up, reset or

¾

wake-up from HALT

¾¾

¾¾

1024

¾

1

¾

1

1

¾¾ms

1024

¾¾ms

¾¾ms

Ta=25°C

3.6 V

0.2V

DD

V

DD

0.4V

DD

V

DD

¾

Ta=25°C

4000 kHz

4000 kHz

¾

¾

mA

mA

mA

mA

mA

kW

ms

t

SYS

t

SYS

V

V

V

V

Note: t

SYS

=1/(f

SYS

)

Rev. 1.40 3 July 16, 2003

Functional Description

Execution Flow

The system clock for the MCU is derived from either a
crystal or an RC oscillator. The system clock is internally
divided into four non-overlapping clocks. One instruc
tion cycle consists of four system clock cycles.

Instruction fetching and execution are pipelined in such
a way that a fetch takes an instruction cycle while de
coding and execution takes the next instruction cycle.
However, the pipelining scheme causes each instruc
tion to effectively execute in a cycle. If an instruction
changes theprogram counter, two cycles are required to
complete the instruction.

Program Counter - PC

The program counter (PC) controls the sequence in
which the instructions stored in the program ROM are
executed and its contents specify a full range of pro
gram memory.

After accessing a program memory word to fetch an in
struction code, the contents of the program counter are

S y s t e m C l o c k

T 1 T 2 T 3 T 4 T 1 T 2 T 3 T 4 T 1 T 2 T 3 T 4

incremented byone. The program counter then points to
the memory word containing the next instruction code.

When executing a jump instruction, conditional skip ex
ecution, loading register, subroutine call or return from

­subroutine, initial reset, internal interrupt, external inter
rupt or return from interrupts, the PC manipulates the
program transfer by loading the address corresponding

­to each instruction.

The conditional skip is activated by instructions. Once

­the condition is met, the next instruction, fetched during
the current instruction execution, is discarded and a
dummy cycle replaces it to get the proper instruction.
Otherwise proceed to the next instruction.

The lower byte of the program counter (PCL) is a read
able and writeable register (06H). Moving data into the
PCL performs a short jump. The destination will be

-

within the current program ROM page.

When a control transfer takes place, an additional

-

dummy cycle is required.

HT48CA3

-

-

-

O S C 2 ( R C o n l y )

P C

P C P C + 1 P C + 2

F e t c h I N S T ( P C )

E x e c u t e I N S T ( P C - 1 )

F e t c h I N S T ( P C + 1 )

E x e c u t e I N S T ( P C )

F e t c h I N S T ( P C + 2 )

E x e c u t e I N S T ( P C + 1 )

Execution flow

Mode

*14~*8 *7 *6 *5 *4 *3 *2 *1 *0

Program Counter

Initial Reset 0000000 00000000

External Interrupt 0000000 00000100

Timer/Event Counter 0 Overflow 0000000 00001000

Timer/Event Counter 1 Overflow 0000000 00001100

Skip *14~*13, (*12~*0+2): (within current bank)

Loading PCL *14~*8 @7 @6 @5 @4 @3 @2 @1 @0

Jump, Call Branch BP(1~0), #12~#8 #7 #6 #5 #4 #3 #2 #1 #0

Return (RET, RETI) S14~S8 S7 S6 S5 S4 S3 S2 S1 S0

Program Counter

Note: *14~*0: Program counter bits S14~S0: Stack register bits

#14~#0: Instruction code bits @7~@0: PCL bits
1 bank: 8K words

Rev. 1.40 4 July 16, 2003

HT48CA3

Program Memory - ROM

The program memory is used to store the program in
structions which are to be executed. It also contains
data, table, and interrupt entries, and is organized into
8192´16 bits´3 banks, addressed by the program coun
ter and table pointer.

Certain locations in the program memory are reserved
for special usage:

·

Location 000H
This area is reserved for program initialization. After
chip reset, the program always begins execution at lo
cation 000H.

·

Location 004H
This area is reserved for the external interrupt service
program. If the INT

input pin is activated, the interrupt
is enabled and the stack is not full, the program begins
execution at location 004H.

·

Location 008H
This areais reserved for the Timer/Event Counter 0 in
terrupt service program. If a timer interrupt results
from a Timer/Event Counter 0 overflow, and if the in
terrupt is enabled and the stack is not full, the program
begins execution at location 008H.

·

Location 00CH
This location is reserved for the Timer/Event Counter
1 interrupt service program. If a timer interrupt results
from a Timer/Event Counter 1 overflow, and the inter­rupt is enabled and the stack is not full, the program
begins execution at location 00CH.

·

Table location
Any location in the program memory can be used as
look-up tables. The instructions ²TABRDC [m]² (page
specified by TBHP) and ²TABRDL [m]² (the last page)
transfer the contents of the lower-order byte to the
specified data memory, and the higher-order byte to
TBLH(08H). The higher-order byte table pointer
TBHP(1FH) and lower-order byte table pointer TBLP
(07H) are read/write registers, which indicate the table
locations. Before accessing the table, the location has
to be placed in TBHP and TBLP. The TBLH is read
only and cannot be restored. If the main routine and
the ISR (interrupt service routine) both employ the ta
ble read instruction, the contents of TBLH in the main
routine are likely to be changed by the table read in
struction used in the ISR. Errors are thus brought
about. Given this, using the table read instruction in
the main routine and the ISR simultaneously should
be avoided. However, if the table read instruction has
to be applied in both main routine and the ISR, the in

0 0 0 H

-

0 0 4 H

0 0 8 H

-

0 0 C H

n 0 0 H

n F F H

D e v i c e I n i t i a l i z a t i o n P r o g r a m

E x t e r n a l I n t e r r u p t S u b r o u t i n e

T i m e r / E v e n t C o u n t e r 0

I n t e r r u p t S u b r o u t i n e

T i m e r / E v e n t C o u n t e r 1

I n t e r r u p t S u b r o u t i n e

L o o k - u p T a b l e ( 2 5 6 w o r d s )

-

5 F F F H

-

-

terrupt(s) is supposed to be disabled prior to the table
read instruction. It (They) will not be enabled until the

L o o k - u p T a b l e ( 2 5 6 w o r d s )

1 6 b i t s

N o t e : n r a n g e s f r o m 0 t o 5 F

Program memory

TBLH in the main routine has been backup. All table
related instructions require 2 cycles to complete the
operation.

Stack Register - STACK

This is a special part of the memory which is used to
save the contents of the program counter (PC) only. The
stack is organized into 8 levels and is neither part of the
data nor part of the program space, and is neither read­able nor writeable. The activated level is indexed by the
stack pointer (SP) and is neither readable nor writeable.
At a subroutine call or interrupt acknowledge signal, the
contents of the program counter are pushed onto the
stack. At the end of a subroutine or an interrupt routine,
signaled by a return instruction (RET or RETI), the pro
gram counter is restored to its previous value from the
stack. After a chip reset, the SP will point to the top of the
stack.

If the stack is full and a non-masked interrupt takes

­place, the interrupt request flag will be recorded but the

-

acknowledge signal will be inhibited. When the stack
pointer is decremented (by RET or RETI), the interrupt
will be serviced. This feature prevents stack overflow al
lowing the programmer to use the structure more easily.
In a similar case, if the stack is full and a ²CALL² is sub

-

P r o g r a m
M e m o r y

-

-

-

Instruction

*14~*8 *7 *6 *5 *4 *3 *2 *1 *0

Table Location

TABRDC [m] TBHP @7 @6 @5 @4 @3 @2 @1 @0

TABRDL [m] 1011111 @7 @6 @5 @4 @3 @2 @1 @0

Table location

Note: *14~*0: Table location bits @7~@0: Table pointer bits

Rev. 1.40 5 July 16, 2003

sequently executed, stack overflow occurs and the first
entry will be lost (only the most recent 8 return ad
dresses are stored).

Data Memory - RAM

The data memory is designed with 250´8 bits. The
data memory is divided into two functional groups: spe
cial function registers and general purpose data mem
ory (224´8). Most are read/write, but some are read
only.

The special function registers include the indirect ad
dressing registers (R0;00H, R1;02H) bank pointer
(BP;04H), Timer/Event Counter 0 (TMR0;0DH),
Timer/Event Counter 0 control register (TMR0C;0EH),
Timer/Event Counter 1 higher order byte register
(TMR1H;0FH), Timer/Event Counter 1 lower order byte
register (TMR1L;10H), Timer/Event Counter 1 control
register (TMR1C;11H), program counter lower-order
byte register (
(MP0;01H, MP1;03H), accumulator (

;06H), memory pointer registers

PCL

;05H), table

ACC
pointer (TBLP;07H, TBHP;1FH), table higher-order
byte register (TBLH;08H), status register
(STATUS;0AH), interrupt control register (INTC;0BH),
Watchdog Timer option setting register (WDTS;09H),
I/O registers (PA;12H, PB;14H, PC;16H, PF;1CH, and
I/O control registers (PAC;13H, PBC;15H, PCC;17H,
PFC;1DH). The remaining space before the 20H is re­served for future expanded usage and reading these
locations will get ²00H². The general purpose data
memory, addressed from 20H to FFH, is used for data
and control information under instruction commands.

All of the data memory areas can handle arithmetic,
logic, increment, decrement and rotate operations di­rectly. Except for some dedicated bits, each bit in the
data memory can be set and reset by ²SET [m].i² and
²CLR [m].i². They are also indirectly accessible through
memory pointer registers (MP0 or MP1).

HT48CA3

I n d i r e c t A d d r e s s i n g R e g i s t e r 0

0 0 H

0 1 H

-

-

-

-

I n d i r e c t A d d r e s s i n g R e g i s t e r 1

0 2 H

0 3 H

0 4 H

0 5 H

0 6 H

0 7 H

0 8 H

0 9 H

0 A H

0 B H

0 C H

0 D H

0 E H

0 F H

1 0 H

1 1 H

1 2 H

1 3 H

1 4 H

1 5 H

1 6 H

1 7 H

1 8 H

1 9 H

1 A H

1 B H

1 C H

1 D H

1 E H

1 F H

2 0 H

F F H

M P 0

M P 1

B P

A C C

P C L

T B L P

T B L H

W D T S

S T A T U S

I N T C

T M R 0

T M R 0 C

T M R 1 H

T M R 1 L

T M R 1 C

P A

P A C

P B

P B C

P C

P C C

P F

P F C

T B H P

G e n e r a l P u r p o s e
D A T A M E M O R Y

( 2 2 4 B y t e s )

S p e c i a l P u r p o s e
D A T A M E M O R Y

: U n u s e d

R e a d a s " 0 0 "

Indirect Addressing Register

RAM mapping

Location 00H and 02H are indirect addressing registers
that are not physically implemented. Any read/write op
eration of [00H] ([02H]) will access data memory pointed
to by MP0 (MP1). Reading location 00H (02H) itself indi
rectly will return the result 00H. Writing indirectly results
in no operation.

The memory pointer registers (MP0 and MP1) are 8-bit
registers.

Accumulator

The accumulator is closely related to ALU operations. It
is also mapped to location of the data memory and can
carry out immediate data operations. The data move
ment between two data memory locations must pass

-

Arithmetic and Logic Unit - ALU

This circuit performs 8-bit arithmetic and logic opera

­tions. The ALU provides the following functions:

·

Arithmetic operations (ADD, ADC, SUB, SBC, DAA)

·

Logic operations (AND, OR, XOR, CPL)

·

Increment and decrement (INC, DEC)

·

Rotation (RL, RR, RLC, RRC)

·

Increment and Decrement (INC, DEC)

·

Branch decision (SZ, SNZ, SIZ, SDZ ....)

The ALU not only saves the results of a data operation

­but also changes the status register.

through the accumulator.

Rev. 1.40 6 July 16, 2003

-

HT48CA3

Status Register - STATUS

This 8-bit register (0AH) contains the zero flag (Z), carry
flag (C), auxiliary carry flag (AC), overflow flag (OV),
power down flag (PD), and watchdog time-out flag (TO).
It also records the status information and controls the
operation sequence.

With the exception of the TO and PD flags, bits in the
status register can be altered by instructions like
most other registers. Any data written into the status
register will not change the TO or PD flag. In addition
operations related to the status register may give dif
ferent results from those intended. The TO flag can
be affected only by system power-up, a WDT
time-out or executing the ²CLR WDT² or ²HALT² in
struction. The PD flag can be affected only by execut
ing the ²HALT² or ²CLR WDT² instruction or during a
system power-up.

The Z, OV, AC and C flags generally reflect the status of
the latest operations.

In addition, on entering the interrupt sequence or exe
cuting the subroutine call, the status register will not be
pushed onto the stack automatically. If the contents of
the status are important and if the subroutine can cor
rupt the status register, precautions must be taken to
save it properly.

Interrupt

The device provides an external interrupt and internal
timer/event counter interrupts. The Interrupt Control
Register (INTC;0BH) contains the interrupt control bits
to setthe enable/disable and the interrupt request flags.

Once an interrupt subroutine is serviced, all the other in­terrupts will be blocked (by clearing the EMI bit). This
scheme may prevent any further interrupt nesting. Other
interrupt requests may occur during this interval but only
the interrupt request flag is recorded. If a certain inter
rupt requires servicing within the service routine, the

EMI bit and the corresponding bit of the INTC may be set
to allow interrupt nesting. If the stack is full, the interrupt
request will not be acknowledged, even if the related in
terrupt is enabled, until the SP is decremented. If immedi
ate service is desired, the stack must be prevented from
becoming full.

All these kinds of interrupts have a wake-up capability.
As an interrupt is serviced, a control transfer occurs by
pushing the program counter onto the stack, followed by
a branch to a subroutine at specified location in the pro
gram memory. Only the program counter is pushed onto

­the stack. If the contents of the register or status register

(STATUS) are altered by the interrupt service program
which corrupts the desired control sequence, the con

­tents should be saved in advance.

-

External interrupts are triggered by a high to low transi
tion ofthe INT
bit 4 of INTC) will be set. When the interrupt is enabled,
the stack is not full and the external interrupt is active, a
subroutine call to location 04H will occur. The interrupt

­request flag (EIF) and EMI bits will be cleared to disable

other interrupts.

The internal Timer/Event Counter 0 interrupt is initial

­ized by setting the Timer/Event Counter 0 interrupt re

quest flag (T0F;bit 5 of INTC), caused by a timer 0
overflow. When the interrupt is enabled, the stack is not
full and the T0F bit is set, a subroutine call to location
08H will occur. The related interrupt request flag (T0F)
will be reset and the EMI bit cleared to disable further in­terrupts.

The internal Timer/Event Counter 1 interrupt is initial­ized by setting the Timer/Event Counter 1 interrupt re­quest flag (T1F;bit 6 of INTC), caused by a timer 1
overflow. When the interrupt is enabled, the stack is not
full and the T1F is set, a subroutine call to location 0CH
will occur. The related interrupt request flag (T1F) will be

­reset and the EMI bit cleared to disable further inter

rupts.

and therelated interrupt request flag (EIF;

-

-

-

-

-

-

-

-

Labels Bits Function

C0

AC 1

Z 2 Z is set if the result of an arithmetic or logic operation is zero; otherwise Z is cleared.

OV 3

PD 4

TO 5

¾

Rev. 1.40 7 July 16, 2003

C is set if the operation results in a carry during an addition operation or if a borrow does not
take place during a subtraction operation; otherwise C is cleared. C is also affected by a rotate
through carry instruction.

AC is set if the operation results in a carry out of the low nibbles in addition or no borrow from
the high nibble into the low nibble in subtraction; otherwise AC is cleared.

OV is set if the operation results in a carry into the highest-order bit but not a carry out of the
highest-order bit, or vice versa; otherwise OV is cleared.

PD is cleared by system power-up or executing the ²CLR WDT² instruction. PD is set by exe
cuting the ²HALT² instruction.

TO is cleared by system power-up or executing the ²CLR WDT² or ²HALT² instruction. TO is
set by a WDT time-out.

6~7

Undefined, read as ²0²

Status register

-

HT48CA3

During the execution of an interrupt subroutine, other in
terrupt acknowledge signals are held until the ²RETI² in
struction is executed or the EMI bit and the related
interrupt control bit are set to 1 (if the stack is not full). To
return from the interrupt subroutine, ²RET² or ²RETI²
may be invoked. RETI will set the EMI bit to enable an in
terrupt service, but RET will not.

Interrupts, occurring in the interval between the rising
edges of two consecutive T2 pulses, will be serviced on
the latter of the two T2 pulses, if the corresponding inter
rupts are enabled. In the case of simultaneous requests
the following table shows the priority that is applied.
These can be masked by resetting the EMI bit.

Interrupt Source Priority Vector

External Interrupt 1 04H

Timer/Event Counter 0 Overflow 2 08H

Timer/Event Counter 1 Overflow 3 0CH

The Timer/Event Counter 0/1 interrupt request flag
(T0F/T1F), external interrupt request flag (EIF), enable
Timer/Event Counter 0/1 interrupt bit (ET0I/ET1I), en
able external interrupt bit (EEI) and enable master inter
rupt bit (EMI) constitute an interrupt control register
(INTC) which is located at 0BH in the data memory. EMI,
EEI, ET0I and ET1I are used to control the enabling/dis
abling of interrupts. These bits prevent the requested in­terrupt from being serviced. Once the interrupt request
flags (T0F, T1F, EIF) are set, they will remain in the INTC
register until the interrupts are serviced or cleared by a
software instruction.

It is recommended that a program does not use the
²CALL subroutine² within the interrupt subroutine. In­terrupts often occur in an unpredictable manner or
need to be serviced immediately in some applications.
If only one stack is left and enabling the interrupt is not
well controlled, the original control sequence will be dam
aged once the ²CALL² operates in the interrupt subrou
tine.

Oscillator Configuration

-

­There are 2 oscillator circuits in the MCU.

O S C 1

-

f

/ 4

O S C 2

C r y s t a l O s c i l l a t o r R C O s c i l l a t o r

-

S Y S

N M O S O p e n D r a i n

System oscillator

There are 2 oscillator circuits implemented in the mi
cro-controller.

Both of them are designed for system clocks, namely
the RC oscillator and the crystal oscillator, which are de
termined by options. No matter what oscillator type is
selected, the signal provides the system clock. The
HALT mode stops the system oscillator and resists the
external signal to conserve power.

If an RC oscillator is used, an external resistor between

­OSC1 and VSS is required and the resistance should

­range from 100kW to 820kW. The system clock, divided

by 4, is available on OSC2, which can be used to syn
chronize external logic. The internal RC oscillator pro

­vides the most cost effective solution. However, the

frequency of oscillation may vary with VDD, tempera­tures and the chip itself due to process variations. It is,
therefore, not suitable for timing sensitive operations
where an accurate oscillator frequency is desired.

If the crystal oscillator is used, a crystal across OSC1
and OSC2 is needed to provide the feedback and phase
shift required for the oscillator, and no other external
components are demanded. Instead of a crystal, the
resonator can also be connected between OSC1 and
OSC2 to get a frequency reference, but two external ca

­pacitors in OSC1 and OSC2 are required.

­The WDT oscillator is a free running on-chip RC oscilla

tor, and no external components are required. Even if
the system enters the power down mode, the system
clock is stopped, but the WDT oscillator still works with a

O S C 1

O S C 2

-

-

-

-

-

-

Register Bit No. Label Function

0 EMI Controls the master (global) interrupt (1=enabled; 0=disabled)

1 EEI Controls the external interrupt (1=enabled; 0=disabled)

2 ET0I Controls the Timer/Event Counter 0 interrupt (1=enabled; 0=disabled)

INTC

(0BH)

3 ET1I Controls the Timer/Event Counter 1 interrupt (1=enabled; 0=disabled)

4 EIF External interrupt request flag (1= active; 0= inactive)

5 T0F Internal Timer/Event Counter 0 request flag (1=active; 0=inactive)

6 T1F Internal Timer/Event Counter 1 request flag (1=active; 0=inactive)

7

¾ Unused bit, read as ²0²

INTC register

Rev. 1.40 8 July 16, 2003

HT48CA3

period of approximately 90ms. The WDT oscillator can
be disabled by ROM code option to conserve power.

Watchdog Timer - WDT

The WDT clock source is implemented by a dedicated
RC oscillator (WDT oscillator), instruction clock (system
clock divided by 4), determines the ROM code option.
This timer is designed to prevent a software malfunction
or sequence from jumping to an unknown location with
unpredictable results. The Watchdog Timer can be dis
abled by ROM code option. If the Watchdog Timer is dis
abled, all the executions related to the WDT result in no
operation.

Once the internal WDT oscillator (RC oscillator with a
period of 90ms@3V normally) is selected, it is first di
vided by 256 (8-stage) to get the nominal time-out pe
riod of 23ms@3V. This time-out period may vary with
temperatures, VDD and process variations. By invoking
the WDT prescaler, longer time-out periods can be real
ized. Writing data to WS2, WS1, WS0 (bit 2,1,0 of the
WDTS) can give different time-out periods. If WS2,
WS1, and WS0 are all equal to 1, the division ratio is up
to 1:128, and the maximum time-out period is 2.9s/3V
seconds. If the WDT oscillator is disabled, the WDT
clock may still come from the instruction clock and oper
ates in the same manner except that in the HALT state
the WDT may stop counting and lose its protecting pur­pose. In this situation the logic can only be restarted by
external logic. The high nibble and bit 3 of the WDTS are
reserved for user¢s defined flags, which can be used to
indicate some specified status.

If the device operates in a noisy environment, using the
on-chip RC oscillator (WDT OSC) is strongly recom­mended, since the HALT will stop the system clock.

WS2 WS1 WS0 Division Ratio

000 1:1

001 1:2

010 1:4

011 1:8

1 0 0 1:16

1 0 1 1:32

1 1 0 1:64

1 1 1 1:128

WDTS register

The WDT overflow under normal operation will initialize
²chip reset² and set the status bit ²TO². But in the HALT
mode, the overflow will initialize a ²warm reset² and only
the PC and SP are reset to zero. To clear the contents of
WDT (including the WDT prescaler), three methods are
adopted; external reset (a low level to RES
struction anda ²HALT² instruction. The software instruc
tion include ²CLR WDT² and the other set -²CLR
WDT1² and ²CLR WDT2². Of these two types of instruc

-

tion, only one can be active depending on the ROM

-

code option -²CLR WDT times selection option².Ifthe
²CLR WDT² is selected (i.e. CLR WDT times equal
one), any execution of the ²CLR WDT² instruction will
clear the WDT. In the case that ²CLR WDT1² and ²CLR
WDT2² are chosen (i.e. CLR WDT times equal two),

­these two instructions must be executed to clear the

­WDT; otherwise, the WDT may reset the chip as a result
of time-out.

-

Power Down Operation - HALT

The HALT mode is initialized by the ²HALT² instruction
and results in the following...

·

The system oscillator will be turned off but the WDT

-

oscillator remains running (if the WDT oscillator is se
lected).

·

The contents of the on chip RAM and registers remain
unchanged.

·

WDT and WDT prescaler will be cleared and re­counted again (if the WDT clock is from the WDT os­cillator).

·

All of the I/O ports maintain their original status.

·

The PD flag is set and the TO flag is cleared.

The system can leave the HALT mode by means of an
external reset, an interrupt, an external falling edge sig
nal on port A or a WDT overflow. An external reset
causes a device initialization and the WDT overflow per
forms a ²warm reset². After the TO and PD flags are ex
amined, the reason for chip reset can be determined.
The PD flag is cleared by system power-up or executing
the ²CLR WDT² instruction and is set when executing
the ²HALT² instruction. The TO flag is set if the WDT
time-out occurs, and causes a wake-up that only resets
the PCand SP; the others remain in their original status.

The port A wake-up and interrupt methods can be con
sidered as a continuation of normal execution. Each bit

), software in

-

-

-

-

-

-

-

-

S y s t e m C l o c k / 4

W D T P r e s c a l e r

7 - b i t C o u n t e r

8 - t o - 1 M U X

W D T T i m e - o u t

W S 0 ~ W S 2

W D T
O S C

R O M
C o d e

O p t i o n

S e l e c t

8 - b i t C o u n t e r

Watchdog Timer

Rev. 1.40 9 July 16, 2003

HT48CA3

in port A can be independently selected to wake up the
device by mask option. Awakening from an I/O port
stimulus, the program will resume execution of the next
instruction. If it awakens from an interrupt, two se
quence may occur. If the related interrupt is disabled or
the interrupt is enabled but the stack is full, the program
will resume execution at the next instruction. If the inter
rupt is enabled and the stack is not full, the regular inter
rupt response takes place. If an interrupt request flag is
set to ²1² before entering the HALT mode, the wake-up
function of the related interrupt will be disabled. Once a
wake-up event occurs, it takes 1024 t

(system clock

SYS

period) to resume normal operation. In other words, a
dummy period will be inserted after a wake-up. If the
wake-up results from an interrupt acknowledge signal,
the actual interrupt subroutine execution will be delayed
by one or more cycles. If the wake-up results in the next
instruction execution, this will be executed immediately
after the dummy period is finished.

To minimize power consumption, all the I/O pins should
be carefully managed before entering the HALT status.

Reset

There are threewaysinwhicharesetcanoccur:

·

RES reset during normal operation

·

RES reset during HALT

·

WDT time-out reset during normal operation

The WDT time-out during HALT is different from other
chip reset conditions, since it can perform a ²warm re ­set² that resets only the PC and SP, leaving the other cir­cuits in their original state. Some registers remain un­changed during other reset conditions. Most registers
are reset to the ²initial condition² when the reset condi­tions are met. By examining the PD and TO flags, the
program can distinguish between different ²chip resets².

TO PD RESET Conditions

0 0 RES

u u RES

0 1 RES

reset during power-up

reset during normal operation

wake-up HALT

1 u WDT time-out during normal operation

1 1 WDT wake-up HALT

The functional unit chip reset status are shown below.

PC 000H

Interrupt Disable

-

Prescaler Clear

-

WDT

-

Clear. After master reset,
WDT begins counting

Timer/Event Counter Off

Input/output Ports Input mode

SP Points to the top of the stack

V D D

R E S

S S T T i m e - o u t

C h i p R e s e t

Reset timing chart

V

D D

R E S

Reset circuit

H A L T

W D T

R E S

S S T

O S C 1

1 0 - b i t R i p p l e

C o u n t e r

S y s t e m R e s e t

t

S S T

W a r m R e s e t

C o l d
R e s e t

Note: ²u² stands for unchanged

To guarantee that the system oscillator is started and

Reset configuration

stabilized, the SST (System Start-up Timer) provides an
extra-delay of 1024 system clock pulses when the sys

-

tem reset (power-up, WDT time-out or RES reset) or the
system awakes from the HALT state.

When a system reset occurs, the SST delay is added
during the reset period. Any wake-up from HALT will en

-

able the SST delay.

Rev. 1.40 10 July 16, 2003

HT48CA3

The states of the registers is summarized in the table.

Register

MP0 xxxx xxxx uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu

MP1 xxxx xxxx uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu

BP xxxx xxxx uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu

ACC xxxx xxxx uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu

Program
Counter

TBLP xxxx xxxx uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu

TBLH --xx xxxx --uu uuuu --uu uuuu --uu uuuu --uu uuuu

WDTS 0000 0111 0000 0111 0000 0111 0000 0111 uuuu uuuu

STATUS --00 xxxx --1u uuuu --uu uuuu --01 uuuu --11 uuuu

INTC --00 -000 --00 -000 --00 -000 --00 -000 --uu -uuu

TMR0 xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx uuuu uuuu

TMR0C 00-0 1000 00-0 1000 00-0 1000 00-0 1000 uu-u uuuu

TMR1H xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx uuuu uuuu

TMR1L xxxx xxxx xxxx xxxx xxxx xxxx xxxx xxxx uuuu uuuu

TMR1C 00-0 1--- 00-0 1--- 00-0 1--- 00-0 1--- uu-u u---

PA 1111 1111 1111 1111 1111 1111 1111 1111 uuuu uuuu

PAC 1111 1111 1111 1111 1111 1111 1111 1111 uuuu uuuu

PB 1111 1111 1111 1111 1111 1111 1111 1111 uuuu uuuu

PBC 1111 1111 1111 1111 1111 1111 1111 1111 uuuu uuuu

PC --11 1111 --11 1111 --11 1111 --11 1111 --uu uuuu

PCC --11 1111 --11 1111 --11 1111 --11 1111 --uu uuuu

PF ---- ---1 ---- ---1 ---- ---1 ---- ---1 ---- ---u

PFC ---- ---1 ---- ---1 ---- ---1 ---- ---1 ---- ---u

TBHP xxxx xxxx uuuu uuuu uuuu uuuu uuuu uuuu uuuu uuuu

Reset

(Power On)

0000H 0000H 0000H 0000H 0000H

WDT Time-out

(Normal Operation)

(Normal Operation)

RES

Reset

RES Reset

(HALT)

WDT Time-out

(HALT)*

Note:

²*² stands for warm reset
²u² stands for unchanged
²x² stands for unknown

Rev. 1.40 11 July 16, 2003

HT48CA3

Timer/Event Counter

Two timer/event counters are implemented in the de
vice. The Timer/Event Counter 0 contains an 8-bit pro
grammable count-up counter and the clock may come
from an external source or the system clock. The
Timer/Event Counter 1 contains an 16-bit programma
ble count-up counter and the clock may come from an
external source or the system clock divided by 4.

Of the two timer/event counters, using external clock in
put allows the user to count external events, measure
time internals or pulse widths, or generate an accurate
time base. While using the internal clock allows the user
to generate an accurate time base.

Only the Timer/Event Counter 0 can generate PFD sig
nal by using external or internal clock, and PFD fre

quency is determine by the equation f

/[2´(256-N)].

INT

There are 2 registers related to Timer/Event Counter 0;
TMR0(0DH), TMR0C(0EH). In Timer/Event Counter 0
counting mode (TON=1), writing TMR0 will only put the
written data to preload register (8 bits). The Timer/Event
Counter 0 preload register is changed by each writing
TMR0 operations. Reading TMR0 will also latch the
TMR0 to the destination. The TMR0C is the Timer/Event
Counter 0 control register, which defines the operating
mode, counting enable or disable and active edge.

The TM0, TM1 bits define the operating mode. The
event count mode is used to count external events,
which means the clock source comes from an external
(TMR0) pin. The timer mode functions as a normal timer
with the clock source coming from the f

clock. The

INT

pulse width measurement mode can be used to count
the high or low level duration of the external signal
(TMR0). The counting is based on the f

INT

clock.

In the event count or timer mode, once the Timer/Event
Counter 0 starts counting, it will count from the current
contents in the Timer/Event Counter 0 to FFH. Once
overflow occurs, the counter is reloaded from the
Timer/Event Counter 0 preload register and generates
the corresponding interrupt request flag (T0F; bit 5 of
INTC) at the same time.

In pulse width measurement mode with the TON and TE
bits are equal to one, once the TMR0 has received a
transition fromlow to high (or high to low if the TE bit is 0)
it will start counting until the TMR0 returns to the original
level and reset the TON. The measured result will re
main in the Timer/Event Counter 0 even if the activated
transition occurs again. In other words, only one cycle
measurement can be done. Until setting the TON, the
cycle measurement will function again as long as it re
ceives further transition pulse. Note that, in this operat
ing mode, the Timer/Event Counter 0 starts counting not
according to the logic level but according to the transi
tion edges. In the case of counter overflows, the counter
0 is reloaded from the Timer/Event Counter 0 preload

register and issues the interrupt request just like the
other two modes.

­To enablethe counting operation, the timer ON bit (TON;

­bit 4 of TMR0C) should be set to 1. In the pulse width
measurement mode, the TON will be cleared automati
cally after the measurement cycle is complete. But in the

­other two modes the TON can only be reset by instruc
tions. The overflow of the Timer/Event Counter 0 is one
of the wake-up sources. No matter what the operation

­mode is, writinga0toET0I can disabled the corre

sponding interrupt service.

In the case of Timer/Event Counter 0 Off condition, writ
ing data to the Timer/Event Counter 0 preload register
will also load the data to Timer/Event Counter 0. But if

­the Timer/Event Counter 0 is turned On, data written to

­the Timer/Event Counter 0 will only be kept in the

Timer/Event Counter 0 preload register. The
Timer/Event Counter 0 will still operate until the overflow
occurs (a Timer/Event Counter 0 reloading will occur at
the same time).

When the Timer/Event Counter 0 (reading TMR0) is
read, the clock will be blocked to avoid errors. As this
may results in a counting error, this must be taken into
consideration by the programmer.

The bit 0~2 of the TMR0C can be used to define the
pre-scaling stages of the internal clock sources of
Timer/Event Counter 0. The definitions are as shown.

Label

(TMR0C)

Bits Function

To define the prescaler stages,
PSC2, PSC1, PSC0=

PSC0~
PSC2

0~2

000: f
001: f
010: f
011: f
100: f
101: f
110: f
111: f

INT=fSYS

INT=fSYS

INT=fSYS

INT=fSYS

INT=fSYS

INT=fSYS

INT=fSYS

INT=fSYS

/2
/4
/8
/16
/32
/64
/128
/256

To define the TMR0 active edge of

TE 3

Timer/Event Counter 0
(0=active on low to high;
1=active on high to low)

TON 4

-

¾

To enable/disable timer 0 counting
(0=disabled; 1=enabled)

5

Unused bit, read as ²0²

To define the operating mode
01=Event count mode (external

TM0

-

TM1

-

clock)

6

10=Timer mode (internal clock)

7

11=Pulse width measurement mode

-

00=Unused

TMR0C register

-

-

-

-

Rev. 1.40 12 July 16, 2003

HT48CA3

There are 3 registers related to Timer/Event Counter 1;
TMR1H(0FH), TMR1L(10H), TMR1C(11H). Writing
TMR1L will only put the written data to an internal
lower-order byte buffer (8 bits) and writing TMR1H will
transfer the specified data and the contents of the
lower-order byte buffer to TMR1H and TMR1L preload
registers, respectively. The Timer/Event Counter 1
preload register is changed by each writing TMR1H op
erations. Reading TMR1H will latch the contents of
TMR1H and TMR1L counters to the destination and the
lower-order byte buffer, respectively. Reading the
TMR1L will read the contents of the lower-order byte
buffer. The TMR1C is the Timer/Event Counter 1 control
register, which defines the operating mode, counting en
able or disable and active edge.

The TM0, TM1 bits define the operating mode. The
event count mode is used to count external events,
which means the clock source comes from an external
(TMR1) pin. The timer mode functions as a normal timer
with the clock source coming from the instruction clock.
The pulse width measurement mode can be used to
count the high or low level duration of the external signal
(TMR1). Thecounting is based on the instruction clock.

In the event count or timer mode, once the Timer/Event
Counter 1 starts counting, it will count from the current
contents in the Timer/Event Counter 1 to FFFFH. Once
overflow occurs, the counter is reloaded from the
Timer/Event Counter 1 preload register and generates
the corresponding interrupt request flag (T1F;bit 6 of
INTC) at the same time.

In pulse width measurement mode with the TON and TE
bits are equal to one, once the TMR1 has received a
transition fromlow to high (or high to low if the TE bit is 0)
it will start counting until the TMR1 returns to the original
level and reset the TON. The measured result will re
main in the Timer/Event Counter 1 even if the activated
transition occurs again. In other words, only one cycle
measurement can be done. Until setting the TON, the

­cycle measurement will function again as long as it re
ceives further transition pulse. Note that, in this operat
ing mode, the Timer/Event Counter 1 starts counting not
according to the logic level but according to the transi
tion edges. In the case of counter overflows, the counter
1 is reloaded from the Timer/Event Counter 1 preload

­register and issues the interrupt request just like the
other two modes.

To enablethe counting operation, the timer ON bit (TON;
bit 4 of TMR1C) should be set to 1. In the pulse width
measurement mode, the TON will be cleared automati
cally after the measurement cycle is complete. But in the
other two modes the TON can only be reset by instruc
tions. The overflow of the Timer/Event Counter 1 is one
of the wake-up sources. No matter what the operation
mode is, writinga0toET1I can disabled the corre
sponding interrupt service.

In the case of Timer/Event Counter 1 OFF condition,
writing data to the Timer/Event Counter 1 preload regis­ter will also load the data to Timer/Event Counter 1. But
if the Timer/Event Counter 1 is turned on, data written to
the Timer/Event Counter 1 will only be kept in the

-

-

-

-

-

-

-

f

S Y S

( 1 / 2 ~ 1 / 2 5 6 )

8 - s t a g e P r e s c a l e r

8 - 1 M U X

P S C 2 ~ P S C 0

T M R 1

T M 1
T M 0

T O N

T M R 0

f

I N T

T M 1
T M 0

T O N

T M 1

f

S Y S / 4

T M 0

T E

P u l s e W i d t h
M e a s u r e m e n t
M o d e C o n t r o l

T M 1
T M 0

T E

P u l s e W i d t h
M e a s u r e m e n t
M o d e C o n t r o l

T i m e r / E v e n t C o u n t e r 0

P r e l o a d R e g i s t e r

T i m e r / E v e n t C o u n t e r

Timer/Event Counter 0

1 6 - b i t

T i m e r / E v e n t C o u n t e r

P r e l o a d R e g i s t e r

1 6 - b i t

T i m e r / E v e n t C o u n t e r

( T M R 1 H / T M R 1 L )

Timer/Event Counter 1

D a t a B u s

8 - b i t

( T M R 0 )

D a t a B u s

R e l o a d

R e l o a d

L o w B y t e

B u f f e r

O v e r f l o w
t o I n t e r r u p t

O v e r f l o w t o I n t e r r u p t

2

¸

P F D

Rev. 1.40 13 July 16, 2003

HT48CA3

Timer/Event Counter 1 preload register. The
Timer/Event Counter 1 will still operate until the overflow
occurs (a Timer/Event Counter 1 reloading will occur at
the same time).

When the Timer/Event Counter 1 (reading TMR1H) is
read, the clock will be blocked to avoid errors. As this
may results in a counting error, this must be taken into
consideration by the programmer.

The definitions of the TMR1C are as shown.

Label

(TMR1C)

TE 3

TON 4

TM0
TM1

Input/Output Ports

There are 23 bi-directional input/output lines in the mi­cro-controller, labeled from PA to PC and PF, which are
mapped to the data memory of [12H], [14H], [16H] and
[1CH], respectively. All of these I/O ports can be used as
input and output operations. For input operation, these
ports are non-latching, that is, the inputs must be ready
at the T2 rising edge of instruction ²MOV A,[m]² (m =
12H, 14H, 16H or 1CH). For output operation, all the
data is latched and remains unchanged until the output
latch is rewritten.

Each I/O line has its own control register (PAC, PBC,
PCC, PFC) to control the input/output configuration.
With this control register, CMOS output or Schmitt trig
ger input with or without (depends on options) pull-high
resistor structurescan be reconfigured dynamically (i.e.,
on-the fly) under software control. To function as an in
put, the corresponding latch of the control register has to
be set as ²1². The pull-high resistor (if the pull-high re
sistor is enabled) will be exhibited automatically. The in
put sources also depends on the control register. If the
control register bit is ²1², the input will read the pad state
(²mov² and read-modify-write instructions”). If the con
trol register bit is 0, the contents of the latches will move
to internal data bus (²mov² and read-modify-write in

Bits Function

0~2

¾

¾

Unused bit, read as ²0²

To define the active edge of TMR1
pin input signal
(0/1: activeon low to high/high to low)

To enable/disable timer 1 counting
(0/1: disabled/enabled)

5

Unused bit, read as ²0²

To define the operating mode
01=Event count mode (external
clock)

6

10=Timer mode (internal clock)

7

11=Pulse width measurement mode
00=Unused

TMR1C register

structions). The input paths (pad state or latches) of
read-modify-write instructions are dependent on the
control register bits. For output function, CMOS is the
only configuration. These control registers are mapped
to locations 13H, 15H, 17H and 1DH.

After a chip reset, these input/output lines stay at high
levels (pull-high options) or floating state (non-pull-high
options). Each bit of these input/output latches can be
set or cleared by ²SET [m].i² (m = 12H, 14H, 16H or
1CH) instructions. Some instructions first input data and
then follow the output operations. For example, ²SET
[m].i², ²CLR [m].i², ²CPLA [m]² read the entire port
states into the CPU, execute the defined operations
(bit-operation), and then write the results back to the
latches or the accumulator.

Each line of port A has the capability of waking-up the
device. The highest 2 bits of port C and 7 bits of port F
are not physically implemented; on reading them a ²0² is
returned whereas writing then results in a no-operation.
Pull-high resistors of each port are decided by a option
bit.

The PB0 is pin-shared with PFD signal, respectively. If
the PFD option is selected, the output signal in output
mode of PB0 will be the PFD signal. The input mode al
ways remain its original functions. The PF0 and PC0 are
pin-shared with INT
rectly connected to PF0. The PFD output signal (in out­put mode) are controlled by the PB0 data register only.

The truth table of PB0/PFD is listed below.

PBC (15H) Bit0 I O O O

PB0/PFD Option x PB0 PFD PFD

PB0 (14H) Bit0 x D 0 1

PB0 Pad Status I D 0 PFD

Note: I: Input; O: Output; D: Data

Bank Pointer

There is a bank pointer used to control the program flow

-

to go to any banks. A bank contains 8K´16 address
space. The contents of bank pointer are load into pro
gram counter when the JMP or CALL instruction is exe

-

cuted. The program counter is a 15-bit register whose
contents are used to specify the executed instruction

-

addresses.

­When calling a subroutine or an interrupt event occur

ring, the contents of the program counter are save into
stack registers. If a returning from subroutine occurs,

­the contents of the program counter will restore from

stack registers.

-

and TMR 0. The INT signal is di-

-

-

-

-

Rev. 1.40 14 July 16, 2003

D a t a B u s

W r i t e C o n t r o l R e g i s t e r

C h i p R e s e t

R e a d C o n t r o l R e g i s t e r

W r i t e D a t a R e g i s t e r

( P B 0 O n l y )

R e a d D a t a R e g i s t e r

S y s t e m W a k e - u p

( P A o n l y )

I N T f o r P F 0 O n l y

P F D f o r P B 0 o n l y , c o n t r o l = P B 0 d a t a r e g i s t e r

P B 0

P F D

C o n t r o l B i t

Q

D

Q B

C K

S

D a t a B i t

Q

D

Q B

C K

S

M
U
X

Input/output ports

P U

O P 0 ~ O P 7

M
U
X

P F D E N

( P B 0 O n l y )

HT48CA3

V

D D

P A 0 ~ P A 7
P B 0 / P F D
P B 1 ~ P B 7
P C 0 ~ P C 5
P F 0

Options

The following table shows all kinds of mask option in the MCU. All of the mask options must be defined to ensure proper
system functioning.

Function

PA0~PA7 wake-up enable or disable

PC pull-high enable or disable

PA pull-high enable or disable: Byte option

PF pull-high enable or disable

PB pull-high (PB0~PB3, PB4~PB7) enable or disable: Nibble option

PB0 or PFD

CLR WDT instructions

System oscillators: RC or crystal

WDT enable or disable

WDT clock source: WDTOSC or system clock/4 (T1D)

Rev. 1.40 15 July 16, 2003

HT48CA3

Application Circuits

RC Oscillator for Multiple I/O Applications Crystal or Ceramic Resonator for Multiple I/O

Applications

V

1 0 0 k

0 . 1mF

0 . 1mF

D D

+

4 7mF

P A 0 ~ P A 7

P B 1 ~ P B 7

P C 1 ~ P C 4

P C 5 / T M R 1

P B 0 / P F D

( s e e N o t e )

C *

X ' t a l

C *

1 2 0

W

V D D

R *

O S C 1

O S C 2

V S S

R E S

P B 0 / P F D

P F 0 / I N T
( L e a r n i n g I n p u t )

P C 2

P C 3

P C 4

P C 5 / T M R 1

V D D

W

R

N M O S

o p e n d r a i n

1

O S C 1

O S C

O S C 2

R E S

V S S

I N T / P F 0

T M R 0 / P C 0

V

= 3 V

D D

W

R e c e i v e r

E E P R O M

0 . 1mF

0 . 1mF

V

D D

1 0 0 k

W

C *

( s e e N o t e )

C *

P A 0

P A 1

P A 2

P A 3

P A 4

P A 5

P A 6

P A 7

P B 2

P B 3

P B 4

P B 5

P B 6

P B 7

P C 0 / T M R 0

P C 1

X ' t a l

R *

V D D

O S C 1

O S C 2

R E S

V S S

I N T / P F 0

T M R 0 / P C 0

H T 4 8 C A 3H T 4 8 C A 3

P A 0 ~ P A 7

P B 1 ~ P B 7

P C 1 ~ P C 4

P C 5 / T M R 1

P B 0 / P F D

H T 4 8 C A 3

Note: The resistance and capacitance for reset circuit should be designed to ensure that the VDD is stable and re

mains in a valid range of the operating voltage before bringing RES
The following table shows the R* and C* value according different crystal values.

Crystal or Resonator C* R*

4MHz Crystal 0pF

4MHz Resonator (3 pin) 0pF

4MHz Resonator (2 pin) 10pF

3.58MHz Crystal 0pF

3.58MHz Resonator (2 pin) 25pF

2MHz Crystal & Resonator (2 pin) 25pF

1MHz Crystal 35pF

429kHz Resonator 300pF

455kHz Resonator 300pF

480kHz Resonator 300pF

Rev. 1.40 16 July 16, 2003

to high.

10kW
12kW
12kW
10kW
10kW
10kW
27kW
10kW
10kW

9.1kW

-

Instruction Set Summary

HT48CA3

Mnemonic Description

Arithmetic

ADD A,[m]
ADDM A,[m]
ADD A,x
ADC A,[m]
ADCM A,[m]
SUB A,x
SUB A,[m]
SUBM A,[m]
SBC A,[m]
SBCM A,[m]
DAA [m]

Add data memory to ACC
Add ACC to data memory
Add immediate data to ACC
Add data memory to ACC with carry
Add ACC to data memory with carry
Subtract immediate data from ACC
Subtract data memory from ACC
Subtract data memory from ACC with result in data memory
Subtract data memory from ACC with carry
Subtract data memory from ACC with carry and result in data memory
Decimal adjust ACC for addition with result in data memory

Logic Operation

AND A,[m]
OR A,[m]
XOR A,[m]
ANDM A,[m]
ORM A,[m]
XORM A,[m]
AND A,x
OR A,x
XOR A,x
CPL [m]
CPLA [m]

AND data memory to ACC
OR data memory to ACC
Exclusive-OR data memory to ACC
AND ACC to data memory
OR ACC to data memory
Exclusive-OR ACC to data memory
AND immediate data to ACC
OR immediate data to ACC
Exclusive-OR immediate data to ACC
Complement data memory
Complement data memory with result in ACC

Increment & Decrement

INCA [m]
INC [m]
DECA [m]
DEC [m]

Increment data memory with result in ACC
Increment data memory
Decrement data memory with result in ACC
Decrement data memory

Rotate

RRA [m]
RR [m]
RRCA [m]
RRC [m]
RLA [m]
RL [m]
RLCA [m]
RLC [m]

Rotate data memory right with result in ACC
Rotate data memory right
Rotate data memory right through carry with result in ACC
Rotate data memory right through carry
Rotate data memory left with result in ACC
Rotate data memory left
Rotate data memory left through carry with result in ACC
Rotate data memory left through carry

Data Move

MOV A,[m]
MOV [m],A
MOV A,x

Move data memory to ACC
Move ACC to data memory
Move immediate data to ACC

Bit Operation

CLR [m].i
SET [m].i

Clear bit of data memory
Set bit of data memory

Instruction

Cycle

1

(1)

1

1
1

(1)

1

1
1

(1)

1

1

(1)

1

(1)

1

1
1
1

(1)

1

(1)

1

(1)

1

1
1
1

(1)

1

1

1

(1)

1

1

(1)

1

1

(1)

1

1

(1)

1

1

(1)

1

1

(1)

1

1

(1)

1

1

(1)

1

(1)

1

Flag

Affected

Z,C,AC,OV
Z,C,AC,OV
Z,C,AC,OV
Z,C,AC,OV
Z,C,AC,OV
Z,C,AC,OV
Z,C,AC,OV
Z,C,AC,OV
Z,C,AC,OV
Z,C,AC,OV

C

Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z

Z
Z
Z
Z

None
None

C

C
None
None

C

C

None
None
None

None
None

Rev. 1.40 17 July 16, 2003

HT48CA3

Mnemonic Description

Branch

JMP addr
SZ [m]
SZA [m]
SZ [m].i
SNZ [m].i
SIZ [m]
SDZ [m]
SIZA [m]
SDZA [m]
CALL addr
RET
RET A,x
RETI

Jump unconditionally
Skip if data memory is zero
Skip if data memory is zero with data movement to ACC
Skip if bit i of data memory is zero
Skip if bit i of data memory is not zero
Skip if increment data memory is zero
Skip if decrement data memory is zero
Skip if increment data memory is zero with result in ACC
Skip if decrement data memory is zero with result in ACC
Subroutine call
Return from subroutine
Return from subroutine and load immediate data to ACC
Return from interrupt

Table Read

TABRDC [m]
TABRDL [m]

Read ROM code (current page) to data memory and TBLH
Read ROM code (last page) to data memory and TBLH

Miscellaneous

NOP
CLR [m]
SET [m]
CLR WDT
CLR WDT1
CLR WDT2
SWAP [m]
SWAPA [m]
HALT

No operation
Clear data memory
Set data memory
Clear Watchdog Timer
Pre-clear Watchdog Timer
Pre-clear Watchdog Timer
Swap nibbles of data memory
Swap nibbles of data memory with result in ACC
Enter power down mode

Instruction

Cycle

2

(2)

1

(2)

1

(2)

1

(2)

1

(3)

1

(3)

1

(2)

1

(2)

1

2
2
2
2

(1)

2

(1)

2

1

(1)

1

(1)

1

1
1
1

(1)

1

1
1

Flag

Affected

None
None
None
None
None
None
None
None
None
None
None
None
None

None
None

None
None
None

TO,PD

(4)

TO

,PD

(4)

TO

,PD
None
None

TO,PD

(4)

(4)

Note: x: Immediate data

m: Data memory address

A: Accumulator

i: 0~7 number of bits

addr: Program memory address

Ö: Flag is affected

-: Flag is not affected

(1)

: Ifa loading to the PCLregister occurs, the execution cycle of instructions will be delayed for one more cycle

(four system clocks).

(2)

: Ifa skipping to the next instruction occurs, the execution cycle of instructions will be delayed for one more

cycle (four system clocks). Otherwise the original instruction cycle is unchanged.

(3):(1)

(4)

(2)

and

: The flags may be affected by the execution status. If the Watchdog Timer is cleared by executing the

CLR WDT1 or CLR WDT2 instruction, the TO and PD are cleared.
Otherwise the TO and PD flags remain unchanged.

Rev. 1.40 18 July 16, 2003

HT48CA3

Instruction Definition

ADC A,[m] Add data memory and carry to the accumulator

Description The contents of the specified data memory, accumulator and the carry flag are added si

multaneously, leaving the result in the accumulator.

Operation

Affected flag(s)

ADCM A,[m] Add the accumulator and carry to data memory

Description The contents of the specified data memory, accumulator and the carry flag are added si

Operation

Affected flag(s)

ADD A,[m] Add data memory to the accumulator

Description The contents of the specified data memory and the accumulator are added. The result is

Operation

Affected flag(s)

ACC ¬ ACC+[m]+C

TC2 TC1 TO PD OV Z AC C

¾¾¾¾ÖÖÖÖ

multaneously, leaving the result in the specified data memory.

[m] ¬ ACC+[m]+C

TC2 TC1 TO PD OV Z AC C

¾¾¾¾ÖÖÖÖ

stored in the accumulator.

ACC ¬ ACC+[m]

TC2 TC1 TO PD OV Z AC C

¾¾¾¾ÖÖÖÖ

-

-

ADD A,x Add immediate data to the accumulator

Description The contents of the accumulator and the specified data are added, leaving the result in the

accumulator.

Operation

Affected flag(s)

ADDM A,[m] Add the accumulator to the data memory

Description The contents of the specified data memory and the accumulator are added. The result is

Operation

Affected flag(s)

ACC ¬ ACC+x

TC2 TC1 TO PD OV Z AC C

¾¾¾¾ÖÖÖÖ

stored in the data memory.

[m] ¬ ACC+[m]

TC2 TC1 TO PD OV Z AC C

¾¾¾¾ÖÖÖÖ

Rev. 1.40 19 July 16, 2003

HT48CA3

AND A,[m] Logical AND accumulator with data memory

Description Data in the accumulator and the specified data memory perform a bitwise logical_AND op

eration. The result is stored in the accumulator.

Operation

Affected flag(s)

AND A,x Logical AND immediate data to the accumulator

Description Data in the accumulator and the specified data perform a bitwise logical_AND operation.

Operation

Affected flag(s)

ANDM A,[m] Logical AND data memory with the accumulator

Description Data in the specified data memory and the accumulator perform a bitwise logical_AND op

Operation

Affected flag(s)

ACC ¬ ACC ²AND² [m]

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

The result is stored in the accumulator.

ACC ¬ ACC ²AND² x

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

eration. The result is stored in the data memory.

[m] ¬ ACC ²AND² [m]

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

-

-

CALL addr Subroutine call

Description The instruction unconditionally calls a subroutine located at the indicated address. The

program counter increments once to obtain the address of the next instruction, and pushes
this onto the stack. The indicated address is then loaded. Program execution continues
with the instruction at this address.

Operation

Affected flag(s)

CLR [m] Clear data memory

Description The contents of the specified data memory are cleared to 0.

Operation

Affected flag(s)

Stack ¬ PC+1
PC ¬ addr

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

[m] ¬ 00H

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

Rev. 1.40 20 July 16, 2003

HT48CA3

CLR [m].i Clear bit of data memory

Description The bit i of the specified data memory is cleared to 0.

Operation

Affected flag(s)

CLR WDT Clear Watchdog Timer

Description The WDT is cleared (clears the WDT). The power down bit (PD) and time-out bit (TO) are

Operation

Affected flag(s)

CLR WDT1 Preclear Watchdog Timer

Description Together with CLR WDT2, clears the WDT. PD and TO are also cleared. Only execution of

Operation

Affected flag(s)

[m].i ¬ 0

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

cleared.

WDT ¬ 00H
PD and TO ¬ 0

TC2 TC1 TO PD OV Z AC C

¾¾

this instruction without the other preclear instruction just sets the indicated flag which im
plies this instruction has been executed and the TO and PD flags remain unchanged.

WDT ¬ 00H*
PD and TO ¬ 0*

TC2 TC1 TO PD OV Z AC C

¾¾

00

0* 0*

¾¾¾¾

¾¾¾¾

-

CLR WDT2 Preclear Watchdog Timer

Description Together with CLR WDT1, clears the WDT. PD and TO are also cleared. Only execution of

this instruction without the other preclear instruction, sets the indicated flag which implies
this instruction has been executed and the TO and PD flags remain unchanged.

Operation

Affected flag(s)

CPL [m] Complement data memory

Description

Operation

Affected flag(s)

WDT ¬ 00H*
PD and TO ¬ 0*

TC2 TC1 TO PD OV Z AC C

¾¾

Each bit of the specified data memory is logically complemented (1¢s complement). Bits
which previously contained a 1 are changed to 0 and vice-versa.

[m] ¬ [m

]

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

0* 0*

¾¾¾¾

Rev. 1.40 21 July 16, 2003

HT48CA3

CPLA [m] Complement data memory and place result in the accumulator

Description

Operation

Affected flag(s)

DAA [m] Decimal-Adjust accumulator for addition

Description The accumulator value is adjusted to the BCD (Binary Coded Decimal) code. The accumu

Operation If ACC.3~ACC.0 >9 or AC=1

Affected flag(s)

Each bit of the specified data memory is logically complemented (1¢s complement). Bits
which previously contained a 1 are changed to 0 and vice-versa. The complemented result
is stored in the accumulator and the contents of the data memory remain unchanged.

ACC ¬ [m

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

lator is divided into two nibbles. Each nibble is adjusted to the BCD code and an internal
carry (AC1) will be done if the low nibble of the accumulator is greater than 9. The BCD ad
justment is done by adding 6 to the original value if the original value is greater than 9 or a
carry (AC or C) is set; otherwise the original value remains unchanged. The result is stored
in the data memory and only the carry flag (C) may be affected.

then [m].3~[m].0 ¬ (ACC.3~ACC.0)+6, AC1=AC
else [m].3~[m].0 ¬ (ACC.3~ACC.0), AC1=0
and
If ACC.7~ACC.4+AC1 >9 or C=1
then [m].7~[m].4 ¬ ACC.7~ACC.4+6+AC1,C=1
else [m].7~[m].4 ¬ ACC.7~ACC.4+AC1,C=C

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾ Ö

]

-

-

DEC [m] Decrement data memory

Description Data in the specified data memory is decremented by 1.

Operation

Affected flag(s)

DECA [m] Decrement data memory and place result in the accumulator

Description Data in the specified data memory is decremented by 1, leaving the result in the accumula

Operation

Affected flag(s)

[m] ¬ [m]-1

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

tor. The contents of the data memory remain unchanged.

ACC ¬ [m]-1

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

-

Rev. 1.40 22 July 16, 2003

HT48CA3

HALT Enter power down mode

Description This instruction stops program execution and turns off the system clock. The contents of

the RAM and registers are retained. The WDT and prescaler are cleared. The power down
bit (PD) is set and the WDT time-out bit (TO) is cleared.

Operation

Affected flag(s)

INC [m] Increment data memory

Description Data in the specified data memory is incremented by 1

Operation

Affected flag(s)

INCA [m] Increment data memory and place result in the accumulator

Description Data in the specified data memory is incremented by 1, leaving the result in the accumula

Operation

Affected flag(s)

PC ¬ PC+1
PD ¬ 1
TO ¬ 0

TC2 TC1 TO PD OV Z AC C

¾¾

[m] ¬ [m]+1

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

tor. The contents of the data memory remain unchanged.

ACC ¬ [m]+1

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

01

¾¾¾¾

-

JMP addr Directly jump

Description The program counter are replaced with the directly-specified address unconditionally, and

control is passed to this destination.

Operation

Affected flag(s)

MOV A,[m] Move data memory to the accumulator

Description The contents of the specified data memory are copied to the accumulator.

Operation

Affected flag(s)

PC ¬addr

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

ACC ¬ [m]

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

Rev. 1.40 23 July 16, 2003

HT48CA3

MOV A,x Move immediate data to the accumulator

Description The 8-bit data specified by the code is loaded into the accumulator.

Operation

Affected flag(s)

MOV [m],A Move the accumulator to data memory

Description The contents of the accumulator are copied to the specified data memory (one of the data

Operation

Affected flag(s)

NOP No operation

Description No operation is performed. Execution continues with the next instruction.

Operation

Affected flag(s)

ACC ¬ x

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

memories).

[m] ¬ACC

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

PC ¬ PC+1

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

OR A,[m] Logical OR accumulator with data memory

Description Data in the accumulator and the specified data memory (one of the data memories) per-

form a bitwise logical_OR operation. The result is stored in the accumulator.

Operation

Affected flag(s)

OR A,x Logical OR immediate data to the accumulator

Description Data in the accumulator and the specified data perform a bitwise logical_OR operation.

Operation

Affected flag(s)

ORM A,[m] Logical OR data memory with the accumulator

Description Data in the data memory (one of the data memories) and the accumulator perform a

Operation

Affected flag(s)

ACC ¬ ACC ²OR² [m]

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

The result is stored in the accumulator.

ACC ¬ ACC ²OR² x

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

bitwise logical_OR operation. The result is stored in the data memory.

[m] ¬ACC ²OR² [m]

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

Rev. 1.40 24 July 16, 2003

HT48CA3

RET Return from subroutine

Description The program counter is restored from the stack. This is a 2-cycle instruction.

Operation

Affected flag(s)

RET A,x Return and place immediate data in the accumulator

Description The program counter is restored from the stack and the accumulator loaded with the speci

Operation

Affected flag(s)

RETI Return from interrupt

Description The program counter is restored from the stack, and interrupts are enabled by setting the

Operation

Affected flag(s)

PC ¬ Stack

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

fied 8-bit immediate data.

PC ¬ Stack
ACC ¬ x

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

EMI bit. EMI is the enable master (global) interrupt bit.

PC ¬ Stack
EMI ¬ 1

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

-

RL [m] Rotate data memory left

Description The contents of the specified data memory are rotated 1 bit left with bit 7 rotated into bit 0.

Operation

Affected flag(s)

RLA [m] Rotate data memory left and place result in the accumulator

Description Data in the specified data memory is rotated 1 bit left with bit 7 rotated into bit 0, leaving the

Operation

Affected flag(s)

[m].(i+1) ¬ [m].i; [m].i:bit i of the data memory (i=0~6)
[m].0 ¬ [m].7

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

rotated result in the accumulator. The contents of the data memory remain unchanged.

ACC.(i+1) ¬ [m].i; [m].i:bit i of the data memory (i=0~6)
ACC.0 ¬ [m].7

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

Rev. 1.40 25 July 16, 2003

HT48CA3

RLC [m] Rotate data memory left through carry

Description The contents of the specified data memory and the carry flag are rotated 1 bit left. Bit 7 re

places the carry bit; the original carry flag is rotated into the bit 0 position.

Operation

Affected flag(s)

RLCA [m] Rotate left through carry and place result in the accumulator

Description Data in the specified data memory and the carry flag are rotated 1 bit left. Bit 7 replaces the

Operation

Affected flag(s)

[m].(i+1) ¬ [m].i; [m].i:bit i of the data memory (i=0~6)
[m].0 ¬ C
C ¬ [m].7

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾ Ö

carry bit and the original carry flag is rotated into bit 0 position. The rotated result is stored
in the accumulator but the contents of the data memory remain unchanged.

ACC.(i+1) ¬ [m].i; [m].i:bit i of the data memory (i=0~6)
ACC.0 ¬ C
C ¬ [m].7

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾ Ö

-

RR [m] Rotate data memory right

Description The contents of the specified data memory are rotated 1 bit right with bit 0 rotated to bit 7.

Operation

Affected flag(s)

RRA [m] Rotate right and place result in the accumulator

Description Data in the specified data memory is rotated 1 bit right with bit 0 rotated into bit 7, leaving

Operation

Affected flag(s)

RRC [m] Rotate data memory right through carry

Description The contents of the specified data memory and the carry flag are together rotated 1 bit

Operation

Affected flag(s)

[m].i ¬ [m].(i+1); [m].i:bit i of the data memory (i=0~6)
[m].7 ¬ [m].0

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

the rotatedresult in the accumulator. The contents of thedata memory remain unchanged.

ACC.(i) ¬ [m].(i+1); [m].i:bit i of the data memory (i=0~6)
ACC.7 ¬ [m].0

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

right. Bit 0 replaces the carry bit; the original carry flag is rotated into the bit 7 position.

[m].i ¬ [m].(i+1); [m].i:bit i of the data memory (i=0~6)
[m].7 ¬ C
C ¬ [m].0

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾ Ö

Rev. 1.40 26 July 16, 2003

HT48CA3

RRCA [m] Rotate right through carry and place result in the accumulator

Description Data of the specified data memory and the carry flag are rotated 1 bit right. Bit 0 replaces

the carry bit and the original carry flag is rotated into the bit 7 position. The rotated result is
stored in the accumulator. The contents of the data memory remain unchanged.

Operation

Affected flag(s)

SBC A,[m] Subtract data memory and carry from the accumulator

Description The contents of the specified data memory and the complement of the carry flag are sub

Operation

Affected flag(s)

SBCM A,[m] Subtract data memory and carry from the accumulator

Description The contents of the specified data memory and the complement of the carry flag are sub

Operation

Affected flag(s)

ACC.i ¬ [m].(i+1); [m].i:bit i of the data memory (i=0~6)
ACC.7 ¬ C
C ¬ [m].0

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾ Ö

tracted from the accumulator, leaving the result in the accumulator.

ACC ¬ ACC+[m

TC2 TC1 TO PD OV Z AC C

¾¾¾¾ÖÖÖÖ

tracted from the accumulator, leaving the result in the data memory.

[m] ¬ ACC+[m

TC2 TC1 TO PD OV Z AC C

¾¾¾¾ÖÖÖÖ

]+C

]+C

-

-

SDZ [m] Skip if decrement data memory is 0

Description The contents of the specified data memory are decremented by 1. If the result is 0, the next

instruction is skipped. If the result is 0, the following instruction, fetched during the current
instruction execution, is discarded and a dummy cycle is replaced to get the proper instruc
tion (2 cycles). Otherwise proceed with the next instruction (1 cycle).

Operation

Affected flag(s)

SDZA [m] Decrement data memory and place result in ACC, skip if 0

Description The contents of the specified data memory are decremented by 1. If the result is 0, the next

Operation

Affected flag(s)

Skip if ([m]-1)=0, [m] ¬ ([m]-1)

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

instruction is skipped. The result is stored in the accumulator but the data memory remains
unchanged. If the result is 0, the following instruction, fetched during the current instruction
execution, is discarded and a dummy cycle is replaced to get the proper instruction (2 cy
cles). Otherwise proceed with the next instruction (1 cycle).

Skip if ([m]-1)=0, ACC ¬ ([m]-1)

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

-

-

Rev. 1.40 27 July 16, 2003

HT48CA3

SET [m] Set data memory

Description Each bit of the specified data memory is set to 1.

Operation

Affected flag(s)

SET [m]. i Set bit of data memory

Description Bit i of the specified data memory is set to 1.

Operation

Affected flag(s)

SIZ [m] Skip if increment data memory is 0

Description The contents of the specified data memory are incremented by 1. If the result is 0, the fol

Operation

Affected flag(s)

[m] ¬ FFH

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

[m].i ¬ 1

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

lowing instruction, fetched during the current instruction execution, is discarded and a
dummy cycle is replaced to get the proper instruction (2 cycles). Otherwise proceed with
the next instruction (1 cycle).

Skip if ([m]+1)=0, [m] ¬ ([m]+1)

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

-

SIZA [m] Increment data memory and place result in ACC, skip if 0

Description The contents of the specified data memory are incremented by 1. If the result is 0, the next

instruction is skipped and the result is stored in the accumulator. The data memory re­mains unchanged. If the result is 0, the following instruction, fetched during the current in­struction execution, is discarded and a dummy cycle is replaced to get the proper
instruction (2 cycles). Otherwise proceed with the next instruction (1 cycle).

Operation

Affected flag(s)

SNZ [m].i Skip if bit i of the data memory is not 0

Description If bit i of the specified data memory is not 0, the next instruction is skipped. If bit i of the data

Operation

Affected flag(s)

Skip if ([m]+1)=0, ACC ¬ ([m]+1)

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

memory is not 0, the following instruction, fetched during the current instruction execution,
is discarded and a dummy cycle is replaced to get the proper instruction (2 cycles). Other
wise proceed with the next instruction (1 cycle).

Skip if [m].i¹0

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

-

Rev. 1.40 28 July 16, 2003

HT48CA3

SUB A,[m] Subtract data memory from the accumulator

Description The specified data memory is subtracted from the contents of the accumulator, leaving the

result in the accumulator.

Operation

Affected flag(s)

SUBM A,[m] Subtract data memory from the accumulator

Description The specified data memory is subtracted from the contents of the accumulator, leaving the

Operation

Affected flag(s)

SUB A,x Subtract immediate data from the accumulator

Description The immediate data specified by the code is subtracted from the contents of the accumula

Operation

Affected flag(s)

ACC ¬ ACC+[m

TC2 TC1 TO PD OV Z AC C

¾¾¾¾ÖÖÖÖ

result in the data memory.

[m] ¬ ACC+[m

TC2 TC1 TO PD OV Z AC C

¾¾¾¾ÖÖÖÖ

tor, leaving the result in the accumulator.

ACC ¬ ACC+x

TC2 TC1 TO PD OV Z AC C

¾¾¾¾ÖÖÖÖ

]+1

]+1

+1

-

SWAP [m] Swap nibbles within the data memory

Description The low-order and high-order nibbles of the specified data memory (1 of the data memo-

ries) are interchanged.

Operation

Affected flag(s)

SWAPA [m] Swap data memory and place result in the accumulator

Description The low-order and high-order nibbles of the specified data memory are interchanged, writ

Operation

Affected flag(s)

[m].3~[m].0 « [m].7~[m].4

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

ing the result to the accumulator. The contents of the data memory remain unchanged.

ACC.3~ACC.0 ¬ [m].7~[m].4
ACC.7~ACC.4 ¬ [m].3~[m].0

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

-

Rev. 1.40 29 July 16, 2003

HT48CA3

SZ [m] Skip if data memory is 0

Description If the contents of the specified data memory are 0, the following instruction, fetched during

the current instruction execution, is discarded and a dummy cycle is replaced to get the
proper instruction (2 cycles). Otherwise proceed with the next instruction (1 cycle).

Operation Skip if [m]=0

Affected flag(s)

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

SZA [m] Move data memory to ACC, skip if 0

Description The contents of the specified data memory are copied to the accumulator. If the contents is

0, the following instruction, fetched during the current instruction execution, is discarded
and a dummy cycle is replaced to get the proper instruction (2 cycles). Otherwise proceed
with the next instruction (1 cycle).

Operation Skip if [m]=0

Affected flag(s)

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

SZ [m].i Skip if bit i of the data memory is 0

Description If bit i of the specified data memory is 0, the following instruction, fetched during the current

instruction execution, is discarded and a dummy cycle is replaced to get the proper instruc
tion (2 cycles). Otherwise proceed with the next instruction (1 cycle).

Operation Skip if [m].i=0

Affected flag(s)

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

-

TABRDC [m] Move the ROM code (current page) to TBLH and data memory

Description The low byte of ROM code (current page) addressed by the table pointer (TBLP) is moved

to the specified data memory and the high byte transferred to TBLH directly.

Operation

Affected flag(s)

TABRDL [m] Move the ROM code (last page) to TBLH and data memory

Description The low byte of ROM code (last page) addressed by the table pointer (TBLP) is moved to

Operation

Affected flag(s)

Rev. 1.40 30 July 16, 2003

[m] ¬ ROM code (low byte)
TBLH ¬ ROM code (high byte)

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

the data memory and the high byte transferred to TBLH directly.

[m] ¬ ROM code (low byte)
TBLH ¬ ROM code (high byte)

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾¾¾¾

HT48CA3

XOR A,[m] Logical XOR accumulator with data memory

Description Data in the accumulator and the indicated data memory perform a bitwise logical Exclu

sive_OR operation and the result is stored in the accumulator.

Operation

Affected flag(s)

XORM A,[m] Logical XOR data memory with the accumulator

Description Data in the indicated data memory and the accumulator perform a bitwise logical Exclu

Operation

Affected flag(s)

XOR A,x Logical XOR immediate data to the accumulator

Description Data in the accumulator and the specified data perform a bitwise logical Exclusive_OR op

Operation

Affected flag(s)

ACC ¬ ACC ²XOR² [m]

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

sive_OR operation. The result is stored in the data memory. The 0 flag is affected.

[m] ¬ ACC ²XOR² [m]

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

eration. The result is stored in the accumulator. The 0 flag is affected.

ACC ¬ ACC ²XOR² x

TC2 TC1 TO PD OV Z AC C

¾¾¾¾¾Ö¾¾

-

-

-

Rev. 1.40 31 July 16, 2003

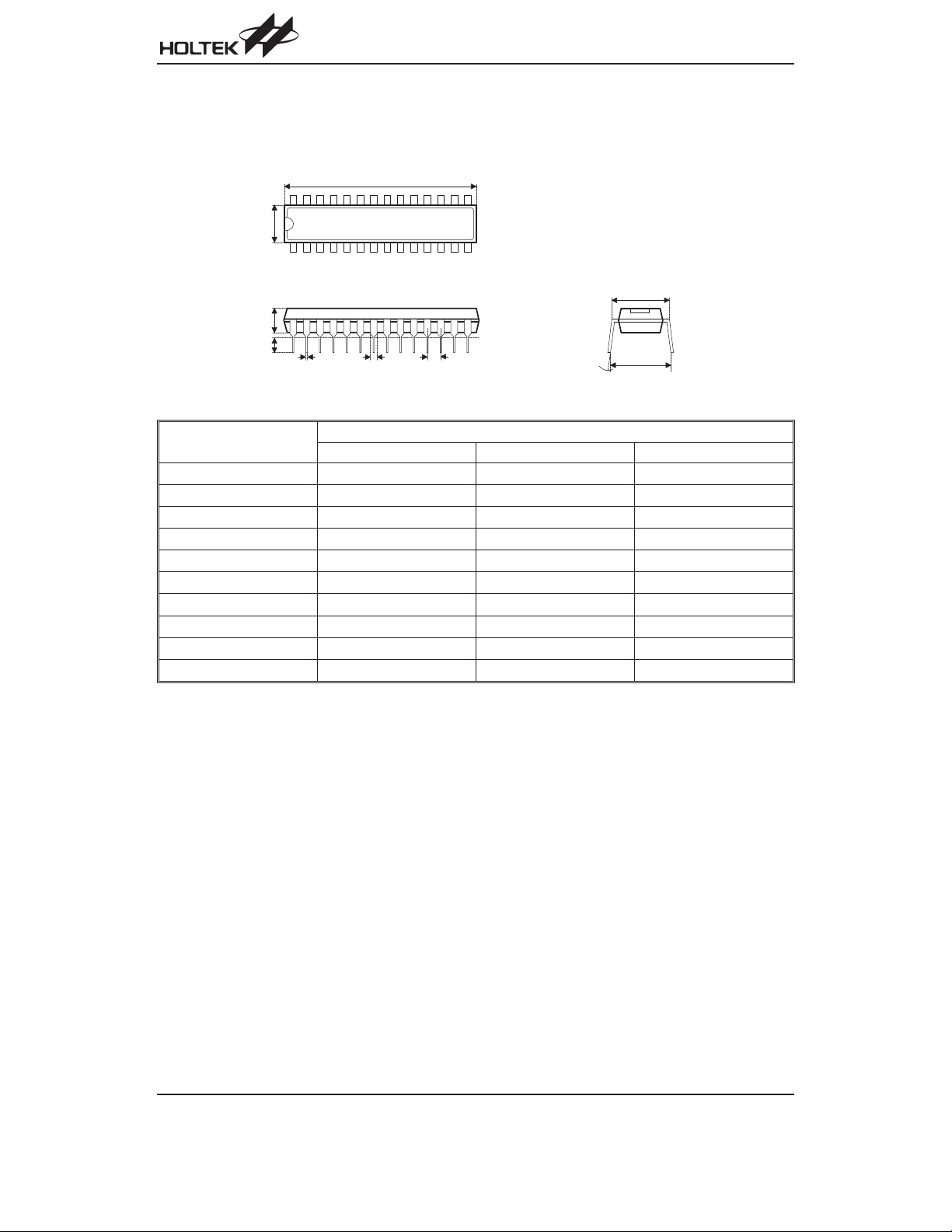

Package Information

28-pin SKDIP (300mil) Outline Dimensions

A

HT48CA3

Symbol

1

C

D

E

F

Min. Nom. Max.

2 8

B

A 1375

B 278

C 125

D 125

E16

F50

G

¾

H 295

I 330

1 5

1 4

H

G

a

I

Dimensions in mil

¾
¾
¾
¾
¾
¾

100

¾
¾

a 0°¾15°

1395

298

135

145

20

70

¾

315

375

Rev. 1.40 32 July 16, 2003

28-pin SOP (300mil) Outline Dimensions

HT48CA3

2 8

A

1

C

C '

D

E

Symbol

A 394

B 290

C14

C¢

D92

E

F4

G32

H4

1 5

B

1 4

G

H

F

a

Dimensions in mil

Min. Nom. Max.

¾
¾
¾

697

¾
¾

¾

50

¾¾
¾
¾

a 0°¾10°

419

300

20

713

104

¾

38

12

Rev. 1.40 33 July 16, 2003

Product Tape and Reel Specifications

Reel Dimensions

HT48CA3

T 2

A

B

T 1

D

SOP 28W (300mil)

Symbol Description Dimensions in mm

A Reel Outer Diameter

B Reel Inner Diameter

C Spindle Hole Diameter

D Key Slit Width

T1 Space Between Flange

T2 Reel Thickness

330±1.0

62±1.5

13.0+0.5

2.0±0.5

24.8+0.3

30.2±0.2

C

-0.2

-0.2

Rev. 1.40 34 July 16, 2003

Carrier Tape Dimensions

HT48CA3

D

E

F

PD 1

P 1P 0

W

A 0

B 0

C

SOP 28W (300mil)

Symbol Description Dimensions in mm

W Carrier Tape Width

P Cavity Pitch

E Perforation Position

F Cavity to Perforation (Width Direction)

24.0±0.3

12.0±0.1

1.75±0.1

11.5±0.1

D Perforation Diameter 1.5+0.1

D1 Cavity Hole Diameter 1.5+0.25

P0 Perforation Pitch

P1 Cavity to Perforation (Length Direction)

A0 Cavity Length

B0 Cavity Width

K0 Cavity Depth

t Carrier Tape Thickness

4.0±0.1

2.0±0.1

10.85±0.1

18.34±0.1

2.97±0.1

0.35±0.01

C Cover Tape Width 21.3

t

K 0

Rev. 1.40 35 July 16, 2003

HT48CA3

Holtek Semiconductor Inc. (Headquarters)

No.3, Creation Rd. II, Science-based Industrial Park, Hsinchu, Taiwan
Tel: [phone]
Fax: [phone]
http://www.holtek.com.tw

Holtek Semiconductor Inc. (Sales Office)

11F, No.576, Sec.7 Chung Hsiao E. Rd., Taipei, Taiwan
Tel: [phone]
Fax: [phone]
Fax: [phone] (International sales hotline)

Holtek Semiconductor (Shanghai) Inc.

7th Floor, Building 2, No.889, Yi Shan Rd., Shanghai, China
Tel: [phone]
Fax: [phone]
http://www.holtek.com.cn

Holtek Semiconductor (Hong Kong) Ltd.

Block A, 3/F, Tin On Industrial Building, 777-779 Cheung Sha Wan Rd., Kowloon, Hong Kong
Tel: [phone]
Fax: [phone]

Holmate Semiconductor, Inc.

46712 Fremont Blvd., Fremont, CA 94538
Tel: [phone]
Fax: [phone]
http://www.holmate.com

Copyright Ó 2003 by HOLTEK SEMICONDUCTOR INC.

The information appearing in this Data Sheet is believed to be accurate at the time of publication. However, Holtek as
sumes no responsibility arising from the use of the specifications described. The applications mentioned herein are used
solely for the purpose of illustration and Holtek makes no warranty or representation that such applications will be suitable
without further modification, nor recommends the use of its products for application that may present a risk to human life
due to malfunction or otherwise. Holtek¢s products are not authorized for use as critical components in life support devices
or systems. Holtek reserves the right to alter its products without prior notification. For the most up-to-date information,
please visit our web site at http://www.holtek.com.tw.

-

Rev. 1.40 36 July 16, 2003
