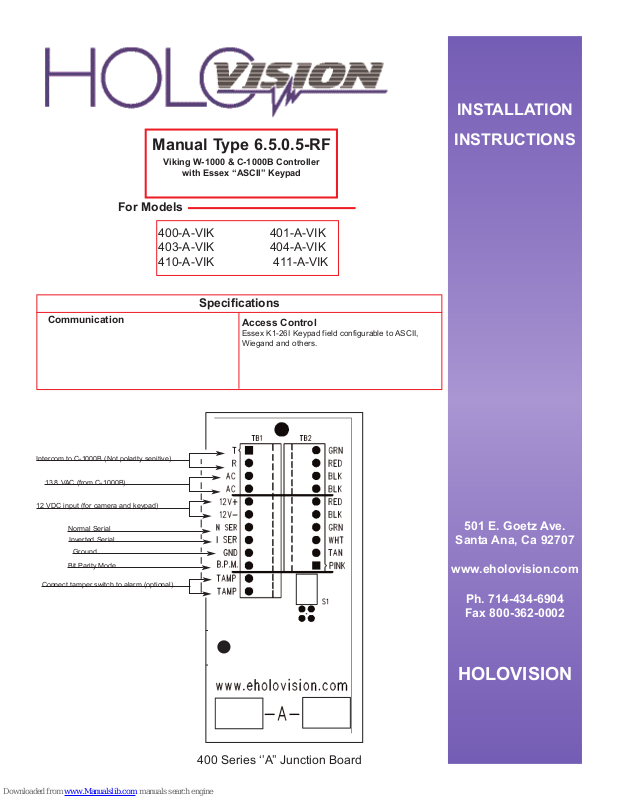

HOLOVISION 400-A-VIK, 403-A-VIK, 401-A-VIK, 404-A-VIK, 410-A-VIK Installation Instructions Manual
...
INSTALLATION
Communication
Manual Type 6.5.0.5-RF
Viking W-1000 & C-1000B Controller
For Models
400-A-VIK 401-A-VIK
403-A-VIK 404-A-VIK
410-A-VIK 411-A-VIK
INSTRUCTIONS
with Essex “ASCII” Keypad
Specifications
Access Control
Essex K1-26I Keypad field configurable to ASCII,
Wiegand and others.
Intercom to C-1000B (Not polarity senitive)
13.8 VAC (from C-1000B)
12 VDC input (for camera and keypad)
Normal Serial
Inverted Serial
Ground
Bit Parity Mode
Connect tamper switch to alarm (optional)
501 E. Goetz Ave.
Santa Ana, Ca 92707
www.eholovision.com
Ph. 714-434-6904
Fax 800-362-0002
HOLOVISION

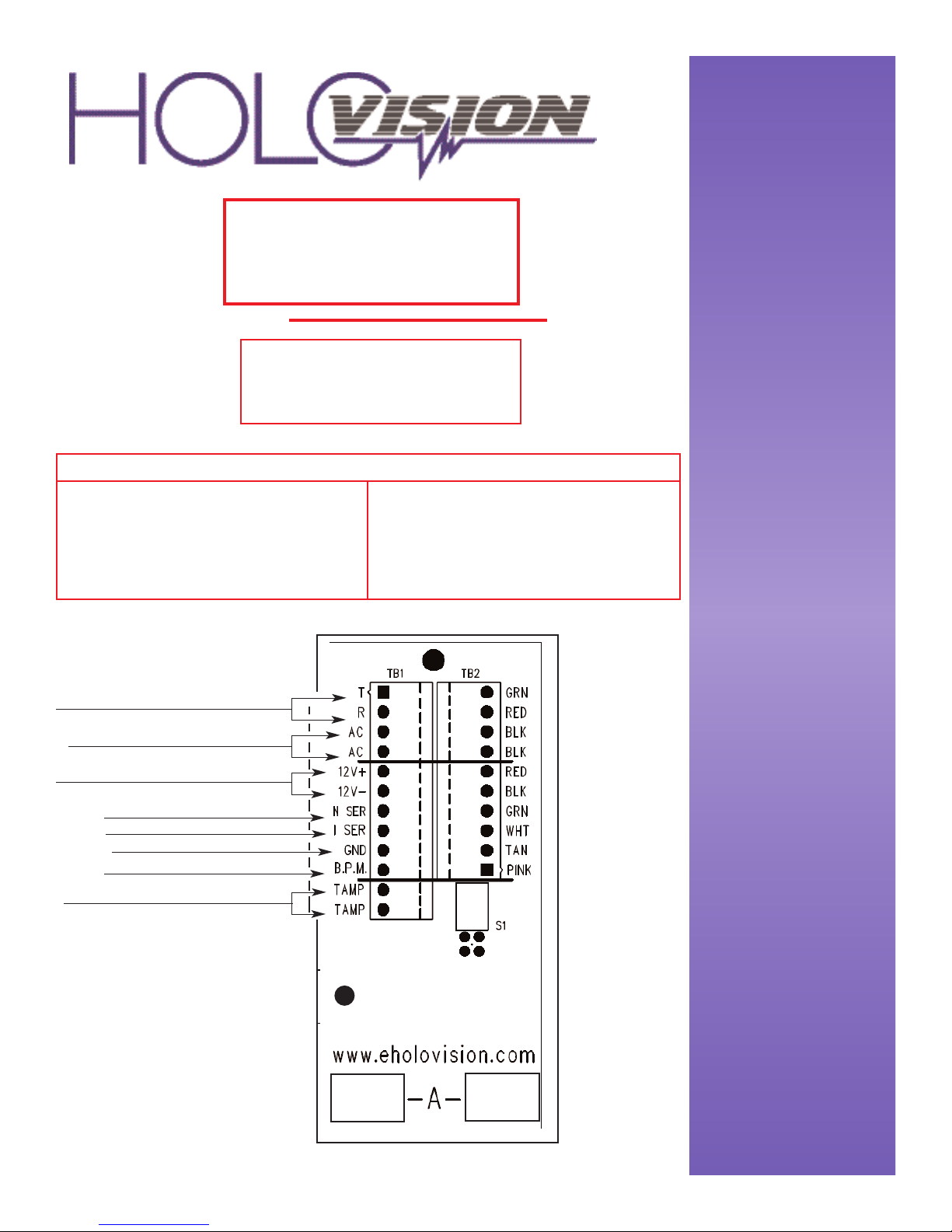

400 Series ‘’A’’ Junction Board

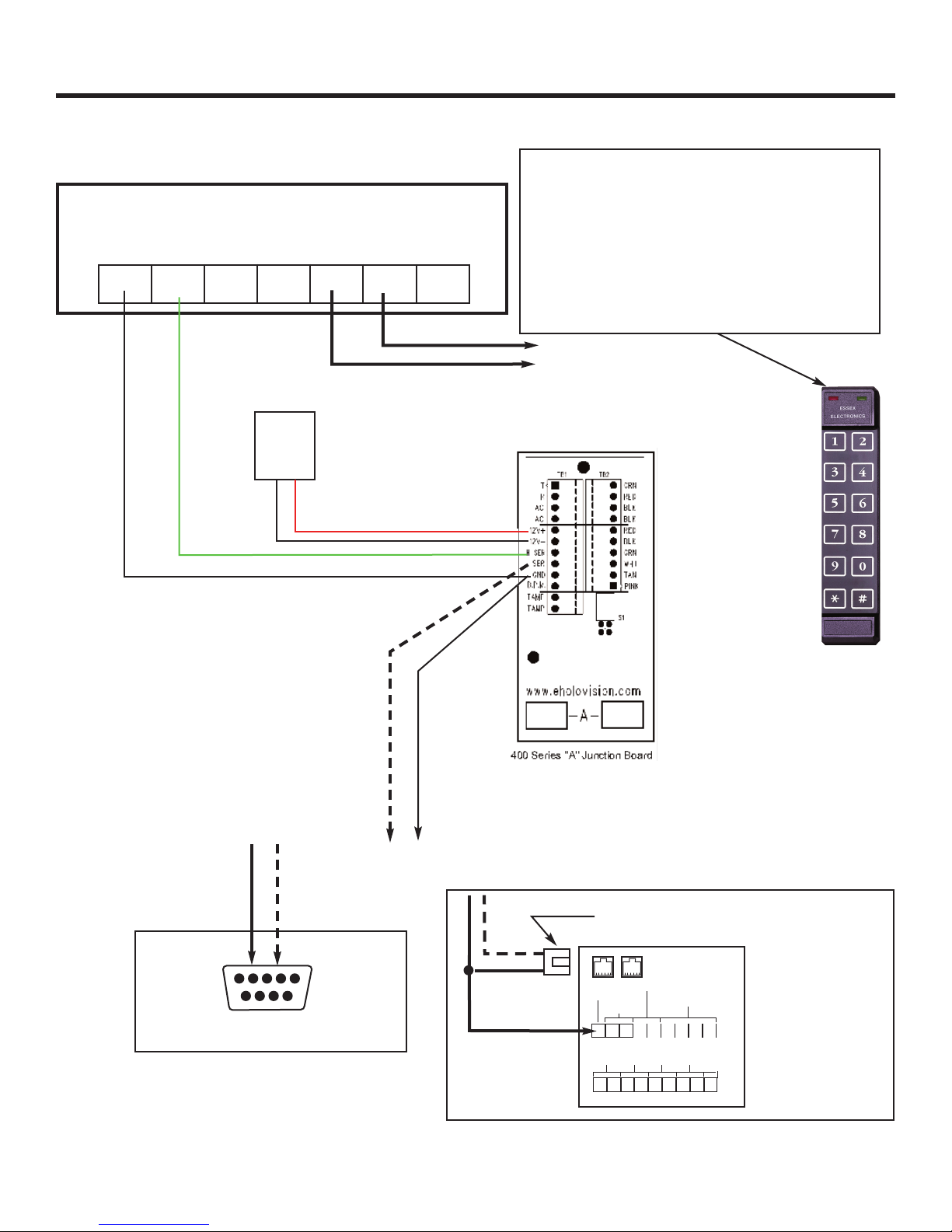

ASCII Connection to Crestron or HAI 400
The red LED is normally on all of the
Automation System Relays
(Typical of Crestron or HAI)
Red Green LED control
NO COM NC NO COM NC
12vDC
1.5A
Gate Control
o
c
e
t
a
g
To
l
ro
t
n
time. When a valid code is entered, the
relay controlling the LEDs would close,
and the green light would go on
(momentarily). Note, this relay must be
programmed in Crestron or HAI in order
for this to take place.
Green
Black
Black to pin 5
Crestron Serial Port
Crestron
K1-26I
ASCII Keypad
To Automation System
(see details below)
To HAI serial port:
White to pin 2
e
t
i
h
W
Black
Viewed with ‘’tit’’ up
B
la
c
k t
o “
G
r
n
RJ-11 Black = pin 1 White = pin 4 (RJ-11 is 4 pin)
RJ-25 Black = pin 2 White = pin 5 (RJ-25 is 6 pin)
12V Switched
GRD
24VAC
d
”
Z1
-
12V AUX
- - -
Z2 Z3
Z4 Z5
---
Page 2 Type 6.5.0.5-RF
HAI
Viking C-1000B Wiring Diagram
House
Telephones
Incoming CO
13.8 VAC
1.25A
VIKING M
PHONE LINE INPUT
KEYLESS CONTACT
LINE OUT TO PHONES
EARTH GND
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
odel C-1000B
DOOR BOX POWER
DOOR BOX 1
OFF ON
DOOR STRIKE 1
DOOR BOX 2
1 2 3
DOOR STRIKE 2
TO GATE
CONTROLLER OR “REMOTE
TERMINALS” ON ASCII
CONTROLLER
12vDC
For Camera
1.5A
To Automation System Relay NO & COM
Page 3 TYPE 6.5.0.5-RF
To Automation System
W-1000 Adjustments and Programming
Microphone Volume
In certain noisy locations (traffic or wind), the microphone volume may need to be decreased. A symptom of this is one-way talk path, in which the distant party cannot be
eard over the speaker. A “MIC VOL” adjustment is provided on the doorphone for increasing or decreasing the microphone volume.
h
Speaker Volume
The “SPKR VOL” pot can be adjusted to increase or decrease the speaker volume to the desired level.
Maximum Number of Rings
The maximum number of rings can be adjusted using the DIP switches.
Sw 1 Sw 2 Max Rings
OFF OFF 2
ON OFF 3
OFF ON 10
ON ON 30
+
1 2
ON
Spkr Vol
+
Mic Vol
+
1 2
ON ON
The C-1000 controller is factory set to work right out of the box. If customization of
the default settings is required, see the steps listed below. Refer to the C-1000
manual for additional options
C-1000B Door Controller Programming
Step Action
1 Disconnect the PHONE LINE INPUT.
2 Slide the TALK BATTERY switch to the ON position.
3 Move DIP SWITCH 2 from OFF to ON.
4 Connect a phone to terminals 4 & 5 - LINE OUT TO PHONES.
5 Pick up the phone (you will hear a double beep - indicating that you have accessed the PROGRAMMING MODE).
6 You can now Touch Tone program the features listed below. SEE HOLOVISION Programming NOTES.
7 When Finished, hang up and move DIP SWITCH 2 to the OFF position
8 Slide the TALK BATTERY switch back to the OFF position
9 Reconnect line to PHONE LINE OUT
Page 4 TYPE 6.5.0.5-RF
HOLOVISION’s Programming Notes
Doorstrike Activation Time - Generally the default setting of 1/2 sec is fine. The momentary contact can open a motorized gate, or activate the relay on the
“S-12” keypad. For other keypad types this will be changed.
Doorbell Mode (*1)- phones will not ring when doorbell is pushed. This is useful when conventional door chimes are desired. In order to use this feature, the
Auxiliary Contacts must be programmed. (see above)
Custom Ring Mode (*2)- Distinguishes doorbox ring from CO ring when connected to KSU.
CCTV Video Control Mode (*8)- The C-1000B can switch 2 CCTV cameras, displaying the camera at the doorbox which initiates the call. This mode cannot
e used when the “Auxiliary Contacts” are being used.
b
Disable Special Modes (*0) - Use this command to disable (clear) all special modes programmed.
REFER TO C-1000B MANUAL FOR MORE INFORMATION ON THESE, AND OTHER MODES OF OPERATION.
Return to normal use mode
Step Action
1 Slide the TALK BATTERY switch to the OFF position.
`
2 Move DIP SWITCH 2 from ON to OFF.
3 Re-connect the PHONE LINE INPUT and LINE OUT TO PHONES.
OPERATION OF C-1000B
ANSWER A CALL FROM DOORBOX
When the phones ring, pick up a phone to be connected to the visitor. When the C-1000B controller is used, you will
hear a beep tone when the phone is answered - one beep for doorbox 1, and 2 beeps for doorbox 2.
PLACING CO LINE CALLS ON HOLD (CALL WAITING)
If a phone call is in progress, and a door box is activated, a single or double “call waiting “ tone will be heard. To place the call in
progress on hold and speak to the visitor, push
#. When you want to return to the original phone call, push #.
ACTIVATING A DOORSTRIKE OR OPENING A GATE
To open the gate, you must first be connected to the doorbox. Push .You will then hear a confirmation tone, and the relay will be
activated for the programmed time. If a call was already in progress, pressing will open the gate, and return the system to the
original phone call.
**
LATCH / UNLATCH A GATE
To use this feature, you must first be connected to the doorbox.
Latch relay 1 or 2 1
Unlatch relay 1 or 2 0
*
*
**
