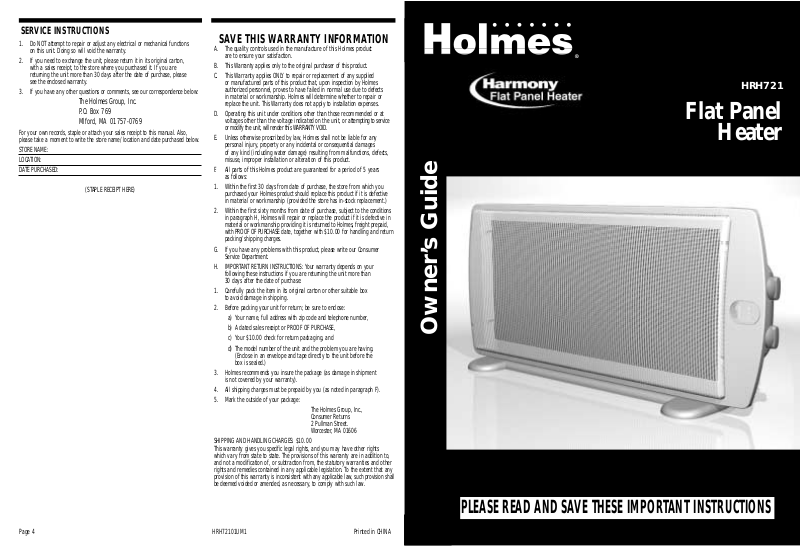

Page 1
Owner ’s Guide
HRH721
Flat Panel
Heater
PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS
Page 2
PLEASE READ AND SAVE
THESE IMPORTANT
SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fire, electric shock, and injury to
persons, including the following:
1) Read all instructions before using the appliance.
2) To avoid fire or shock hazard, plug the appliance directly into
a 120 V AC electrical outlet.
3) The heater is hot when in use. To avoid burns, DO NOT let bare
skin touch hot surfaces. If provided, use handles when moving
this heater. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes, and curtains at least 3 ft (0.9 m) from
the front of the heater and keep them away from the sides
and rear.
4) DO NOT run cord under carpeting. DO NOT cover cord with throw
rugs, runners , or the like. Arrange cord away from traffic area
and where it will not be tripped over.
5) This heater is not intended for use in bathrooms, laundry areas
and similar indoor locations. NEVER locate heater where it may
fall into a bathtub or other water container.
6) Extreme caution is necessary when any heater is used by,
or near children or invalids, and whenever the heater is left
operating and unattended.
7) Always unplug the heater when not in use.
8) When unplugging, be sure to pull by the plug and not the cord.
9) DO NOT insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electric shock or fire,
or damage the heater.
10) DO NOT operate heater with a damaged cord or plug, or after the
heater malfunctions, has been damaged in any manner. Return
appliance to manufacturer for examination, electrical or mechanical
adjustment, or repair.
11) A heater has hot and arcing or sparking parts inside.
DO NOT use it in areas where gasoline, paint, or flammable
liquids are used or stored.
12) Use appliance only for intended household use as described in this
manual. Any other use not recommended by the manufacturer
may cause fire, electric shock, or injury to persons. The use of
attachments not recommended or sold by The Holmes Group may
cause hazards.
13) DO NOT use outdoors.
14) To prevent a possible fire, DO NOT block air intakes or exhaust
in any manner. DO NOT use on soft surfaces, like a bed, where
openings may become blocked.
15) To disconnect heater, turn controls to OFF, then remove plug
from outlet.
16) Avoid the use of an extension cord because the extension cord
may overheat and cause a risk of fire. However, if you have
to use an extension cord, the cord shall be No. 14 AWG minimum
size and rated not less than 1875 watts.
17) If the heater will not operate, see specific instructions on Auto
Safety Shut-off.
18) DO NOT attempt to repair or adjust any electrical or mechanical
functions on this unit. Doing so will void your warranty. The inside
of the unit contains no user serviceable parts. All servicing should
be performed by qualified personnel only.
AUTO SAFETY SHUT-OFF WITH
INSTANT TIP-OVER PROTECTION:
This heater is equipped with a patented,
technologically-advanced safety system that
requires the user to reset the heater if there
is a potential overheat situation. When a potential
overheat temperature is reached, the system will
automatically shut the heater off. It can only resume
operation when the user resets the unit.
Tip-Over Shut Off:
When the unit is accidentally knocked over, it will instantly shut
off. To reset, simply place the heater in an upright position.
To Reset the Heater:
1.Turn the Heat Control to the OFF position and thermostat
to HI.
2.Unplug the heater and wait 10 minutes for the unit
to cool down.
3.After the 10 minutes, plug the unit in again and
operate normally.
THIS PRODUCT IS EQUIPPED WITH A POLARIZED AC
(Alternating Current) PLUG (a plug having one blade wider than
the other). This plug will fit into the power outlet only one way.
If the plug does not fit fully into the outlet, reverse the plug. If
it still does not fit, contact qualified personnel to install the proper outlet. DO NOT DEFEAT THE SAFETY PURPOSE OF THIS
POLARIZED PLUG IN ANY WAY.
Page 2 Page 3
PLEASE READ AND SAVE
THESE IMPORTANT
SAFETY INSTRUCTIONS
Page 3
PRE-OPERATING INSTRUCTIONS
1. Carefully remove your heater from the box. (please save
the carton for off-season storage).
2. Make sure the unit is in the OFF position before plugging
the heater into the outlet.
3. Place heater on firm level surface.
4. Avoid overloading your circuit by not using other high
wattage appliances in the same outlet. At 1500 Watts,
this unit draws 12.5 Amps.
OPERATING INSTRUCTIONS
1. For heater operation, please set the Thermostat
all the way to HI. (See fig. #1)
2. Turn the Selector Control to desired heat setting
(LO for 1000W or HI for 1500W).
3. The Power Light will remain lit during operation.

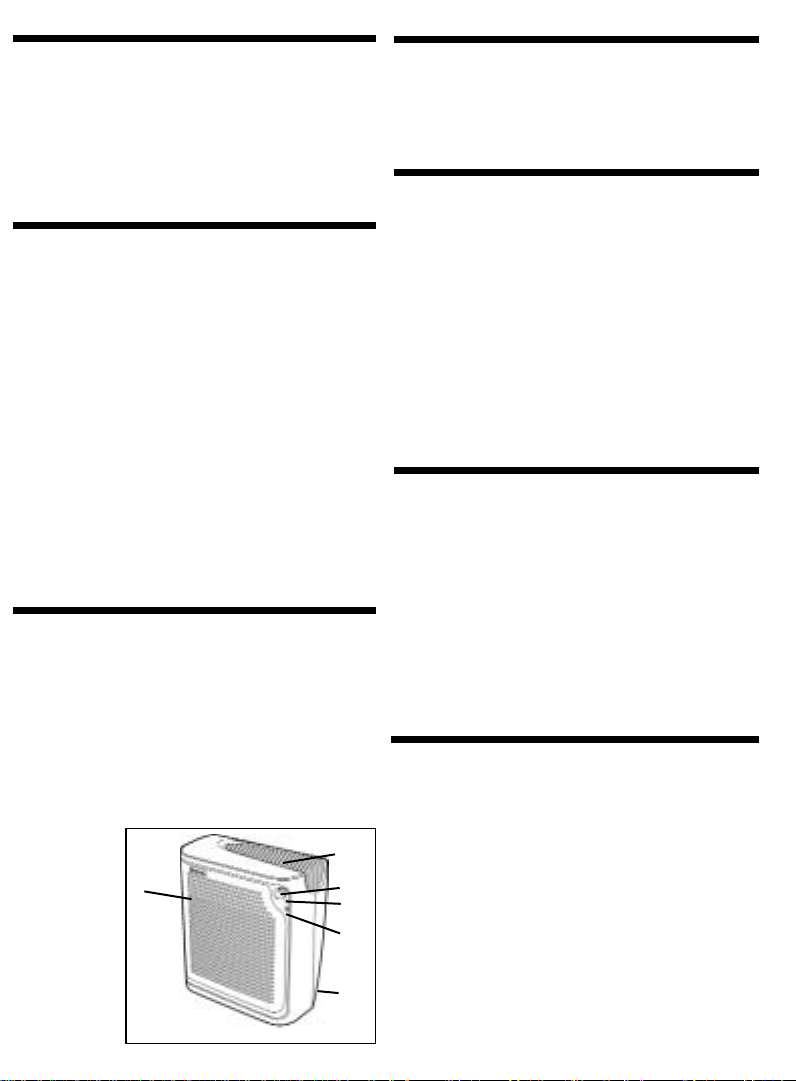

Figure 3
F
G
H
I
D
E
A. HEPA FILTER
B. CARBON FILTER
C. HANG TABS
D. AIR INLET GRILL
E. FILTERED AIR
OUTLET
F. SPEED CONTROL
KNOB
G. FILTER LIFE
INDICATOR
H. RESET
I. POWER CORD
(not shown)
ASSEMBLY INSTRUCTIONS
There are 4 casters and 4 screws provided within the packaging
that you will need to assemble the base.
Note: Casters are not necessary for the unit to run
properly. If you wish to install without castors
skip to number 5.
1. Carefully remove the base and 4 castors from the box.
2. Turn the base upside down and screw the castors into the
4 corresponding holes.
3. Place the base right side up on a firm level surface.
4. Carefully remove the flat panel heater from the box.
5. With the grill facing you, place the tabs at the bottom
of the heater directly into the corresponding holes in
the base and slide the heater to the left. This will lock
the unit onto the base.
6. To remove the heater from the base, press down on the
lock switch located on the right side of the base and slide
the heater to the right and lift up.
WALL MOUNTING INSTRUCTIONS
This unit has the unique feature of using the base as the wall
mount bracket.
SETTING THE THERMOSTAT
1. You need to set thermostat on HI to start heater
(See fig. #1). Allow heater to operate and warm
up the room.
2. When the desired temperature/comfort level is reached,
lower the thermostat setting until the heater stops operating.
3. The control will now automatically maintain the pre-set
temperature level by turning the heater ON and OFF. The
Temperature Range Display can be used as guidance, but
will not provide exact measurement.
Note: It is normal for the heater to cycle ON and
OFF as it maintains the preset temperature.
To prevent the unit from cycling, you need to raise
the thermostat setting.
CLEANING/MAINTENANCE
During Season Care:
1. Always unplug the heater before cleaning.
2. Clean the unit with a soft cloth moistened with a mild
soap solution.
3. NEVER use abrasive or flammable solvents to clean the unit.
4. After cleaning, be sure to completely dry the unit with
a cloth or towel.
After Season Care:
1. Store heater in a cool, dry location.
2. Holmes recommends that you store the unit in its
original carton.
TROUBLESHOOTING
If your heater fails to operate:
· UNPLUG THE UNIT
· Make sure the electrical outlet or circuit breaker is working.
· Check for obstructions. If you find an obstruction turn the
heater OFF, and unplug the unit. Carefully remove the
obstruction and follow the reset instructions.
· The temperature may be set too low. Turn the thermostat
knob clockwise until the heater restarts.
· Make sure selector is in LO or HI setting.
Please DO NOT attempt to open or repair the heater. Please see
the Warranty for Service Instructions.
Page 4
SAVE THIS WARRANTY INFORMATION
A. The quality controls used in the manufacture of this Holmes product
are to ensure your satisfaction.
B. This Warranty applies only to the original purchaser of this product.
C. This Warranty applies ONLY to repair or replacement of any supplied
or manufactured parts of this product that, upon inspection by Holmes
authorized personnel, proves to have failed in normal use due to defects
in material or workmanship. Holmes will determine whether to repair or
replace the unit. This Warranty does not apply to installation expenses.
D. Operating this unit under conditions other than those recommended or at
voltages other than the voltage indicated on the unit, or attempting to service
or modify the unit, will render this WARRANTY VOID.
E. Unless otherwise proscribed by law, Holmes shall not be liable for any
personal injury, property or any incidental or consequential damages
of any kind (including water damage) resulting from malfunctions, defects,
misuse, improper installation or alteration of this product.
F. All parts of this Holmes product are guaranteed for a period of 5 years
as follows:
1. Within the first 30 days from date of purchase, the store from which you
purchased your Holmes product should replace this product if it is defective
in material or workmanship (provided the store has in-stock replacement.)
2. Within the first sixty months from date of purchase, subject to the conditions
in paragraph H, Holmes will repair or replace the product if it is defective in
material or workmanship providing it is returned to Holmes, freight prepaid,
with PROOF OF PURCHASE date, together with $10.00 for handling and return
packing/shipping charges.
G. If you have any problems with this product, please write our Consumer
Service Department.
H. IMPORTANT RETURN INSTRUCTIONS: Your warranty depends on your
following these instructions if you are returning the unit more than
30 days after the date of purchase:
1. Carefully pack the item in its original carton or other suitable box
to avoid damage in shipping.
2. Before packing your unit for return; be sure to enclose:
a) Your name, full address with zip code and telephone number,
b) A dated sales receipt or PROOF OF PURCHASE,
c) Your $10.00 check for return packaging, and
d) The model number of the unit and the problem you are having.
(Enclose in an envelope and tape directly to the unit before the
box is sealed.)
3. Holmes recommends you insure the package (as damage in shipment
is not covered by your warranty).
4. All shipping charges must be prepaid by you (as noted in paragraph F).
5. Mark the outside of your package:
The Holmes Group, Inc.,
Consumer Returns
2 Pullman Street.
Worcester, MA 01606
SHIPPING AND HANDLING CHARGES: $10.00
This warranty gives you specific legal rights, and you may have other rights
which vary from state to state. The provisions of this warranty are in addition to,
and not a modification of, or subtraction from, the statutory warranties and other
rights and remedies contained in any applicable legislation. To the extent that any
provision of this warranty is inconsistent with any applicable law, such provision shall
be deemed voided or amended, as necessary, to comply with such law.
HRH72101UM1 Printed in CHINAPage 4
1. Do NOT attempt to repair or adjust any electrical or mechanical functions
on this unit. Doing so will void the warranty.
2. If you need to exchange the unit, please return it in its original carton,
with a sales receipt, to the store where you purchased it. If you are
returning the unit more than 30 days after the date of purchase, please
see the enclosed warranty.
3. If you have any other questions or comments, see our correspondence below:
The Holmes Group, Inc.
P.O. Box 769
Mlford, MA 01757-0769
For your own records, staple or attach your sales receipt to this manual. Also,
please take a moment to write the store name/location and date purchased below.
STORE NAME:
LOCATION:
DATE PURCHASED:
(STAPLE RECEIPT HERE)
SERVICE INSTRUCTIONS
Loading...
