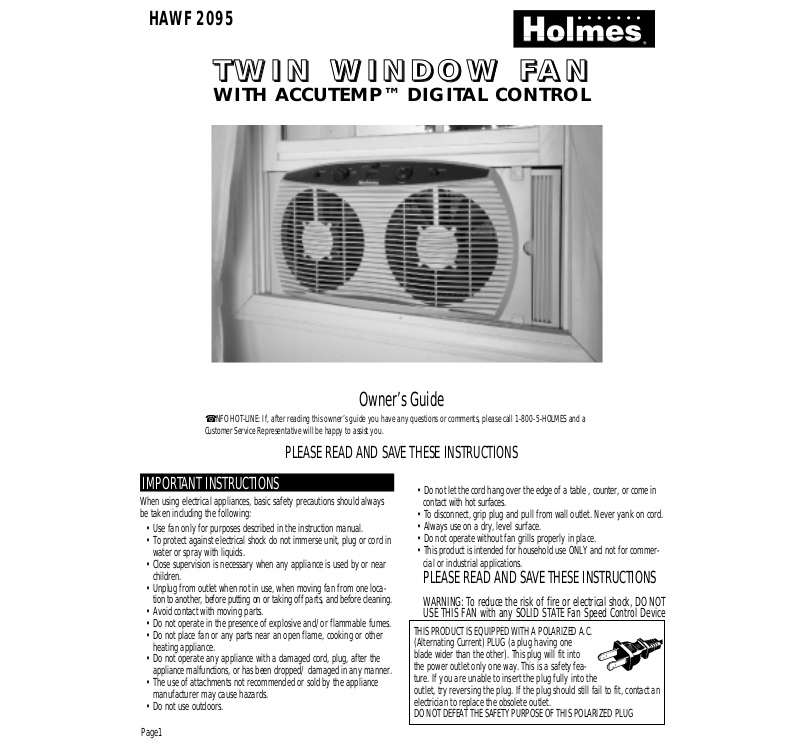

Holmes HAWF 2095 User Manual
Owner’s Guide
☎INFO HOT-LINE: If, after reading this owner’s guide you have any questions or comments, please call 1-800-5-HOLMES and a
Customer Service Representative will be happy to assist you.
PLEASE READ AND SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic safety precautions should always
be taken including the following:
• Use fan only for purposes described in the instruction manual.
• To protect against electrical shock do not immerse unit, plug or cord in
water or spray with liquids.
• Close supervision is necessary when any appliance is used by or near
children.
• Unplug from outlet when not in use, when moving fan from one location to another, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate in the presence of explosive and/or flammable fumes.
• Do not place fan or any parts near an open flame, cooking or other
heating appliance.
• Do not operate any appliance with a damaged cord, plug, after the
appliance malfunctions, or has been dropped/ damaged in any manner.
• The use of attachments not recommended or sold by the appliance
manufacturer may cause hazards.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table , counter, or come in
contact with hot surfaces.
• To disconnect, grip plug and pull from wall outlet. Never yank on cord.
• Always use on a dry, level surface.
• Do not operate without fan grills properly in place.
• This product is intended for household use ONLY and not for commercial or industrial applications.
PLEASE READ AND SAVE THESE INSTRUCTIONS
WARNING: To reduce the risk of fire or electrical shock, DO NOT
USE THIS FAN with any SOLID STATE Fan Speed Control Device
THIS PRODUCT IS EQUIPPED WITH A POLARIZED A.C.
(Alternating Current) PLUG (a plug having one
blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still fail to fit, contact an
electrician to replace the obsolete outlet.
DO NOT DEFEAT THE SAFETY PURPOSE OF THIS POLARIZED PLUG
Page1
HAWF 2095
TTTTWW
WWIIIINNNN
WW
WWIIIINNNNDDDDOOOO
WW
WW FFFFAAAANNNN
WITH ACCUTEMP™ DIGITAL CONTROL
PRE-INSTALLATION INSTRUCTIONS:
Carefully unpack all contents of carton.
• The window fan comes fully assembled and is ready for immediate
installation.
• Before installation, familiarize yourself with the built-in 7”extender
on the right side of the fan, and the two additional 3.” extenders
which attach to the left side of the fan housing (see figure #1.) The
extra extenders are packed in styrofoam at each end of the box.
WE RECOMMENDED KEEPING YOUR WINDOW SCREEN IN PLACE
INSTALLATION INSTRUCTIONS:
This window fan has been designed to fit double-hung, slider and casement windows with minimum openings of 24.” wide and 13” high. For
casement windows, please see page 3 for information on available
bracket. This fan is designed and recommended for used with your window screen in place.
For double-hung and slider windows:
NOTE: On SLIDER WINDOWS the bottom section must be the side you
add extenders to (left side). The controls should be facing toward the
window.
1. With the window open, take an accurate measurement of the opening where the unit will be placed.
2. Match your window measurement with the installation guide (see figure #2 text); adding the appropriate extender panel(s) to the left side,
while using the built-in extender on the right side.
3. Once you have added extender panel(s) if necessary, set the fan in
the window, and complete the
installation process using the built-in extender. Pull out for a snug, safe
fit (see step 5)
4. Carefully close the window onto the top of the fan so that the bottom
edge of the window rests behind top line of fan housing. This is important as it aides in keeping the fan in place.
5. Lastly, pull out the built-in extender on right side to fill in the remaining
space. To pull out, simply pop up the extender locks on the top and bottom of the fan housing next to the built-in extender, and set to the
desired length. To secure in place, push the extender locks back down.
Casement Windows:
For a safe, secure fit in your casement window, you will need a special
bracket system. For easier installation in a casement window, we
provide you with two brackets and screws at no additional cost. Please
keep in mind, your window must to be at least 24” high and 13” wide
to use this window fan/bracket combination. Please call our customer
service department, 1-800-5-HOLMES, for further assistance.
INSTALLATION GUIDE:
For 24” to 27”: Use up to 3” of right side, pull out extender.
For 28” to 34”: Use one 3” extender panel on the left side. Adjust
the pull out extender on the right side for a tight fit (from .5” to 7”).
For 35” to 37”: Use two 3” extender panels on the left side. Adjust
the pull out extender on the right for a tight fit (to 5” to 7”).
Larger than 37”: Additional extender panels will be required.
To order additional extenders, see mail order offer or call 1-800-5-HOLMES
OPERATING INSTRUCTIONS:
• Make sure the rotary switch is in the OFF position.
• Plug into 120V AC electric outlet.
• Set the individual fan motors on either INTAKE, EXHAUST or AIR
EXCHANGE using the control lever.
• To start unit, select either Manual or Automatic.
In Manual mode turn the rotary switch to the desired speed
(HI,MED,LO) for standard operation.
In Automatic mode, you must set desired temperature using the
following Accutemp™ instructions.
Page2
Figure 1
PULLS OUT UP TO 7.0”
LEFT
Extra Extender Panels
RIGHT
Built-In, Pull Out Extender
UNIT’S LENGTH
24”
FRONT VIEW
Two 3.0” extenders, (Included in your box packed at both ends)
A
B
C
D
E
F
G
FIGURE 2
A. Left Fan Intake-Exhaust/Air Exchange
B. Fan Speed Control
C. Manual/Automatic Setting
D. LCD Display
E. Temp. Set
F. Right Fan Intake-Exhaust/Air Exchange
G. Extender Locks
