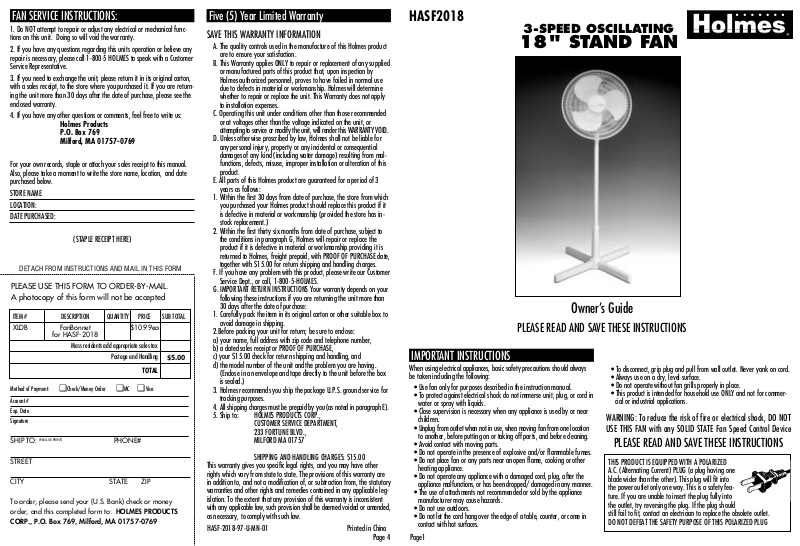

Page 1
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic safety precautions should always
be taken including the following:
• Use fan only for purposes described in the instruction manual.
• To protect against electrical shock do not immerse unit, plug, or cord in
water or spray with liquids.
• Close supervision is necessary when any appliance is used by or near
children.
• Unplug from outlet when not in use, when moving fan from one location
to another, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate in the presence of explosive and/or flammable fumes.
• Do not place fan or any parts near an open flame, cooking or other
heating appliance.
• Do not operate any appliance with a damaged cord, plug, after the
appliance malfunctions, or has been dropped/ damaged in any manner.
• The use of attachments not recommended or sold by the appliance
manufacturer may cause hazards.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table, counter, or come in
contact with hot surfaces.
• To disconnect, grip plug and pull from wall outlet. Never yank on cord.
• Always use on a dry, level surface.
• Do not operate without fan grills properly in place.
• This product is intended for household use ONLY and not for commercial or industrial applications.
WARNING: To reduce the risk of fire or electrical shock, DO NOT
USE THIS FAN with any SOLID STATE Fan Speed Control Device
PLEASE READ AND SAVE THESE INSTRUCTIONS
HASF2018
THIS PRODUCT IS EQUIPPED WITH A POLARIZED
A.C. (Alternating Current) PLUG (a plug having one
blade wider than the other). This plug will fit into
the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the plug. If the plug should
still fail to fit, contact an electrician to replace the obsolete outlet.
DO NOT DEFEAT THE SAFETY PURPOSE OF THIS POLARIZED PLUG
Page1
Owner’s Guide
PLEASE READ AND SAVE THESE INSTRUCTIONS
3-SPEED OSCILLATING
18" STAND FAN
Page 2
ASSEMBLY INSTRUCTIONS:
Carefully unpack contents of carton.You will need the base and four
extension legs.
Push in the small tab on each extension and snap into base
Pole Assembly:
You will need the completed base and extension pole.
STEP 1: Remove the base collar from the base by turning counter-clockwise.
STEP 2: Take the extension pole, with the solid end down, and insert it into
the base. The hollow end of the pole (with the screw hole) will be
facing up.
STEP 3: Replace the base collar over the extension pole, slide it down the
pole, and secure it to
the base by turning
clockwise.
Fan Head Assembly:
You are now ready to assemble the fan head (See Figure #3)
STEP 1. Position the rear grill over the motor shaft, making certain the 2
notches at the top and bottom of the rear grill fit over the 2 prongs
on the motor housing. Please make sure the rear grill fits securely
against the motor housing.
STEP 2. Fasten the rear grill in place using the rear grill mounting nut. Turn
the nut clockwise and tighten firmly.
STEP 3. Slide the fan blade, with the hollowed interior of the blade facing
towards the rear grill firmly onto the motor shaft. Make sure the
motor shaft pin lines up with the recessed groove in the back of the
fan blade. Also, be sure the shaft protrudes from the front of the
blade.
STEP 4. Secure fan blade onto the
motor shaft by turning the
blade cap counter-clockwise
(make sure the blade is
firmly in position.)
STEP 5. Center the front grill, align-
ing the Holmes logo so it is
horizontal and parallel to
the floor, place onto the
rear grill, and snap in
place. Secure by tightening
the grill screw at the bottom of the rear grill.
Tilt Adjustment
Knob
Fan Post Screw
B
D
E
F
C
H
I
G
A
Fan Post
Screw
Base Collar
Bottom
Screw
Figure 3
Figure 4
Page2
A) Rear Grill
B) Motor Shaft
C) Rear Grill Notches
D) Motor Housing Prongs
E) Mounting Nut
F) Fan Blade
G) Motor Shaft Pin
H) Fan Blade Cap
I) Front Grill
J) Logo Plate
k) Bottom Screw
J
K
Base
Collar
Extension
Pole
Base
Figure 1
Figure 2
Page 3
Final Assembly:
First, place fan head
assembly onto the extension pole, lining up the
fan post screw with the
hole in the extension
pole. Then, simply insert
the fan post screw into
the hole and tighten until
a secure fit is obtained.
NOTE: If your fan does not have a screw hole in the extension pole but
instead has an indentation around the top of the pole; please do the following:
Place the fan head assembly onto the extension pole and tighten the fan
post screw until a secure fit is obtained.
OPERATING INSTRUCTIONS:
Step 1. Set fan base on a dry, level surface.
Step 2. Plug cord into any standard 120 volt AC outlet. Please make sure
the Speed Control Switch is in the Off position. This switch is
located on the top of the Fan Motor Housing.
Step 3. The speed is adjusted by turning the control switch to the desired
setting, Off—High—Med—Low.
Step 4. The Oscillation Control Knob is located on the top of the Fan Motor
Housing. To Start Oscillation, Push Knob Down. To Stop Oscillation,
Pull Knob Up.
ADJUSTMENT INSTRUCTIONS:
Tilt Adjustment:
Follow these instructions to tilt the Fan Head for upward angle air movement.
Step 1: To change the tilting angle of the fan head, simply loosen the Tilt
Adjustment Knob (see figure 3 on Page 2)
Step 2: Move the fan head to the desired angle, then firmly tighten the
knob to lock in place.
Height Adjustment:
Follow these instructions to adjust the height of the fan.
Step 1: Turn the Base Collar (see figure 4) counter-clockwise to loosen
pole.
Step 2: Adjust the pole to the desired height, and firmly tighten the Base
Collar in a clockwise direction.
CLEANING/MAINTENANCE INSTRUCTIONS:
Follow these instructions to correctly and safely care for your Holmes
Products stand fan. Please remember:
• Always unplug the fan before cleaning or disassembling.
• Do not allow water to drip on or enter into the fan housing.
• Be sure to use a soft cloth moistened with a mild soap solution.
• Do not use any of the following as a cleaner: gasoline, thinner, or benzine.
Fan Blade Cleaning:
(See instructions for fan head assembly on page 2, figure 3)
STEP 1: To access the fan blade, remove the front grill and blade cap.
STEP 2: Clean the fan blade, front and rear grills with a soft, moist cloth.
STEP 3: Replace blade, tighten blade cap, and securely fasten the front grill.
Fan Head, Base, and Pole Cleaning:
Using a soft, moist cloth, with or without a mild, soap solution, carefully
clean the fan base, pole, and head. Please use caution around the motor
housing area. Do not allow the motor or other electrical components to be
exposed to water.
FAN STORAGE:
Your fan can be stored in the off-season either partially disassembled or
assembled. It is important to keep it in a safe, dry location.
• If stored disassembled, we recommend using the original (or appropriately sized) box.
• If stored assembled or partially assembled, remember to protect the
fan head from dust.
The exclusive Holmes Products FanBonnet is available to protect your fan.
(See attached mail order form for special offer or call 1-800-5-HOLMES)
DETACH FROM INSTRUCTIONS AND MAIL IN THIS FORM
Fill out form on reverse side or call
1-800-5-HOLMES
to place your order today.
EXTEND THE LIFE OF
YOUR FAN
For short term or seasonal
storage of your Holmes fan
FAN
BONNET
$10.99
PLUS SHIPPING
AND HANDLING
Page 3

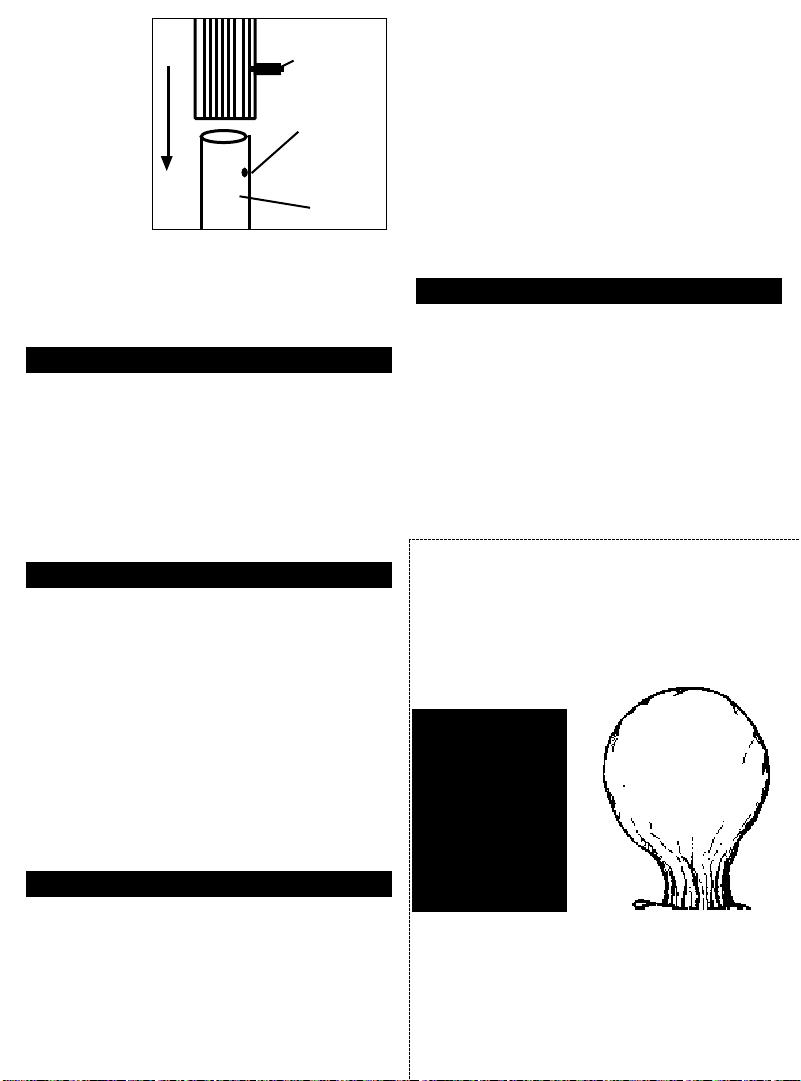

Fan Post Screw
Extension Pole
Screw Hole
Figure 6
Page 4
FAN SERVICE INSTRUCTIONS:
1. Do NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void the warranty.
2. If you have any questions regarding this units operation or believe any
repair is necessary, please call 1-800-5 HOLMES to speak with a Customer
Service Representative.
3. If you need to exchange the unit, please return it in its original carton,
with a sales receipt, to the store where you purchased it. If you are returning the unit more than 30 days after the date of purchase, please see the
enclosed warranty.
4. If you have any other questions or comments, feel free to write us:
Holmes Products
P.O. Box 769
Milford, MA 01757-0769
For your own records, staple or attach your sales receipt to this manual.
Also, please take a moment to write the store name, location, and date
purchased below.
STORE NAME
LOCATION:
DATE PURCHASED:
(STAPLE RECEIPT HERE)
Five (5) Year Limited Warranty
SAVE THIS WARRANTY INFORMATION
A. The quality controls used in the manufacture of this Holmes product
are to ensure your satisfaction.
B. This Warranty applies ONLY to repair or replacement of any supplied
or manufactured parts of this product that, upon inspection by
Holmes authorized personnel, proves to have failed in normal use
due to defects in material or workmanship. Holmes will determine
whether to repair or replace the unit. This Warranty does not apply
to installation expenses.
C. Operating this unit under conditions other than those recommended
or at voltages other than the voltage indicated on the unit, or
attempting to service or modify the unit, will render this WARRANTY VOID.
D. Unless otherwise proscribed by law, Holmes shall not be liable for
any personal injury, property or any incidental or consequential
damages of any kind (including water damage) resulting from malfunctions, defects, misuse, improper installation or alteration of this
product.
E. All parts of this Holmes product are guaranteed for a period of 3
years as follows:
1. Within the first 30 days from date of purchase, the store from which
you purchased your Holmes product should replace this product if it
is defective in material or workmanship (provided the store has instock replacement.)
2. Within the first thirty six months from date of purchase, subject to
the conditions in paragraph G, Holmes will repair or replace the
product if it is defective in material or workmanship providing it is
returned to Holmes, freight prepaid, with PROOF OF PURCHASE date,
together with $15.00 for return shipping and handling charges.
F. If you have any problem with this product, please write our Customer
Service Dept., or call, 1-800-5-HOLMES.
G. IMPORTANT RETURN INSTRUCTIONS Your warranty depends on your
following these instructions if you are returning the unit more than
30 days after the date of purchase:
1. Carefully pack the item in its original carton or other suitable box to
avoid damage in shipping.
2.Before packing your unit for return; be sure to enclose:
a) your name, full address with zip code and telephone number,
b) a dated sales receipt or PROOF OF PURCHASE,
c) your $15.00 check for return shipping and handling, and
d) the model number of the unit and the problem you are having.
(Enclose in an envelope and tape directly to the unit before the box
is sealed.)
3. Holmes recommends you ship the package U.P.S. ground service for
tracking purposes.
4. All shipping charges must be prepaid by you (as noted in paragraph E).
5. Ship to: HOLMES PRODUCTS CORP.,
CUSTOMER SERVICE DEPARTMENT,
233 FORTUNE BLVD.,
MILFORD MA 01757
SHIPPING AND HANDLING CHARGES: $15.00
This warranty gives you specific legal rights, and you may have other
rights which vary from state to state. The provisions of this warranty are
in addition to, and not a modification of, or subtraction from, the statutory
warranties and other rights and remedies contained in any applicable legislation. To the extent that any provision of this warranty is inconsistent
with any applicable law, such provision shall be deemed voided or amended,
as necessary, to comply with such law.
ITEM # DESCRIPTION QUANTITY PRICE SUB TOTAL
XLDB FanBonnet $10.99ea
for HASF-2018
Mass residents add appropriate sales tax
Postage and Handling
TOTAL
PLEASE USE THIS FORM TO ORDER-BY-MAIL.
A photocopy of this form will not be accepted
Method of Payment: ❏Check/Money Order ❏MC ❏Visa
Account #
Exp. Date
Signature
SHIP TO:
(PLEASE PRINT)
PHONE#
STREET
CITY STATE ZIP
To order, please send your (U.S. Bank) check or money
order, and this completed form to: HOLMES PRODUCTS
CORP., P.O. Box 769, Milford, MA 01757-0769
DETACH FROM INSTRUCTIONS AND MAIL IN THIS FORM
HASF-2018-97-U-MN-01 Printed in China
Page 4
$5.00
Loading...
