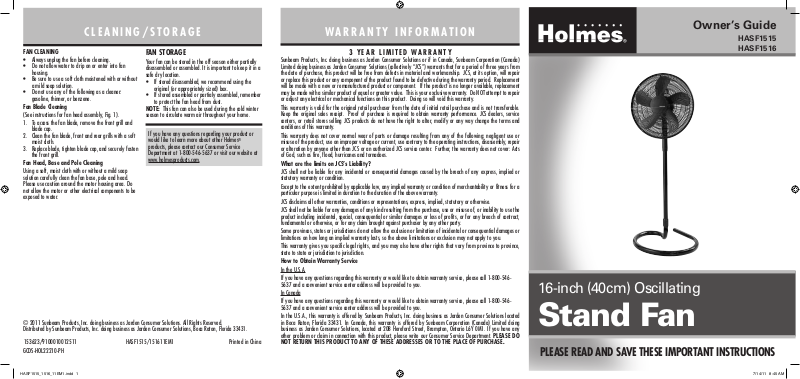

Holmes HASF1515, HASF1516 User Manual
C L E A N I N G / S T O R A G E
FAN CLEANING
• Alwaysunplugthefanbeforecleaning.
• Donotallowwatertodriponorenterintofan
housing.
• Besuretouseasoftclothmoistenedwithorwithout
a mild soap solution.
• Donotuseanyofthefollowingasacleaner:
gasoline, thinner, or benzene.
Fan Blade Cleaning
(See instructions for fan head assembly, Fig. 1).
1. To access the fan blade, remove the front grill and
blade cap.
2. Clean the fan blade, front and rear grills with a soft
moist cloth.
3. Replace blade, tighten blade cap, and securely fasten
the front grill.
Fan Head, Base and Pole Cleaning
Using a soft, moist cloth with or without a mild soap
solution carefully clean the fan base, pole and head.
Please use caution around the motor housing area. Do
not allow the motor or other electrical components to be
exposed to water.
© 2011 Sunbeam Products, Inc. doing business as Jarden Consumer Solutions. All Rights Reserved.
Distributed by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions, Boca Raton,
153623/9100010012511
GCDS-HOL22210-PH
HASF1515/1516
FAN STORAGE
Your fan can be stored in the off season either partially
disassembled or assembled. It is important to keep it in a
safe dry location.
• Ifstoreddisassembled,werecommendusingthe
original (or appropriately sized) box.
• Ifstoredassembledorpartialyassembled,remember
to protect the fan head from dust.
NOTE: This fan can also be used during the cold winter
season to circulate warm air throughout your home.
If you have any questions regarding your product or
would like to learn more about other Holmes®
products, please contact our Consumer Service
Department at 1-800-546-5637 or visit our website at
www.holmesproducts.com.
Florida 33431
11EM1 Printed in China
Owner’s Guide
WA R R A N T Y I N F O R M AT I O N
HASF1515
3 Y E AR LI MI T E D WA RR A NT Y
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada)
Limited doing business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of three years from
the date of purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair
or replace this product or any component of the product found to be defective during the warranty period. Replacement
will be made with a new or remanufactured product or component. If the product is no longer available, replacement
may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair
or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.
Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service
centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and
conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or
misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair
or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts
of God, such as fire, flood, hurricanes and tornadoes.
What are the limits on JCS’s Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or
statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a
particular purpose is limited in duration to the duration of the above warranty.
JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.
JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the
product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract,
fundamental or otherwise, or for any claim brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or
limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from province to province,
state to state or jurisdiction to jurisdiction.
How to Obtain Warranty Service
In the U.S.A.
If you have any questions regarding this warranty or would like to obtain warranty service, please call 1-800-546-
5637 and a convenient service center address will be provided to you.
In Canada
If you have any questions regarding this warranty or would like to obtain warranty service, please call 1-800-546-
5637 and a convenient service center address will be provided to you.
In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions located
.
in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing
business as Jarden Consumer Solutions, located at 20B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any
other problem or claim in connection with this product, please write our Consumer Service Department. PLEASE DO
NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.
16-inch (40cm) Oscillating
Stand Fan
HASF1516
PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS
HASF1515_1516_11EM1.indd 1 7/14/11 8:45 AM
P L E A S E R E A D A N D S AV E T H E S E
I M P O RTA N T S A F E T Y I N S T R U C T I O N S
F E AT U R E S - O P E R AT I O N S
F E AT U R E S - O P E R AT I O N S
C L E A N I N G / M A I N T E N A N C E
When using electrical appliances, basic safety precautions
should always be taken including the following:
1. Read all instructions before using this appliance.
2. Use fan only for purposes described in the instruction
manual.
3. To protect against electrical shock do not immerse unit,
plug or cord in water or spray with liquids and plug the
appliance directly into a 120V AC electrical outlet.
4. Close supervision is necessary when any appliance is
used by or near children.
5. Unplug from outlet when not in use, when moving fan
from one location to another, before putting on or
taking off parts and before cleaning.
6. Avoid contact with moving parts.
7. Do not operate in the presence of explosive and/or
flammable fumes.
8. To avoid fire hazard, NEVER place the cord under rugs
or any parts near an open flame, cooking or other
heating appliance.
9. Do not operate any appliance with a damaged cord or
plug after the appliance malfunctions, or has been
dropped/damaged in any manner. Discard fan or
return to an authorized service facility for examination
and/or repair.
10. Do not run cord under carpeting. Do not cover cord
with throw rugs, runner, or similar coverings. Do not
route cord under furniture or appliances. Arrange
cord away from traffic area and where it will not be
tripped over.
11. The use of attachments not recommended or sold by
the appliance manufacturer may cause hazards.
12. Do not let the cord hang over the edge of a table,
counter or come in contact with hot surfaces or leave
exposed to high traffic areas.
THIS APPLIANCE HAS A POLARIZED PLUG (one blade is wider than the
other). To reduce the risk of electric shock, this plug is intended to fit in
a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install the proper outlet.
DO NOT ATTEMPT TO MODIFY THIS PLUG OR DEFEAT THIS
SAFETY FEATURE IN ANY WAY.
13. Do not use outdoors.
14. To disconnect, grip plug and pull from wall outlet.
Never yank on cord.
15. Always use on a dry, level surface.
16. Do not operate fan until fully assembled with all parts
properly in place.
17. This product is intended for household use ONLY and
not for commercial or industrial applications.
18. WARNING: To reduce the risk of electrical shock and
injury to persons, do not use in window.
19. WARNING: To reduce the risk of fire or electric
shock, do not use this fan with any solid-state speed
control device.
20. This product employs overload protection (fuse). A
blown fuse indicates an overload or short-circuit
situation. If the fuse blows, unplug the product from
the outlet. Replace the fuse as per the user servicing
instructions (follow product marking for proper fuse
rating) and check the product. If the replacement fuse
blows, a short circuit may be present and the product
should be discarded or returned to an authorized
service facility for examination and/or repair.
PLEASE READ AND SAVE
THESE IMPORTANT SAFETY
INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
NOTE: MAKE SURE YOU REMOVE ALL CONTENTS FROM
THE PACKAGE. PLEASE CHECK PACKAGING MATERIALS FOR
PARTS THAT COULD BE REQUIRED TO ASSEMBLE YOUR FAN.
Pole Assembly
You will need the base, extension pole, and pole screw
(See Fig. 1).
1. Take the extension pole, with the pole screw towards
the bottom, and insert into base.
2. Tighten into place using the pole screw.
Fan Head Assembly
You are now ready to assemble the fan head (See Fig. 1).
1. Position the rear grill over the motor shaft, making
certain the 2 notches at the top and bottom of the
rear grill fit over the 2 prongs on the motor housing.
Fig. 1
A
A. Logo Plate
B. Front Grill
C. Blade Cap
D. Fan Blade
E. Rear Grill
F. Plastic Band
G. Rear Grill
H. Grill Screw
I. Motor Shaft With
J. Speed Control Knob
K. Oscillation Knob
L. Motor Housing
B C
Mounting Nut
Support Pin
D
H
M. Tilt Joint
N. Tilt Adjustment
O. Fan Post
P. Fan Post Screw
Q. Extension Pole
R. Pole Screw
S. Base
G
E
F
Knob
J
I
K
L
M
N
O
P
Q
R
S
Please make sure the rear grill fits securely against
the motor housing.
2. Secure the rear grill in its place using the rear grill
mounting nut. Turn this nut clockwise and tighten
firmly.
3. Slide the fan blade, with the hollowed interior of the
blade facing towards the rear grill firmly onto the
motor shaft. Make sure the motor shaft pin lines up
with the recessed groove in the back of the fan
blade. Also, be sure the shaft protrudes from the
front of the blade.
4. Secure fan blade onto the motor shaft by turning the
blade cap counter-clockwise and tighten firmly.
5. Prepare the front grill by simply snapping the logo
plate into place.
6. Center the front grill by aligning the Holmes logo so
that it is horizontal and parallel to the floor, and then
place onto the rear grill. Lastly, snap the front and
rear grills completely together, and tighten the grill
screw at the bottom of the rear grill (See Fig. 1).
Final Assembly
Place fan post onto the extension pole, and securely
tighten the fan post screw.
OPERATING INSTRUCTIONS
1. Set fan base on a dry, level surface.
2. Plug cord into any standard 120 volt AC outlet.
Please make sure the Speed Control Knob is in the
OFF (o) position. The Speed Control Knob is located
on the top of the Fan Motor Housing.
3. The speed is adjusted by turning the control knob to
the desired setting, OFF - (o) , HIGH - (III), MEDIUM
- (II), LOW - (I).
4. The Oscillation control knob (
the top of the Fan Motor Housing. To start Oscillation,
push Oscillation Knob down. To stop Oscillation, pull
Oscillation Knob all the way up.
SPECIAL NOTE: This fan can be used in a “straight up
position” (TotalFlex
(See the Adjustment Instructions).
TM
) as a whole room air circulator
) is located on
ADJUSTMENT INSTRUCTIONS
Tilt Adjustment
Follow these instructions to tilt the Fan Head for upward
angled air movement or whole-room air circulation. You
may use the oscillation feature in this position.
1. To change the tilting angle of the fan head, simply
loosen the Tilt
Adjustment Knob
(See Fig. 2).
2. Move the fan head
to the desired
angle, and firmly
tighten the knob to
lock in place.
3. This fan can be
tilted to a straightup position, offering
whole room air
circulation. When
the fan head is
tilted back, be sure to securely tighten in place.
Floor Fan Conversion/Height Adjustment
Follow these instructions to convert the fan into a floor
fan.
1. Loosen the fan post screw and remove fan head
(See Fig. 1).
2. Remove the extender pole by unscrewing the pole
screw at the base.
3. Re-attach the fan head to the base and secure with
the fan post screw.
Fig. 2
Tilt Adjustment
knob
CLEANING/MAINTENANCE
INSTRUCTIONS
Follow these instructions to correctly and safely care for
your fan. Please remember:
REPLACEABLE FUSE
If your (5 Amp, 125 Volt) replaceable fuse blows, please
order a new fuse at 1-800-546-5637. Follow the below
instructions to replace the fuse on the plug.
User Servicing Instructions
1. Unplug your fan. Grasp plug and remove from the
receptacle or other outlet device. Do not unplug by
pulling on cord.
2. Open fuse cover, located on the top of the plug, by
using your thumb or a flathead screwdriver to slide
the cover down towards the prongs.
Note: Ensure that fuse cover is completely open
before attempting to remove fuse.
3. Remove fuse carefully by
using a small screwdriver to
pry the fuse out of the
compartment by the metal
ends of the fuse (see Fig.
3).
4. Place plug on a solid, flat
surface. Insert new 5 Amp,
125 Volt fuse into fuse
compartment and use a small screwdriver to secure
the metal ends of the fuse into the compartment.
Caution: Risk of fire. Replace fuse only with 5 Amp,
125 Volt fuse.
5. Slide fuse cover closed completely. If fuse cover is
difficult to close, make sure fuse is secured in place
completely by pressing down on metal ends of the
fuse.
6. Risk of fire. Do not replace attachment plug. Contains
a safety device (fuse) that should not be removed.
Discard product if the attachment plug is damaged.
Fig. 3
Fuse
Fuse cover
Metal ends
HASF1515_1516_11EM1.indd 2 7/14/11 8:45 AM
Loading...
