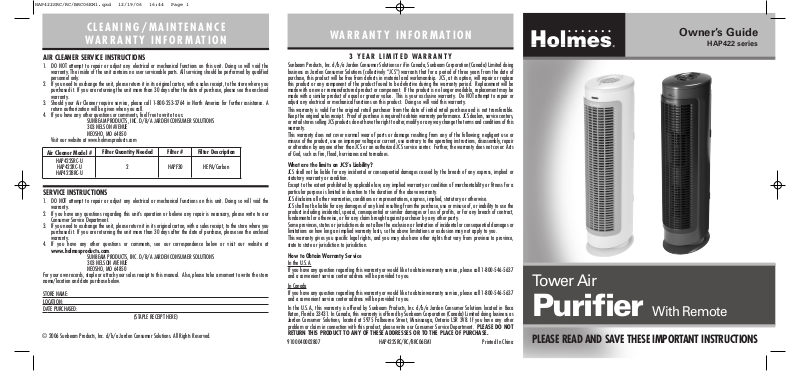

Holmes HAP422RC Owner's Guide

CLEANING/MAINTENANCE

WARRANTY INFORMATION

SERVICE INSTRUCTIONS

1. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void the
warranty.

2. If you have any questions regarding this unit’s operation or believe any repair is necessary, please write to our
Consumer Service Department.

3. If you need to exchange the unit, please return it in its original carton, with a sales receipt, to the store where you
purchased it. If you are returning the unit more than 30 days after the date of purchase, please see the enclosed
warranty.

4. If you have any other questions or comments, see our correspondence below or visit our website at
www.holmesproducts.com.

SUNBEAM PRODUCTS, INC. D/B/A JARDEN CONSUMER SOLUTIONS
303 NELSON AVENUE

NEOSHO, MO 64850
For your own records, staple or attach your sales receipt to this manual. Also, please take a moment to write the store
name/location and date purchase below.

STORE NAME:
LOCATION:
DATE PURCHASED:

(STAPLE RECEIPT HERE)

PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS

Owner’s Guide

HAP422 series

WARRANTY INFORMATION

© 2006 Sunbeam Products, Inc. d/b/a Jarden Consumer Solutions. All Rights Reserved.

3 YEAR LIMITED WARRANTY

Sunbeam Products, Inc. d/b/a Jarden Consumer Solutions or if in Canada, Sunbeam Corporation (Canada) Limited doing
business as Jarden Consumer Solutions (collectively “JCS”) warrants that for a period of three years from the date of
purchase, this product will be free from defects in material and workmanship. JCS, at its option, will repair or replace
this product or any component of the product found to be defective during the warranty period. Replacement will be
made with a new or remanufactured product or component. If the product is no longer available, replacement may be
made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or
adjust any electrical or mechanical functions on this product. Doing so will void this warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.
Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service centers,
or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and conditions of this
warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or
misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair
or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not cover: Acts
of God, such as fire, flood, hurricanes and tornadoes.

What are the limits on JCS’s Liability?

JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or
statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a
particular purpose is limited in duration to the duration of the above warranty.

JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.
JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the

product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract,
fundamental or otherwise, or for any claim brought against purchaser by any other party.

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or
limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from province to province,
state to state or jurisdiction to jurisdiction.

How to Obtain Warranty Service

In the U.S.A.
If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-546-5637

and a convenient service center address will be provided to you.
In Canada

If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-546-5637
and a convenient service center address will be provided to you.

In the U.S.A., this warranty is offered by Sunbeam Products, Inc. d/b/a Jarden Consumer Solutions located in Boca
Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited doing business as
Jarden Consumer Solutions, located at 5975 Falbourne Street, Mississauga, Ontario L5R 3V8. If you have any other
problem or claim in connection with this product, please write our Consumer Service Department. PLEASE DO NOT

RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

9100040002807 HAP422SRC/RC/BRC06EM1 Printed In China

To wer Air

Purifier

With Remote

AIR CLEANER SERVICE INSTRUCTIONS

1. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void the

warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified
personnel only.

2. If you need to exchange the unit, please return it in its original carton, with a sales receipt, to the store where you

purchased it. If you are returning the unit more than 30 days after the date of purchase, please see the enclosed
warranty.

3. Should your Air Cleaner require service, please call 1-800-253-2764 in North America for further assistance. A

return authorization will be given when you call.

4. If you have any other questions or comments, feel free to write to us:

SUNBEAM PRODUCTS, INC. D/B/A JARDEN CONSUMER SOLUTIONS

303 NELSON AVENUE

NEOSHO, MO 64850

Visit our website at www.holmesproducts.com

Air Cleaner Model #

HAP422SRC-U

HAP422RC-U

HAP422BRC-U

Filter Quantity Needed

2

Filter #

HAPF30

Filter Description

HEPA/Carbon

HAP422SRC/RC/BRC06EM1.qxd 12/19/06 16:44 Page 1

panel or the remote control.

4. To release negative ions into the filtered air, press the
ionizer button ( ) to ON and the light will illuminate.

5. For optimum air filtration, it is recommended to
operate the air cleaner continuously. Its rugged motor
has been designed to give many years of use. For
continuous use, it’s recommended to operate the air
cleaner at the MEDIUM ( ) setting. For quieter
operation or use in a bedroom, select the LOW ( )
setting. When high levels of air pollution are present,
select the HIGH( ) setting to quickly circulate and
filter the room air.

REMOTE CONTROL

Your remote control requires (2) AAA batteries (not
included) for operation.

To install the batteries, simply depress and slide the back
of the remote control with your thumb on the arrow
indentation. Insert batteries according to the diagram
shown inside and replace cover.

• Do NOT mix old and new batteries.

• DO NOT mix alkaline, standard (carbon-zinc) or
rechargeable (nickel-cadmium) batteries.

1. Set tower air cleaner on a dry, level surface.

2. Plug cord into any standard 120V AC outlet.

3. To turn the air cleaner on, press the power button ( )
and then select the desired operating speed by
pressing any speed button on the remote control or on
the control panel.

4. The speed is adjustable by pressing either the Speed
Buttons: HIGH ( ), MEDIUM ( ), or LOW ( ) on
the remote control or on the control panel.

5. To turn the unit off, press the power button ( ) on
either the remote control or on the control panel.

6. To turn the Ionizer on, press the ionizer button ( )
on either the remote control or the control panel.

CLEANING/MAINTENANCE
INSTRUCTIONS

Turn off and unplug the unit before cleaning.

1. The outside of the air cleaner can be cleaned with a
soft, damp cloth.

2. The rear air inlet grill can be removed and washed in
warm soapy water (not dishwasher safe). Dry before
replacing in the unit.

3. The front air outlet grill can be cleaned of dust with a
small soft brush.

WARNING:Do not allow moisture to come in contact with
the main housing of the air cleaner.

FILTER REPLACEMENT INSTRUCTIONS

1. Every few weeks, check the condition of the pre-filter.

2. Remove the rear grill. Examine the foam pre-filter. If
the pre-filter has collected a noticeable amount of dust
or lint, remove it from the inlet of the grill and wash it
in warm soapy water. Rinse and drip dry the pre-filter
thoroughly before replacing it in the inlet of the grill.

3. With the rear grill removed, remove the used
HEPA/Carbon filter and dispose of it in the garbage.
Do NOT try to wash and re-use the HEPA/Carbon filter.
Replace with a new HEPA/Carbon HAPF30 filter,
removing the protective polybag before inserting into
the air purifier.

4. Align the clips on the top of your HEPA/Carbon filter
with the rails on the inside of the unit. Gently slide the
filter onto the rail.
NOTE: The pleated material and rubber gasket should
be facing towards the unit when installed.

5. Filter Life – Under normal conditions of continuous
use, the HEPA/Carbon filter will operate efficiently for
4-6 months.

6. Replacement filters (HAPF30) are available from your
local supplier or by calling 1-800-253-2764.
NOTE: The side with the soft gasket should face
inward.

TROUBLESHOOTING

extension cord must be equal to or greater than the rating
of the air purifier. Care must be taken to arrange the
extension cord so that it will not drape over the countertop
or tabletop where it can be pulled on by children or
accidentally tripped over.

FEATURES

Congratulations on your purchase of a Holmes®Air Purifier.
Your Holmes®Air Purifier has an attractive, stylish design.

Its versatility and quiet operation make this unit perfect for
both the home and the office.

IONIZER

Your Air Purifier has an independently controlled ionizer,
which, when turned on, releases negative ions into
outgoing filtered air. Ions are tiny particles that carry a
positive or negative charge. These ions exist naturally
around us, in the air, water, and ground. Both positive and
negative ions are colorless, odorless, and completely
harmless. Negative ions help the air purification process by
attaching themselves to very small airborne particles in the
room.

These particles take on a negative charge and may join
with positively charged particles such as dust, pollen,
smoke, and pet dander to form larger particles that are
then more readily captured by the filter system, or may be
attracted to positively charged surfaces throughout the
home, like walls or floors. This may occur more frequently
when the filter is nearing the end of its functional life
expectancy and is able to capture less of the charged
particles. You may also note after extended use, that dust
has collected around the grills or front panel. This is from
the ionization affect caused by the negative ions exiting
from the air outlet. This is additional evidence of the air
cleaning effectiveness of negative ions. The dust can be
easily removed with a clean, damp cloth or soft brush.

Finally, using your ionizer may result in an occasional
popping or cracking sound. This is a normal sound,
generally caused by a small build-up of ions that, when
discharged, cause the popping or cracking sound.

NOTE: It is important to replace the HEPA/Carbon filter at
the recommended intervals.

Using the ionizer in conjunction with dirty filters may result
in dirty particles exiting the air purifier and being attracted

to walls, carpets, furniture, or other household objects.
These dirty particles may prove very difficult to remove.
Homes with excessive amounts of pet dander, dust, or
smoke may decrease the life expectancy of the
HEPA/Carbon filtration system and may interfere with the
ionization process. You may want to run the ionizer less
often and/or check the condition of the HEPA/Carbon
filter(s) more frequently in order to reduce particles from
being attracted to surfaces throughout your home as
mentioned above.

PRE-OPERATING INSTRUCTIONS

1. Carefully unpack your Air Purifier. Select a firm, level
place where there are no obstructions to the air inlet
(rear grill) or filtered air outlet (front grill). A good
location is approximately 1 foot away from the wall, in
a central location of your home.

2. Remove rear grill by pulling the grill towards you .

3. Remove the HEPA/Carbon filter by gripping on both
sides and pulling forward.

4. Remove protective plastic bag from the filter
cartridge. The filter clip can only be attached to the
hang tabs on the filter one way. The filter clip should
easily slide onto the filter hang tabs with only a small
amount of pressure. Do not use force while attaching
the filter clip to the filter. Align the clip on the top of
your HEPA/Carbon filter with the rails on the inside of
the unit. Gently slide the filter onto the rail.
NOTE: The pleated material and rubber gasket should
be facing towards the unit when applied.

5. Replace rear grill by sliding back onto unit. Make sure
that it snaps securely into position (grill only goes on
one way).

NOTE: Do not point air outlet towards a wall.

OPERATING INSTRUCTIONS

1. Plug into a 120V AC electrical outlet.

2. Press the power button ( ). The unit will turn onto
high and the power light will illuminate letting you
know the power is on.

3. You can then select the desired speed setting. This air
cleaner has three speed settings. You can select from
HIGH ( ), MEDIUM ( ), or LOW ( ) by pushing
the desired operating speed button on the control

PLEASE READ AND SAVE THESE

IMPORTANT SAFETY INSTRUCTIONS

FEATURES - OPERATIONS

Thank you for purchasing this Holmes®product. We
understand the value of quality and are committed to
making superior products that stand the test of time. We
trust this product will exceed your expectations of quality
and reliability. We hope that you enjoy this product and
will consider purchasing another Holmes®product in the
future. To see our full product line or if you have any
questions or comments about this product, please visit our
website at: www.holmesproducts.com.

When using electrical appliances, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock, and injury to persons, including the following:

1. Read all instructions before using the appliance.

2. To avoid fire or shock hazard, plug the appliance
directly into a 120V AC electrical outlet.

3. If the filter is covered by a bag when shipped: Remove
plastic bag over filter before use.

4. Keep the cord out of heavy traffic areas. To avoid fire
hazard NEVER put the cord under rugs, near heat
registers, radiators, stoves, or heaters.

5. To protect against electrical hazards. DO NOT immerse
in water or other liquids. Do not use near water.

6. Close supervision is necessary when any appliance is
used by or near children, or by people with disabilities.

7. Always unplug the air purifier before moving it,
opening the grill, changing filters, cleaning or
whenever the air purifier is not in use. Be sure to pull
by the plug and not by the cord.

8. NEVER drop or insert any object into any openings.

9. DO NOT operate any appliance with a damaged cord
or plug, if motor fan fails to rotate, after the appliance
malfunctions, or if it has been dropped or damaged in
any manner. Return appliance to manufacturer for
examination, electrical or mechanical adjustment, or
repair.

10. Use appliance only for intended household use as
described in this manual. Any other use, not
recommended by the manufacturer may cause fire,
electric shock, or injury to persons. The use of
attachments not recommended or sold by the
manufacturer may cause hazards.

11. DO NOT use outdoors.

12. NEVER block the air openings, or place on soft surface,
such as a bed or sofa, as this could cause the unit to
tip over, blocking the Air Intake Opening.

13. Keep unit away from heated surfaces and open
flames.

14. DO NOT attempt to repair or adjust any electrical or
mechanical functions on this unit. Doing so will void
your warranty. The inside of the unit contains no user
serviceable parts. All servicing should be performed by
qualified personnel only.

15. WARNING: To reduce the risk of fire or electric
shock, DO NOT use this air purifier with any solid-state
speed control device.

PLEASE READ AND SAVE

THESE IMPORTANT SAFETY

INSTRUCTIONS

CORD AND PLUG INSTALLATION SAFETY
INSTRUCTIONS

The length of cord used on this appliance was selected to
reduce the hazards of becoming tangled in, or tripping
over a longer cord. If a longer cord is necessary an approved
extension card may be used. The electrical rating of the

FEATURES - OPERATIONS

CLEANING/MAINTENANCE

THIS APPLIANCE HAS A POLARIZED PLUG (one blade is wider than the
other). To reduce the risk of electric shock, this plug is intended to fit in
a polarized outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install the proper outlet.

DO NOT ATTEMPT TO MODIFY THIS PLUG OR DEFEAT THIS

SAFETY FEATURE IN ANY WAY.

Problem

Unit will not operate

Decreased air flow

Solution

Check to make sure unit is properly
plugged in.

Check to make sure the unit is on
by sliding or rotating the power
switch to the ON position.

Check the filter to see if it is in
good condition and if it needs to
be changed.

Check to ensure nothing is blocking
air inlet and filtered air outlet.

HAP422SRC/RC/BRC06EM1.qxd 12/19/06 16:44 Page 2
