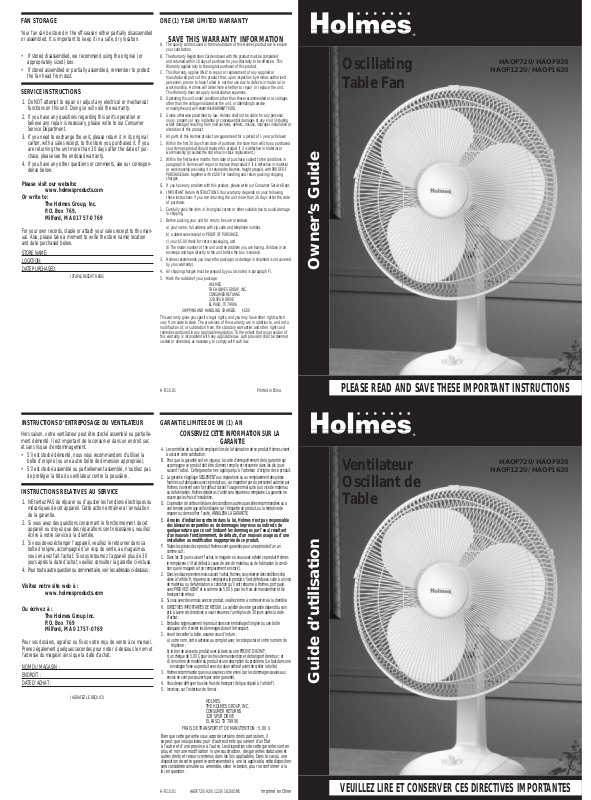

Holmes HAOF1620, HAOF720, HAOF1220, HAOF920 User Manual

Oscillating Table Fan

HAOF720/HAOF920

HAOF1220/HAOF1620

Owner ’s Guide

PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS

PLEASE READ AND SAVE

THESE IMPORTANT

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1) Read all instructions before using the appliance.

2) To avoid fire or shock hazard, plug the appliance directly into a 120 V AC electrical outlet.

3) Keep the cord out of heavy traffic areas. DO NOT let the cord hang over the edge of a table or counter. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves, or heaters.

4) To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.

5) Close supervision is necessary when any appliance is used by or near children, or by disabled people.

6) Always unplug the fan before moving it, putting on or taking off parts, cleaning, or whenever the fan is not in use. Be sure to pull by the plug and not the cord.

7) Avoid contact with moving parts. DO NOT operate without fan grills properly in place.

8) DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Return appliance to manufacturer for examination, electrical or mechanical adjustment, or repair.

9) DO NOT operate in the presence of explosive and/or flammable fumes.

10) Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by The Holmes Group may cause hazards.

11) DO NOT use outdoors.

12) Always use on a dry, level surface.

13) Keep unit away from heated surfaces and open flames.

14) WARNING:To reduce the risk of fire or electric shock, DO NOT use this fan with any solid-state speed control device.

15) DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

PLEASE READ AND SAVE

THESE IMPORTANT

SAFETY INSTRUCTIONS

For the HAOF720, your product comes fully assembled. Please skip to the Operating Instructions.

For all other fans, please continue below with the Pre-Assembly Instructions.

Pre-Assembly

Step 1: Remove your fan from inside the box, being careful not to

Base Assembly

Step 1: Insert the body into the base. Step 2: Tighten the base nut onto the bottom of the body.

Fan Head Assembly

Step 1: Remove protective plastic sleeve from the motor shaft.

Step 2: Position the rear grill over the motor shaft, making sure the

Step 3: Secure the rear grill in its place using the rear grill-mounting

Step 4: FOR HAOF920

Step 5: Center the front grill by aligning the Holmes logo on the grill

ILLUSTRATION

A. Grill Hub B. Front Grill C. Blade Nut D. Blade E. Rear Grill Mounting-Nut F. Rear Grill G. Motor Shaft H. Motor Housing Prong I. Oscillation Knob J. Motor Housing K. Body L. Speed Control Knob M. Base N. Base Nut

THIS PRODUCT IS EQUIPPED WITH A POLARIZED AC (Alternating Current)PLUG (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact qualified personnel to install the proper outlet.

DO NOT DEFEAT THE SAFETY PURPOSE OF THIS

POLARIZED PLUG IN ANY WAY.
