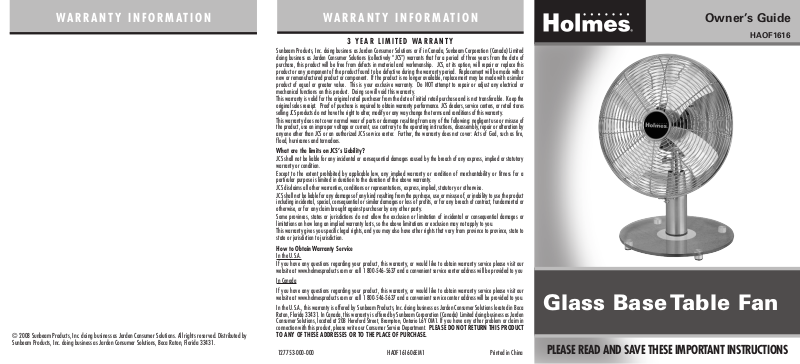

HAOF1616

Glass Base Table Fan

PLEASE READ AND SAVE THESE IMPORTANT INSTRUCTIONS

P L E A S E R E A D A N D S AV E T H E S E

I M P O RTA N T S A F E T Y I N S T R U C T I O N S

F E AT U R E S - O P E R AT I O N S

C L E A N I N G / S T O R A G E

When using electrical appliances, basic safety precautions should always be taken including the following:

1. Read all instructions before using this appliance.

2. Use fan only for purposes described in the instruction manual.

3. To protect against electrical shock do not immerse unit, plug or cord in water or spray with liquids and plug the appliance directly into a electrical outlet.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use, when moving fan from one location to another, before putting on or taking off parts and before cleaning.

6. Avoid contact with moving parts.

7. Do not operate in the presence of explosive and/or flammable fumes.

8. To avoid fire hazard, NEVER place the cord under rugs or any parts near an open flame, cooking or other heating appliance.

9. Do not operate any appliance with a damaged cord or plug after the appliance malfunctions, or has been dropped/damaged in any manner. Take it to an Authorized Service Center for examination and/or repair.

10. The use of attachments not recommended or sold by the appliance manufacturer may cause hazards.

11. Do not use outdoors.

12. Do not let the cord hang over the edge of a table, counter or come in contact with hot surfaces or leave exposed to high traffic areas.

13. To disconnect, grip plug and pull from wall outlet. Never yank on cord.

14. Always use on a dry, level surface.

15. Do not operate fan until fully assembled with all parts properly in place.

16. This product is intended for household use ONLY and not for commercial or industrial applications.

17. WARNING: To reduce the risk of electrical shock and injury to persons, do not use in window.

18. WARNING: To reduce the risk of fire or electric shock, DO NOT use this fan with any solid-state speed control device.

PLEASE READ AND SAVE

THESE IMPORTANT

SAFETY INSTRUCTIONS

ASSEMBLY INSTRUCTIONS (SEE FIG. 1 - FIG.8)

Assembly Time: 10-15 Minutes. Tools Required: Phillips Head Screw Driver.

1. Fit the motor housing assembly over the opening of the Glass Base (B) and secure with the Base Nut (C). Refer to Fig. 2 & Fig. 3.

2. Unscrew the Rear Grill Nut (D) from the Motor Housing (E). Refer to Fig. 4.

3. Position the Rear Grill (F) over the motor housing. Refer to Fig. 5 for proper alignment of the rear grill to the motor housing.

4. Secure the Rear Grill (F) to the Motor Housing (E) with the Rear Grill Nut (D). Refer to Fig. 6.

5. Remove the protective sleeve from the Motor Shaft (G).

6. Slide the Fan Blade (J) over the Motor Shaft (G) and secure with Locking Screw (L). Refer to Fig. 7 for proper alignment of Fan Blade (J) to Motor Shaft (G).

7. Position the Grill Ring (M) over the Rear Grill (F) with the Grill Ring Screw (O) positioned at the bottom. Ensure that the outer most grill rung of the Rear Grill

(F) sits evenly in the Grill Ring (M). Refer to Fig. 8. NOTE: You may have to loosen the Grill Ring Screw (O) in order to fit the grill ring over the Rear Grill.

8. Snap the Front Grill (N) into the Grill Ring (M). Make sure Holmes logo is properly aligned. Ensure that the outer most grill rung of the Front Grill (N) sits evenly in the Grill Ring (M).

9. Tighten Grill Ring Screw (O).

OPERATING INSTRUCTIONS (SEE FIG. 1)

1. Set the fan base on a dry level surface.

2. Make sure the Speed Control is in the OFF (0) position. Speed Control (P) is located on the top of the fan motor housing.

3. Plug the cord into a suitable outlet.

Fig. 1

A. Pole B. Glass Base C. Base Nut D. Rear Grill Nut E. Motor Housing F. Rear Grill G. Motor Shaft H. Rubber Gasket I. Prongs J. Fan Blade K. Notch on Motor

Shaft

L. Locking Screw M. Grill Ring N. Front Grill O. Grill Ring Screw P. Speed Control Q. Oscillation Control

4. The SPEED is adjusted by turning the Speed Control to the desired setting: 0 - Off I - Low II - Med III - High

ADJUSTMENT INSTRUCTIONS

Tilt Adjustment

• To change the tilting angle of the fan head, simply move the fan head to the desired angle.

Oscillation Adjustment

The OSCILLATION control (Q) is located on the top of the fan motor housing. To start oscillation, push the control knob down. To stop oscillation, pull the control knob up.

Fig. 2

Fig. 4

Fig. 3

Fig. 5

CLEANING/MAINTENANCE INSTRUCTIONS

Follow these instructions to correctly and safely care for your fan.

• Alwaysunplug the fanbefore cleaningor disassembling.

• Be sure to clean your fan with a soft cloth moistened with a mild soap solution.

• Do not allow water to drip on or enter into the fan housing.

• Do not use gasoline, thinner, or benzene as a cleaner.

• Lightly run a vacuum cleaner nozzle over the fan grill to remove any dust or dirt that may have accumulated.

Fan Blade Cleaning Instructions

Make sure the fan is unplugged before disassembling and cleaning the fan blade. Carefully remove the front grill. Wipe the blade with a soft cloth moistened with a mild soap solution. DO NOT allow any liquid to drip into or enter the motor housing. Place the front grill back into the grill ring. Make sure all parts are secured prior to operating the fan.

Fig. 6

Fig. 8

Fig. 7

FAN STORAGE

Your fan should be stored in the off-season in its original box. It is important to keep it in a safe, dry location.

• Store your fan in the original box or an appropriately sized box.

• Protect the fan head from dust.

If you have any questions regarding your product or would like to learn more about other Holmes products, please contact our Consumer Service Department at 1-800-546-5637 or visit our website at www.holmesproducts.com

This product is for use on 120 volts. The cord has a plug (A) as shown. An adapter (C) is available at local retailers for connecting three-blade grounding-type plugs to two-slot receptacles (B). The green grounding lug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available. CAUTION: Use Only with GFCI Protected Receptacles.
