Page 1
PORTABLE
GRIDDLE
MODEL
BG3
Installation and
Operation
Instructions
2M-Z1189 Rev. D 12/4/07
BG3
1
Page 2
SAFETY SYMBOL
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specifi cations and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specifi cations contained in this sheet are subject to change
without notice. While Star Manufacturing exercises good faith efforts to provide
information that is accurate, we are not responsible for errors or omissions
in information provided or conclusions reached as a result of using the
specifi cations. By using the information provided, the user assumes all risks in
connection with such use.
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance. Please record the model
number, serial number, voltage and purchase date in the area below and have it ready when you call to
ensure faster service.
Model No.
Serial No.
Voltage
Purchase Date
Authorized Service Agent
Reference the listing provided with the unit
or
for an updated listing go to:
The Star Service Help Desk
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: (800) 807-9054 Local (314) 781-2777
Fax: (800) 396-2677 Local (314) 781-2714
E-mail [email protected]
Website: www.star-mfg.com
Mailing Address: Star Manufacturing International Inc.
10 Sunnen Drive
St. Louis, MO 63143
U.S.A
2
2
Page 3
INSTALLATION AND OPERATING INSTRUCTIONS
This equipment is designed and sold for commercial use only by personnel trained and
experienced in its operation and is not sold for consumer use in and around the home nor for
use directly by the general public in food service locations. For equipment to be used by the
general public, please contact the factory.
These models are equipped for the voltage and wattage indicated on the nameplate. These
units are designed to operate on alternating current (A.C.), two wire single phase service only
and are equipped with an approved lead in cord set with a three prong grounding type plug.
DO NOT CONNECT TO DIRECT CURRENT (D.C.).
CAUTION
INSTALLATION
For your protection, we recommend that a qualifi ed electrician install this appliance. The
electrician should be familiar with electrical installations and your local electrical requirements.
Proper connections and power supply are essential for effi cient performance. The supply circuit
should be properly fused as required by local electrical code.
Plug into 110-125V A.C. outlet that has line of suffi cient capacity to operate griddle. Check
wattage and voltage on the nameplate. Slow performance will indicate the griddle is connected
to a line of insuffi cient capacity or to one already loaded to capacity. DO NOT plug into a 220V
line unless you ordered a 220V griddle. Doing so will ruin the element very quickly and void
the warranty. If this appliance does not heat, check your plug and your wall receptacle for
loose connections or blown fuses.
CLEANING
Use only cleaners which are safe for ALUMINUM. DO NOT use caustic cleaners, ice or cold
water to clean the grill. Turn grill down or OFF during Idle periods to prevent carbon buildup.
1. Turn Power off and unplug, allow grill to cool.
2. Remove particles by using a spatula.
3. Wipe down all surfaces using a warm damp cloth and mild detergent.
CARBON CLEANING
When carbon buildup occurs, use a carbon removal agent which is safe for aluminum, follow
the instructions provided with the product. When this process is complete, you must re-season
your grill.
CAUTION
DO NOT USE SHARP OBJECTS TO REMOVE CARBON BUILD-UP.
BEFORE CLEANING MAKE SURE POWER IS TURNED OFF, UNIT IS UNPLUGGED AND
IS NOT TOO HOT.
Apply only cleaners which are safe for aluminum and iron surfaces. Wipe with clean
sponge or towel until unit is clean.
3
Page 4
SEASONING THE GRIDDLE HEATING SURFACE (NON-CHROMIUM
SURFACES)
Clean the griddle surface thoroughly. After the griddle has been thoroughly cleaned, it should
be seasoned to prevent food from sticking. Before using, and after each thorough scouring,
season the griddle heating surface in the following manner:
1. Turn Power ON and set the knob to number 7.
2. Allow 10 minutes for grill to reach its operating temperature.
3. Brush the cooking surface with a releasing agent.
If using an aerosol agent, fi rst apply in a cup and then brush onto cooking surface.
4. Let sit for 20 minutes, and then wipe clean using a warm damp cloth.
DAILY SEASONING
Properly seasoned, the grill should not require much seasoning while in use.
Brushing a light coating of a baking releasing agent in the morning, and occasionally
throughout the day will be enough to prevent any sticking.
IT IS NOT REQUIRED TO APPLY BEFORE GRILLING EACH ITEM.
Even with careful seasoning food may, to some extent, stick to the griddle cooking
surface until griddle plate is "broken in."
OPERATING PROCEDURE
Turn temperature control knob from "off" position to the temperature number desired.
This will automatically heat the griddle to whatever the temperature the control knob is set.
The thermostat will shut off automatically and the pilot light will go out when the temperature is
reached. The griddle is to be kept at this setting for immediate service and left at this setting
as griddle will remain at constant temperature. If it is turned off, you will have to wait 10 to
20 minutes for it to reheat. If griddle is too hot, turn knob to lower temperature. Turn of f when
leaving at night.
PILOT LIGHT
Pilot light will go on when the unit is fi rst turned on or when control knob is turned to higher
temperature. It will go off when temperature is reached.
GREASE CATCHER
A pan is provided to catch the grease. This fi ts under the griddle.
OPERATING HINTS AND SAFETY
Disconnect power to the unit with the switch at the end of each day of operation.
Do not leave the unit in operation without an attendant.
Turn thermostat down to #3 during idle periods. It will take only a few minutes to regain
operating temperature.
Use spatula to push excess grease into grease drawer after each load of food is cooked.
This will reduce smoking of hot grease and carbonizing.
Do not leave the unit at high temperature when not in use or during idle periods. This will
cause food particles and grease fi lm to carbonize
WARNING
DO NOT IMMERSE OR LET THE UNIT STAND IN WATER.
DO NOT HOSE DOWN THE UNIT OR THE TABLE/COUNTER IF THE UNIT IS ON THE
TABLE/COUNTER.
KEEP AWAY FROM RUNNING WATER.
MAINTENANCE AND REPAIRS
Contact the factory or one of its representatives or a local service company for service or
maintenance if required.
4
Page 5
Visit our Website at: www.star-mfg.com Email: [email protected]
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of
the unit.
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
LIMITED EQUIPMENT WARRANTY
> Star will not assume any responsibility for loss of revenue.
> On all shipments outside the United States and Canada, see International Warranty.
* The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
* The warranty period for the Chrome-Max Griddles is ¿ ve (5) years on the griddle surface. See detailed warranty provided with unit.
* The warranty period for TeÀ on/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
TeÀ on/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identi¿ ers and
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the
“non-stick” properties of such materials.
> This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
> This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
> This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
> This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is chargeable to
the customer.
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
* The Model 510FD Fryer.
* The Model 526TOA Toaster Oven.
* The Model J4R, 4 oz. Popcorn Machine.
* The Model 518CMA & 526CMA Cheese Melter.
* The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
* The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
* All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
* All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.
SERVICES NOT COVERED BY WARRANTY
PARTS WARRANTY
10. Voltage conversions
11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resetting of circuit breakers or safety controls or reset buttons
16. Replacement of bulbs
17. Replacement of fuses
18. Repair of damage created during transit, delivery, &
installation OR created by acts of God
PORTABLE EQUIPMENT
ALL:
* Pop-Up Toasters
* Butter Dispensers
* Pretzel Merchandisers
(Model 16PD-A Only)
* Pastry Display Cabinets
* Nacho Chip Merchandisers
* Accessories of any kind
* Sneeze Guards
* Pizza Ovens
(Model PO12 Only)
* Heat Lamps
* Pumps-Manual
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
5
Part# 2M-4497-2 12/06 RMS
Page 6
01/24/05SK2113 REV --
PILOT LIGHT
GREEN
WHITE
BLACK
LINE CORD
GREEN
WHITE
LINE CORD
BLACK
STAR MANUFACTURING INTERNATIONAL INC.
THERMOSTAT
TERMINAL BLOCK
THERMOSTAT
BG3 - 120 V
RED
RED
RIGHT ELEMENT
PILOT LIGHT
RIGHT ELEMENT
RED
TERMINAL BLOCK
RED
BG3 - 240 V
WHITE
WHITE
LEFT ELEMENT
WHITE
LEFT ELEMENT

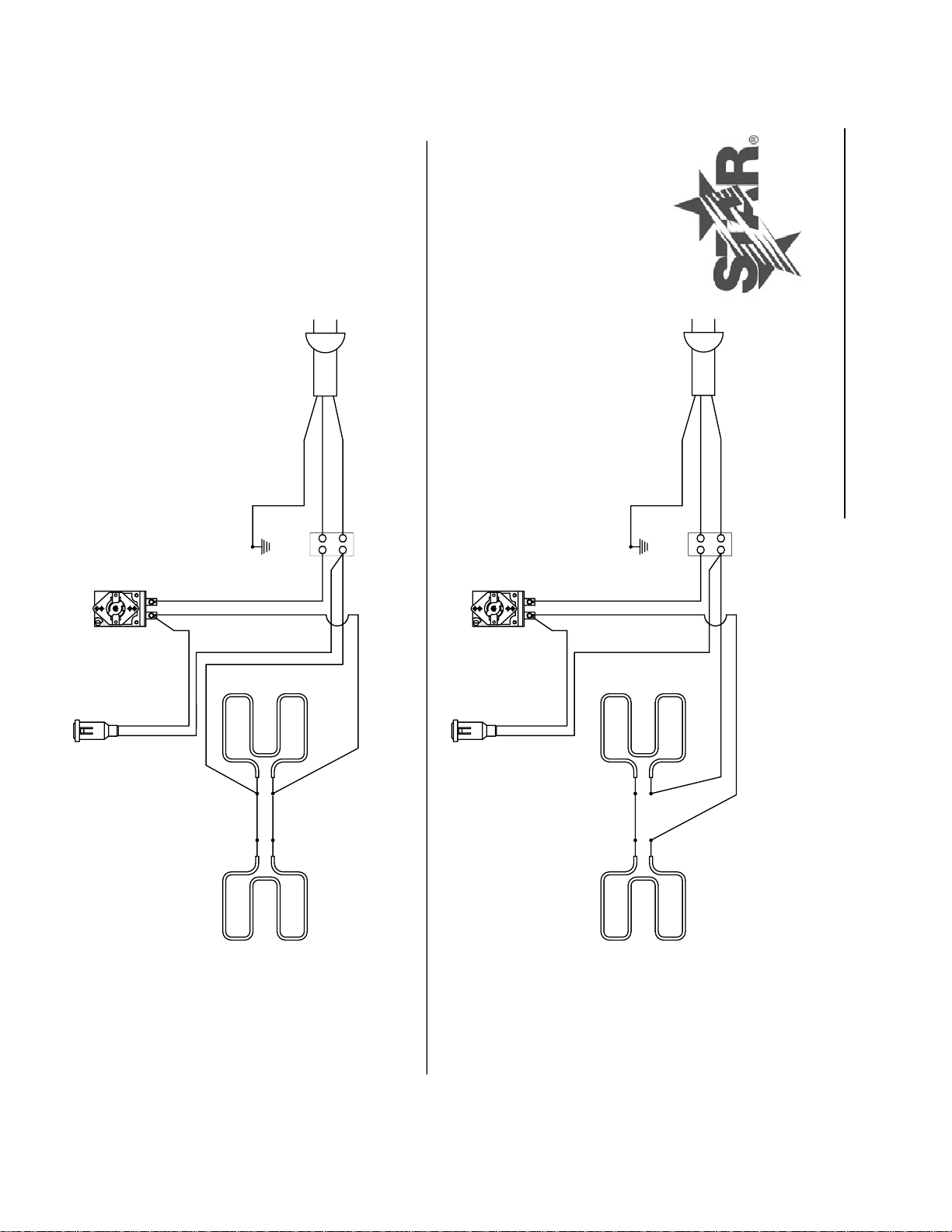

BG3 WIRE DIAGRAM
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
6
Page 7
NAMEPLATE
1
2
15
3
4
5
24
22
23
21
16
20
15
13
14
SOME ITEMS ARE INCLUDED FOR
ILLUSTRATIVE PURPOSES ONLY AND IN
CERTAIN INSTANCES MAY NOT BE AVAILABLE
12
17
19
18
11
10
25
6
9
7
9
8
MODEL - BG3 Electric Griddle
STAR MANUFACTURING INTERNATIONAL, INC.
SK2151 REV. A 10/26/05
7
Page 8
PARTS LIST December 4, 2007, Rev D
MODEL BG3 PORTABLE GRIDDLE
Number
Key
Number
1 D9-30-GR-0055 1 GRIDDLE PLATE
2 2N-05-GR-0001 2 ELEMENT - 120V/208V/230V (875W) (square, new style)
3 D9-04-GR-0017 2 PLATE - ELEMENT
4 D9-04-GR-0012 1 CLAMP - THERMOSTAT BULB (not shown)
5 D9-06-GR-0002 1 INSULATION (not shown)
6 D9-50-GR-0060 1 GRIDDLE PLATE HOUSING ASSEMBLY
7 D9-04-GR-0060 2 GUIDE - GREASE PAN
8 D9-04-GR-0010 1 GREASE PAN
9 D9-70-GR-0020 2 SUPPORT - GRIDDLE PLATE HOUSING
10 2A-06-07-0044 4 FOOT - NEOPRENE w/WASHER
11 D9-04-GR-0015 1 BASE
12 D9-04-GR-0016 1 BACK FRAME
13 2E-05-07-0057 1 TERMINAL BLOCK
14 B9-04-WB-0211 1 MOUNT, TERMINAL BLOCK
15 2T-05-GR-0005 1 THERMOSTAT
16 2R-09-07-0006 1 KNOB - THERMOSTAT
17 2S-Z3823 1 PILOT LIGHT - 120V
17 2S-05-07-0138 1 PILOT LIGHT - 208/230V
18 2C-Z1675 2 ROLL PIN
19 D9-50-GR-0218 1 LEFT TUBE SUPPORT ASSEMBLY
20 D9-50-GR-0219 1 RIGHT TUBE SUPPORT ASSEMBLY (not shown)
21 B9-04-WB-0065 1 REAR PLATE, CORD BUSHING
22 D9-04-GR-0013 1 COVER - BACK
23 2K-05-07-0017 1 GROMMET - LEAD IN CORD
24 2E-Z2935 1 CORD SJTO 14/3 NEMA 5-15P 120V
24 2E-Z2770 1 CORD, POWER, 14-3 6-15 208/240V
25 2M-Z9176 1 OPERATIONS LABEL
NI D9-30-GR-0130 1 BURNGUARD (some models)
Part
Number
Per
Unit
Description and Model Designation
1
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
1
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Star Manufacturing International, Inc.
8
Loading...
