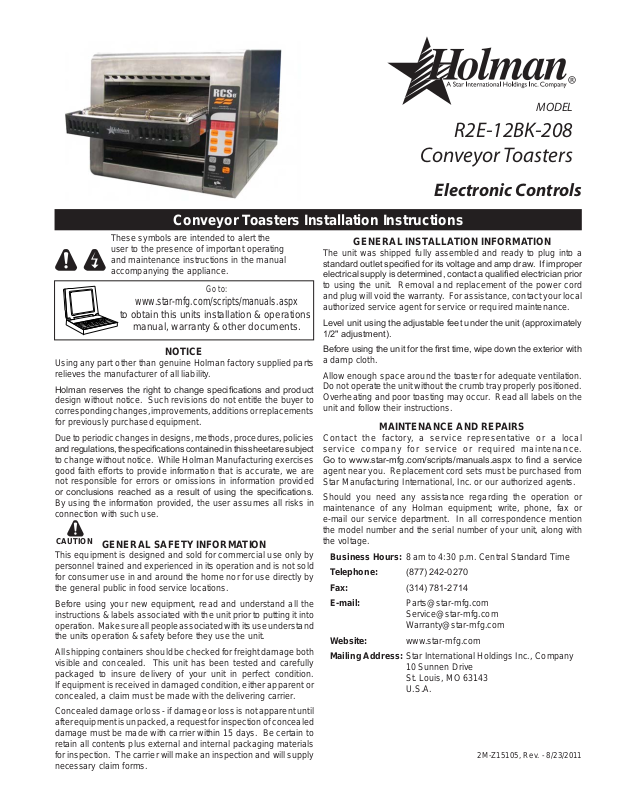

Holman RCSE-2-1200BK Operators Manual

Conveyor Toasters Installation Instructions

These symbols are intended to alert the
user to the presence of important operating
and maintenance instructions in the manual
accompanying the appliance.

Go to:

www.star-mfg.com/scripts/manuals.aspx

to obtain this units installation & operations

manual, warranty & other documents.

NOTICE

Using any part other than genuine Holman factory supplied parts
relieves the manufacturer of all liability.

Holman reserves the right to change specications and product

design without notice. Such revisions do not entitle the buyer to
corresponding changes, improvements, additions or replacements
for previously purchased equipment.

Due to periodic changes in designs, methods, procedures, policies

and regulations, the specications contained in this sheet are subject

to change without notice. While Holman Manufacturing exercises
good faith efforts to provide information that is accurate, we are
not responsible for errors or omissions in information provided

or conclusions reached as a result of using the specications.

By using the information provided, the user assumes all risks in
connection with such use.

CAUTION

This equipment is designed and sold for commercial use only by
personnel trained and experienced in its operation and is not sold
for consumer use in and around the home nor for use directly by
the general public in food service locations.

Before using your new equipment, read and understand all the
instructions & labels associated with the unit prior to putting it into
operation. Make sure all people associated with its use understand
the units operation & safety before they use the unit.

All shipping containers should be checked for freight damage both
visible and concealed. This unit has been tested and carefully
packaged to insure delivery of your unit in perfect condition.
If equipment is received in damaged condition, either apparent or
concealed, a claim must be made with the delivering carrier.

Concealed damage or loss - if damage or loss is not apparent until
after equipment is unpacked, a request for inspection of concealed
damage must be made with carrier within 15 days. Be certain to
retain all contents plus external and internal packaging materials
for inspection. The carrier will make an inspection and will supply
necessary claim forms.

GENERAL SAFETY INFORMATION

MODEL

R2E-12BK-208

Conveyor Toasters

Electronic Controls

GENERAL INSTALLATION INFORMATION

The unit was shipped fully assembled and ready to plug into a

standard outlet specied for its voltage and amp draw. If improper
electrical supply is determined, contact a qualied electrician prior

to using the unit. Removal and replacement of the power cord
and plug will void the warranty. For assistance, contact your local
authorized service agent for service or required maintenance.

Level unit using the adjustable feet under the unit (approximately
1/2" adjustment).

Before using the unit for the rst time, wipe down the exterior with

a damp cloth.
Allow enough space around the toaster for adequate ventilation.

Do not operate the unit without the crumb tray properly positioned.
Overheating and poor toasting may occur. Read all labels on the
unit and follow their instructions.

MAINTENANCE AND REPAIRS

Contact the factory, a service representative or a local
service company for service or required maintenance.

Go to www.star-mfg.com/scripts/manuals.aspx to nd a service

agent near you. Replacement cord sets must be purchased from
Star Manufacturing International, Inc. or our authorized agents.

Should you need any assistance regarding the operation or
maintenance of any Holman equipment; write, phone, fax or
e-mail our service department. In all correspondence mention
the model number and the serial number of your unit, along with
the voltage.

Business Hours:
Telephone: [phone]
Fax: [phone]
E-mail: [e-mail]

[e-mail]
[e-mail]

Website: www.star-mfg.com
Mailing Address: Star International Holdings Inc., Company

10 Sunnen Drive
St. Louis, MO 63143
U.S.A.

8 am to 4:30 p.m. Central Standard Time

2M-Z15105, Rev. - 8/23/2011

ELECTRICAL CONNECTION

ELECTRONIC

RADIANT-CONVECTION SYSTEM

FRONT HEAT
BACK/BOTTOM HEAT

CONVEYOR SPEED

HOLMAN, A SUBSIDIARY OF STAR

MANUFACTURING INT'L, INC.

CROIS

LIGHT

DARK

OTHER

MUFFIN

SAVER

ON

OFF

PASTRY

IL2323

Before making any electrical connection to this unit,
check that the power supply is adequate for the voltage,
amperage and requirements stated on the rating plate.
A wiring diagram is included in the Installation &
Operations manual, which can be downloaded at

www.star-mfg.com/scripts/manuals.aspx.

Disconnect the unit from the power source before installing or
removing any parts.

Be absolutely sure that the ground connection for the receptacle is
properly wired. Do not connect equipment to power without proper
ground connections. Improper grounding may result in personal

injury or fatality.

DO NOT CUT OR REMOVE THIS PLUG OR

WARNING

WARNING

CAUTION

WARNING

GROUNDING PRONG FROM THE PLUG.
CONNECT/PLUG UNIT INTO DEDICATED

A.C. LINE ONLY SPECIFIED ON THE DATA
PLATE OF THE UNIT.

CERTAIN SURFACES ARE EXTREMELY HOT
DURING OPERATION AND CARE SHOULD
BE TAKEN WHILE USING THIS UNIT.

DO NOT IMMERSE OR LET THE UNIT STAND
IN WATER.

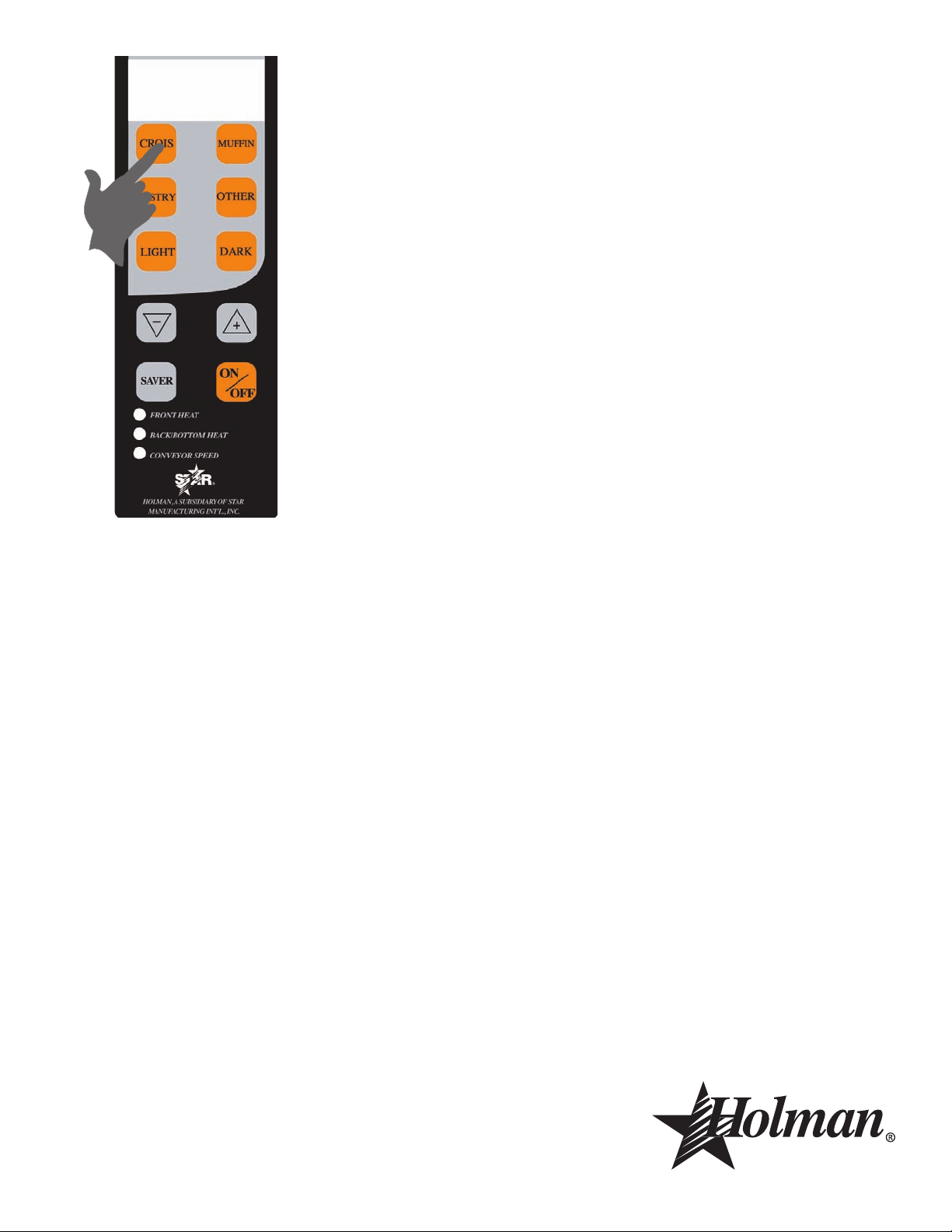

The Holman RCSe conveyor toaster
comes with pre-programmed factory
default settings for CROISSANT,

MUFFIN & PASTRY.

Factory default settings are as follow:

R2E-12BK-208V DEFAULT

SETTINGS

Menu

Buttons
CROIS
MUFFIN 25
PASTRY 60

Top

Heat

8 8

Bottom

Heat

Conveyor

Speed

45

OTHER 80
LIGHT +10%
DARK -10%

*After 45 seconds unit will return

to its programmed setting.

WARNING

WARNING

DO NOT HOSE DOWN THE UNIT OR THE
TABLE/COUNTER IF THE UNIT IS ON THE
TABLE/COUNTER.

KEEP AWAY FROM RUNNING WATER.

POWER SAVER SWITCH

There are three Power Saver modes:

ON: Unit is in pre-programmed power saving setting.
OFF: Power Saver mode is turned off.
AUTO ON: Power Saver turns on when there has been no activity

for a programmed length of time.

The operator may adjust the level of power reduction for the saver

mode. (Note: conveyor may move slowly when in saver mode.)

Two buttons (+) and (-) are used when increasing or decreasing the

value of each programmable setting.
A red LED light located at the lower portion of the control panel label

will indicate if the value for top heat, bottom heat or conveyor speed

is being adjusted.

CERTAIN SURFACES ARE EXTREMELY HOT
DURING OPERATION AND CARE SHOULD

CAUTION

BE TAKEN WHILE USING THIS UNIT.

START UP

When the toaster has been plugged into a suitable outlet and power
supply, the word OFF will be displayed on the L.E.D. read out.

A. Press the ON/OFF button once to turn on the toaster. The

toaster will now enter into pre-heat and “PREHT” will be

displayed (the elements will begin to glow but the conveyor
and fan motor will not turn on).

B. After one minute, the fan motor will turn on and the conveyor

will begin turning at the previously saved setting (for initial

start up, the drive motor will operate at the factory default

setting).

C. After four minutes, the display will show the last used program

selection i.e. (for initial startup, CROIS, MUFFIN, PASTRY,
OTHER, will be the last program selected).

DAILY OPERATION

Check the power cord to insure that it is plugged into a proper
outlet.

Pr es s the ON/OFF button on ce t o turn the toaste r o n.
Press the button a second time to turn the toaster off.

NOTE: When the toaster is turned off, the fan and conveyor motors

will continue to run for ve minutes. The words COOL and DOWN will

be alternately displayed during that time. After ve minutes, the word

OFF will be displayed until the ON/OFF button is pressed again.
Once the toaster has been pre-heated, the menu buttons can be

pressed to change to CROIS, MUFFIN, PASTRY, OTHER.

OPERATING HINTS AND SAFETY

Disconnect power to the unit with the ON/OFF button at the end of

each day of operation.
Do not leave the unit in operation without an attendant.
Do not leave the unit at high temperature when not in use or during

idle periods. This will cause food particles and grease lm to

carbonize.

PROGRAMMING

A. CONVEYOR SPEED (temporary setting)

The conveyor speed is programmable with a range from 0 to 99 with
0 being the slowest and 99 being the fastest. Each menu item can
have independent conveyor speed settings.

B. PROGRAMMING VALUES FOR MENU ITEMS

To make a program change to the top & bottom elements, or conveyor

speed, you must rst be in the menu item you want changed.

Example: to change the programmed conveyor speed for croissants,
the display must read CROIS. To change the programmed conveyor
speed for MUFFIN, the display must read MUFFIN and so on for
each menu item.

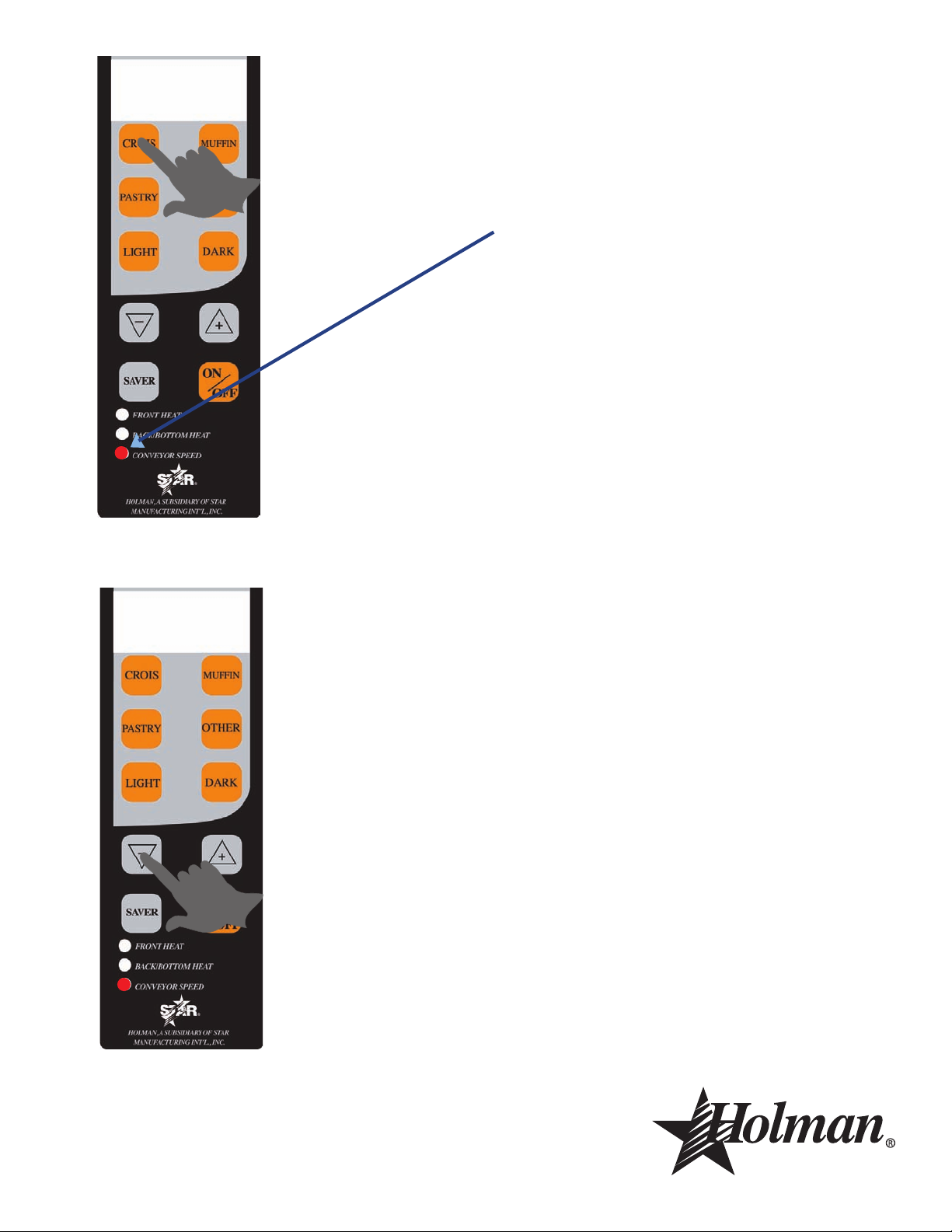

1) Select the menu item you want to change i.e. CROIS, MUFFIN,
PASTRY, OTHER.

2) Press and hold both ( + ) AND ( - ) buttons for 3 seconds until

the display goes blank, release the buttons and the display
will show three characters for the menu item elected and the
last two characters for the current value setting, i.e. CROIS,
MUFFIN, PASTRY, OTHER. The red L.E.D. light for upper

front element at the bottom of the label will ash.

3) Press the ( + ) or ( - ) buttons to increase or decrease the

setting for the upper front element.

4) Press the button for the menu button again and the red L.E.D.
for the upper rear and lower element will ash.

5) Press the ( + ) or ( - ) buttons to increase or decrease the

setting for the upper rear and lower element.

6) Press the button for the menu button again and the red L.E.D.
for the conveyor speed will ash.

7) Press the ( + ) or ( - ) buttons to increase or decrease the

setting for the conveyor speed.

8) To skip one feature setting with out making any changes,

press the menu item button one time and the red L.E.D. light

for the next item will now ash.

9) To change the POWER SAVER values press the SAVER
button or to save your new setting(s), and exit the program

mode press the menu button.

10) The last two characters in the display will show MN for
minutes.

11) The rst three characters will be numerical to represent the

time setting.

12) When set to “OFF” the Saver button will be disabled during

operation. The PowerSaver can be set to “OFF” or using the

( + ) or ( - ) set the time from 15 to 480 minutes.

13) Press the SAVER button to change the power reduction using
the ( + ) or ( - ) buttons to increase or decrease the setting.

14) Press the POWER SAVER button to save changes and to

exit.

CLEANING

STAR INTERNATIONAL HOLDINGS INC. COMPANY

Star - Holman - Lang - Wells - Bloomeld - Toastmaster

10 Sunnen Drive, St. Louis, MO 63143 U.S.A.

[phone]

www.star-mfg.com

Preventive maintenance for your Holman toaster consists of the
following recommended cleaning procedures. To keep your toaster
in its top operating condition, these steps should be performed on a
daily or weekly basis as required.

Supplies

KAY® QSR Oven Cleaner

KAY® QSR Heavy Duty Multi-Purpose Sink Detergent
(dispensed use solution)

KAY® Sink Sanitizer (use solution prepared at the sink)

No Scratch Pad

Red Cloth

Daily Procedure:

1. Turn toaster off, conveyor will continue to run until cooled

down (approx. 5-10 minutes)

2. Immediately spray the oven cleaner onto the No Scratch

Pad and scrub the conveyor chain while it is still warm and
moving.

NOTE: DO NOT SPRAY directly onto the conveyor
belt or into the cooking chamber. Overspray onto the
heating elements can damage or shorten the life of the
elements.

3. Wash the No Scratch pad at the 3 compartment sink and then

soak with Multi-Purpose Sink Detergent. Ring the pad out so
that it is only damp and continue to scrub the conveyor belt
while it’s still moving.

4. Rinse the No Scratch pad at the 3 compartment sink to remove

all detergent and then soak with clean warm water. Ring
the pad out so that it is only damp and continue to scrub the
conveyor belt while it still moving.

5. Wipe the conveyor belt with a clean red cloth dampened with
sanitizer solution while it is still moving. Allow to air dry.

6. Rinse the No Scratch pad at the 3 compartment sink and then

soak with clean warm water. Ring the pad out so that it is only
damp and wipe exterior areas of the toaster.

7. Remove interior crumb tray and bottom catch tray and take

to the three compartment sink. Spray the pieces with oven
cleaner and allow to sit on the drain board for a minimum of

ve minutes.

8. Wash, Rinse and Sanitize removable pieces and allow to air
dry before sliding the trays back into the unit.

9. Unit is now ready to turn ON for warm up and use.

DO NOT IMMERSE THE UNIT IN WATER OR LET

WARNING

THE UNIT STAND IN WATER.

DO NOT USE A NON-STICK SPRAY ON THE
CONVEYOR BELT, IT WILL CAUSE A STICKY

CAUTION

BUILD-UP AND INCREASE STICKING.

DO NOT HOSE DOWN THE UNIT OR THE

WARNING

TABLE/COUNTER IF THE UNIT IS ON THE
TABLE/COUNTER.

KEEP AWAY FROM RUNNING WATER.

WARNING

Star
Manufacturing
International Inc.

10 Sunnen Dr.
St. Louis, MO 63143

Phone: [phone]
FAX: [phone]

CONVEYOR BELT REMOVAL PROCEDURES

For units without Master Links

1) Turn off unit and allow to cool.

2) WARNING - DISCONNECT UNIT FROM POWER
SUPPLY OR TURN OFF AT WALL BREAKER
BEFORE PROCEEDING TO NEXT STEP.

3) Remove unload tray by unscrewing the two thumb
screws on either side of the exit tray. Lift the tray
up and away from the oven. Remove the Load Up
and Unload Trays. (Fig. 1)

Service Kit

Instructions

4) Remove Crumb Trays, Burn Guards & load-up
trays.

5) Standing at the end on the unit, pick-up the
conveyor belt and un-hook one end.

6) Trace that link down to the other end and unhook
from the opposite side.

7) Using both hands, bring both ends together and
push the link forward to disengage it from the belt.

8) Re-hook the loose ends back onto the previous link,
to prevent the link from being damaged or bent.

9) Now that the link have been un-hooked, the Con­veyor can now be carefully removed from the oven.
Standing at the end of the oven. Starting with the
end on bottom, roll the conveyor belt until it has
been totally removed from the oven. Take careful
notice being sure not to damage the heater tubes.

NOTE: DO NOT ATTEMPT TO CLEAN THE HEATER

TUBES.

10) For heavy soiled Conveyor Belt, soak over night in
hot soapy water.

11) Take this opportunity to clean and remove any
loose materials the inside of the unit. Using a mild
cleaner and damp cloth, carefully wipe the inside
surfaces being sure NOT to clean the heater tubes.

Damage can occur to the HEATER tubes from
improper cleaning.

DO NOT SPRAY CLEANING SOLUTIONS INTO

OVEN CAVITY.

12) Reinstall Conveyor Belt by fi rst laying the belt along
bottom of oven cavity making sure the hooks on
the sides of the belt will be facing the inside and
the ends of the hooks will be pointing away from
the direction of belt so not to catch on any internal
components once put back into operation.

NOTE: THE DIRECTION OF THE BELT.

13) Next, pull one end of Conveyor Belt over the top
of the sprockets, (being sure to line the links up
properly with the sprockets) bringing the two ends
together.

14) Un-hook both sides of the last link on the Conveyor.

15) Bring the two ends together and thread them
through the middle section of the opposite end of
the belt, using both hands.

16) Re-hook the two ends of the Conveyor, once again
completing the Conveyor Belt system.

17) Examine the oven to assure proper installation,
once satisfi ed, reinstall burn guard, crumb tray and
load-up trays.

18) Reconnect oven to power supply and check for
proper operation.

IF ASSISTANCE IS REQUIRED, CALL THE STAR

SERVICE TEAM AT 1-800-807-9054

ATTENTION! READ BEFORE USING THE TOASTER

This toaster was shipped in its current state to meet your program deadline.

But there are changes to be made before starting to use it.

A. The crumb tray shipped with this unit is the wrong one. Using it will cause the croissants to

get stuck and burn. Remove the crumb tray and disguard it. A new crumb tray will be shipped to
you in a few days.

B. The time and temperature for the food products is also wrong. You must reprogram the toast-
er using the instructions below

1. Plug in the toaster

PREHT

2. Press the ON/OFF button
The display will read PREHT (pre-heat)
The toaster will start getting hot but the conveyor will not

turn.
After approximatetly 1 minute the conveyor will start to

move but the toaster will continue to pre-heat.
After approximately 3 minutes the display will change. It

 mayreadCROIS(croissant),MUFIN(mufn),PSTRY

(pastry), or OTHER whichever button was last pushed by
the factory

CROIS

3. Press the CROIS (croissant) button. The display will
read CROIS.

CROIS

4. Press the UP and DOWN arrow buttons at the same
time and hold for 3 seconds

CRS10

5. The display will read CRS10.
The FRONT HEAT indicator will light.

CRS 8

6. Press the DOWN arrow button twice to change the
temperature to 8

CRS10

7. Press the CROIS button. The display will read CRS10
The BACK/BOTTOM HEAT indicator will light

CRS 8

8. Press the DOWN arrow button twice to change the
temperature to 8

CRS70

9. Press the CROIS button. The display will read CROIS70
The CONVEYOR SPEED indicator will light

CRS45

10. Press the DOWN arrow button until the display reads
CRS45.

CROIS

11. Press the CROIS button.
The display will read CROIS and the toaster is ready for

use.

12. Start with step 3 again but substitute the CROIS button with the MUFFIN button. Change
the settings to:

FRONT HEAT 8
BACK/BOTTOM HEAT 8
CONVEYOR SPEED 25

13. Start with step 3 again but substitute the CROIS button with the PASTRY button. Change
the settings to:

FRONT HEAT 8
BACK/BOTTOM HEAT 8
CONVEYOR SPEED 45

4645

1

2

3

4

5

6

7

18

17

8

9

10

12

13

14

24

15

16

19

20

21

43

44

22

23

25

26

27

Certain Models or

Q2-3KL-KIT

28

29

30

31

32

33

34

35

36

37

40

14

15

41

42

8

38

39

11

®

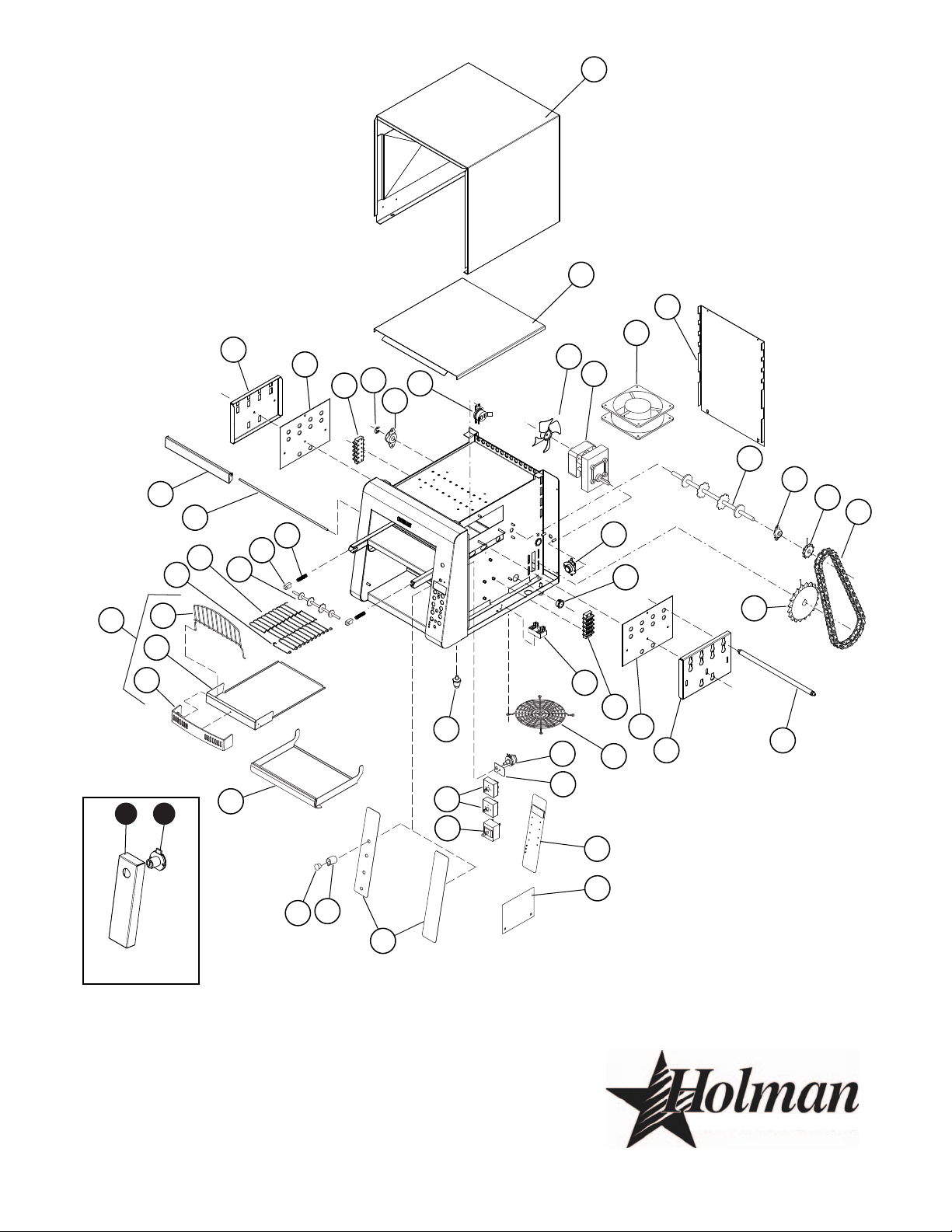

SK2297

Rev.B 4/24/08

Model

:

Q2/Q2E/RCS2/Q3/Q3E Conveyor Toaster

This drawing contains information confidential
to Star Manufacturing International, Inc.
No reproduction or disclosure of its

CERTAIN INSTANCES MAY NOT BE AVAILABLE

ILLUSTRATIVE PURPOSES ONLY AND IN

SOME ITEMS ARE INCLUDED FOR

contents is permitted.

23

PARTS LIST December 29, 2011, Rev. D

Models: Q2-500-120V, Q2E-500-120V, Q2-500-CUL20, Q2-600H-CE, Q2-600H-UK, Q2-600HF-208, Q2-600H-208/220/240V,

Q2-600HS-208, Q2E-600H-208/240V, Q2-800-208/220/240V, Q2-800-240UK, Q2-800-230CE, Q2E-800-208/240V,
Q2-1200B-208/240V, R2-12BSZ-208/240V, R2--1200-208/240V, R2-600HJ-208/240V, R2-800-208V

Fig

Part No. Qty Description Application

No

1 HC-120258 1 ENCLOSURE ASSY - QCS-2 ALL

Q2-800-208/220/240V, Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-

HB-120270

2

HB-120280 BAFFLE ASSEMBLY, HIGH

TOP BAFFLE ASSY QCS-2 LOW

1

1200B-208/240V, R2-600HJ-208/240V, Q2-500-120V, Q2-500-CUL20, Q2E­500-120V, Q2E-500CUL20, Q2-800-240UK

Q2-600H-208/220/240V , Q2E-600H-208/240V, Q2E-800-208/240V, Q2­600H-CE

3 2R-Z8879 1 2-5/8” DIA. FAN BLACK CW OLDER MODEL MOTORS

HA-120243
HA-120240 MOTOR ASSY 120V

4

HB-120262 MOTOR ASSY 208-240V

MTR, ASSY QCS, 220/230/240 Q2-600H-CE, Q2-600H-UK, Q2-800-240UK, Q2-800-230CE

Q2-500-120V, Q2-500-CUL20, Q2E-500-120V, Q2E-500CUL20, R2E-500-

1

120V
Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2-1200B-208/240V,

R2-12BSZ-208/240V, R2-1200B-208/240V, R2-600HJ-208/240V, Q2E-600H­208V, Q2-800-240UK, R2E-800-208V

2U-200559

FAN 120V Q2E-500-120V, Q2E-500CUL20

Q2-600H-208/220/240V, Q2-800-208/220/240V, R2-600HJ-208/240V, Q2E-

2U-200560 FAN 240V

5

1

2U-200561 MOTOR, FAN240V 23BTM

600H-208V, Q2E-800-208/240V, Q2-500-120V, Q2-500-CUL20, Q2E-500­120V, Q2-600H-CE, Q2-600H-UK, R2E-800-208V

Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-1200B-208/240V, R2E-12BK-

208/240
6 HC-Z10412 1 BACK PANEL QCS-2 ALL
7 2A-202900 1 SHAFT, T710 DRIVE ALL

Q2-600H-208/220/240V, Q2-800-208/220/240V, R2-600HJ-208/240V,

Q2E-600H-208V, Q2E-800-208/240V, Q2-500-120V, Q2-500-CUL20, Q2E­8 HA-112263 2 BEARING ASSY, PTFE/BRONZE

500-120V, Q2E-500CUL20, Q2-600H-CE, Q2-600H-UK, R2E-800-208V,

Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-1200B-208/240V, R2E-12BK-

208/240
9 2P-Z8779 1 SPROCKET, 25P-11T .313 ID ALL

Q2-600H-208/220/240V, Q2-800-208/220/240V, R2-600HJ-208/240V, Q2E-

2P-150013

10

2P-150015 CHAIN DRIVE #25

DRIVE CHAIN #25

1

600H-208V, Q2E-800-208/240V, Q2-500-120V, Q2-500-CUL20, Q2E-500-

120V, Q2E-500CUL20, R2E-800-208V

Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-1200B-208/240V, R2E-12BK-

208/240

Q2-600H-208/220/240V, Q2-800-208/220/240V, R2-600HJ-208/240V, Q2E-

2M-Z10651, Holman Conveyor Toaster

2P-200645

11

2P-200648 SPROCKET, 25B32 X 5/16

SPROCKET, 25B17 X 5/16”

1

600H-208V, Q2E-800-208/240V, Q2-500-120V, Q2-500-CUL20, Q2E-500-

120V, Q2E-500CUL20, Q2-600H-CE, Q2-600H-UK, R2E-800-208V

Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-1200B-208/240V, R2E-12BK-

208/240

CONVEYOR TOASTERS

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

24

1
4

PARTS LIST December 29, 2011, Rev. D

Models: Q2-500-120V, Q2E-500-120V, Q2-500-CUL20, Q2-600H-CE, Q2-600H-UK, Q2-600HF-208, Q2-600H-208/220/240V,

Q2-600HS-208, Q2E-600H-208/240V, Q2-800-208/220/240V, Q2-800-240UK, Q2-800-230CE, Q2E-800-208/240V,
Q2-1200B-208/240V, R2-12BSZ-208/240V, R2--1200-208/240V, R2-600HJ-208/240V, R2-800-208V

Fig

Part No. Qty Description Application

No

2N-209100 4 ELEMENT, METAL 120V 430W R2E-500-120V
2N-209112
2N-209114 SERPENTINE ELEMENT RCS R2-12BSZ-208V, R2-1200B-208V, R2E-12BK-208
2N-209194 ELEMENT METAL, 200W/120V R2-12BSZ-240V, R2-1200B-240V, R2E-12BK-240
2N-209198 ELEMENT METAL, 200W/104V R2-12BSZ-208V, R2-1200B-208V, R2E-12BK-208
2N-209199
2N-209216 ELEMENT, METAL, 500W, 120V R2-600HJ-240V
2N-209197 ELEMENT METAL, 700W/104V R2-600H-208V, R2-800-208V, R2E-800-208V

12

HO-197842 HEATERTUBE, QUARTZ
HD-198042 6 HEATERTUBE, QUARTZ Q2-500-120V, Q2-500KL-120, Q2E-500-120V, Q2E-500CUL20

HG-198062
HG-198064 HEATERTUBE, QCS-2-1200B Q2-1200B-240V

HO-197841 HEATERTUBE, QUARTZ
HO-197844 HEATERTUBE, QUARTZ Q2-600H-220V, Q2-800-220V, Q2E-600H-220V, Q2-600H-CE
HC-Z10390
HC-Z10440 ELEMENT RETAINER, RIGHT Q2-1200B-208/240V

13

HC-Z10443 HEATER TUBE RETAINER R2-12BSZ-208/240V, R2-1200B-208/240V, R2E-12BK-208

HC-Z11288

HB-Z10857

HC-Z10388 ELEMENT GUIDE PLATE

14

HC-Z10439 ELEMENT GUIDE PLATE 1200 Q2-1200B-208/240V
HC-Z10442 ELEMENT GUIDE PLATE SERP R2-12BSZ-208/240V, R2-1200B-208/240V, R2E-12BK-208

15 2E-Z10406

16 2E-Z9736 1 TERMINAL BLOCK - POWER

2M-Z10651, Holman Conveyor Toaster

17 2K-200464

18 2E-200566 1 SWITCH, RESET ALL
19 2R-200562 1 FAN GUARD ALL

ELEMENT, SERPENTINE, RCS R2-12BSZ-240V, R2-1200B-240V, R2E-12BK-240

2

METAL ELEMENT, 500W, 104V R2-600HJ-208V

4

Q2-600H-240V, Q2-800-240V, Q2E-600H-240V, Q2E-600H-240V, Q2-600H­UK, Q2-800-240UK

HEATERTUBE, QCS-2-1200B Q2-1200B-208V

4

ELEMENT RETAINER, RIGHT
QCS

1

1

RETAINER, RCS ELEMENT

2 R2-800, R2E-500, R2E-800

ELEMENT GUIDE PLATE Q2-500-120V, Q2-500-CUL20, Q2E-500-120V, Q2E-500CUL20

2

3

TERMINAL BLOCK 4 POS.

2

1 Q2E-600H-208/240V, Q2E-800-208/240V

2

BUSHING WIRE RING 7/8”

1

Q2-600H-208V, Q2-800-208V, Q2E-600H-208V, Q2E-600H-208V, Q2E-800­208V, Q2-500-120V, Q2-500-CUL20

Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2E-600H-208V, Q2E-800­208/240V, R2-600H, R2-800

R2-600H, R2-600HJ

Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2E-600H-208V, Q2E-800­208/240V, Q2-600H-CE, Q2-600H-UK, R2-800, R2E-800

R2E-800-208V
Q2E-300H-120, Q2E-500-120V, Q2E-500CUL20, Q2-600H-208/220/240V,

Q2-800-208/220/240V, Q2-1200B-208/240V, R2-12BSZ-208/240V,
R2-1200B-208/240V, Q2-500-120V, Q2-500-CUL20, Q2E-500-120V, Q2E­500CUL20, Q2-600H-CE, Q2-600H-UK, R2E-500-120V, R2E-12BK-208

Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2-1200B-208/240V,
R2-12BSZ-208/240V, R2-1200B-208/240V, R2-600HJ-208/240V, Q2E-600H­208V, Q2E-800-208/240, Q2-500-120V, Q2-600H-CE, Q2-600H-UK

Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2E-600H-208V, Q2E-800­208/240V, Q2-500-120V, Q2-500-CUL20, Q2E-500-120V, Q2E-500CUL20,
Q2-600H-CE, Q2-600H-UK

Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-1200B-208/240V, R2-600HJ­208/240V

CONVEYOR TOASTERS

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

25

2
4

PARTS LIST December 29, 2011, Rev. D

Models: Q2-500-120V, Q2E-500-120V, Q2-500-CUL20, Q2-600H-CE, Q2-600H-UK, Q2-600HF-208, Q2-600H-208/220/240V,

Q2-600HS-208, Q2E-600H-208/240V, Q2-800-208/220/240V, Q2-800-240UK, Q2-800-230CE, Q2E-800-208/240V,
Q2-1200B-208/240V, R2-12BSZ-208/240V, R2--1200-208/240V, R2-600HJ-208/240V, R2-800-208V

Fig

Part No. Qty Description Application

No

HA-120239
HB-120259 SPEED CONTROL ASSY 250 Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-1200B-208/240V

20

HB-120261 SPEED CONTROL ASSY 500

21 2P-402728 1 POT, ANTI SPIN PLATE ALL NON-ELECTRONIC

2J-200538

22

2J-200539 SWITCH, EGO 120V INFINITE Q2-500-120V, Q2-500KL-120, Q2-500-CUL20

23 2E-200551 1 SWITCH ROTARY

24 2R-200709 4 LEG 1” CHOME PLASTIC

2M-200864

2M-200894 LABEL, QCS-2&3 BAGEL CONT Q2-1200B-208/240V

2M-201810 LABEL, RCS-2&3 BAGEL CONT

25

2M-201813 LABEL, QCSE Q2E-600H-208V, Q2E-500-120V, Q2E-500CUL20
2M-Z13358 LABEL - CONTROL Q2E-600HW Q2E-600HW
2M-Z13864 LABEL - CONTROL PANEL R2E R2E-500-120V, R2E-800-208V
2M-Z14858 LABEL - CONTROL R2E-12BK R2E-12BK-208/240

2R-200768 1

26

2R-200769

27 2R-200708

HA-100560

28

HF-100562 SECURITY TRAY, PULL OUT ALL SECURUITY UNITS

29 2R-200787 1 QCS 1&2 CRUMB TRAY GUARD ALL

2M-Z10651, Holman Conveyor Toaster

HC-402457

HF-100656 SECURITY CRUMB TRAY, QCS Q2-600HS-208

30

HB-120309 CRMB TRAY ASSY, Q2E-600HW Q2E-600HW-208, 240
HB-120311 CRUMB TRAY ASSY R2E-12BK-208

31 2B-200763 1 LOADUP, 10 EURO, WIRE ALL EXCEPT R2E-12BK
32 HF-101115 1 TRAY, CRUMB TRAY ASSY
33 2B-Z10675 2 MASTERLINK 10” CONV ALL
34 SP-160027 1 BELT, CONVEYOR 10” ALL

SPEED CONTROL ASSEMBLY Q2-500-120V, Q2-500-CUL20

1

SWITCH, EGO 240V INFINITE

2

LABEL, QCS-2 & 3 CONTROLS

1

KNOB, CNTRL Q SERIES,
SPEED

KNOB, POWERSAVER Q

3

SERIES
KNOB, POWERSAVER Q

1

SERIES
4 KNOB, CONTROL CAP
2 KNOB, CONTROL CAP R2-12BSZ-208/240V, R2-1200B-208/240V

TRAY, PULL OUT QCS, 10” ALL
1

CRUMB TRAY, QCS-2 ALL
1

Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2-600H-CE, Q2-600H-UK,
R2-600HJ-208/240V, R2-800-208V

Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2-1200B-208/240V, R2­12BSZ-208/240V, R2-1200B-208/240V, R2-600HJ-208/240V, Q2-500-120V,

Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2-1200B-208/240V, R2­12BSZ-208/240V, R2-1200B-208/240V, R2-600HJ-208/240V, Q2-500-120V,
Q2-500-CUL20

Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2-1200B-208/240V,
R2-12BSZ-208/240V, R2-1200B-208/240V, R2-600HJ-208/240V, Q2E-600H­208V

Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2-500-120V, Q2-500­CUL20, Q2-600H-CE, Q2-600H-UK

R2-12BSZ-208/240V, R2-1200B-208/240V, R2-600HJ-208/240V, R2-800­208V

Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2-500-120V, Q2-500­CUL20, Q2-600H-CE, Q2-600H-UK

Q2-600H-208/220/240V, Q2-800-208/220/240V, R2-600HJ-208V, Q2-500­120V, Q2-600H-CE, Q2-600H-UK

Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-1200B-208/240V, R2-600HJ­208/240V

Q2-600H-208/220/240V, Q2-800-208/220/240V, R2-600HJ-208/240V, Q2­500-120V, Q2-500-CUL20, Q2-600H-CE, Q2-600H-UK

CERTAIN MODELS

CONVEYOR TOASTERS

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

26

3
4

PARTS LIST December 29, 2011, Rev. D

Models: Q2-500-120V, Q2E-500-120V, Q2-500-CUL20, Q2-600H-CE, Q2-600H-UK, Q2-600HF-208, Q2-600H-208/220/240V,

Q2-600HS-208, Q2E-600H-208/240V, Q2-800-208/220/240V, Q2-800-240UK, Q2-800-230CE, Q2E-800-208/240V,
Q2-1200B-208/240V, R2-12BSZ-208/240V, R2--1200-208/240V, R2-600HJ-208/240V, R2-800-208V

Fig

Part No. Qty Description Application

No

35 2A-202904 1 SHAFT, 210HX IDLER ALL
36 2P-200700 2 SPRNG LD BEARING TEFLON ALL
37 2P-200736 2 2” INCH BEARING SPRING ALL
38 HC-402134 1 NC10H SHUTTER ROD Q2-600H-208/220/240V, R2-600HJ-208V/240V, Q2E-600H-208V
39 HC-402206 1 HEAT SHUTTER, SWINGING Q2-600H-208/220/240V, R2-600HJ-208V/240V, Q2E-600H-208V

HC-Z10389

40

HC-Z10441 ELMNT RETAINER, LEFT QCS Q2-1200B-208/240V

41 2A-200284 1 E-CLIP 5/16” ALL
42 2E-200574 1 SWITCH, FAN CERAMIC Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-1200B-208/240V

2U-200591

43

2E-Z13360 CONTROL BOARD Q2E-600HW Q2E-600HW

2E-Z14864 CONTROL BOARD R2E-12BK R2E-12BK-208/240

2U-200592 1 QCSE POWER BOARD

44

HD-Z13861 1 POWER BOARD 120V R2E-500-120V

45 HF-402536 1 SECURITY LOCKING COVER ALL SECURUITY UNITS

2R-200752 1 KEYLOCKING SPEC KEYED ALL SECURUITY UNITS

46

HA-Z11222 1 KEYLOCK - DRILLED Q2-600HS-208

2K-200463 1 BUSHING CORD HEYCO 1247 Q2-600H-208/220/240V, Q2-800-208/220/240V, R2-600HJ-208V

2K-200465 1 BUSHING CORD HEYCO12/3 BL Q2-1200B-208/240V, R2-12BSZ-208/240V, R2-1200B-208/240V

NI

2K-Y2968 1 BUSHING - HEYCO 7W-2

NI 2P-200267 1 WIRE BRUSH R2-1200B-208V
NI D9-GR0216 1 POWER CORD ASSY-UK Q2-800-240UK

2E-200375

2E-Z13364 CORD SET 14GA. 6-20P 80” Q2E-600HW208, Q2E-600HW240

HA-120241 CORD SET ASSEMBLY QCS-1 Q2-500-120V

HA-120242 CORDSET ASSY QCS-1-CUL20 Q2-500-CUL20

HB-120267 CORD SET R2-1200B Q2-600H-220V, R2-1200B-208V, Q2-600H-CE

HB-120268 CORD SET ASSY R2-12BSZ R2-12BSZ-208/240V, R2-1200B-208/240V

NI

HB-120269 CORD ASSY 6-20P W/3 #10R

2M-Z10651, Holman Conveyor Toaster

HB-120274 CORD ASSY 6-20 QCSE Q2E-600H-208/240V, Q2E-800-208/240V

HB-120279 CORD ASSEMBLY CEE7-7 Q2-800-230CE

HD-140078 CORD SET, QCSE 2, 120V Q2E-500CUL20

HB-120312 CORD SET ASSY R2E-12BK-208/240

NI HG-402144 1 FAN SWITCH BRACKET R2-12BSZ-208/240V, R2-1200B-208V

ELEMENT RETAINER, LEFT
QCS

1

QCSE CONTROL BOARD

1

CORD SET, 14/3 120V EZ10 R2E-500-120V

1

Q2-600H-208/220/240V, Q2-800-208/220/240V, Q2E-600H-208V, Q2E-800­208/240V, Q2-500-120V, Q2-500-CUL20, Q2E-500-120V, Q2E-500CUL20,
Q2-600H-CE, R2-600H, R2-800

Q2E-600H-208/240V, Q2E-800-208/240V, Q2E-500-120V, R2-800-208V,
R2E-500-120V

Q2E-600H-208/240V, Q2E-800-208/240V, Q2E-500-120V, R2E-12BK­208/240

Q2E-600H-208/240V, Q2E-800-208/240V, Q2E-500-120V, R2-800-208V,
R2E-500-120V, R2E-12BK-208

Q2-600H-208/240V, Q2-800-208/220V, Q2-1200B-208V, R2-600HJ­208/240V

CONVEYOR TOASTERS

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

27

4
4

CONTROL SIDE

FRONT ELE.

REAR ELE.

BLACK

4

WHITE

5

6

BOTTOM HEAT

WHITE

7

BLACK

8

WHITE

120V
240V
240V

120V

HT2

HB2

OT1

F2
HB1
HT1

L1

F1

M1

M2

L2

OT2

BLACK

3

QCSe

SOME ITEMS ARE INCLUDED FOR
ILLUSTRATIVE PURPOSES ONLY AND IN

CERTAIN INSTANCES MAY NOT BE AVAILABLE

R2E-12BK WIRING DIAGRAM

1

BLACK

2

WHITE

SK2512 REV.- 5-18-11
