CONVEYOR

TOASTER

MODEL

QCSe-2, QCSe-3 SERIES

Installation and

Operation

Instructions

2M-HG0653 Rev. E 5/11/2010

QCSe-2

1

2

These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual ac­companying the appliance.

RETAIN THIS MANUAL FOR FUTURE REFERENCE

NOTICE

Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.

Star reserves the right to change specications and product design without

notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.

Due to periodic changes in designs, methods, procedures, policies and

regulations, the specications contained in this sheet are subject to change
without notice. While Star Manufacturing exercises good faith efforts to provide
information that is accurate, we are not responsible for errors or omissions

in information provided or conclusions reached as a result of using the

specications. By using the information provided, the user assumes all risks in
connection with such use.

MAINTENANCE AND REPAIRS

Contact your local authorized service agent for service or required maintenance. Please record

the model number, serial number, voltage and purchase date in the area below and have it ready when you call to ensure

a faster service.

SAFETY SYMBOL

Model No.

Serial No.

Voltage

Purchase Date

Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:

Telephone: [phone] Local [phone]
Fax: [phone] Local [phone]

E-mail [e-mail]

[e-mail]

[e-mail]

Website: www.star-mfg.com

Service Help Desk

Authorized Service Agent

Reference the listing provided with the unit

or
for an updated listing go to:

Website: www.star-mfg.com
E-mail [e-mail]
Telephone: [phone] Local [phone]

Mailing Address: Star International Holdings Inc., Company

10 Sunnen Drive

St. Louis, MO 63143

U.S.A

2

SPECIFICATIONS:
QCSe2-300H

Type: Conveyor Toaster w/ Electronic Controls

120V, 1,700 watts, 14.1 amp, 60 hz, NEMA 5-15P Product Opening: 3" inches
Approximate shipping weight - 64 lbs (140.8 kg)
Dimensions: 14 5/8" - Width, 22 3/8" - Depth, 15 5/8" - Height / (37.1 cm - Width, 56.8 cm - Depth, 39.7 cm - Height)

QCSe2-500

Type: Conveyor Toaster w/ Electronic Controls

120V, 1,700 watts, 14.1 amp, 60 hz, NEMA 5-15P Product Opening: 1 1/2" inches
Approximate shipping weight - 64 lbs (140.8 kg)
Dimensions: 14 5/8" - Width, 22 3/8" - Depth, 15 5/8" - Height / (37.1 cm - Width, 56.8 cm - Depth, 39.7 cm - Height)

QCSe2-600H

Type: Conveyor Toaster w/ Electronic Controls

208V, 2,800 watts, 13.4 amp, 60 hz, NEMA 6-20P Product Opening: 3" inches
240V, 2,800 watts, 11.6 amp, 60 hz, NEMA 6-20P

Approximate shipping weight - 64 lbs (140.8 kg)
Dimensions: 14 5/8" - Width, 22 3/8" - Depth, 15 5/8" - Height / (37.1 cm - Width, 56.8 cm - Depth, 39.7 cm - Height)

QCSe2-800

Type: Conveyor Toaster w/ Electronic Controls

208V, 2,800 watts, 13.4 amp, 60 hz, NEMA 6-20P Product Opening: 1 1/2" inches
240V, 2,800 watts, 11.6 amp, 60 hz, NEMA 6-20P

Approximate shipping weight - 64 lbs (140.8 kg)
Dimensions: 14 5/8" - Width, 22 3/8" - Depth, 15 5/8" - Height / (37.1 cm - Width, 56.8 cm - Depth, 39.7 cm - Height)

QCSe3-950H

Type: Conveyor Toaster w/ Electronic Controls

208V, 3,200 watts, 15.3 amp, 60 hz, NEMA 6-20P Product Opening: 3" inches
240V, 3,200 watts, 13.3 amp, 60 hz, NEMA 6-20P

Approximate shipping weight - 68 lbs (149.6 kg)
Dimensions: 18 5/8" - Width, 22 3/8" - Depth, 15 5/8" - Height / (47.3 cm - Width, 56.8 cm - Depth, 39.7 cm - Height)

QCSe3-1000

Type: Conveyor Toaster w/ Electronic Controls

208V, 3,200 watts, 15.3 amp, 60 hz, NEMA 6-20P Product Opening: 1 1/2" inches
240V, 3,200 watts, 13.3 amp, 60 hz, NEMA 6-20P

Approximate shipping weight - 68 lbs (149.6 kg)
Dimensions: 18 5/8" - Width, 22 3/8" - Depth, 15 5/8" - Height / (47.3 cm - Width, 56.8 cm - Depth, 39.7 cm - Height)

QCSe3-1300

Type: Conveyor Toaster w/ Electronic Controls

208V, 3,600 watts, 17.3 amp, 60 hz, NEMA 6-30P Product Opening: 1 1/2" inches
240V, 3,600 watts, 15.0 amp, 60 hz, NEMA 6-30P

Approximate shipping weight - 68 lbs (149.6 kg)
Dimensions: 18 5/8" - Width, 22 3/8" - Depth, 15 5/8" - Height / (47.3 cm - Width, 56.8 cm - Depth, 39.7 cm - Height)

3

GENERAL INSTALLATION DATA

CAUTION

This equipment is designed and sold for commercial use only by personnel trained and experienced

in its operation and is not sold for consumer use in and around the home nor for use directly by the
general public in food service locations.

Before using your new equipment, read and understand all the instructions & labels associated with

the unit prior to putting it into operation. Make sure all people associated with its use understand the
units operation & safety before they use the unit.

All shipping containers should be checked for freight damage both visible and concealed. This

unit has been tested and carefully packaged to insure delivery of your unit in perfect condition. If
equipment is received in damaged condition, either apparent or concealed, a claim must be made
with the delivering carrier.

Concealed damage or loss - if damage or loss is not apparent until after equipment is unpacked, a

request for inspection of concealed damage must be made with carrier within 15 days. Be certain to
retain all contents plus external and internal packaging materials for inspection. The carrier will make

an inspection and will supply necessary claim forms.

INSPECTION & ASSEMBLY

UNCRATING AND INSPECTING

Unpack the unit and components from the shipping container. Remove all visible packing material

and those from inside the cooking chamber. If damage is discovered, le a claim immediately with

the carrier that handled the shipment. Do not operate the unit if it was damaged during shipping.

CAUTION

WARNING

ASSEMBLY AND INSTALLATION

The unit was shipped fully assembled and ready to plug into a standard outlet specied for its voltage

and amp draw. If improper electrical supply is determined, contact a qualied electrician prior to

using the unit. Removal and replacement of the power cord and plug will void the warranty. For
assistance, contact your local authorized service agent for service or required maintenance.

Level unit using the adjustable feet under the unit (approximately 1/2" adjustment).

Before using the unit for the rst time, wipe down the exterior with a damp cloth.

Allow enough space around the toaster for adequate ventilation. Do not operate the unit without the

crumb tray properly positioned. Overheating and poor toasting may occur. Read all labels on the unit
and follow their instructions.

ELECTRICAL CONNECTION

Before making any electrical connection to this unit, check that the power supply is adequate for the

voltage, amperage and requirements stated on the rating plate.

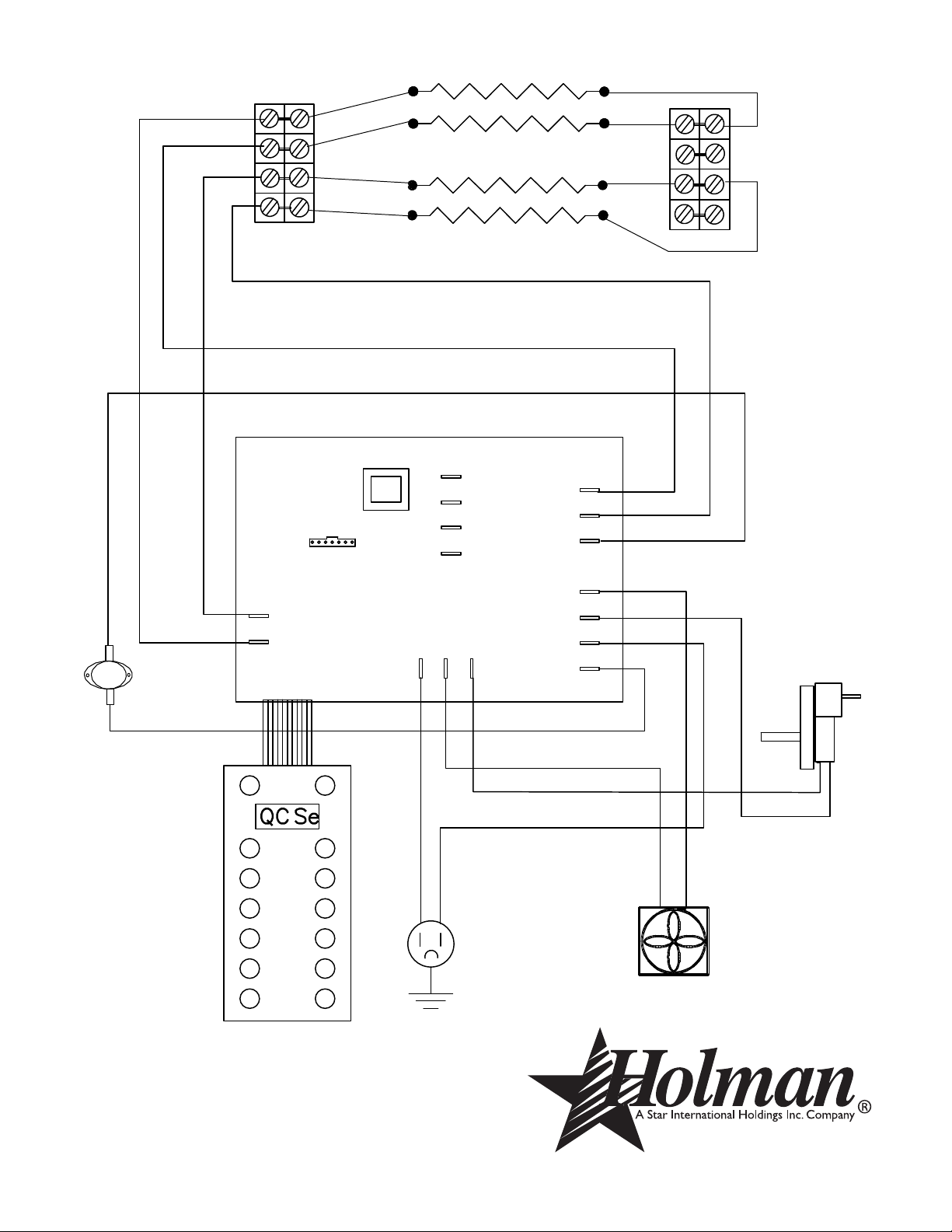

A wiring diagram is included herewith.

Never plug a 208V unit into 240V or 240V unit into a 208V.
Disconnect the unit from the power source before installing or removing any parts.
Be absolutely sure that the ground connection for the receptacle is properly wired. Do not connect

equipment to power without proper ground connections. Improper grounding may result in personal

injury or fatality.

WARNING

WARNING

DO NOT CUT OR REMOVE THIS PLUG OR GROUNDING PRONG FROM THE PLUG.

CONNECT/PLUG UNIT INTO DEDICATED A.C. LINE ONLY SPECIFIED ON THE

DATA PLATE OF THE UNIT.

4

DAILY OPERATION

The Holman QCSe conveyor toaster comes with pre-programmed factory

default settings for TOAST, MUFFINS, and BAGELS. The operator may
change these setting at any time. A button labeled OTHER is provided to
allow the operator to program settings for additional product(s).

Press TOAST and TST will appear in the display.
Press MUFFIN and MUF will appear in the display.
Press BAGEL and BGL will appear in the display.
Press OTHER and OTH will appear in the display.

LIGHT and DARK buttons are used to change the conveyor speeds

when in toast, mufn, or bagel modes.

Pressing the (LIGHT) button once will increase the conveyor speed by

15%. Pressing twice (XLIGHT) will increase the conveyor speed by 30%.

Pressing the (DARK) button once will decrease the conveyor speed by

10%. Pressing twice (XDARK) will decrease the conveyor speed by 20%.

Note: After 60 seconds the conveyor speed will return to the

pre-programmed setting.

The factory default settings are as follow:

TOAST AND OTHER BAGEL:

TOP HEAT 9 TOP HEAT 9
BOTTOM HEAT 9 BOTTOM HEAT 9

CONVEYOR 59 CONVEYOR 24

OTHER: POWER SAVER:

TOP HEAT 9 TIME (minutes) 60
BOTTOM HEAT 9 HEAT 5
CONVEYOR 59

The QCSe toaster is equipped with a Power Saver Switch (SAVER) that

reduces the power used by the toaster after a pre-programmed period of
time. This Power Saver Switch has three modes:

ON: Unit is in pre-programmed power saving setting.
OFF: Power Saver mode is turned off.
AUTO ON: Power Saver turns on when there has been no activity

for a programmed length of time.

The operator may adjust the level of power reduction for the saver mode.

(Note: conveyor may move slowly when in saver mode.)

Two buttons (+) and (-) are used when increasing or decreasing the value

of each programmable setting.

A red LED light located at the lower portion of the control panel label will

indicate if the value for top heat, bottom heat or conveyor speed is being
adjusted.

5

CAUTION

LOAD UP

CRUMB TRAY

CONTROLS

LCD DISPLAY

FRONT

AIR INTAKE FAN

HIGH LIMIT RESET

POWER CORD

CERTAIN SURFACES ARE EXTREMELY HOT DURING OPERATION AND CARE

SHOULD BE TAKEN WHILE USING THIS UNIT.

START UP

When the toaster has been plugged into a suitable outlet and power supply, the word OFF will be

displayed on the L.E.D. read out.

A. Press the ON/OFF button once to turn on the toaster. The toaster will now enter into pre-heat and

PREHT will be displayed (the elements will begin to glow but the conveyor and fan motor will not turn on).
B. After one minute, the fan motor will turn on and the conveyor will begin turning at the previously

saved setting (for initial start up, the drive motor will operate at the factory default setting).

C. After four minutes, the display will show the last used program selection i.e. TOAST, BAGEL,

MUFFIN or OTHER (for initial startup, TOAST will be the last program selected).

DAILY OPERATION

Check the power cord to insure that it is plugged into a proper outlet.
Press the ON/OFF button once to turn the toaster on.

Press the button a second time to turn the toaster off.

NOTE: When the toaster is turned off, the fan and conveyor motors will continue to run for ve

minutes. The words COOL and DOWN will be alternately displayed during that time. After ve

minutes, the word OFF will be displayed until the ON/OFF button is pressed again.
For units equipped with a POWER SAVER feature, the three operating modes are:

ON Unit has entered the pre-programmed level of power savings.
OFF Power Saver feature is turned off.
AUTO If the toaster has been idle for a pre-set period of time, the unit enters Power Saver

mode until one of the menu buttons has been pressed.
Once the toaster has been pre-heated, the menu buttons can be pressed to change to TOAST,

BAGEL, MUFFIN, or OTHER.
OPERATING HINTS AND SAFETY

Disconnect power to the unit with the ON/OFF button at the end of each day of operation.
Do not leave the unit in operation without an attendant.
Turn the POWER SAVER Switc h to Standby during idle periods. It will take only a few minutes to

regain operating temperature.
Do not leave the unit at high temperature when not in use or during idle periods. This will cause food

particles and grease lm to carbonize.

TOASTER COMPONENTS

6

PROGRAMING

A. CONVEYOR SPEED (temporary setting)

The conveyor speed is programmable with a range from 0 to 99 with 0 being the slowest

and 99 being the fastest. Each menu item can have independent conveyor speed
settings.

The LIGHT and DARK buttons can be used to temporarily change the conveyor speed.

Pressing the LIGHT button once will increase the conveyor speed by 15%. The word

LIGHT will be displayed. Pressing twice will increase the conveyor speed by 30% and
XLIGHT will now be displayed.

Pressing the DARK button once will decrease the conveyor speed by 15%. The word

DARK will be displayed. Pressing twice will decrease the conveyor speed by 30% and

XDARK will now be displayed.
NOTE: After 60 seconds, the conveyor speed will return to the pre-programmed setting.
WHEN USING THE LIGHT AND DARK BUTTONS TO ADJUST THE CONVEYOR

SPEED FOR A SINGLE ORDER OF PRODUCT, IT IS IMPORTANT TO REMEMBER

TO ALLOW THE PRODUCT ALREADY IN THE TOASTER TO EXIT BEFORE

CHANGING THE SPEED SETTING.

B. PROGRAMING VALUES FOR MENU ITEMS

To make a program change to the top heat, bottom heat, or conveyor speed, you must

rst be in the menu item you want changed. Example: to change the programmed

conveyor speed for bagels, the display must read BAGEL. To change the programmed
conveyor speed for TOAST, the display must read TOAST and so on for each menu
item.

1) Select the menu item you want to change i.e. TOAST, MUFFIN, BAGEL or OTHER.

2) Press and hold both ( + ) AND ( - ) buttons for 3 seconds until the display goes
blank, release the buttons and the display will show three characters for the menu
item elected and the last two characters for the current value setting, i.e. TST, MUF,
BGL and OTH. The red L.E.D. light for top heat at the bottom of the label will ash.

3) Press the ( + ) or ( - ) buttons to increase or decrease the setting for the top heat.

4) Press the button for the menu button again and the red L.E.D. for the bottom heat

will ash.

5) Press the ( + ) or ( - ) buttons to increase or decrease the setting for the bottom heat.

6) Press the button for the menu button again and the red L.E.D. for the conveyor

speed will ash.

7) Press the ( + ) or ( - ) buttons to increase or decrease the setting for the conveyor
speed.

8) To skip one feature setting with out making any changes, press the menu item button

one time and the red L.E.D. light for the next item will now ash.

9) To change the POWER SAVER values press the SAVER button or to save your new
setting(s), and exit the program mode press the menu button.

10) The last two characters in the display will show MN for minutes.

11) The rst three characters will be numerical to represent the time setting.

12) Press the ( + ) or ( - ) buttons to increase or decrease the setting for the savor mode
time. The minimum value is 15 minutes to maximum value of 480 minutes.

13) Press the SAVER button to change the power reduction using the ( + ) or ( - ) buttons
to increase or decrease the setting.

14) Press the POWER SAVER button to save changes and to exit.

7

CLEANING

CLEAN

OPERATE

Preventive maintenance for your Holman toaster consists of the following recommended

cleaning procedures. To keep your toaster in its top operating condition, these steps should
be performed on a daily or weekly as indicated.

A. Clean air intake on bottom of unit, and making sure it is free from any obstruction.
B. For lightly soiled conveyor belts, turn conveyor speed control to fastest setting (100) and

wipe with a damp cloth (daily) For heavily soiled conveyors, turn conveyor speed control
to fastest setting and wipe with a light abrasive pad (as needed). Wipe conveyor with
damp cloth.

C. Turn main power saver switch to the OFF position. Disconnect unit from power source.
D. After the unit cools, remove interior crumb tray (as shown below) and clean. Slide crumb

tray back into position.

E. Wipe exterior surface of unit.

CRUMB TRAY REMOVAL

WARNING

DO NOT IMMERSE OR LET THE UNIT STAND IN WATER.
DO NOT HOSE DOWN THE UNIT OR THE TABLE/COUNTER IF THE UNIT IS ON

THE TABLE/COUNTER.

KEEP AWAY FROM RUNNING WATER.

8

MAINTENANCE PROCEDURES

1/4”

A. REPLACING HEATER TUBES

1) DISCONNECT UNIT FROM POWER SOURCE.

2) Remove the enclosure.

3) Remove heater tube wire from terminal block connection, keeping top and
bottom wires separate.

4) Lift heater tube retainers by loosening retaining screws and sliding the retainer plate up.
Hand tighten the plate to hold it up so the heater tubes will slide out freely.

5) Gently, pull defective heater tube out of unit.

6) Gently, put new heater tube into unit.

7) Loosen retainer screws and slide the retainer back into place. Tighten the screw to
secure the retainer in place over the ends of the heater tubes.

B. REPLACING FAN MOTOR

1) DISCONNECT UNIT FROM POWER SOURCE.

2) Remove screws from the enclosure and the back panel at rear of unit.

3) Remove the enclosure and the back panel.

4) Unplug power supply cord from fan motor.

5) Remove (4) screws, which hold fan motor and grill to bottom of unit and remove fan.

6) Put replacement motor and grill in place and secure to the bottom of unit with screws.

7) Reconnect power supply cord to fan motor.

8) Replace back panel and enclosure. Fasten with screws removed in step 2.

C. REPLACING BELT DRIVE MOTOR

1) DISCONNECT UNIT FROM POWER SOURCE.

2) Remove enclosure and back panel.

3) Remove sprocket from motor shaft, using an Allen wrench and loosening the set-screw.

4) Remove the wire from terminal block connecting the drive motor to internal wiring.
On units rated 208 or 240 volts, note which color leads are being used for these connections
and which lead is capped with white tape. The new motor should use the same arrangement.

5) Remove screws holding motor in place and remove motor from unit.

6) Put new motor in place and attach loosely with mounting screws.

7) Replace sprocket on motor shaft & ensure it is ush with the driven sprocket.

NOTE: The two sprockets should line up parallel with each other, so the chain does not twist
any during operation. Also the hub gets installed closets to the motor.

8) Slide motor until the drive chain has about 1/4” slack when lightly pushed at the center of its top
open run. See chain tensioning illustration.

9) Tighten screws to secure motor.

10) Rewire leads same as removed in step 4.

11) Replace side panel and control box cover.

D. CLEANING AIR INTAKE ONCE A WEEK

1) DISCONNECT UNIT FROM POWER SOURCE.

2) Place unit on its backside.

3) Use a vacuum cleaner and or a damp cloth to clean
the air intake. This procedure should be done at least

E. LUBRICATE THE CHAIN & SPROCKETS EVERY 6 MONTHS

1) DISCONNECT UNIT FROM POWER SOURCE.

2) Remove enclosure exposing chain drive.

3) Using an extreme pressure, synthetic chain lubricant with a
temperature range up to 400°F. Apply liberally onto chain
and sprockets. This grease is available as part no. 1P-Z8914.

4) Replace enclosure, Reconnect power source and test unit.

9

QCS/RCS Chain Tension

TROUBLESHOOTING GUIDE

A. UNIT WILL NOT HEAT, CONVEYOR BELT WILL NOT MOVE.

1) Be sure the main circuit breaker is switched to the ON position.

2) Check to see if the toaster is plugged in and all controls are turned to the ON position.

B. UNIT HAS HEAT ONLY ON ONE SIDE, CONVEYOR BELT TURNS FREELY.

1) Call the Star Service Help Desk at 1-800-807-9054, as heating element may need replacing.

C. CONVEYOR WILL NOT TURN, UNIT HEATS PROPERLY.

To check for mechanical binding:

1) DISCONNECT UNIT FROM POWER SOURCE.

2) Remove 2 screws holding enclosure to the bottom of the unit.

3) Set unit on the legs and remove 4 screws on the back of the toaster.

4) Slide the enclosure off the unit and remove the back panel.

5) Loosen the four screws that hold the drive motor in place.

6) Slide the motor up allowing the drive chain to be removed from the sprockets.

7) Move the conveyor belt by hand to check for mechanical binding. If conveyor moves freely,
call the Star Service Help Desk at 1-800-807-9054, as the drive
motor and/or speed control may need replacing.

8) Replace the enclosure by sliding it forward towards the front of the unit.
The front edge of the enclosure will slide beneath the toaster front.

D. HEAT LIMIT SWITCH (RESET)

Your Holman conveyor toaster is equipped with an automatically activated heat limit switch that
interrupts the heater tube connections if the ambient temperature in the control box exceeds
190°F (88C). This switch can be reset manually by pushing the red button under the toaster as
shown in the Toaster Components Illustration on Page 5.

1) DISCONNECT UNIT FROM POWER SOURCE.

2) Check to see if air intake area in the bottom center of the control box cover is free of dust,
grease or other obstructions.

3) Check if crumb tray is in place. NEVER OPERATE UNIT WITHOUT CRUMB TRAY IN PLACE
AS THIS CAUSES OVERHEATING IN THE CONTROL BOX.

4) If no obstructions to the airow can be found and if the crumb tray is in place,
call the Star Service Help Desk at 1-800-807-9054 for assistance.

E. CONVEYOR TURNS AT ONE SPEED REGARDLESS OF SPEED
CONTROL SETTING.

1) Call the Star Service Help Desk at 1-800-807-9054, as the control board may need to be
replaced.

10

Part# 2M-4497-2 12/06 RMS

The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.

FOR ASSISTANCE

Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.

In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.

ALL:
* Pop-Up Toasters
* Butter Dispensers
* Pretzel Merchandisers

(Model 16PD-A Only)

* Pastry Display Cabinets
* Nacho Chip Merchandisers
* Accessories of any kind
* Sneeze Guards
* Pizza Ovens

(Model PO12 Only)

* Heat Lamps
* Pumps-Manual

Visit our Website at: www.star-mfg.com Email: [e-mail]

THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL

This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in
which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the
transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of
the unit.

LIMITED EQUIPMENT WARRANTY

All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.

> Star will not assume any responsibility for loss of revenue.
> On all shipments outside the United States and Canada, see International Warranty.
* The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
* The warranty period for the Chrome-Max Griddles is  ve (5) years on the griddle surface. See detailed warranty provided with unit.
* The warranty period for Te on/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to

Te on/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identi ers and
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the

“non-stick” properties of such materials.

> This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts

and ninety (90) days on labor.

> This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or

the Service Center's sub-agency.

> This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and

Operating instructions.

> This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.

PARTS WARRANTY

Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted. Labor to replace the part is chargeable to
the customer.

SERVICES NOT COVERED BY WARRANTY

PORTABLE EQUIPMENT

Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:

1. Travel time and mileage rendered beyond the 50 mile radius limit

2. Mileage and travel time on portable equipment (see below)

3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.

4. Installation of equipment

5. Damages due to improper installation

6. Damages from abuse or misuse

7. Operated contrary to the Operating and Installation Instructions

8. Cleaning of equipment

9. Seasoning of griddle plates

10. Voltage conversions

11. Gas conversions

12. Pilot light adjustment

13. Miscellaneous adjustments

14. Thermostat calibration and by-pass adjustment

15. Resetting of circuit breakers or safety controls or reset buttons

16. Replacement of bulbs

17. Replacement of fuses

18. Repair of damage created during transit, delivery, &
installation OR created by acts of God

* The Model 510FD Fryer.
* The Model 526TOA Toaster Oven.
* The Model J4R, 4 oz. Popcorn Machine.
* The Model 518CMA & 526CMA Cheese Melter.
* The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
* The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
* All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
* All Nacho Cheese Warmers except Model 11WLA Series Nacho Cheese Warmer.
* All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
* All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
* All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.

11

065270 06-19-03

HOLMAN
WIRING DIAGRAM - QCSe - 4 Tube Series

THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.

QCSe

OT1

HT1

HB1

F1

M1

L1

120V

OT2

F2

L2

M2

120V

240V

240V

HT2

HB2

TOP HEAT

BOTTOM HEAT

BLU

ORG

PUR

BLK

ORG

BLU

POWER BOARD

BRN

BLK

BLK

BLK

PUR

BRN

FAN MOTOR

DRIVE MOTOR

HIGH/LIMIT
RESET

12

TOP HEAT

BOTTOM HEAT

QCSe

OT1

HT1

HB1

F1 M1L1

120V

OT2

F2

L2

M2

120V

240V

240V

HT2

HB2

ORG

HIGH/LIMIT
RESET

ORG

BLU

BLU

PUR

BLK
BRN

BLK

PUR

BLK

BLK

BRN

FAN MOTOR

DRIVE MOTOR

POWER BOARD

CONTROL BOARD

065812 REV. A 12-01-03

HOLMAN
WIRING DIAGRAM - QCSe - 6 Tube Series

THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.

13

2

33

26

15

11 12

1

3

4

5

6

7

8

9

13

10

7

28

14

35

16

17

18

19

21

22

23

24

30

34

20

25

27

31

29

MODEL:

QCSe CONVEYOR TOASTER

THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.

NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.

SK2134 Rev A 1/26/2006

32

14

PARTS LIST January 26, 2006, Rev E

QCSe-2-300H, QCSe-2-500

Conveyor Toasters

Number

Key

Number

1 HC-101370 1 ENCLOSURE, QCS2
2 HC-100570 1 BAFFLE, AIR FLOW HIGH QCSe-300
2 HD-100571 1 BAFFLE, AIR FLOW LOW QCSe-500
3 HF-402449 1 PANEL, BACK, QCS2
4 2U-200559 1 MOTOR, FAN
5 HD-115070 1 MOTOR, DRIVE RMS2020, FAN, W/TERMINALS
2R-Z8879 1 FAN BLADE, DRIVE MOTOR
6 2A-202904 1 SHAFT, IDLER
7 HA-112261 2 BUSHING, REAR
8 2P-Z8779 1 SPROCKET, DRIVEN (25B11 X 5/16”)
9 2P-200645 1 SPROCKET, DRIVE (25B17 X 5/16”)
10 2P-150013 1 CHAIN, DRIVE (19”)
11 2P-115501 4 JUMPER, TWO POSITION, SMALL
12 2P-115502 1 JUMPER, THREE POSITION, SMALL
13 HC-115381 1 BLOCK, TERMINAL, SMALL, 4 POS.
14 2R-200562 1 GUARD, FAN
15 2A-9394 2 SPRING BRACKET
16 2P-200736 2 2" BEARING SPRING
17 2P-200700 2 BUSHING, FRONT
18 2A-202900 1 SHAFT, DRIVE
19 SP-160027 1 CONVEYOR BELT (10” X 35 - 1/2”)
20 -- -- N/A
21 HA-100560 1 TRAY, PULL-OUT
22 HC-402457 1 TRAY, CRUMB
23 2R-200787 1 GUARD, CRUMB TRAY
24 2B-200763 1 WIRE RACK, LOAD-UP
25 HF-101115 1 TRAY, CRUMB ASSEMBLY, QCS - 2 TOASTER
28 2A-200284 1 E-CLIP
29 2U-200592 1 QCSe POWER BOARD
30 2E-200566 1 SWITCH, HIGH LIMIT RESET
31 2U-200591 1 QCSe CONTROL BOARD
32 HC-402499 1 RETAINER, ELEMENT
33 2M-201813 1 LABEL, CONTROL PANEL QCSe

34 HD-198042 6 HEATER TUBE, QUARTS 120V (49.33 Ω, 275W, 2.26A) (UNIT = 14.3 A)

35 2R-200709 4 LEG, 1” CHROME PLASTIC
NOT ILLUSTRATED

2B-200601 1 LINK, CONVEYOR BELT
2K-200463 1 BUSHING, CORD HEYCO
2R-Z8879 1 FAN BLADE, DRIVE MOTOR
HD-140072 1 CORD, POWER, NEMA 5-15 QCSe
HD-140075 1 CORD & PLUG, FAN MOTOR QCSe
HO-140078 1 CORD, POWER, (-V61) (CANADA)
1P-Z8914 8 oz. EXTREME PRESSURE MULTIPURPOSE SYNTHETIC GREASE (80°F TO 400°F)

Part

Number

Per

Unit

Description & Model

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

Star International Holdings Inc. Company

15

1
1

PARTS LIST January 26, 2006, Rev E

QCSe-2-600H, QCSe-2-800

Conveyor Toasters

Number

Key

Number

1 HC-101370 1 ENCLOSURE, QCS2
2 HC-100570 1 BAFFLE, AIR FLOW HI QCSe-2-600
2 HD-100571 1 BAFFLE, AIR FLOW LOW QCSe-2-800
3 HF-402449 1 PANEL, BACK, QCS2
4 2U-200560 1 MOTOR, FAN
5 HI-115071 1 MOTOR, DRIVE, FAN, W TERMINALS
2R-Z8879 1 FAN BLADE, DRIVE MOTOR
6 2A-202900 1 SHAFT, DRIVE
7 HA-112261 2 BUSHING, REAR
8 2P-Z8779 1 SPROCKET, DRIVEN (25B11 X 5/16”)
9 2P-200645 1 SPROCKET, DRIVE (25B17 X 5/16”)
10 2P-150013 1 CHAIN, DRIVE (19”)
11 2P-115501 3 JUMPER, TERMINAL BLOCK, SMALL, 2 POS.
12 2P-115502 1 JUMPER, TERMINAL BLOCK, SMALL, 3 POS.
13 HC-115381 2 BLOCK, TERMINAL, SMALL, 4 POS.
14 2R-200562 1 GUARD, FAN MOTOR
15 2A-z9394 2 SRING BRACKET
16 2P-200736 2 2" BEARING SPRING
17 2P-200700 2 BUSHING, FRONT
18 2A-202904 1 SHAFT, IDLER
19 SP-160027 1 BELT, CONVEYOR (10” X 35 - 1/2”)
20 -- -- N/A
21 HA-100560 1 TRAY, PULL-OUT
22 HC-402457 1 CRUMB TRAY
23 2R-200787 1 CRUMB TRAY GUARD
24 2B-200763 1 LOAD-UP WIRE RACK Certain Models
25 HF-101115 1 CRUMB TRAY ASSEMBLY, QCS - 2 TOASTER
26 HC-402206 1 HEAT SHUTTER, SWINGING
27 HC-402134 1 ROD, SHUTTER
28 2A-200284 1 E-CLIP
29 2U-200592 1 POWER BOARD
30 2E-200566 1 SWITCH, HIGH LIMIT RESET
31 2U-200591 1 QCSe CONTROL BOARD
32 HC-402706 1 RETAINER, ELEMENT, 4 TUBE
33 2M-201813 1 LABEL, CONTROL PANEL

34 HO-197841 4 HEATER TUBE, QUARTS 208V (15.5 Ω, 703W) (UNIT = 13.52 A)
34 HO-197842 4 HEATER TUBE, QUARTS 240V (19.2 Ω, 707W) (UNIT = 11.78 A)

35 2R-200709 4 LEG, 1” CHROME PLASTIC

Part

Number

Per

Unit

Description

NOT ILLUSTRATED
2B-200601 1 LINK, CONVEYOR BELT 10”
2K-200463 1 BUSHING, CORD HEYCO
2R-Z8879 1 FAN BLADE, DRIVE MOTOR
HD-140075 1 CORD, FAN MOTOR
HI-140076 1 CORD, POWER (NEMA 6-20P)
1P-Z8914 8 oz. EXTREME PRESSURE MULTIPURPOSE SYNTHETIC GREASE (80°F TO 400°F)

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

Star International Holdings Inc. Company

16

1
1

PARTS LIST January 26, 2006, Rev E

QCSe-3-950H, QCSe-3-1000

Conveyor Toasters

Number

Key

Number

1 HH-101371 1 ENCLOSURE, QCS3
2 HH-100572 1 BAFFLE, AIR FLOW, HI QCSe-3-950H
2 HI-100573 1 BAFFLE, AIR FLOW, LOW QCSe-3-1000H
3 HH-402470 1 PANEL, BACK, QCS3
4 2U-200561 1 MOTOR, FAN
5 HI-115071 1 MOTOR, DRIVE, RMS72 W/TERMINALS
2R-Z8879 1 FAN BLADE, DRIVE MOTOR
6 2A-202902 1 SHAFT, DRIVE
7 HA-112261 2 BUSHING, REAR
8 2P-Z8779 1 SPROCKET, DRIVEN (25B11 X 5/16”)
9 2P-200645 1 SPROCKET, DRIVE (25B17 X 5/16”)
10 2P-150013 1 CHAIN, DRIVE (19”)
11 2P-115501 3 JUMPER, TERMINAL BLOCK, SMALL, 2 POS.
12 2P-115502 1 JUMPER, TERMINAL BLOCK, SMALL, 3 POS.
13 HC-115381 2 BLOCK, TERMINAL. SMALL, 4 POS.
14 2R-200562 1 GUARD, FAN MOTOR
15 2A-Z9394 2 SPRING BRACKET
16 2P-200736 2 2" BEARING SPRING
17 2P-200700 2 BUSHING, FRONT
18 2A-202905 1 SHAFT, IDLER
19 SP-160028 1 CONVEYOR, BELT (14” X 35”)
20 2B-200603 3 LINK, MASTER, CONVEYOR BELT
21 HH-100561 1 TRAY, PULL-OUT
22 HH-402465 1 TRAY, CRUMB
23 2R-200788 1 GUARD, CRUMB TRAY
24 2B-200764 1 WIRE RACK, LOAD-UP
25 HI-101116 1 TRAY, CRUMB ASSEMBLY, QCS - 3 TOASTER
26 HH-401695 1 HEAT SHUTTER, SWINGING QCSe-3-950H
27 HH-402135 1 ROD, HEAT SHUTTER QCSe-3-950H
28 2A-200284 1 E-CLIP
29 2U-200592 1 POWER BOARD
30 2E-200566 1 SWITCH, HIGH LIMIT RESET
31 2U-200591 1 QCSe CONTROL BOARD
32 HC-402706 1 RETAINER, ELEMENT, 4 TUBE
33 2M-201813 1 LABEL, CONTROL PANEL

34 GB-197847 4 HEATER TUBE QUARTS, 240V (16.85 Ω, 806W, 6.7A) (UNIT = 13.3 A)
34 HT-197845 4 HEATER TUBE QUARTS, 208V (12.64 Ω, 807W, 7.75A) (UNIT = 15.4 A)

35 2R-200709 4 LEG, 1” CHROME PLASTIC
NOT ILLUSTRATED

2B-200602 1 LINK, CONVEYOR BELT
2K-200465 1 BUSHING, CORD HEYCO
2R-Z8879 1 FAN BLADE, DRIVE MOTOR
HD-140075 1 QCSe MOLED FAN PLUG
HF-140073 1 CORD POWER, NEMA 6-20P
1P-Z8914 8 oz EXTREME PRESSURE MULTIPURPOSE SYNTHETIC GREASE (80°F TO 400°F)

Part

Number

Per

Unit

Description

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

Star International Holdings Inc. Company

17

1
1

PARTS LIST January 26, 2006, Rev E

QCSe-3-1300

Conveyor Toasters

Number

Key

Number

1 HH-101371 1 ENCLOSURE, QCS3
2 HD-100573 1 BAFFLE, AIR FLOW, LOW
3 HH-402470 1 PANEL, BACK, QCS3
4 2U-200561 1 MOTOR, FAN
5 HI-115071 1 MOTOR, DRIVE RMS72 W/TERMINALS+E26
2R-Z8879 1 FAN BLADE, DRIVE MOTOR
6 2A-202902 1 SHAFT, DRIVE
7 HA-112261 2 BUSHING, REAR
8 2P-Z8779 1 SPROCKET, DRIVEN (25B11 X 5/16”)
9 2P-200645 1 SPROCKET, DRIVE (25B17 X 5/16”)
10 2P-150013 1 CHAIN, DRIVE (19”)
11 2P-115501 3 JUMPER, TERMINAL BLOCK, SMALL, 2 POS.
12 2P-115502 1 JUMPER, TERMINAL BLOCK, SMALL, 3 POS.
13 HC-115381 2 BLOCK, TERMINAL. SMALL, 4 POS.
14 2R-200562 1 GUARD, FAN MOTOR
15 2A-9394 2 SPRING BRACKET
16 2P-200736 2 2" BEARING SPRING
17 2P-200700 2 BUSHING, FRONT
18 2A-202905 1 SHAFT, IDLER
19 SP-160028 1 CONVEYOR, BELT (14” X 35”)
20 2B-200603 3 LINK, MASTER, CONVEYOR BELT
21 HH-100561 1 TRAY, PULL-OUT
22 HH-402465 1 TRAY, CRUMB
23 2R-200788 1 GUARD, CRUMB TRAY
24 2B-200764 1 WIRE RACK, LOAD-UP
25 HI-101116 1 TRAY, CRUMB ASSEMBLY, QCS - 3 TOASTER
28 2A-200284 1 E-ClIP
29 2U-200592 1 POWER BOARD
30 2E-200566 1 SWITCH, HIGH LIMIT RESET
31 2U-200591 1 QCSe CONTROL BOARD
32 HC-402499 1 RETAINER, ELEMENT, 6 TUBE
33 2M-201813 1 LABEL, CONTROL PANEL

34 HJ-198054 6 HEATER TUBE QUARTS, 240V (11.24 Ω, 535W, 6.71A) (UNIT = 13.3 A)
34 HJ-198060 6 HEATER TUBE QUARTS, 208V (8.4 Ω, 540W, 7.79A) (UNIT = 15.4 A)

35 2R-200709 4 LEG, 1” CHROME PLASTIC
NOT ILLUSTRATED

2B-200610 1 LINK, CONVEYOR BELT
2K-200465 1 BUSHING, CORD HEYCO
2R-Z8879 1 FAN BLADE, DRIVE MOTOR
HD-140075 1 CORD, FAN MOTOR, W/E21TERMINALS
HI-140074 1 CORD, POWER (NEMA 6-30P)
1P-Z8914 8 oz EXTREME PRESSURE MULTIPURPOSE SYNTHETIC GREASE (80°F TO 400°F)

Part

Number

Per

Unit

Description

IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF

Some items are included for illustrative purposes only and in certain instances may not be available.

Star International Holdings Inc. Company

18

1
1

STAR INTERNATIONAL HOLDINGS INC. COMPANY

Star - Holman - Lang - Wells - Bloomeld - Toastmaster

10 Sunnen Drive, St. Louis, MO 63143 U.S.A.

[phone] [phone]

Parts & Service [phone]

www.star-mfg.com
