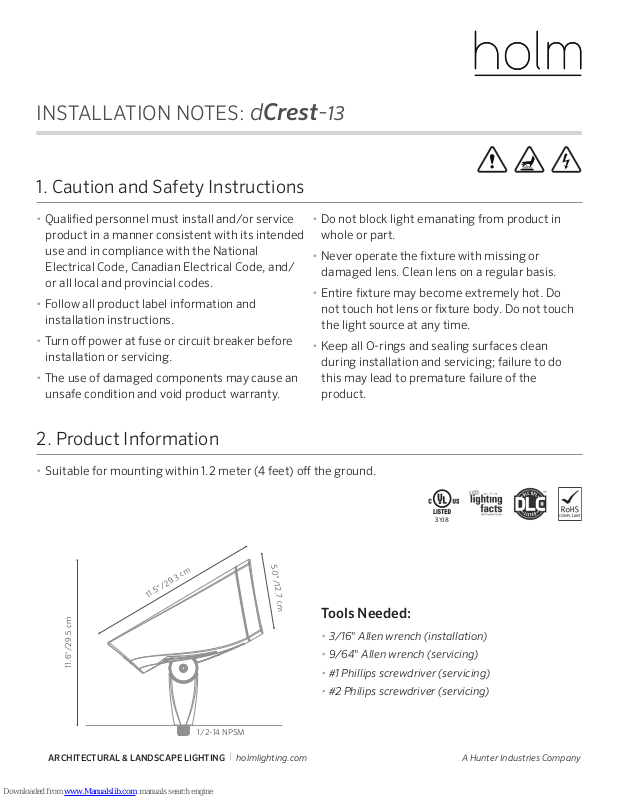

INSTALLATION NOTES: dCrest-13

1. Caution and Safety Instructions

• Qualied personnel must install and/or service

product in a manner consistent with its intended use and in compliance with the National Electrical Code, Canadian Electrical Code, and/

• Do not block light emanating from product in

whole or part.

• Never operate the xture with missing or

damaged lens. Clean lens on a regular basis.

or all local and provincial codes.

• Entire xture may become extremely hot. Do

• Follow all product label information and

installation instructions.

• Turn o power at fuse or circuit breaker before

installation or servicing.

• The use of damaged components may cause an

unsafe condition and void product warranty.

not touch hot lens or xture body. Do not touch the light source at any time.

• Keep all O-rings and sealing surfaces clean

during installation and servicing; failure to do this may lead to premature failure of the product.

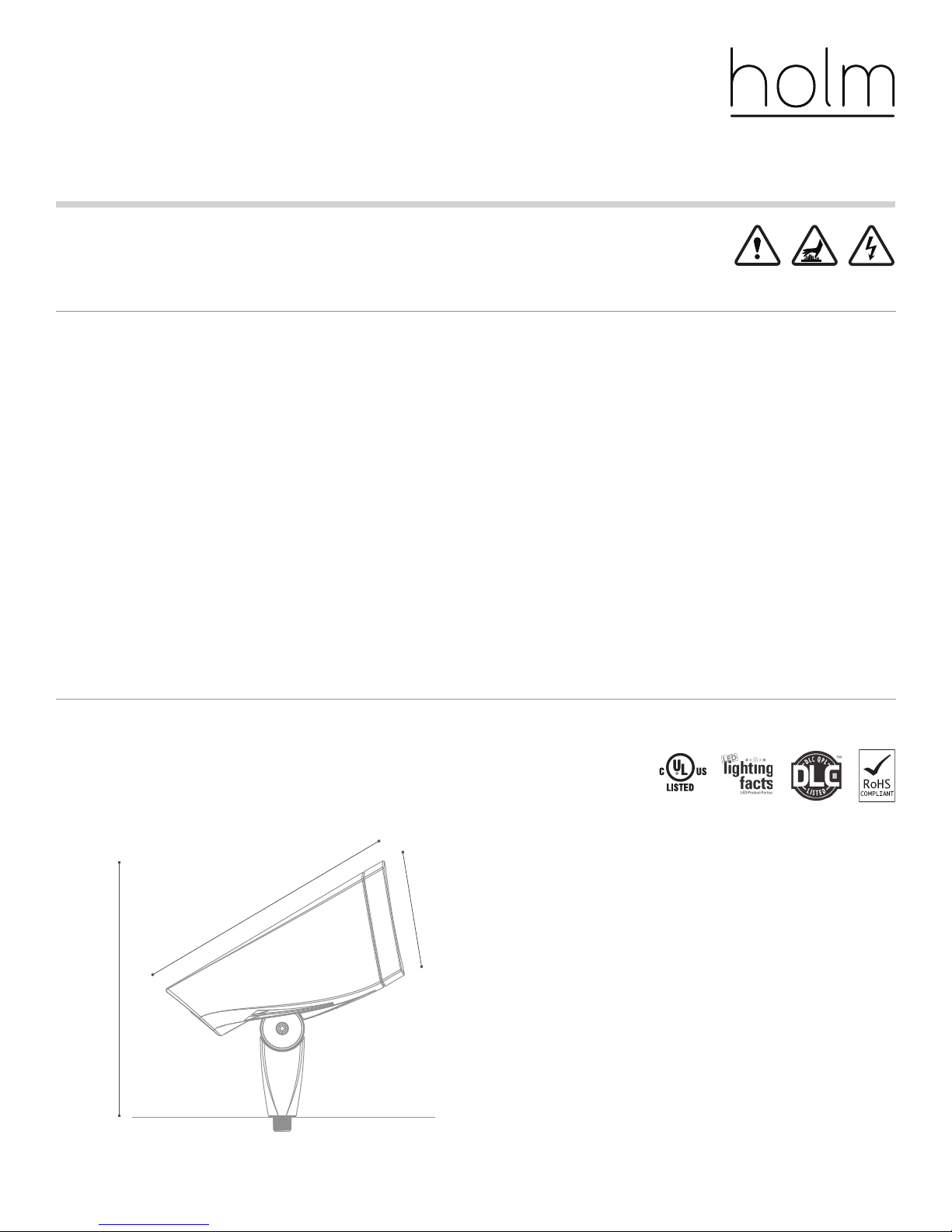

2. Product Information

• Suitable for mounting within 1.2 meter (4 feet) o the ground.

11.5"/29.3 cm

11.6"/29.5 cm

1/2-14 NPSM

ARCHITECTURAL & LANDSCAPE LIGHTING | holmlighting.com A Hunter Industries Company

3YJ8

5.0"/12.7 cm

Tools Needed:

• 3/16" Allen wrench (installation)

• 9/64" Allen wrench (servicing)

• #1 Phillips screwdriver (servicing)

• #2 Philips screwdriver (servicing)

INSTALLATION NOTES: dCrest-13

3. Product Installation

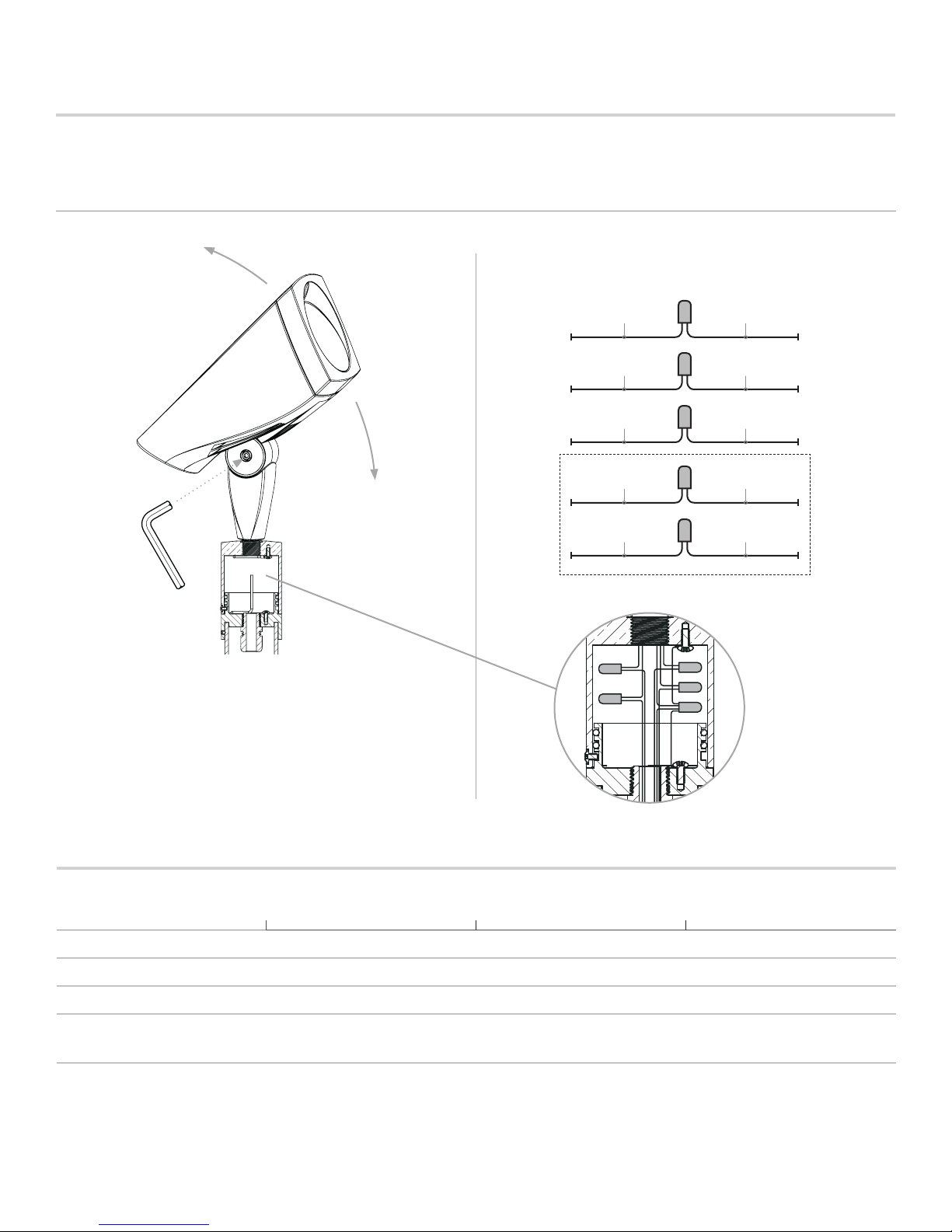

2

Diagrams

Allen Wrench

Upon installation, use 3/16" Allen wrench to adjust the angle of the xture according to plan requirements.

Note: Ground Mount (GM-XX) shown

Wiring Chart

BUILDING

*For use with 0-10V driver only

Ground

Gray

Purple

BlackLine/Hot/Switching

WhiteCommon

Green (via stud or

green lead)

FIXTURE

Gray*0-10V (-)

Purple*0-10V (+)

Black

White

Green

Power Requirements

Standard Voltage (SV) Universal Voltage (UV) High Voltage (HV)

Input Power 120V 110V to 277V 220V to 240V

Dimming Phase 0-10V 0-10V

Number of wires 3 5 5

Black, White, Green

ARCHITECTURAL & LANDSCAPE LIGHTING | holmlighting.com Customer Service 1-844-200-4656

Black, White, Green, Purple, Grey

INSTALLATION NOTES: dCrest-13

B

C

D

4

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

4

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

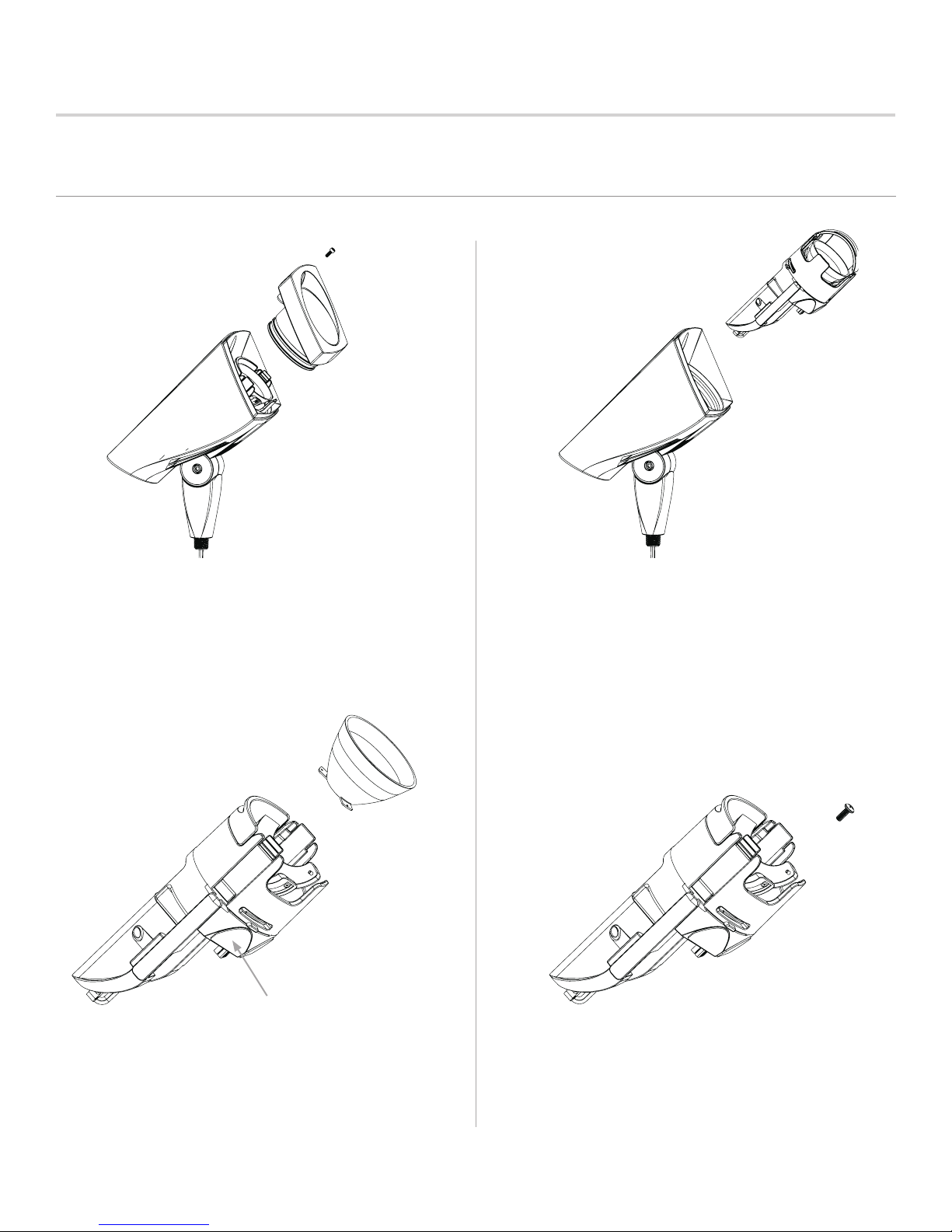

4. Repair/Replacement Instructions

Standard Optics ( 20º, 40º and 60º)

① ②

3

Unfasten 8-32 x 7/16" screw, using a 9/64" Allen wrench. Remove cap by liing cap outward. Avoid using metal tools to protect the powder coat nish.

③ ➍

Note: Do not remove adhesive

thermal pads. Premature failure may result.

Li cartridge arm and turn counter clockwise to release lock. Pull complete cartridge out of xture housing.

Rotate cartridge arm back into the neutral position. Twist the optic counter clockwise and pull outward to remove the optic.

ARCHITECTURAL & LANDSCAPE LIGHTING | holmlighting.com Customer Service 1-844-200-4656

Unfasten one screw only inside the cartridge using a Phillips #2 screwdriver.

INSTALLATION NOTES: dCrest-13

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

D

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

4. Repair/Replacement Instructions (continued)

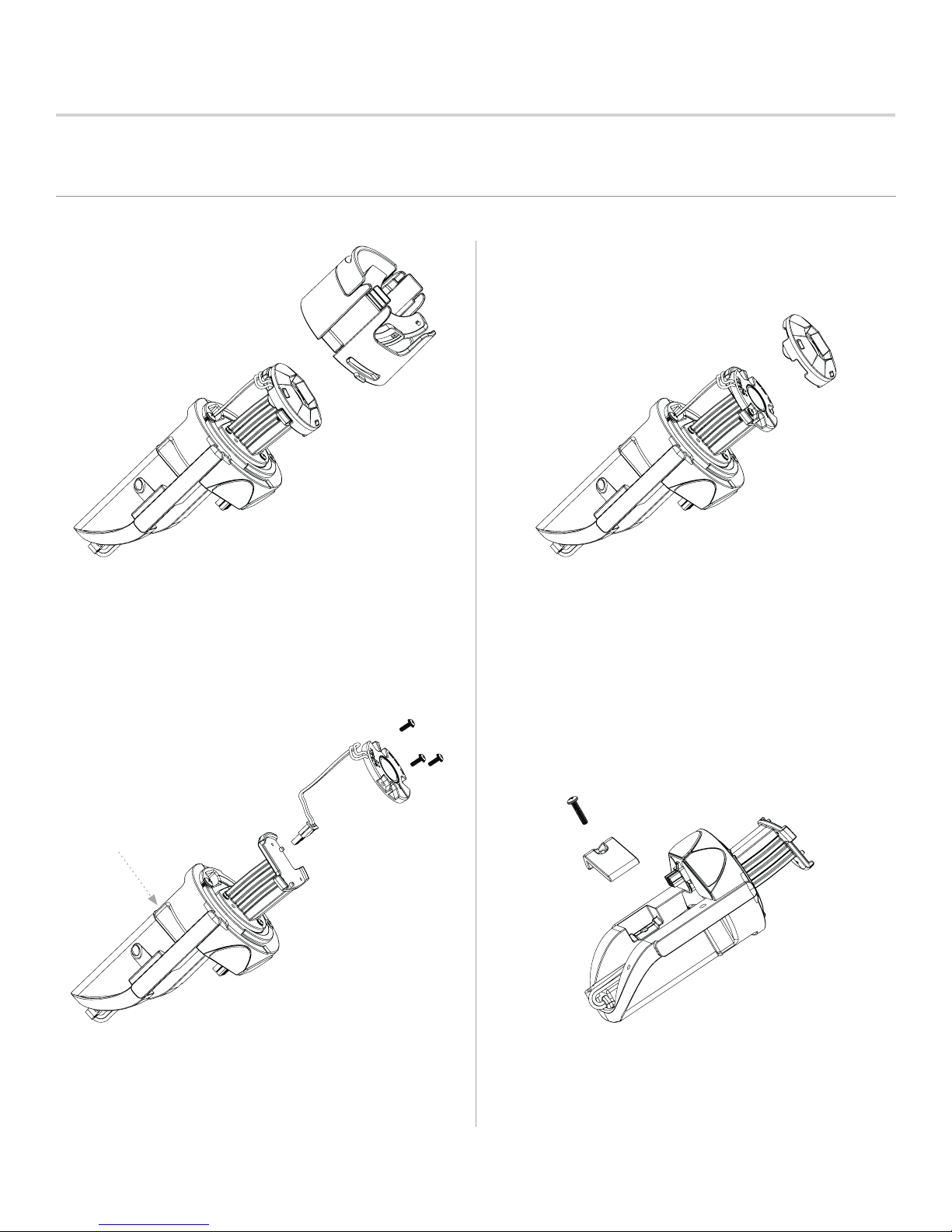

⑤ ⑥

4

NOTE: Remove adhesive label/cover from the side of the cartridge to expose driver wiring. Disconnect wire connectors between the driver and the LED module before completely removing the LED module.

Twist and agitate the upper cartridge component to remove top portion.

⑦ ⑧

Remove the driver clamp using a #2 Phillips screwdriver.

Unfasten three LED module screws using Phillips #1 screwdriver. Remove reector adapter ring and LED module from cartridge platform.

Push black, 6-pin connector downward to unlock it from the cartridge.

ARCHITECTURAL & LANDSCAPE LIGHTING | holmlighting.com Customer Service 1-844-200-4656

INSTALLATION NOTES: dCrest-13

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

D

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

4. Repair/Replacement Instructions (continued)

⑨

5

Remove driver from cartridge.

Very Wide and Wall Wash Options

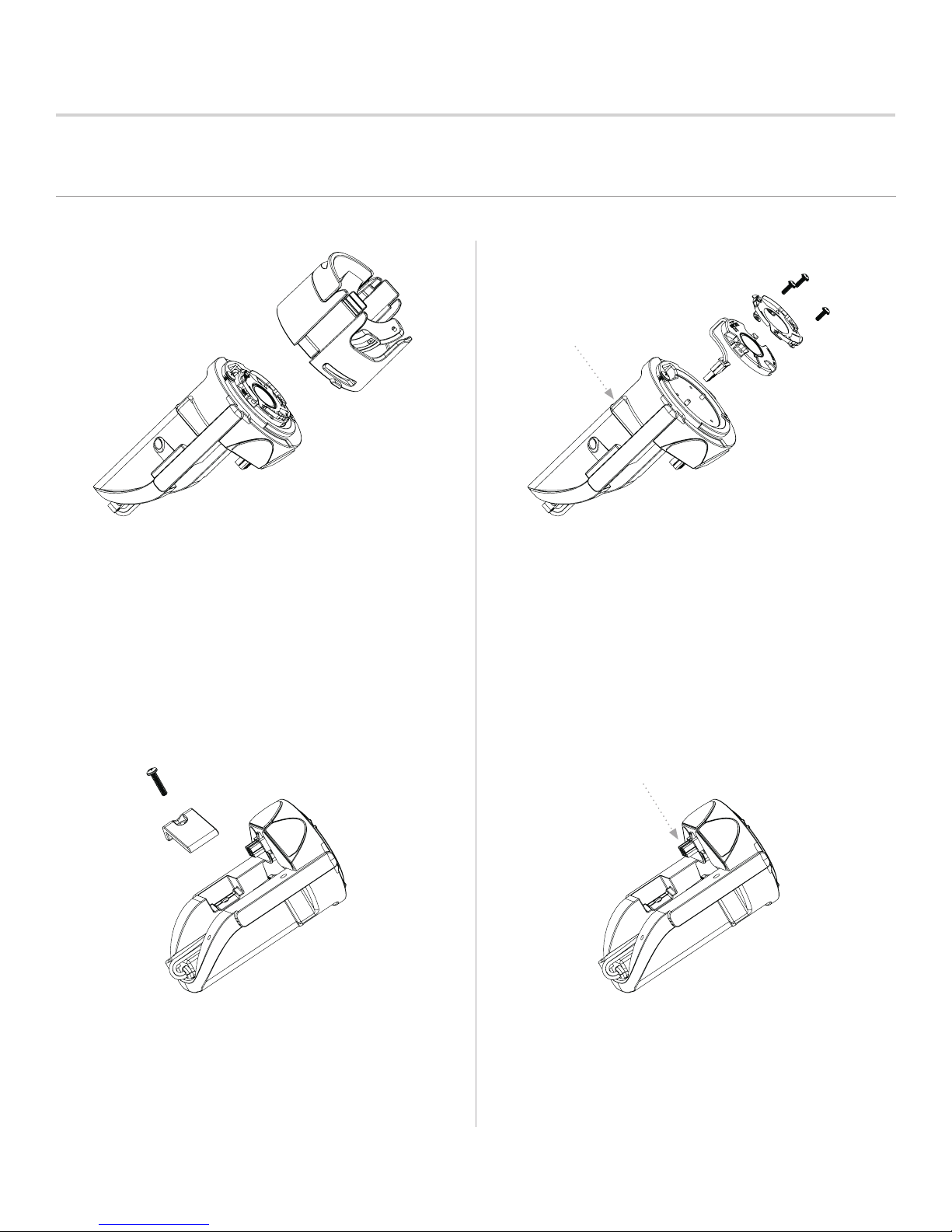

① ②

Disassemble xture using steps 1 through 2 in previous section.

Unfasten only one screw inside the cartridge using a Phillips #2 screwdriver.

ARCHITECTURAL & LANDSCAPE LIGHTING | holmlighting.com Customer Service 1-844-200-4656

INSTALLATION NOTES: dCrest-13

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

D

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

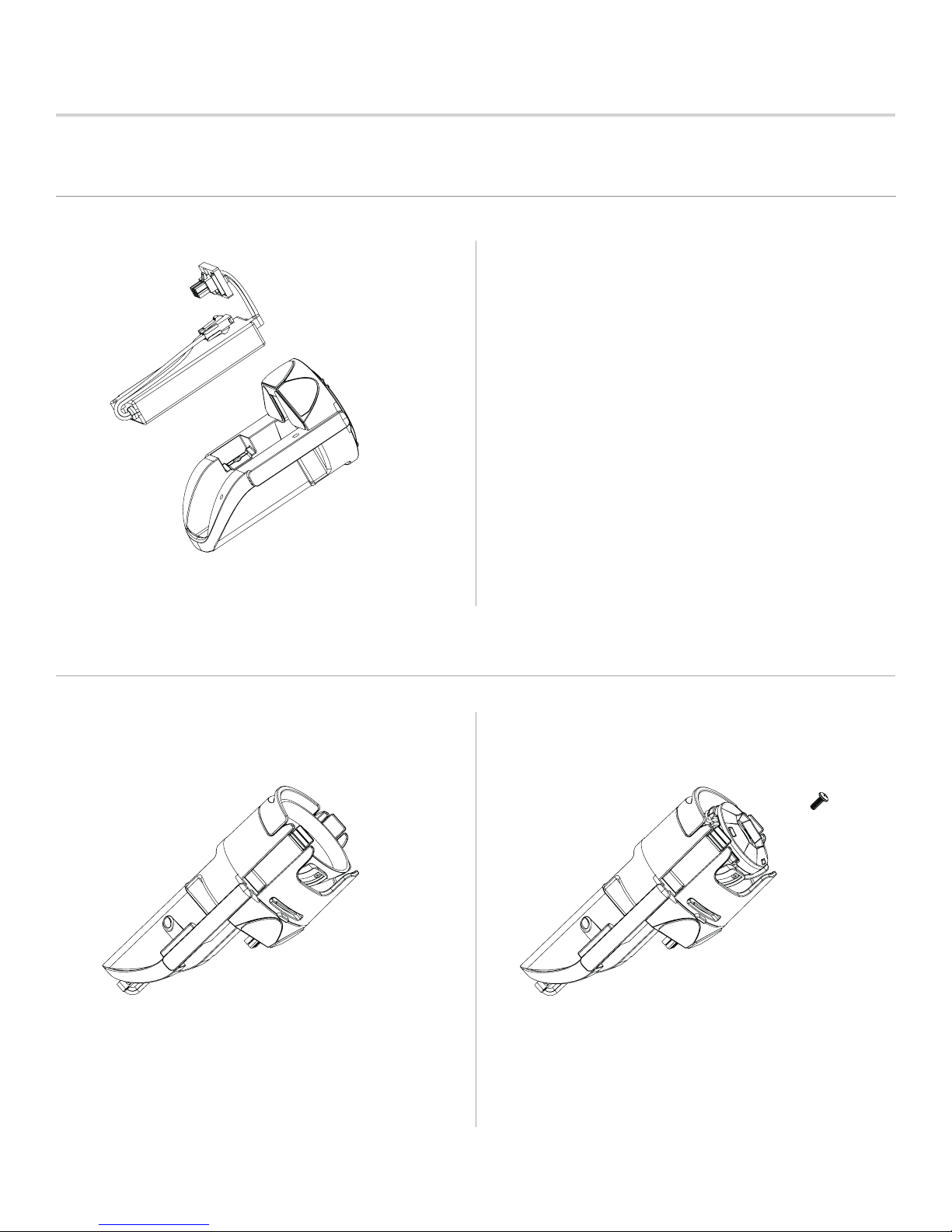

4. Repair/Replacement Instructions (continued)

③ ④

6

NOTE: use caution

Twist and agitate the upper cartridge component to remove top portion.

⑤ ⑥

Unfasten three LED module screws using Phillips #1 screwdriver. Remove reector adapter ring and LED module from cartridge platform.

NOTE: remove adhesive label/cover from the side of the cartridge to expose driver wiring. Disconnect wire connectors between the driver and the LED module.

Remove reector from LED module by inserting a precision slotted screwdriver between the module and the reector and liing outward. Repeat in a circular manner around the base of the reector until reector is disconnected.

Remove the driver clamp using a #2 Phillips screwdriver.

ARCHITECTURAL & LANDSCAPE LIGHTING | holmlighting.com Customer Service 1-844-200-4656

INSTALLATION NOTES: dCrest-13

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

B

C

D

3

2

1

THIS DRAWING/DOCUMENT CONTAINS TRADE SECRET INFORMATION OF HUNTER INDUSTRIES, INC. USE, PUBLICATION, AND/OR DISCLOSURE OF THIS INFORMATION TO THIRD PARTIES ARE ALL PROHIBITED EXCEPT AS EXPRESSLY AUTHORIZED IN ADVANCE BY HUNTER. NO PATENT LICENSE IS GRANTED TO ANY INVENTIONS DESCRIBED AND/OR ILLUSTRATED HEREIN. ©COPYRIGHT HUNTER INDUSTRIES, INC.

CONFIDENTIAL AND PROPRIETARY

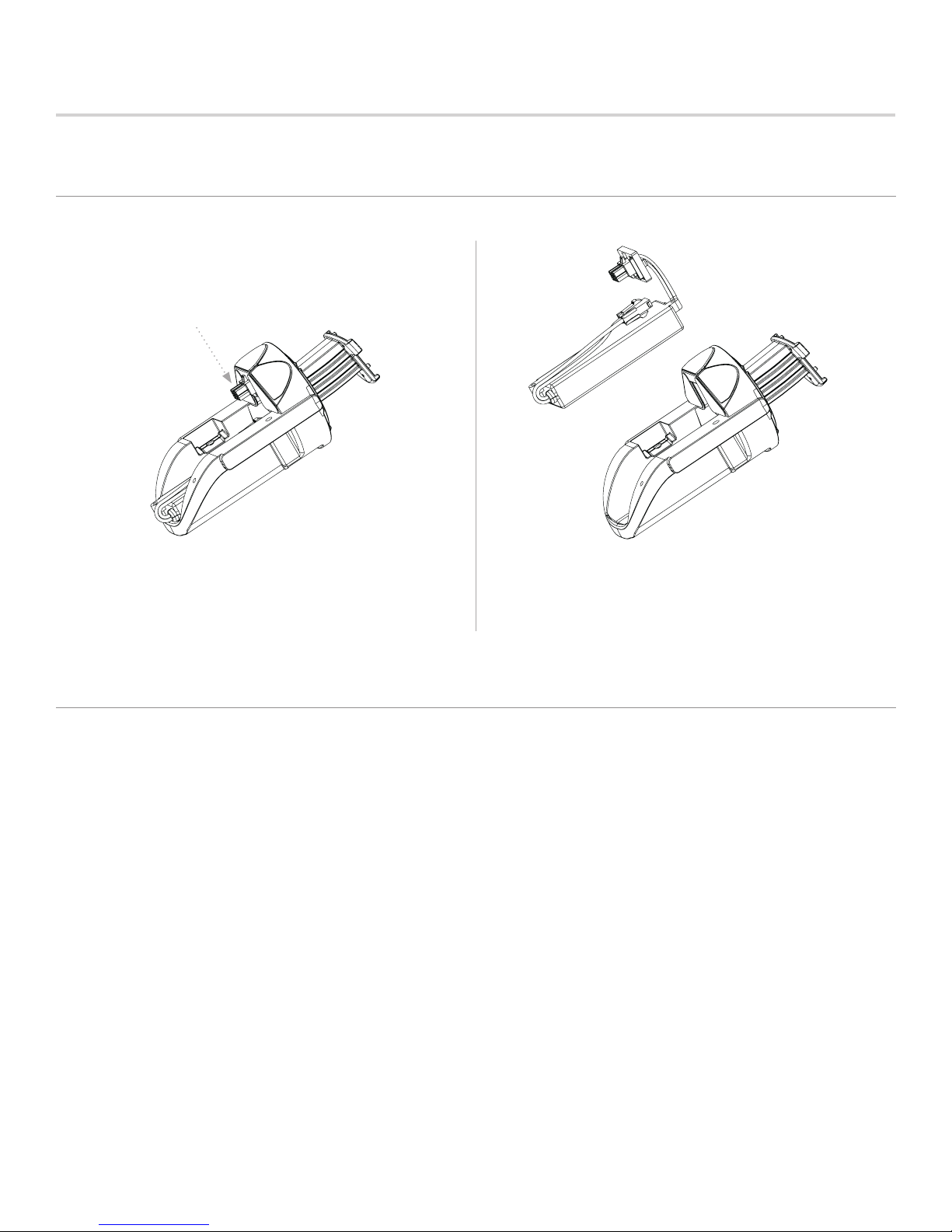

4. Repair/Replacement Instructions (continued)

⑦ ⑧

7

Push black, 6-pin connector downward to unlock it

Remove driver from cartridge.

from the cartridge.
