Holland Electronics ST-5120 User Manual

HOLLAND

ELECTRONICS LLC

Model ST5120 Hand - Held Field Strength Meter

Features:

• Selects Channels 2 – 135 CATV

2 – 79 Off-Air

Direct Frequencies 46-870 MHz using
Simple up/down arrow keys

• Measures Visual, Aural, or V-A

In dBmv or dBuv (selectable)

•

Wide Dynamic Range (-35 to +60 dBmv)

• AC Voltmeter

• 8 Hour Rechargeable NiMH battery

• Adjustable Channel Volume

• Auto Power Shut-Off, Battery Status Indicator

USER’S MANUAL

Table of Contents

Introduction……………………………………………………………………………….3

Specifications……………………………………………………………………………..3

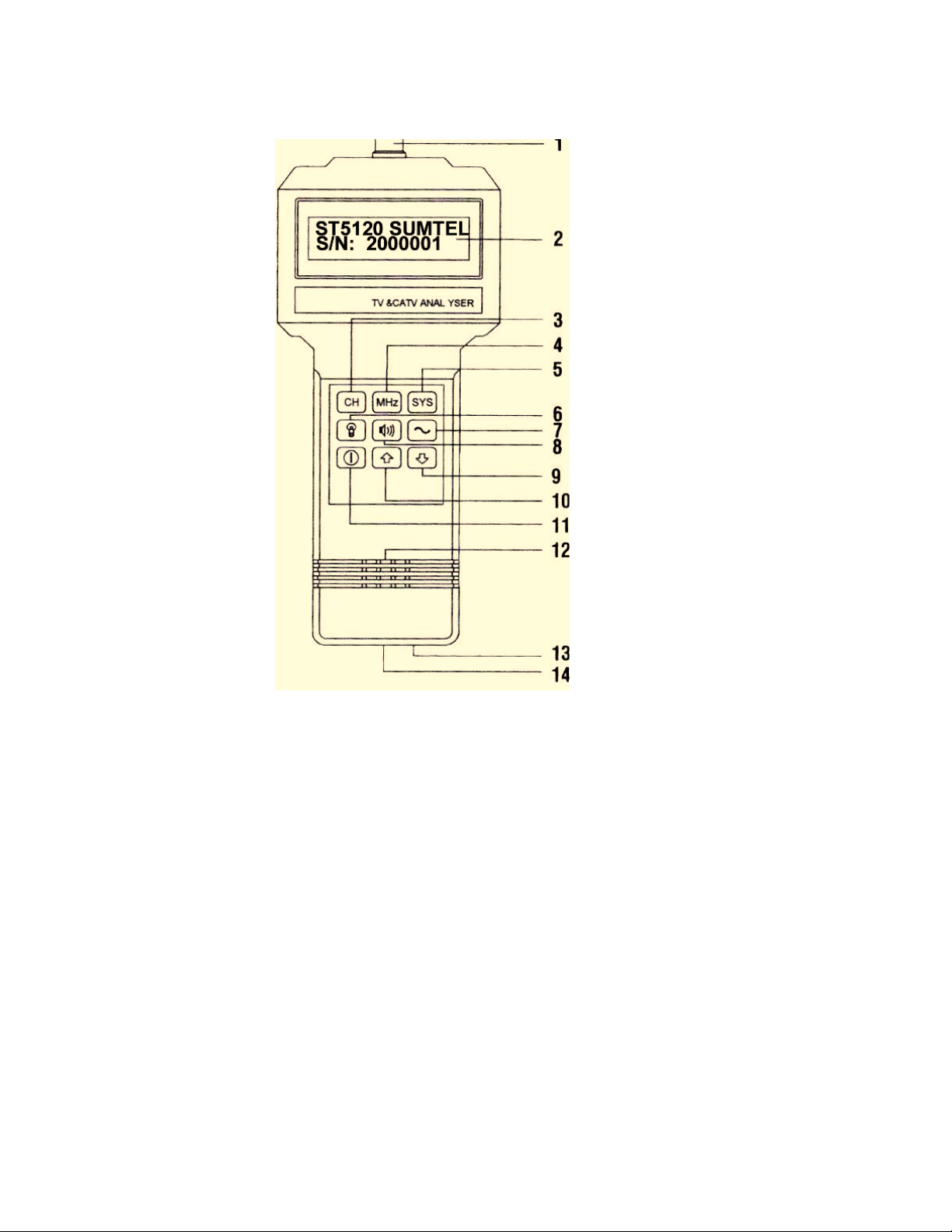

External Features…………………………………………………………………………4

Keypad Controls………………………………………………………………………….5

Powering the Meter………………………………………………………………………6

Signal Measurement……………………………………………………………………...6

Operation…………………………………………………………………………………7

Selecting USA CATV or UHF/UHF inputs……………………………………………...7

Selecting Video, Audio, or V-A measurement modes…………………………………..7

Power Level measurement in Frequency mode………………………………………….8

Volume level and LCD contrast adjustment…………………………………………….8

AC Voltage Measurement………………………………………………………………8

Care and Maintenance…………………………………………………………………..8

Warranty Information…………………………………………………………………...9

Introduction

The ST5120 hand-held Field Strength Meter uses RF signal processing techniques in
combination with microprocessor technology to produce quick and accurate signal
measurements. The meter provides the user a choice of reading individual channel video,
audio, or a-a power level measurements. Automatic/semi-automatic internal calibration
corrects for measurement variations due to frequency response, temperature change and
internal attenuator setting. The combination of keypad tuning and menu driven display
allow for simple operation.

The meter is programmed with both USA CATV and UHF/UHF NTSC standard formats.
Users can also select frequencies for signal testing. The backlit LCD allows for viewing
signal measurements even in dark places.

Specifications

Input Frequency Range 46-870 MHz
Channels 2 – 135 CATV
Channels 2 – 78 Off – Air
Frequency Stability  30 ppm

Resolution 50 KHz
Input Impedance 75

Power Level Testing

Range -35 - +60 dBmV
Accuracy ± 2.5 dBmV

Resolution 0.1 dBmV

AC Voltage Testing

Input Range 10 – 100 vac

Channel Type NTSC (6 MHz)

Input Connector
LCD Controls Contrast, Back Lighting
Screen Size 60 * 17 mm

Replaceable High Return Loss F Type

Features

Audio Adjustable Volume
Illumination Back-Lit LCD
AC Input 110V / 60Hz
Battery use 8 Hours Minimum Charge
Size (mm) 210 * 93 * 50
Weight 0.5 Kg
